EURO
QUARTZ
11.4 x 9.6 x 4.7mm 6 pad SMD
Frequency range 750kHz to 800MHz
LVDS Output
Supply Voltage 3.3 VDC
Phase jitter 2.35ps typical
Pull range from ±30ppm to ±150ppm
GDW64 LVDS VCXO
750.0kHz to 800.0MHz
DESCRIPTION
GDW64 VCXOs are packaged in a 6 pad 11.4 x 9.6mm SMD
package. Typical phase jitter for GDW series VCXOs is 2.35ps. Output
is LVDS. Applications include phase lock loop, SONET/ATM, set-top
boxes, MPEG , audio/video modulation, video game consoles and
HDTV.
SPECIFICATION
Frequency Range:
Supply Voltage:
Output Logic:
RMS Period Jitter:
Peak to Peak Jitter:
Phase Jitter:
Initial Frequency Accuracy:
Output Voltage HIGH (1):
Output Voltage LOW (0):
Pulling Range:
Control Voltage Range:
Temperature Stability:
Output Load:
Rise/Fall Times:
Duty Cycle:
Start-up Time:
Current Consumption:
Static Discharge Protection:
Storage Temperature:
Ageing:
Enable/Disable:
RoHS Status:

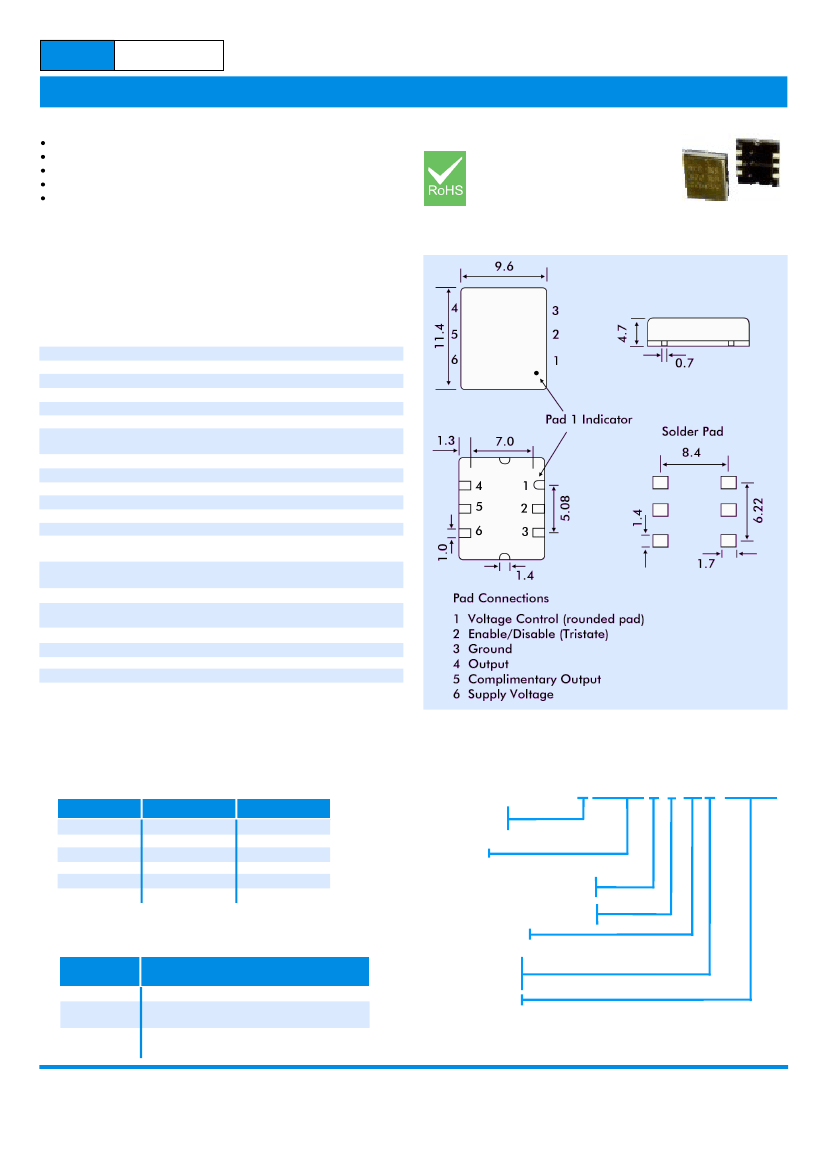

OUTLINE & DIMENSIONS
750kHz to 800.0MHz
3.3 VDC ±5%
LVDS
4.3ps typical
27.0ps typical
2.35ps typical
Tune to the nominal frequency
with Vc= 1.65 ±0.2VDC
1.4 Volts typical
1.1 Volts typical
From ±30ppm to ±150ppm
1.65 ±1.35 Volts
See table
50W into Vdd or Thevenin equiv.
0.5ns typ., 0.7ns max.
20% Vdd to 80% Vdd
50% ±5%
(Measured at Vdd-1.3V)
10ms maximum, 5ms typical
55mA typical, 60mA maximum
(At 202.50MHz)
2kV maximum
-55° to +150°C
±2ppm per year maximum
See table
Fully compliant or non compliant
PART NUMBERING
FREQUENCY STABILITY
Stability Code Stability ±ppm Temp. Range
A
25
0°~+70°C
B
50
0°~+70°C
C
100
0°~+70°C
D
25
-40°~+85°C
E
50
-40°~+85°C
F
100
-40°~+85°C
If non-standard frequency stability is required
Use ‘I’ followed by stability, i.e. I20 for ±20ppm
ENABLE/DISABLE FUNCTION
Tristate Pad
Status
Not connected
Below 0.3Vdd
(Ref. to ground)
Above 0.7Vdd
(Ref. to ground)
Output Status
LVDS and Complimentary LVDS enabled
Both outputs are disabled (high impedance)
Both outputs are enabled
Example:
3GDW64G-B-80N-60.000
Supply Voltage
3 = +3.3V
Series Designator
GDW64
RoHS Status
G = RoHs compliant
Blank = RoHS non-compliant
Stability over temperature range
(See table)
Pullability in ±ppm
Pullability determinator
N = minimum
M = maximum
T = Typical
Frequency in MHz
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
