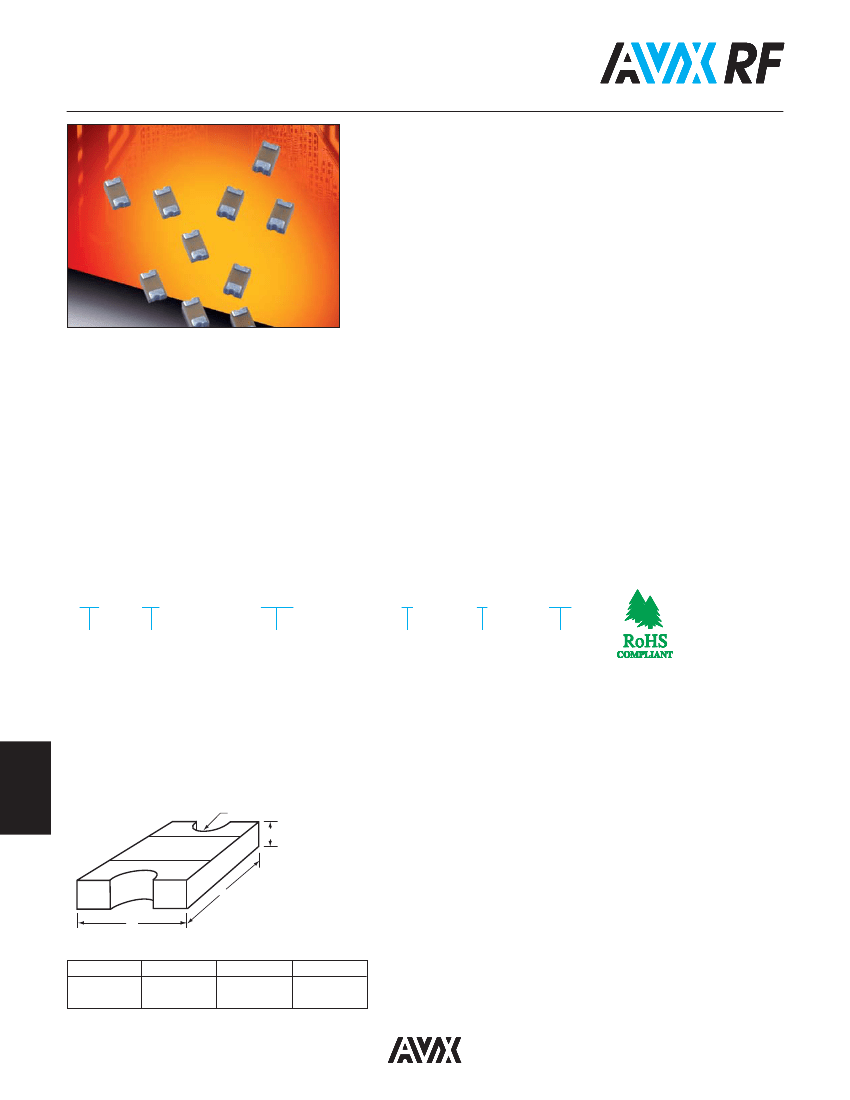

MLO
TM
Tight Tolerance Inductors
The Multilayer Organic Tight Tolerance Inductor is a low profile organic
based inductor that can support mobile communications, satellite appli-
cations, GPS, matching networks, and collision avoidance. The MLO
TM
Tight Tolerance Inductor series of components are based on AVX’s
patented multilayer organic technology (US patent 6,987,307). MLO
TM
Tight Tolerance Inductors incorporate very low loss organic materials
which allow for high Q and high stability over frequency. MLO
TM
Tight
Tolerance Inductors are surface mountable and are expansion matched
to FR4 printed wiring boards. MLO
TM
Tight Tolerance Inductors utilize fine
line high density interconnect technology thereby allowing for tight toler-
ance control and high repeatability. Reliability testing is performed to
JEDEC and mil standards. Finishes are available in RoHS compliant Sn.
APPLICATIONS
•
•
•
•
•
Mobile communications
Satellite Applications
GPS
Collision Avoidance
Wireless LAN’s
FEATURES
•
•
•
•
•
•
•
•
Tight Tolerance
High Frequency
High Withstanding Voltage
Low DC Resistance
Surface Mountable
0402 Case Size
RoHS Compliant Finishes
Available in Tape and Reel
SURFACE MOUNT
ADVANTAGES
•
•
•
•
•
Inherent Low Profile
Excellent Solderability
Low Parasitics
Better Heat Dissipation
Expansion Matched to PCB
HOW TO ORDER
HL
Style
Tight
Toleranc
02
Size
02 = 0402
XXX
Inductance
Expressed in nH
(2 significant digits + number of zeros)
for values <10nH,
letter R denotes decimal point.
Example:
22nH = 220
4.7nH = 4R7
X
Tolerance
A = ±0.05nH
B = ±0.1nH
G = ±2%
T
Termination
Sn100
TR
Packaging
5000pcs
T&R
6
DIMENSIONS
R
T
QUALITY INSPECTION
Finished parts are 100% tested for electrical parameters and
visual characteristics.
TERMINATION
L
W
mm (inches)
RoHS compliant Sn finish.
OPERATING TEMPERATURE
-55ºC to +125ºC
W
0.58±0.075
(0.023±0.003)
L
1.00±0.10
(0.040±0.004)
T
0.35±0.10
(0.014±0.004)
R
0.125±0.050
(0.005±0.002)
136
MLO
TM
Tight Tolerance Inductors
0402 ELECTRICAL SPECIFICATIONS
L (nH)
450MHz
0.8
0.9
1
1.1
1.2
1.3
1.5
1.6
1.8
2
2.2
2.4
2.7
3
3.3
3.6
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
30
32
Available
Inductance Tolerance
A = ±0.05nH, B = ±0.1nH
G = ±2%
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.05nH, ±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
Q
450MHz
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
Idc max
(mA)
450
450
420
410
410
295
295
230
295
230
230
230
230
200
200
180
180
170
150
140
115
105
95
95
85
75
75
65
65
Rdc max
(mΩ)
100
100
100
100
110
13
150
150
160
18
200
200
250
300
340
350
400
480
500
600
800
1000
1100
1200
1500
1900
2100
2200
2200
SRF min
(GHz)
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
6
5
4
4
3
3
3
2
2
Specifications based on performance of component assembled properly on printed circuit board with 50Ω nominal impedance.
6
