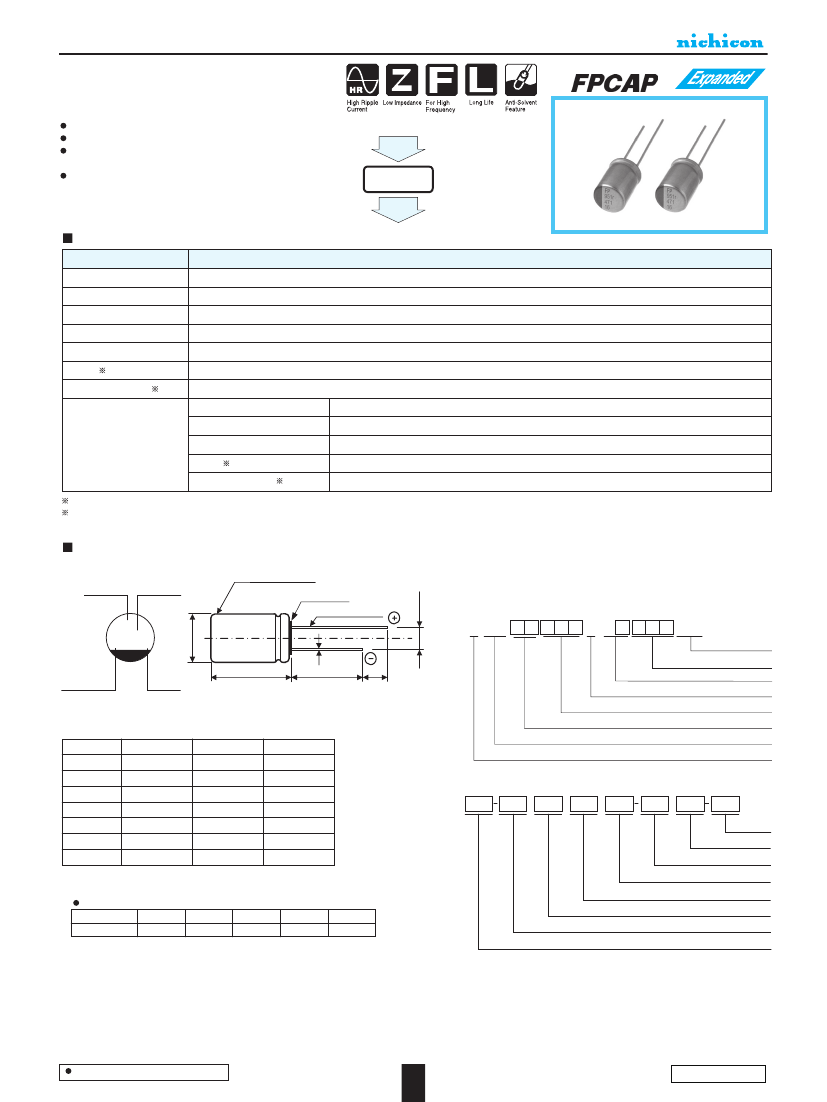

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
RNE
Specifications
Item
High Capacitance
RNU
Higher
Capacitance
Low ESR, High Capacitance, High ripple current.
Load life of 2000/5000 hours at 105°C.
Radial lead type : Lead free flow soldering condition
correspondence.
Compliant to the RoHS directive (2011/65/EU).
RNE
Higher
Capacitance
RS6
RNL
Performance Characteristics
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Tangent of loss angle (tan
δ)
ESR ( 1)
Leakage Current ( 2)
–55 to
+105°C
2.5 to 16V
100 to 1500µF
±20% at 120Hz, 20°C
Less than or equal to the specified value at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Less than or equal to the specified value.
Test condition
Capacitance change
After 2 minutes' application of rated voltage at 20°C
105°C, rated voltage 2000 / 5000Hrs.
Within ±20% of initial value before test
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Endurance
tan
δ
ESR( 1)
Leakage current ( 2)
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
Dimensions
Aluminum case
P
±0.5
Lot No.
Capacitance
φD
±0.5
MAX.
Stand off
Wire(Lead free)
Type numbering system (Example : 16V 470µF)
Nichicon part number
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16
FP5K
68Lr
471
16
R N E 1 C 4 7 1 M DN A S Q KX
Lead Forming
φ
d
L+α
MAX.
15
MIN.
4
MIN.
Control code
Product Logo
Voltage
Configuration
Capacitance tolerance (±20%)
Rated capacitance (470µF)
(mm)
Rated voltage (16V)
Series name
Type
φD×L
5×8
5×10
6.3×10
8×6
8×9
8×11.5
10×12.5
φd
0.5
0.5
0.5
0.6
0.6
0.6
0.6
P
2.0
2.0
2.5
3.5
3.5
3.5
5.0
α
1.0
1.0
1.0
1.0
1.0
1.5
1.5
FPCAP part number
FP
016
RE
471
M
NE
K
5K
Control code
Lead Forming
Series name
Capacitance tolerance (±20%)
Frequency coefficient of rated ripple current
Frequency
Coefficient
120 Hz
0.10
1 kHz
0.45
10 kHz
0.50
100 kHz
1.00
300 kHz
1.00
Capacitance (470µF)
Configuration
Voltage(16V)
Type
Dimension table in next page.
94
CAT.8100H
CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
RNE
2.5
(0E)
Dimensions
Rated
Capacitance
(µF)
Case Size
φD
×L
(mm)
tan
δ
Leakage
Current
(µA, 2min.)
Rated Ripple
ESR
Current
(m )
(mArms)
(20°C/100kHz) (105°C/100kHz)
Rated Voltage Surge
Voltage
(V)
(V)
(code)
NICHICON
FPCAP
2.8
680
820
270
8×6
8×6
5×8
5×8
8×9
8×11.5
6.3×10
5×10
8×6
8×11.5
8×11.5
8×11.5
8×11.5
10×12.5
10×12.5
10×12.5
10×12.5
0.10
0.10
0.10
0.10
0.08
0.12
0.08
0.08
0.1
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
500
500
500
500
1512
1890
440
320
500
1504
1504
1792
1792
2624
2624
3200
3200
8
8
12
10
10
10
30
35
13
10
10
14
14
11
11
10
10
4900
4900
3600
3700
5700
5400
2500
2300
4150
5400
5400
5000
5000
5600
5600
6100
6100
RNE0E681MDN1□□
FP-2R5RE681M-NE□□
RNE0E821MCNASQ□□ FP-2R5RE821M-NE□□-5KH
RNE0J271MDS1□□
RNE0J331MCS1□□
RNE0J122MDN1□□
RNE0J152MDN1□□
RNE1A221MDS1□□
RNE1C101MDS1□□
RNE1C221MDN1□□
RNE1C471MDN1□□
FP-6R3RE271M-NE□□
FP-6R3RE331M-NE□□-H
FP-6R3RE122M-NE□□
FP-6R3RE152M-NE□□
FP-010RE221M-NE□□
FP-016RE101M-NE□□
FP-016RE221M-NE□□
FP-016RE471M-NE□□
6.3
(0J)
330
7.2
1200
1500
10
(1A)
11.5
220
100
220
470
470
RNE1C471MDNASQ□□ FP-016RE471M-NE□□-5K
RNE1C560MDN1□□
FP-016RE561M-NE□□
16
(1C)
18.4
560
560
820
820
1000
1000
RNE1C561MDNASQ□□ FP-016RE561M-NE□□-5K
RNE1C821MDN1□□
FP-016RE821M-NE□□
RNE1C821MDNASQ□□ FP-016RE821M-NE□□-5K
RNE1C102MDN1□□
FP-016RE102M-NE□□
RNE1C102MDNASQ□□ FP-016RE102M-NE□□-5K
: Load life 5000hours.

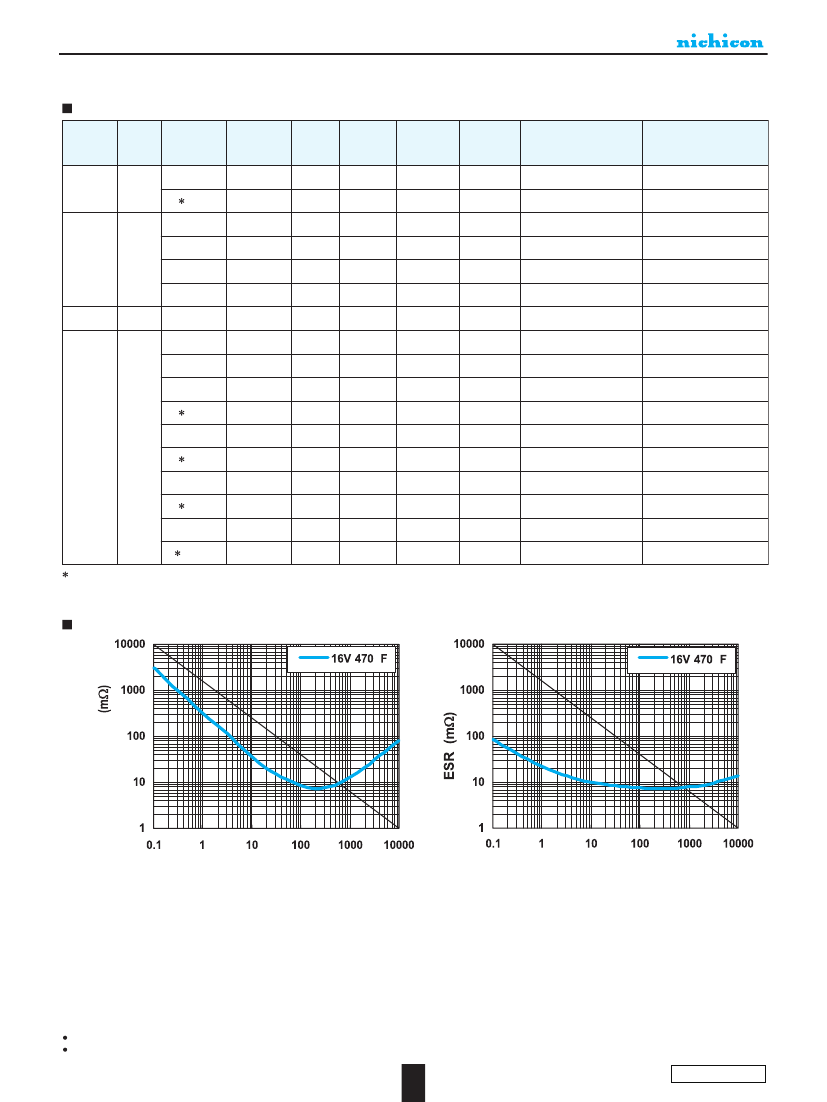

Frequency Characteristics
(The frequency characteristics are typical and not a guaranteed value.)
µ
µ
Impedance
Frequency (kHz)
Frequency (kHz)
Taping specifications are given in page 26, 27.
Please refer to page 3 for the minimum order quantity.
95
CAT.8100H
