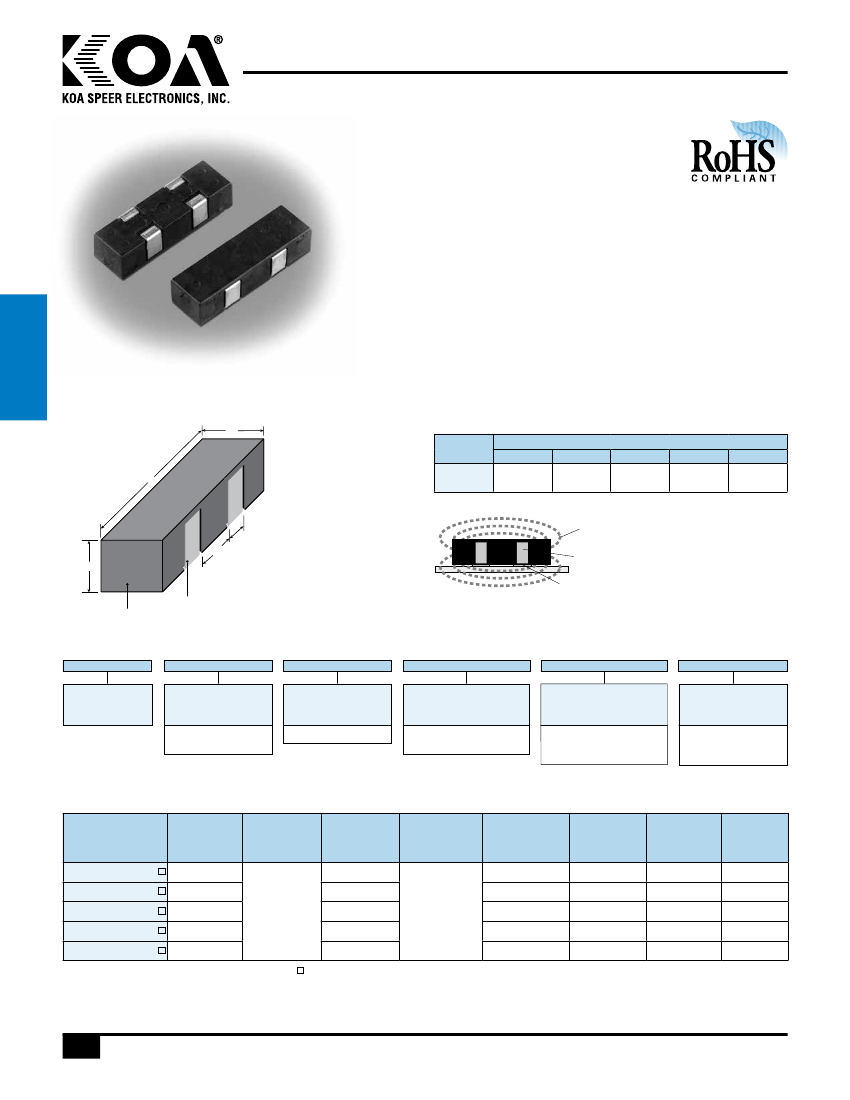

KT11835
transponder coil (Rx)
features
•
Transponder coil is arranged with
electrode in the long side of the part,
and covered with molding resin
•
Excellent high Q and high sensitivity, because neither
the electrode nor the land pattern disturb the coil flux
•
Strong resistance to vibration, shock and substrate bend
test by 4 electrode terminals structure and the molded resin
•
Small inductance change to environmental
temperature change
•
Marking: Black body color
•
Products meet EU RoHS requirements
•
AEC-Q200 Qualified
dimensions and construction
W
EU
inductors
L
d
B
t
Electrode
Molded Resin
Type
KT
B
.134 Typ.
(3.4 Typ.)
Dimensions
inches
(mm)
d
L
W
t
.059 Typ. .465±.008 .142±.008 .118 Max.
(1.5 Typ.) (11.8±0.2) (3.6±0.2) (3.0 Max.)
Magnetic flux of KT
Electrode
Land pattern
ordering information
KT
Product
Code
11835
Style
L x W x H (mm)
11.8 x 3.6 x 3.0
T
Terminal Surface
Material
T: Sn
TEG
Packaging
TEG: plastic embossed
2,500 pieces/reel
722
Nominal
Inductance
3 digits:
722: 7.2mH
123: 12mH
J
Tolerance
G: ±2%
H: ±3%
J: ±5%
For further information on packaging, please refer to Appendix A.
ratings
Type
KT11835TTEG242
KT11835TTEG402
KT11835TTEG502
KT11835TTEG722
KT11835TTEG123
Nominal
Inductance
(mH)
2.4
4.0
5.0
7.2
12
Inductance
Tolerance
Unload
Quality
Factor
Min.
32
36
32
40
45
L, Q
Measuring
Frequency
(kHz)
Self Resonant
Frequency
(kHz) Min.
700
600
DC
Resistance
(Ω)） ax.
M
32
45
75
92
119
Allowable
DC Current
(mA) Max.
30
25
22
15
12
Sensitivity
(mV/uT)
Typ.
28
35
40
55
75
G: ±2%
H: ±3%
J : ±5%
125
800
750
500
The code for inductance tolerance (G, H, J) enters
Any other inductance under 12mH is available
Operating Temperature Range: -40°C - +125°C (Self-heating is included). That the operating temperature upper limit temperature of the coil winding portions
(ambient temperature + self-heating) is (+125°C) or less.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
4/08/16
284
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
KT11835
transponder coil (Rx)
environmental applications
Circuit Construction
1
3
2
4
Characteristics
Test equipment: Agilent 4294A impedance analyzer
L−Frequency Characteristics
KT11835
KT11835
KT11835
20
20
18
18
16
16
Inductance (mH)
Inductance (mH)
14
14
12
12
10
10
7.2mH
8 8
7.2mH
Q−Frequency Characteristics
KT11835
KT11835
KT11835
70
70
60
60
50
50
12mH
12mH
7.2mH
7.2mH
12mH
12mH
Unload Q
Unload Q
40
40
30
30
20
20
10
10
00
11
2.4mH
2.4mH
66
4 4
2.4mH
2.4mH
22
00
11
10
10
100
100
Frequency (kHz)
Frequency (kHz)
1000
1000
10000
10000
10
10
100
100
Frequency (kHz)
Frequency (kHz)
1000
1000
10000
10000
Wiring Diagram of Solder Pad
Recommended wiring example
Non-recommended wiring example
Please avoid the following wiring because it leads to decrease of L and Q.
Connection between 1 and 2, and/or 3 and 4.
Performance Characteristics
Test Items
Resistance to
Soldering Heat
Rapid Change of
Temperature
Low Temperature
Exposure
High Temperature
Exposure
Moisture Endurance
Temperature
Characteristics
Performance Requirement Maximum L/L
Limit
±2%
No significant abnormality in appearance
±2%
No significant abnormality in appearance
±2%
No significant abnormality in appearance
±2%
No significant abnormality in appearance
±2%
No significant abnormality in appearance
±3%
No significant abnormality in appearance
1.9
6.8
3.0
1.9
Unit: mm
1.9
Typical
±1%
±1%
±1%
±1%
±1%
±2%
Test Methods
260°C±5°C, 10 seconds ±1second
0.8
4.6
Solder pad
Chip component
1.9
−40°C (30min.) /+125°C (30min.), 100 cycles
−40°C±2°C, 1000 hours
+125°C±2°C, 1000 hours
+60°C±2°C, 90 ~ 95%RH, 1000 hours
+20°C
-40°C, +20
+125°C
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
1/03/13
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
