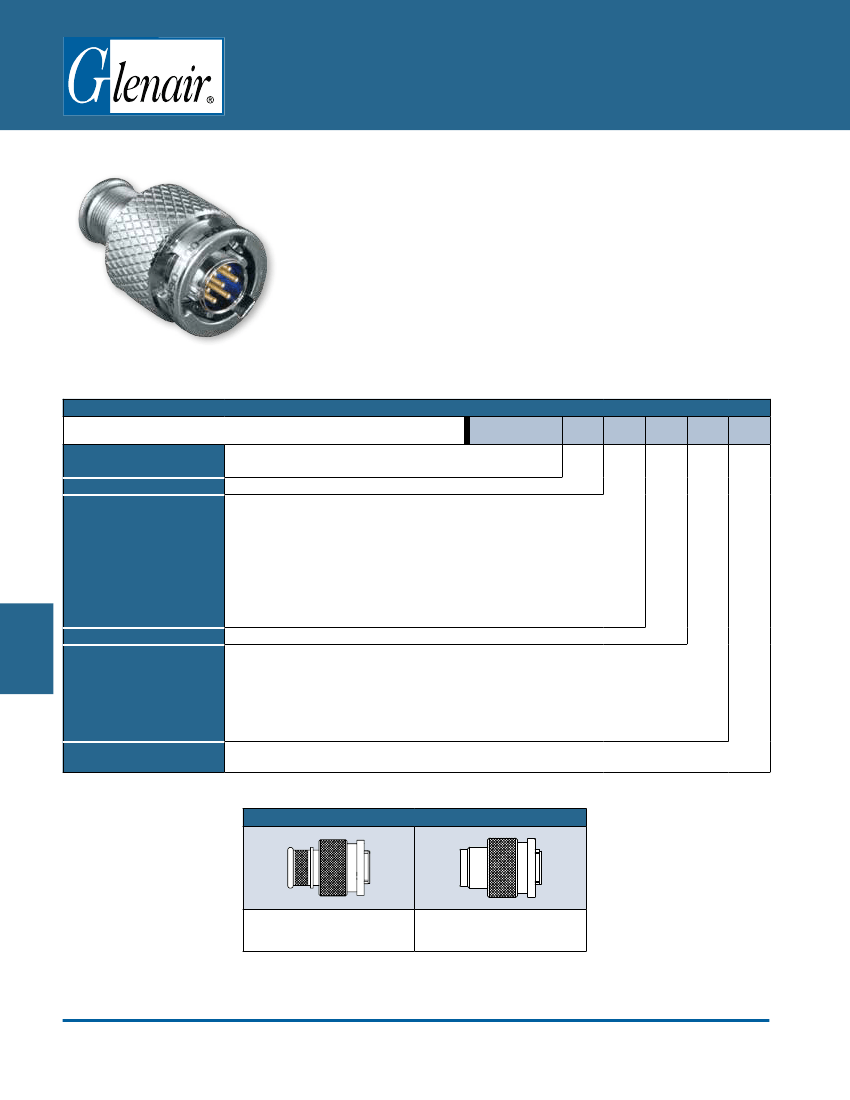

Series 803 Mighty Mouse ¼ Turn Bayonet
Plug
803-001 and 803-002 Ordering Information
Series 803 compact size and rugged design
make them suitable for light-
to-medium duty applications where water immersion is not a consideration.
Splashproof design withstands exposure to rain and condensation. Bayonet
coupling mechanism uses a rotating coupling nut on the plug and three integral
bayonet pins on the receptacle. Push to mate, then rotate the coupling nut 900 to
lock. Connector shells are machined aluminum or stainless steel. Supplied with
crimp contacts, packaged separately. Terminate contacts with standard M22520
tools. Metal clips inside the connector body lock contact into place. Contacts are
removable. Fluorosilicone seals and rear grommet protect connector from water
ingress. Terminate cable shield directly to connector body with Band-Master™ ATS
strap, or choose rear accessory thread to attach optional cable clamp or backshell.
Available in shell sizes 5 through 14 in 46 contact arrangements.
F
Series 803
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Contact Type
Shell Key Positions
(See Table II)
N
= Normal
© 2014 Glenair, Inc.
How To Order
803-001
803-001
= Plug with Banding Platform
803-002
= Plug with Accessory Thread
-06
= Plug
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
UCR
= Aluminum / Zinc-Cobalt with Black Chromate; RoHS Compliant
Shell Size - Insert Arrangement
See Contact Arrangements Page F-2
Connector supplied with contacts
P
= Pin
Connector supplied without contacts
A
= Pin Connector, less contacts
-06
NF
9-19
P
N
S
= Socket
B
= Socket Connector, less contacts
Connectors with contacts are supplied with signal and/or power crimp contacts. These contacts are not
installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
X
= Pos. X
Y
= Pos. y
Z
= Pos. Z
Table I: Series
803-001
Plug with Banding Platform
803-002
Plug with Accessory Thread
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-6
E-Mail: sales@glenair.com
