D01-9951642: DescriptionIC & Component Sockets 16 WAY 3 LEVEL SIL WIRE WRAP IC SKT; CategoryThe connector socket; File Size72KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D01-9951642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D01-9951642	-	-	View	Buy Now

D01-9951642 Overview

IC & Component Sockets 16 WAY 3 LEVEL SIL WIRE WRAP IC SKT

D01-9951642 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.1 inch
subject depth	0.193 inch
body length	1.6 inch
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn)
Contact material	NOT SPECIFIED
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SIP16
Dielectric withstand voltage	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	WIRE WRAP

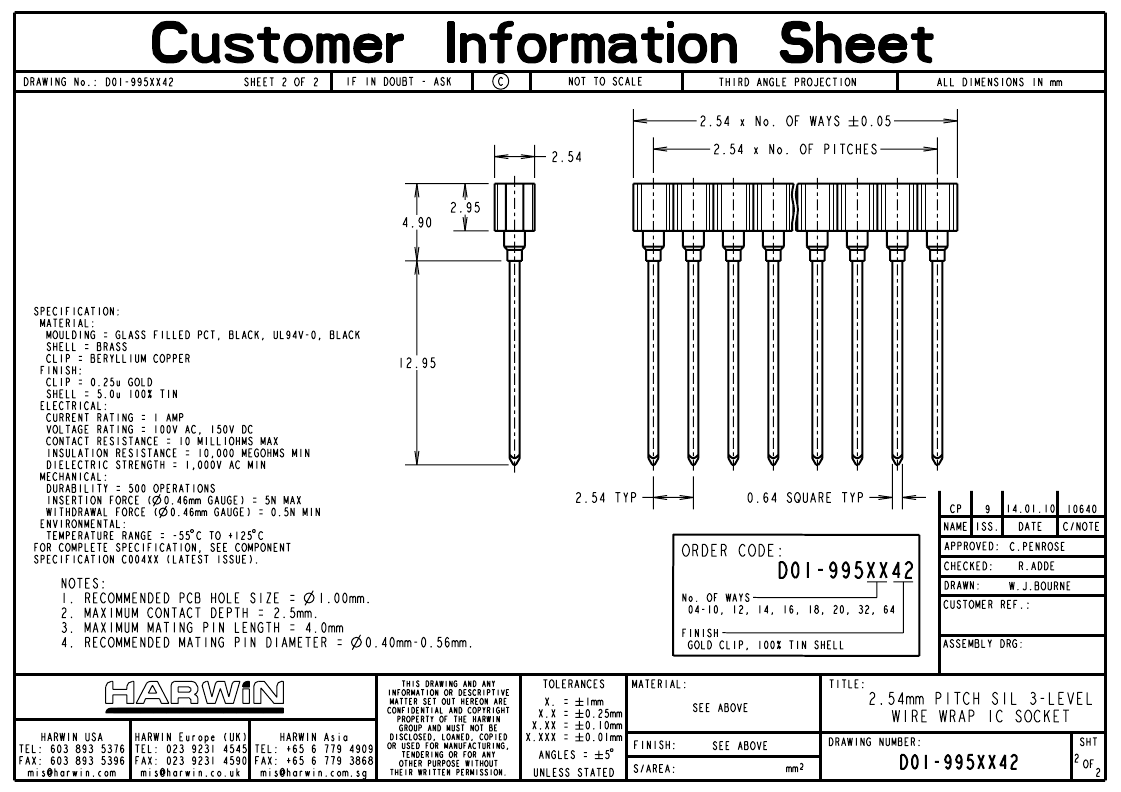

Preview

Download Datasheet

View All

D01-9951642 Related Products

	D01-9951642	D01-9950542	M8340114K2180DA	D01-9950442	D01-9950642	D01-9950942	D1208050B9761FMO	D01-9950842	D01-9951842	D01-9950742
Description	IC & Component Sockets 16 WAY 3 LEVEL SIL WIRE WRAP IC SKT	IC & Component Sockets 5 WAY 3 LEVEL SIL WIRE WRAP IC SKT	Array/Network Resistor, Isolated, 0.2W, 218ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, 8025,	IC & Component Sockets 4 WAY 3 LEVEL SIL WIRE WRAP IC SKT	IC & Component Sockets 6 WAY 3 LEVEL SIL WIRE WRAP IC SKT	IC & Component Sockets 9 WAY 3 LEVEL SIL WIRE WRAP IC SKT	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 9760ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP	IC & Component Sockets 8 WAY 3 LEVEL SIL WIRE WRAP IC SKT	IC & Component Sockets 18 WAY 3 LEVEL SIL WIRE WRAP IC SKT	IC & Component Sockets 7 WAY 3 LEVEL SIL WIRE WRAP IC SKT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e3	e4	e3	e3	e3	e0	e3	e3	e3
Maximum operating temperature	125 °C	125 °C	150 °C	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	Harwin	Harwin	-	Harwin	Harwin	Harwin	-	Harwin	Harwin	Harwin
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	-	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	-	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
subject depth	0.193 inch	0.193 inch	-	0.193 inch	0.193 inch	0.193 inch	-	0.193 inch	0.193 inch	0.193 inch
body length	1.6 inch	0.5 inch	-	0.4 inch	0.6 inch	0.9 inch	-	0.8 inch	1.8 inch	0.7 inch
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	GOLD (10)	GOLD (10)	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED
current rating	1 A	1 A	-	1 A	1 A	1 A	-	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	-	IC SOCKET	IC SOCKET	IC SOCKET	-	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP16	SIP5	-	SIP4	SIP6	SIP9	-	SIP8	SIP18	SIP7
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	-	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	-	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	16	5	-	4	6	9	-	8	18	7
Termination type	WIRE WRAP	WIRE WRAP	-	WIRE WRAP	WIRE WRAP	WIRE WRAP	-	WIRE WRAP	WIRE WRAP	WIRE WRAP
