5742.2: DescriptionDIN Rail Terminal Blocks SD-M25 Interface Module 25pole 81mm; CategoryThe connector; File Size243KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5742.2 Overview

DIN Rail Terminal Blocks SD-M25 Interface Module 25pole 81mm

5742.2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	DIN Rail Terminal Blocks
RoHS	Details
Type	Interface Modules
Current Rating	4 A
Voltage Rating	250 VAC
Wire Gauge Range	22 AWG to 12 AWG
Length	80 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Interface Modules

Connector to terminal block modules

INTERFACES CONNECTOR-TO-WIRE

Subminiature SD

Male

Module

35 or 32 mm DIN Rail Mount

TS35x7.5 70mm (2.75 in.)

TS32x15 75mm (2.95 in.)

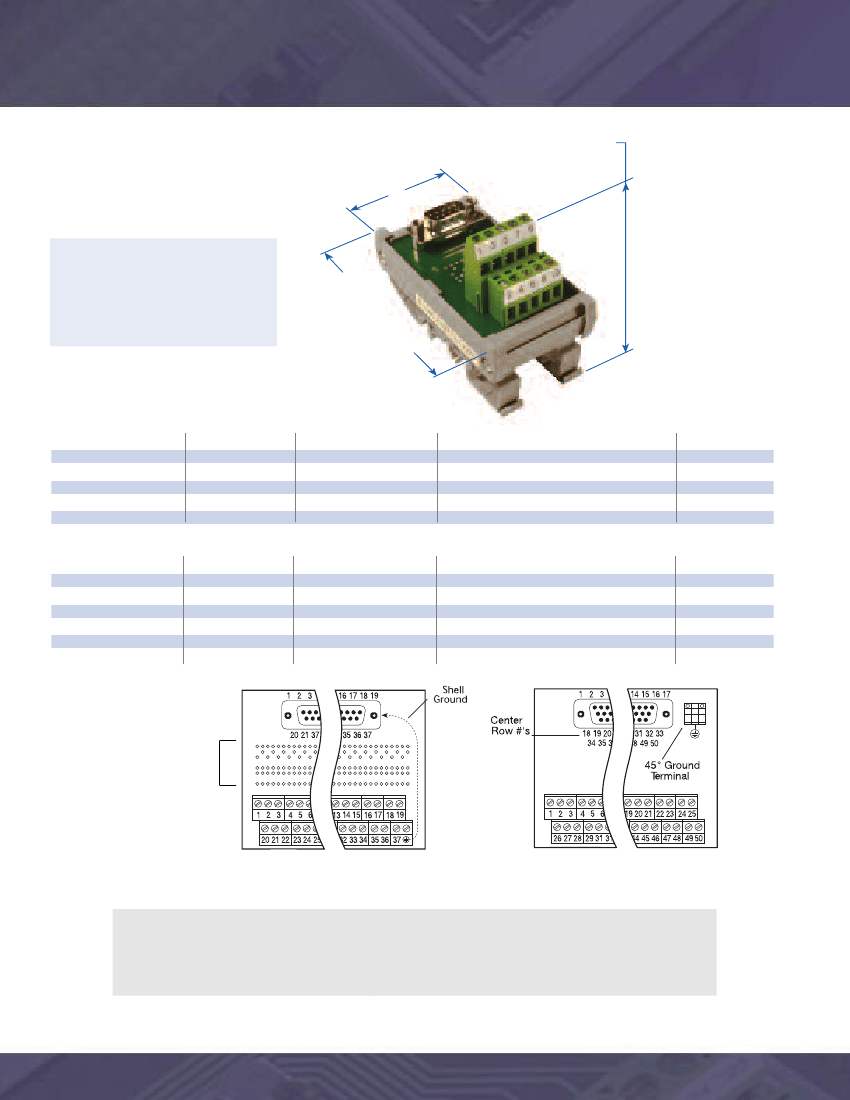

Technical Information

Current ..................4 A

Voltage ..................250V AC

Wire Range ...........0.5-4 mm

/ 22-12 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

SCREW CLAMP

Part Number

5740.2

5741.2

5741.3*

5742.2

5743.2

a,b

5744.2

Type

SD-M9

SD-M15

HDSD-M15

SD-M25

SD-M37

SD-M50

No. of Poles

Module Length (L) in mm(in.)

45 (1.77)

53 (2.09)

80 (3.15)

113 (4.45)

136 (5.35)

Std. Pk.

SPRING CLAMP

Part Number

5740.2/S

5741.2/S

5741.3/S*

5742.2/S

5743.2/S

a,b

5744.2/S

Type

SD-M9

SD-M15

HDSD-M15

SD-M25

SD-M37

SD-M50

No. of Poles

Module Length (L) in mm(in.)

45 (1.77)

53 (2.09)

80 (3.15)

113 (4.45)

136 (5.35)

Std. Pk.

PTH holes for convenient component

insertion and easy soldering.

Female Connector SD-F37

37 Pin Socket Female Connector

Shown with component counting holes

(pads are on solder side)

Other models available; please contact Altech.

Suffix ...................Description

none ....................Screw Terminal; DIN Rail Mount

/S ......................Spring Terminal; DIN Rail Mount

/P ......................Screw Terminal; Panel Mount

Female Connector SD-F50

50 Pin Socket Female Connector

Shown with no component solder pads

Suffix ...................Description

/L ......................Screw Terminal; Long Latch Connector; DIN Rail Mount

/SL .....................Spring Terminal; Long Latch Connector; DIN Rail Mount

/SP .....................Spring Terminal; Panel Mount

Example: Part Number 5727.2/L for Long Latch model.

High density version.

SD-M50 is only available with a 1.5A current rating.

SD-F50 and SD-M50 are double-sided boards and do not have component solder pads.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE

5742.2 Related Products

	5742.2	57412	5744.2	5743.2
Description	DIN Rail Terminal Blocks SD-M25 Interface Module 25pole 81mm	DIN Rail Terminal Blocks Interface Module, SD-M15	DIN Rail Terminal Blocks Interface Module, SD-M50	DIN Rail Terminal Blocks Interface Mod SD-M37 Sub-D Male 37p
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Altech	Altech	Altech	Altech
Product Category	DIN Rail Terminal Blocks	DIN Rail Terminal Blocks	DIN Rail Terminal Blocks	DIN Rail Terminal Blocks
Type	Interface Modules	Interface Modules	Interface Modules	Interface Modules
Current Rating	4 A	4 A	4 A	4 A
Voltage Rating	250 VAC	250 VAC	250 VAC	250 VAC
Wire Gauge Range	22 AWG to 12 AWG	22 AWG to 12 AWG	22 AWG to 12 AWG	22 AWG to 12 AWG
Length	80 mm	53 mm	136 mm	113 mm
Factory Pack Quantity	1	1	1	1
