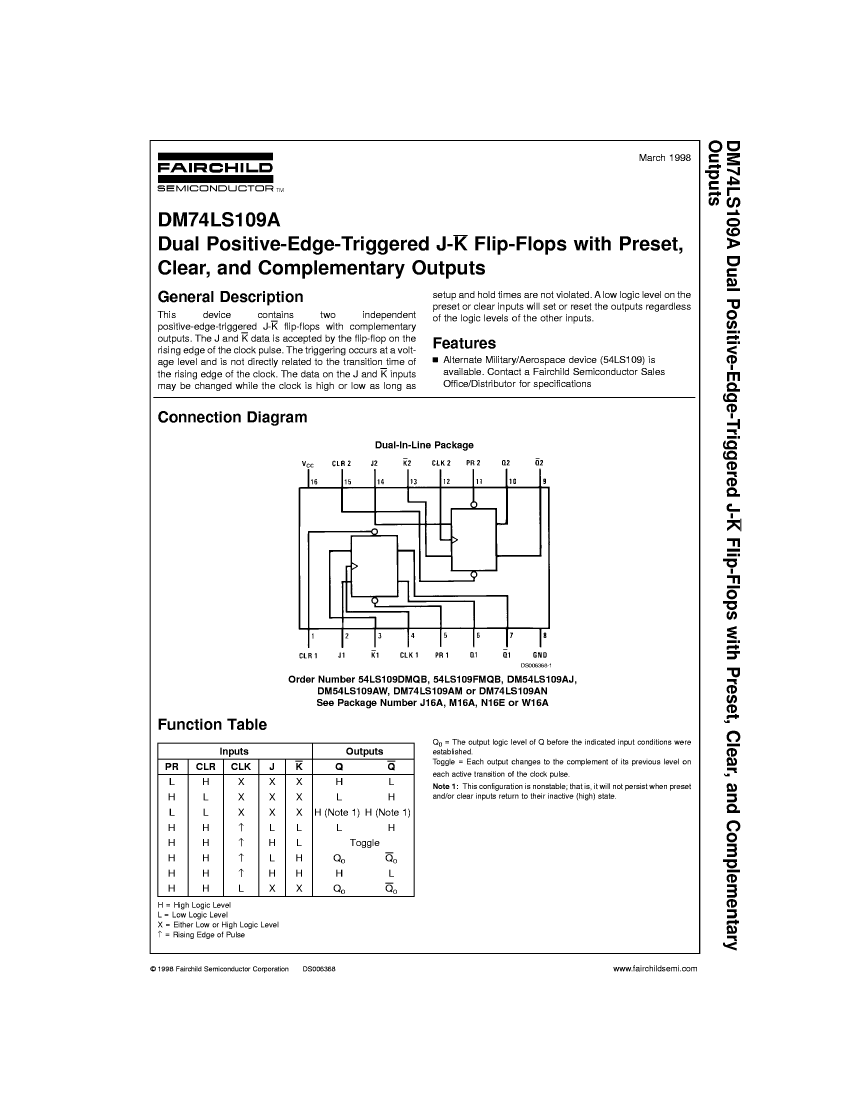

74LS109APC Overview

J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16,

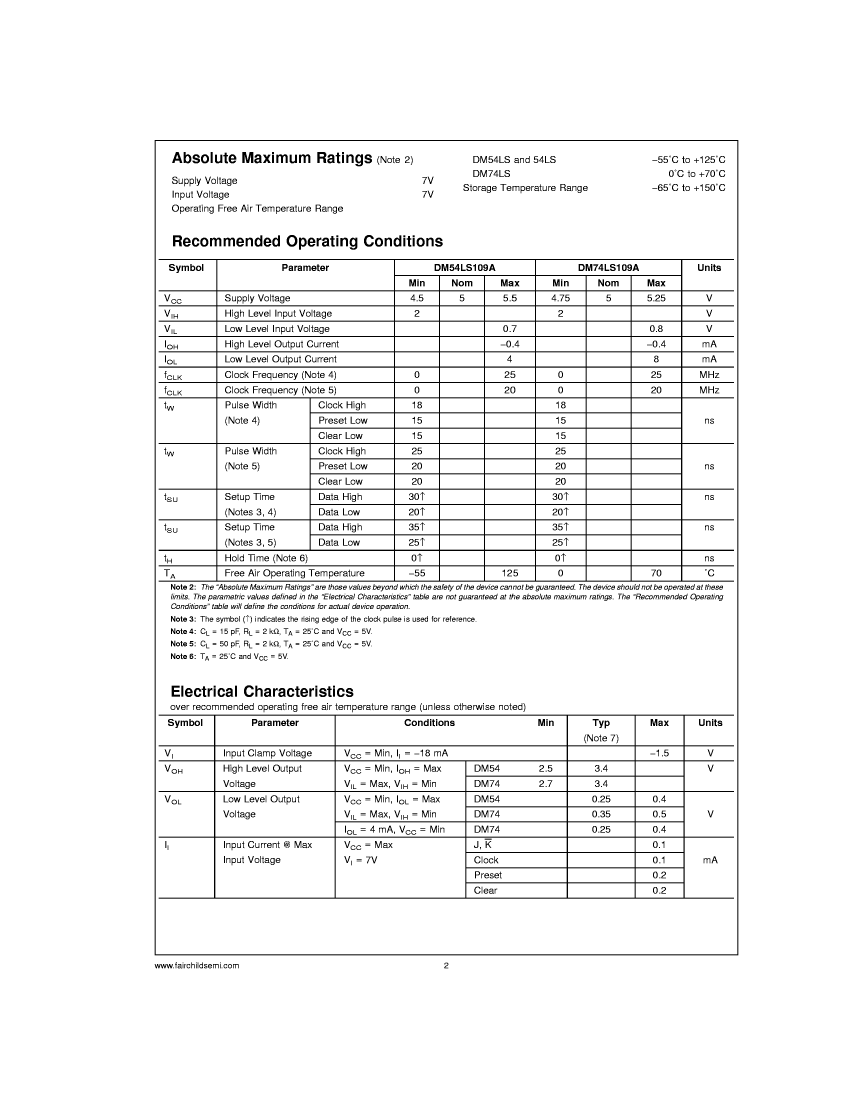

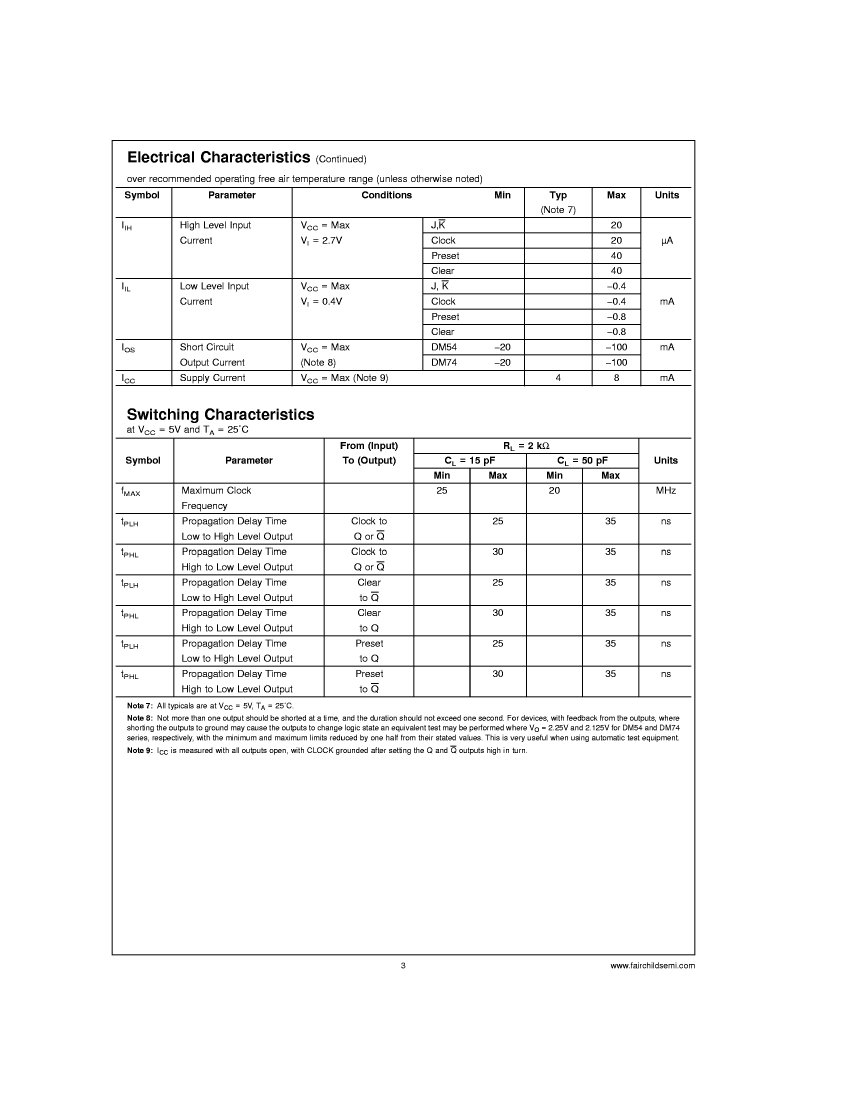

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature

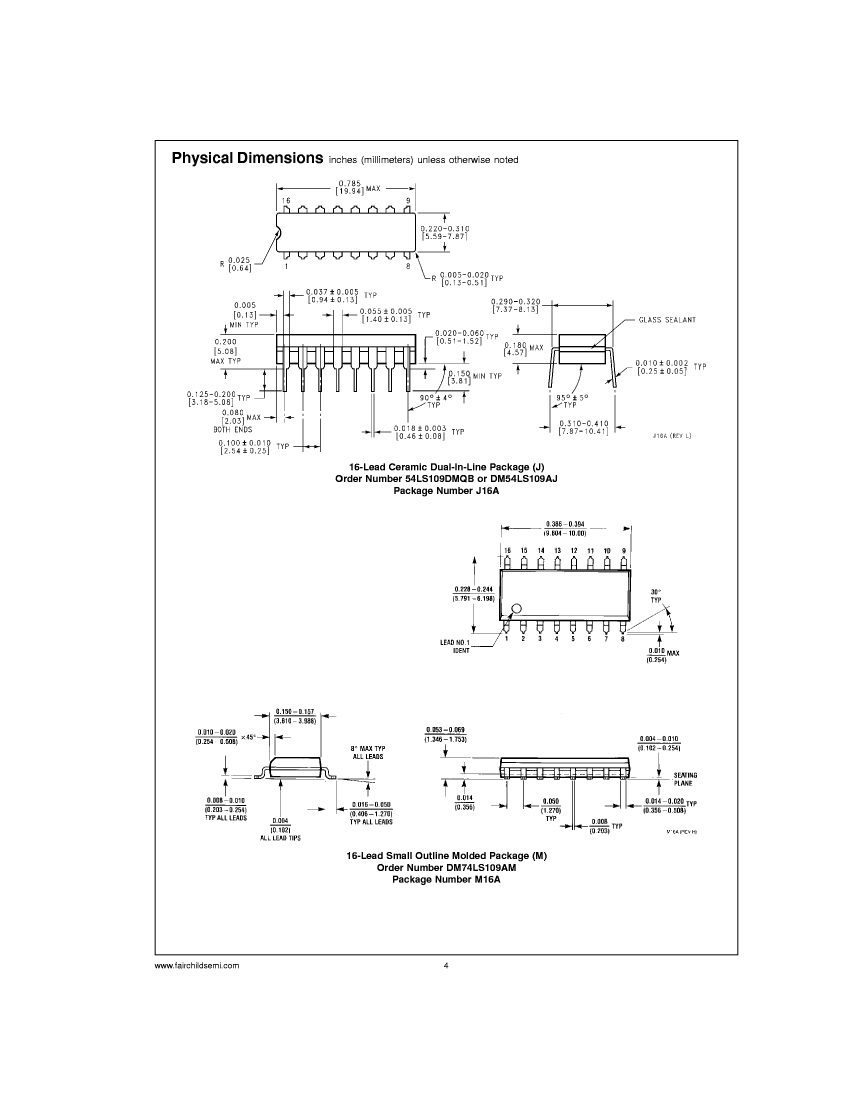

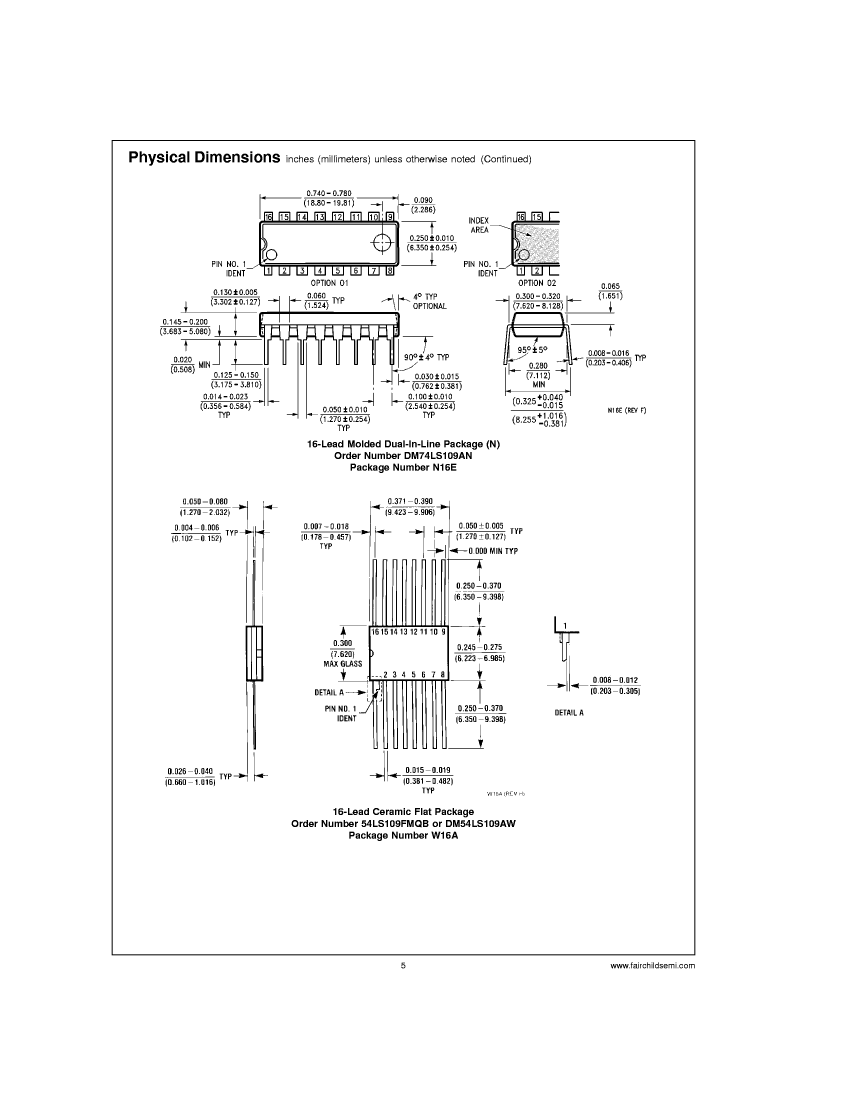

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
Base Number Matches	1

	74LS109APC	74LS109APCQR	74LS109FCQR	74LS109PCQM
Description	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16,	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16,	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16,	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-XDFP-F16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of functions	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
