40WIC-B-1A-06

Description
Automotive Connectors 40P Female Connector
CategoryThe connector
File Size425KB,5 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric Compare View All

40WIC-B-1A-06 Online Shopping

Suppliers Part Number Price MOQ In stock
40WIC-B-1A-06 - - View Buy Now

40WIC-B-1A-06 Overview

Automotive Connectors 40P Female Connector

40WIC-B-1A-06 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerJST
Product CategoryAutomotive Connectors
RoHSDetails
ProductConnectors
Number of Positions40 Position
GenderFemale
Mounting StyleWire
Termination StyleCrimp
PackagingBulk
ColorYellow
Current Rating5 A
Housing MaterialPolybutylene Terephthalate (PBT)
Number of Rows4 Row
TypeSealed Connectors/Board to Wire
Voltage Rating14 VDC
Insulation Resistance100 MOhms
Maximum Operating Temperature+ 120 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity280

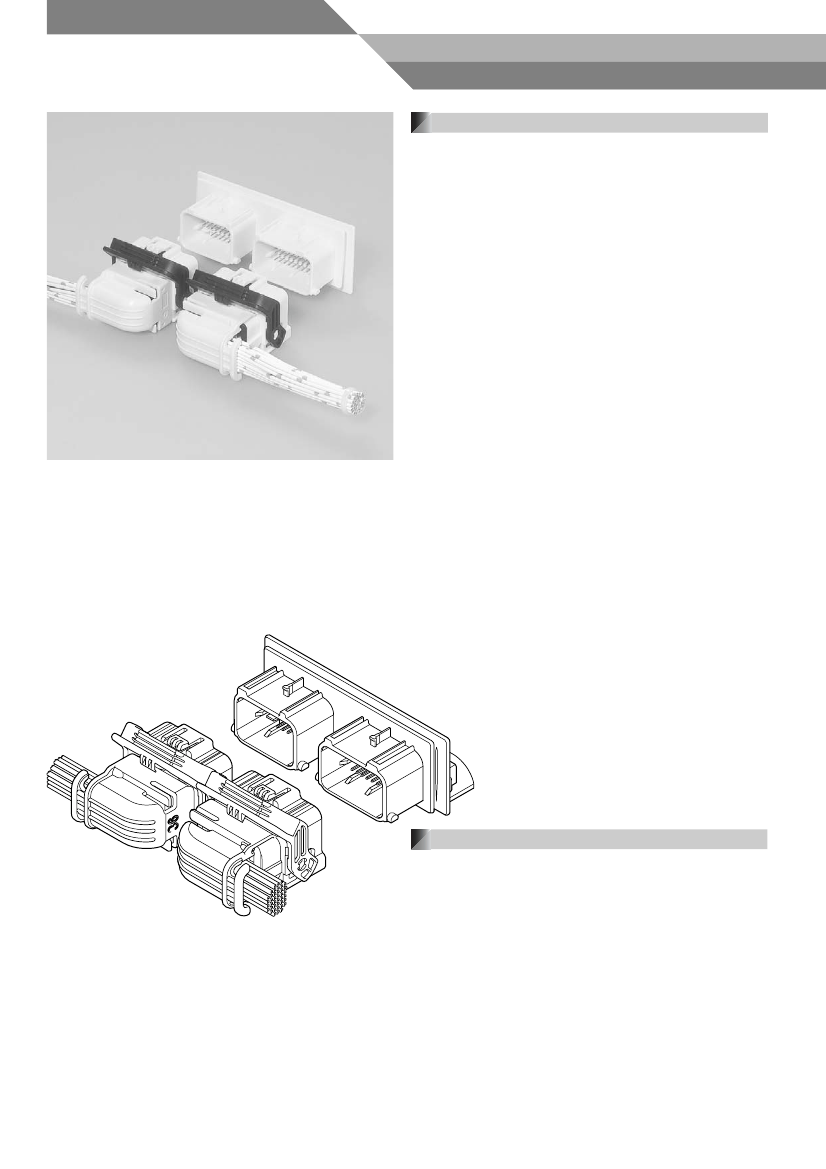

WIC
CONNECTOR
Board-to-wire/Sealed connector
Features
●Variation
Contact JST for pin arrangement/housing color/key code.

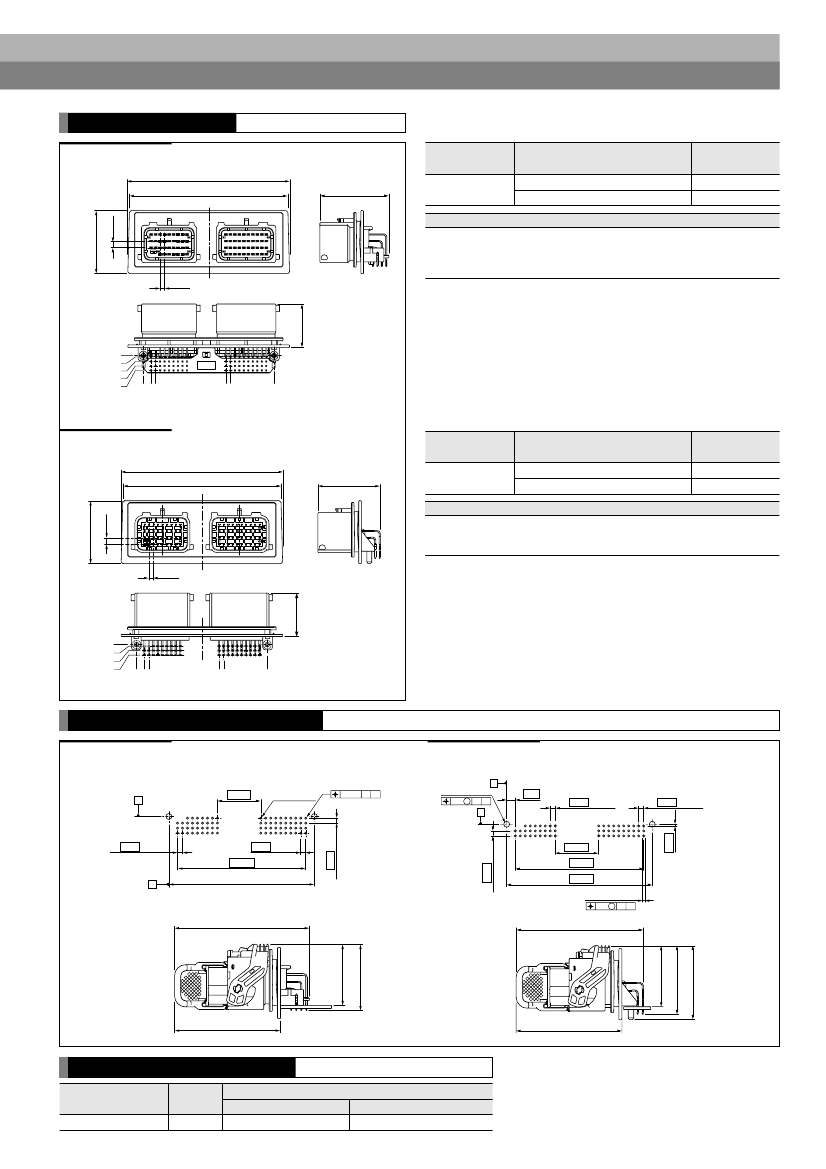

Dip type and press-fit type are available for connecting at PC
board side.

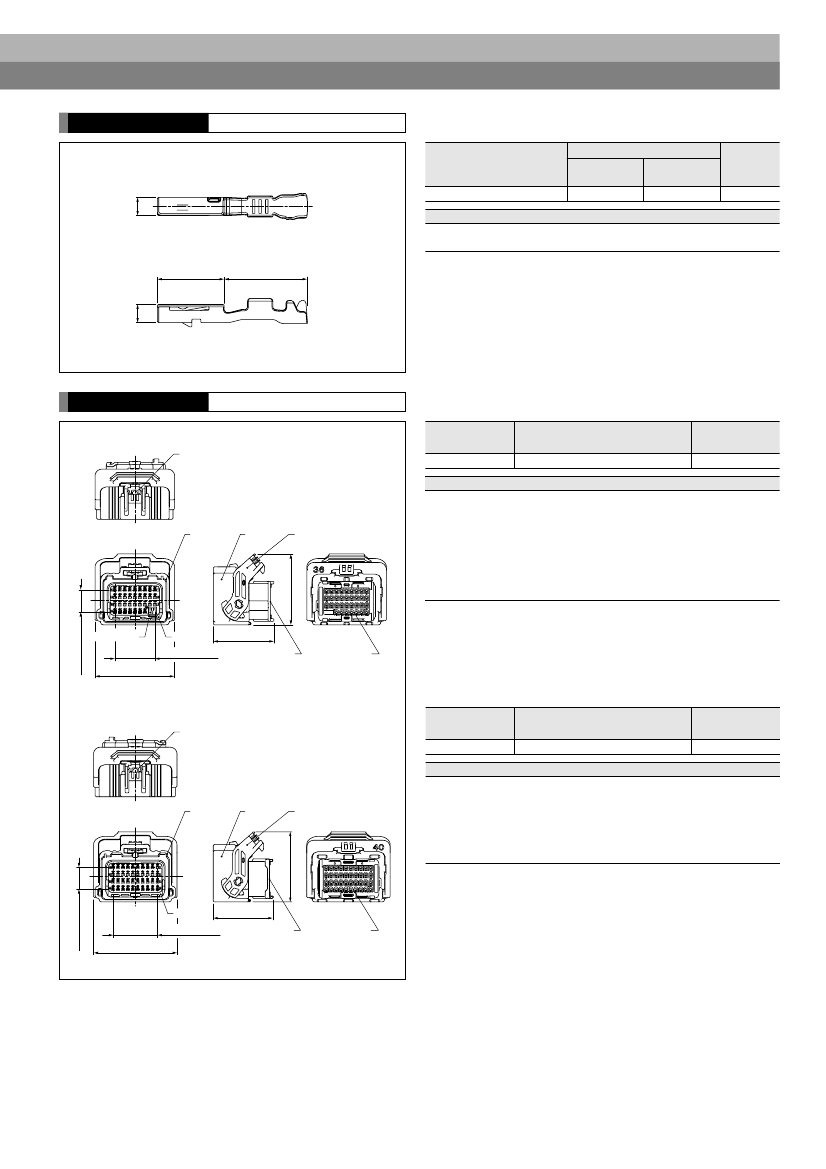

●Terminal
construction
It is designed to prevent the deformation of contact area when
processing wire harness by protecting contact area of each
terminal box.
●Mating
CPA adopted. It enables the connector to be locked securely
and prevents incomplete mating on the assembly line resulting
in improved connector retention force.
The lever mechanism is adopted to decrease the insertion force
in mating male and female.

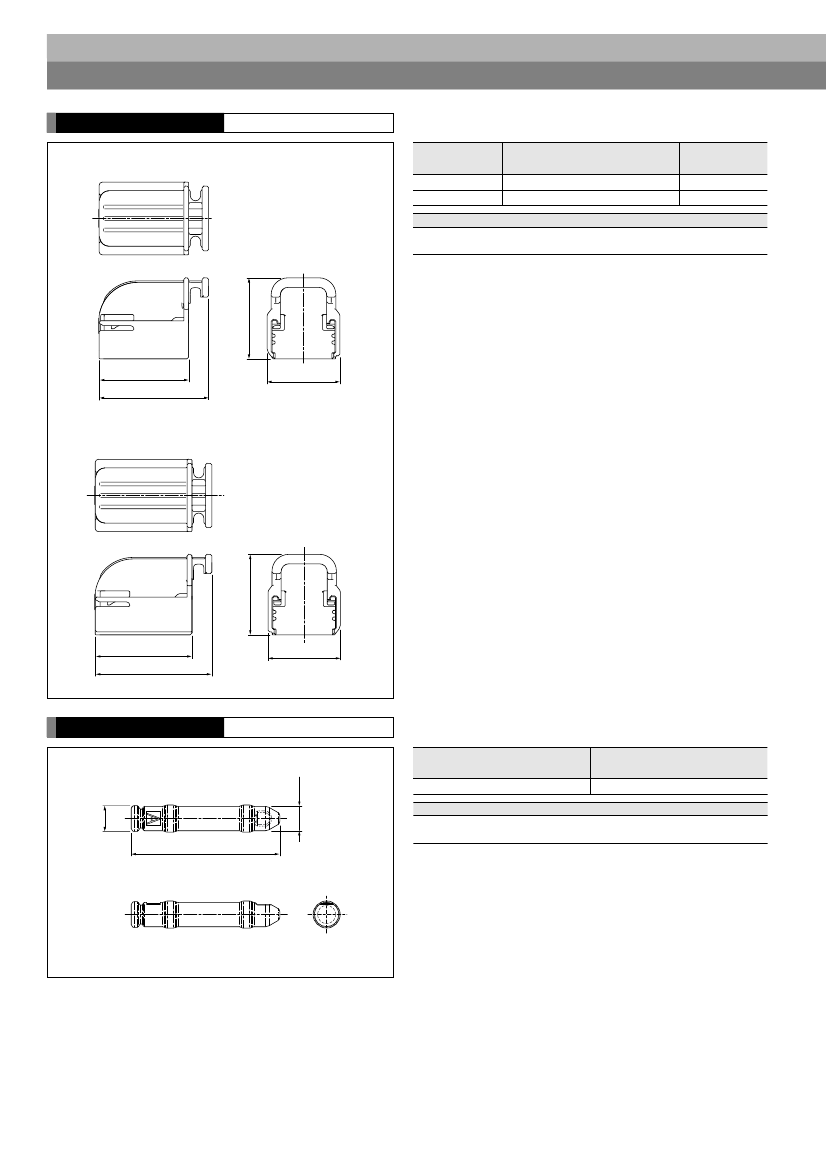

●Sealed
Mat seal is adopted for improving the workability of harness
assembling.
This is ECU I/O connector for automobile air-bag of the
miniaturization and sealed type.
This connector has the various pin arrangement/color/
key code/PC board connecting method corresponding
to needs, hence the connector type suitable for the
vehicle can be selected.
Specifications
¡Current
rating: 5 A AC, DC max.
¡Voltage
rating: 14 V DC max.
¡Temperature
range: -40°C to +120°C
(including temperature rise in applying
electrical current)
¡Contact
resistance:
Female terminal; Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
Short terminal; Initial value/ 50 mΩ max.
After environmental tests/ 100 mΩ max.
¡Insulation
resistance: 100 MΩ min.
¡Withstanding
voltage: 1,000 VAC/minute
¡Applicable
wire: AVSS/ AESSX (f)
0.5 mm
2
Compliant with ELV/RoHS.
Contact JST for details.
1
