LCC17 SERIES

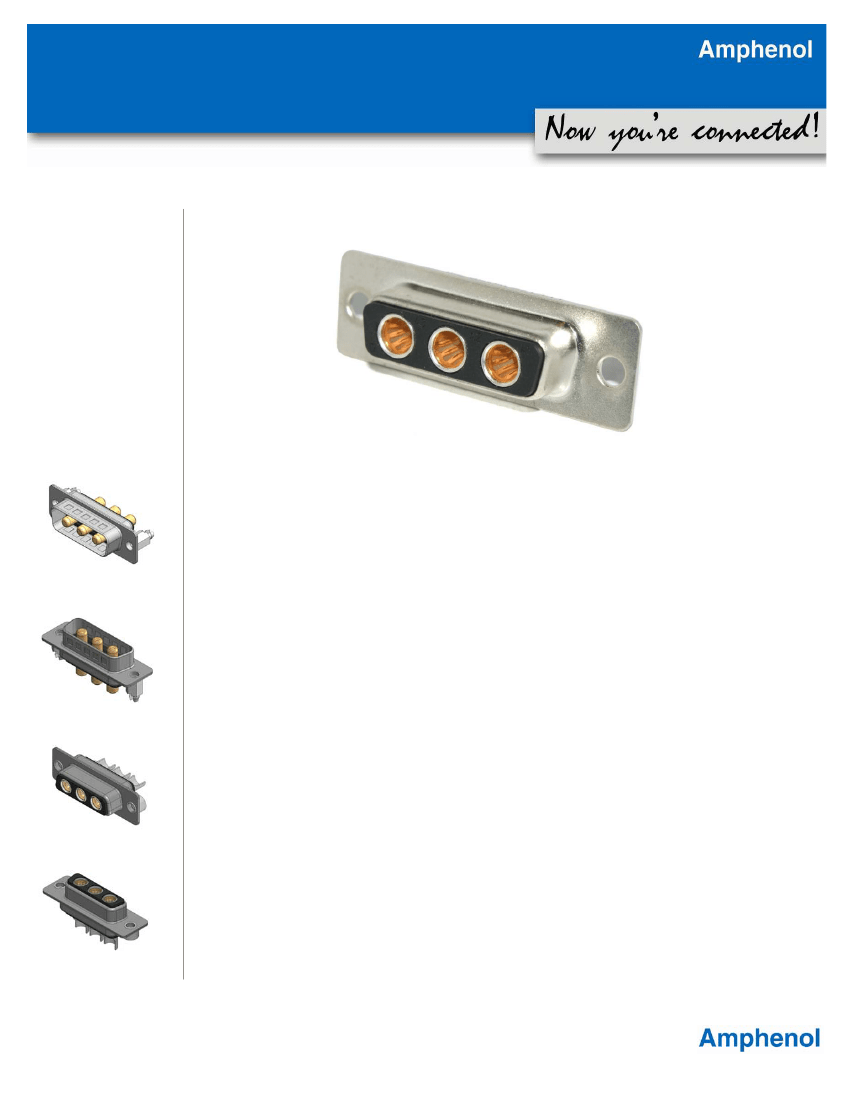

Amphenol CoolPower
®
D-sub connectors offer the familiar shape and functionality of a
combination D-subminature connector with high current, high performance Amphenol CoolBand
contact technology.
LCC17 series connectors utilize the same front shells, rear shells and mounting features found on
standard D-sub connectors, which means they are fully interchangable on a PCB, panel or cable
assembly. This allows users to upgrade to a higher performance solution without a costly re-design.
Male and female LCC17 series connectors are designed to be used together.
Initially, 3W3 arrangements in both male and female orientations are available. Additional contact
arrangments are planned, including combination power and signal versions. Various termination,
plating and mounting options are available.
Description
Applications
LCC17 is intended for use in higher amperage power supply and distribution applications where the
current handling capabilities of typical combo D-sub connectors is insufficient.
Networking, Telecom and Wireless
Power Supply and Amplifier
Industrial and Medical
Military/ Aerospace
Related Products
Amphenol manufactures
an expanding line of
CoolPower
®
connectors,
as well as standard filtered
and unfiltered combo D-
subminiature connectors to
meet all of your power
needs. Contact your local
Amphenol representative
for details
Electrical and Environmental Properties
Current Rating
o
Power Contacts: 55 Amperes (per contact)
o
Signal Contacts*: 5 Amperes (per contact)
Contact Resistance:
o
Power Contacts: 0.25 milliohms max
o
Signal Contacts*: 20 milliohms max
Insulation Resistance: 5000 Megohms
DWV: 1500V DC
Operating Temperature: -40°C to +105°C
UL, CSA, TÜV approvals pending
Mechanical Properties
LCC17 housings are designed for high temperature solder processes. Available termination styles
include right angle or vertical mount PCB solder tail, solder cup and crimp. Other termination
styles may be available (consult factory). A variety of standard mounting options are available.

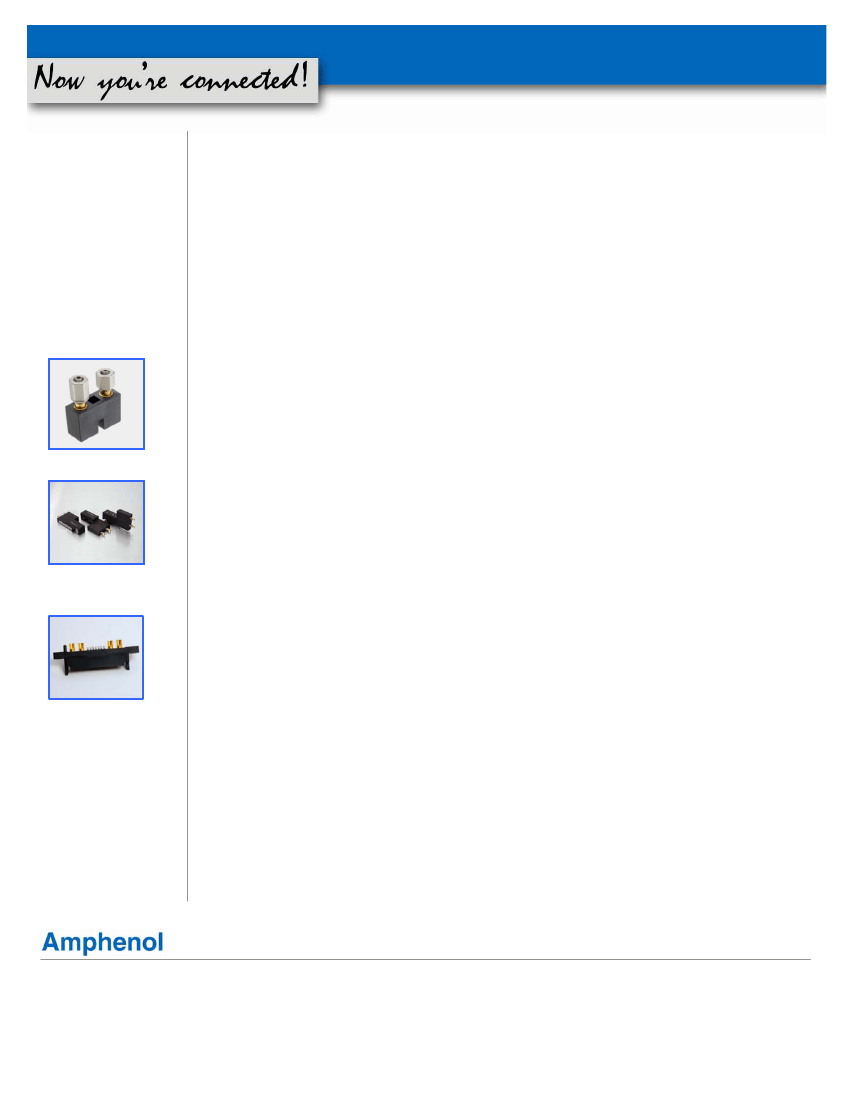

FCC22 Socket
All materials are RoHS compliant, per EU Directive 2002/95/EC and amendments
Housing: High Temperature Resistant Nylon, UL 94V-0, Black
Contacts (typical):
o
Power: Copper Alloy, gold over 50µ” nickel
o
Signal*: Phosphor Bronze, gold over 50µ” nickel on mating area
Shells: Stamped steel, tin over nickel
Mounting Hardware: Nickel Plated Steel or Brass
FCC22 Combo
Available Documents
P-LCC17-A3W3XA-XN0-REVA
P-LCC17-A3W3XE-XN0-REVA
P-LCC17-A3W3XM-XN0-REVA
Slim Drawer
Part Numbers
LCC17-A3W3PX-XNX
LCC17-A3W3SX-XNX
* First available LCC17 part numbers are 3W3 arrangements without signal contacts
