Product Data Sheet
Amphenol
®
Pre-Earth/FMLB Connectors
No. 187
Amphenol
®
Pre-Earth/First Mate Last Break
Connectors are designed for applications
where a protective circuit from the ground
contact to the shell is a safety requirement.
These connectors provide a path for any
stray voltage to be shunted to a safe ground
avoiding harm to the operator and the voltage
sensitive equipment.
Pre-Earth (ground) contact mates first and
provides safety from voltage outputs -
protects operators and sensitive circuits.
Amphenol’s DL Series Pre-Earth/FMLB
connectors are certified to European safety
standards for use in the factory automa-
tion, machine tool and process control
applications. This series is certified to be
CE compliant and is tested in accordance
with DIN VDE 0627 by the TUV Product
Service GMBH.
DL Series connectors employ shells and
inserts to MIL-C-5015 styles and arrange-
ments. They utilize solder cup contacts
and aluminum shells. When mated, these
connectors meet Class IP67 protection
against water and dust.

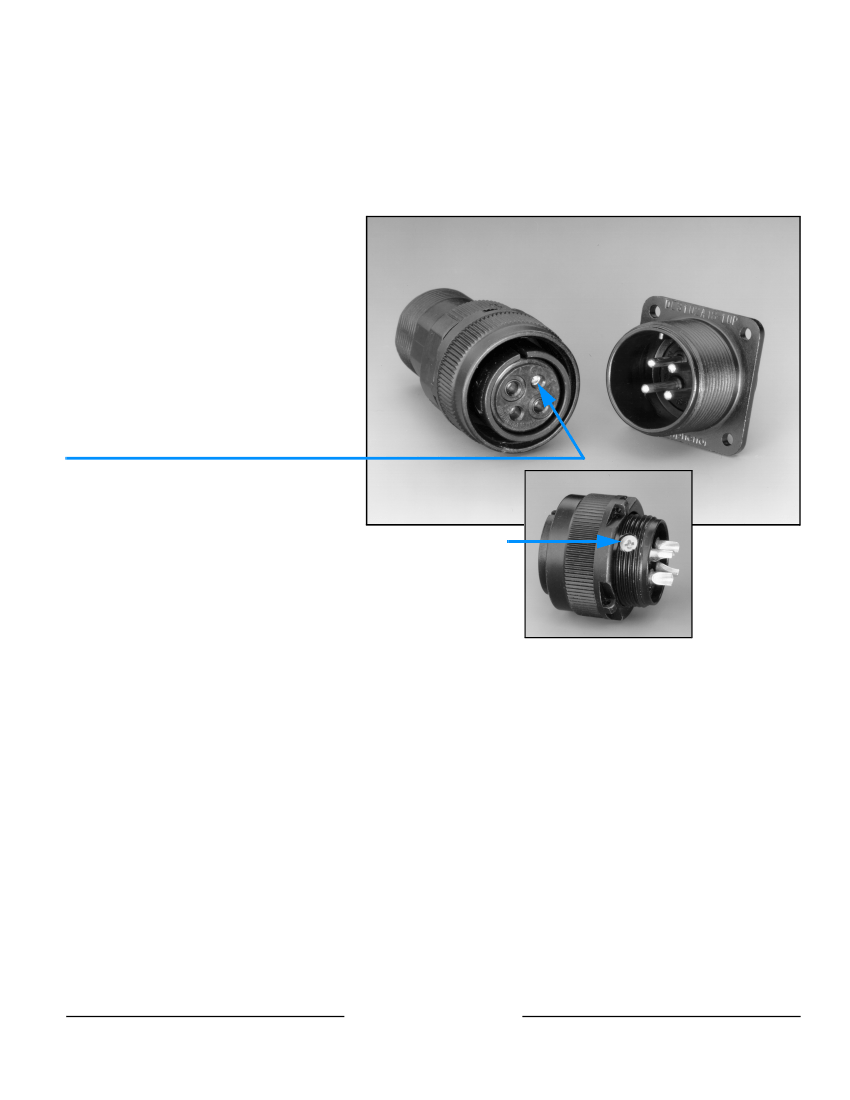

The FMLB function of these connectors is
achieved during the mating cycle of plug
and receptacle, when the longer socket
contact in the plug makes electrical
engagement prior to the mating of the bal-
ance of the contacts. Potential harm to
electronic circuits is circumvented.
Contact is grounded
to the shell.
Features of Amphenol
®
DL Series Connectors:
• MIL-C-5015 dimensions and performance where applicable.
• Conformity with European safety standards (DIN VDE 0627 and
certified through TUV Product Service GMBH) in the approved insert
arrangement. (See current available arrangements on next page)
• Offered in shell styles: 3102A box mount, 3106A straight plug, 3108A
90 degree plug.
• Intermateable with MS 5015 and 97 Series styles.
• Class IP67 protection in the mated condition.
• Main joint gasket between plug and receptacle shells provides
superior moisture sealing.
• Pre-earth (ground contact) design.
• First mate, last break capability.
• Standard plating is black zinc alloy. Green zinc plating is an available
option.
Notice:
Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but
are presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements or suggestions concerning possible use of our products are made without representation or warranty that any such use is free of patent
infringement and are not recommendations to infringe any patent. The user should assume that all safety measures are indicated or that other measures may not be required. Specifications are typical and may not apply to all connectors.
AMPHENOL is a registered trademark of Amphenol Corporation.
©2001 Amphenol Corporation
Amphenol
Printed in U.S.A.
QG
1/2001
Pre-Earth/FMLB Connectors

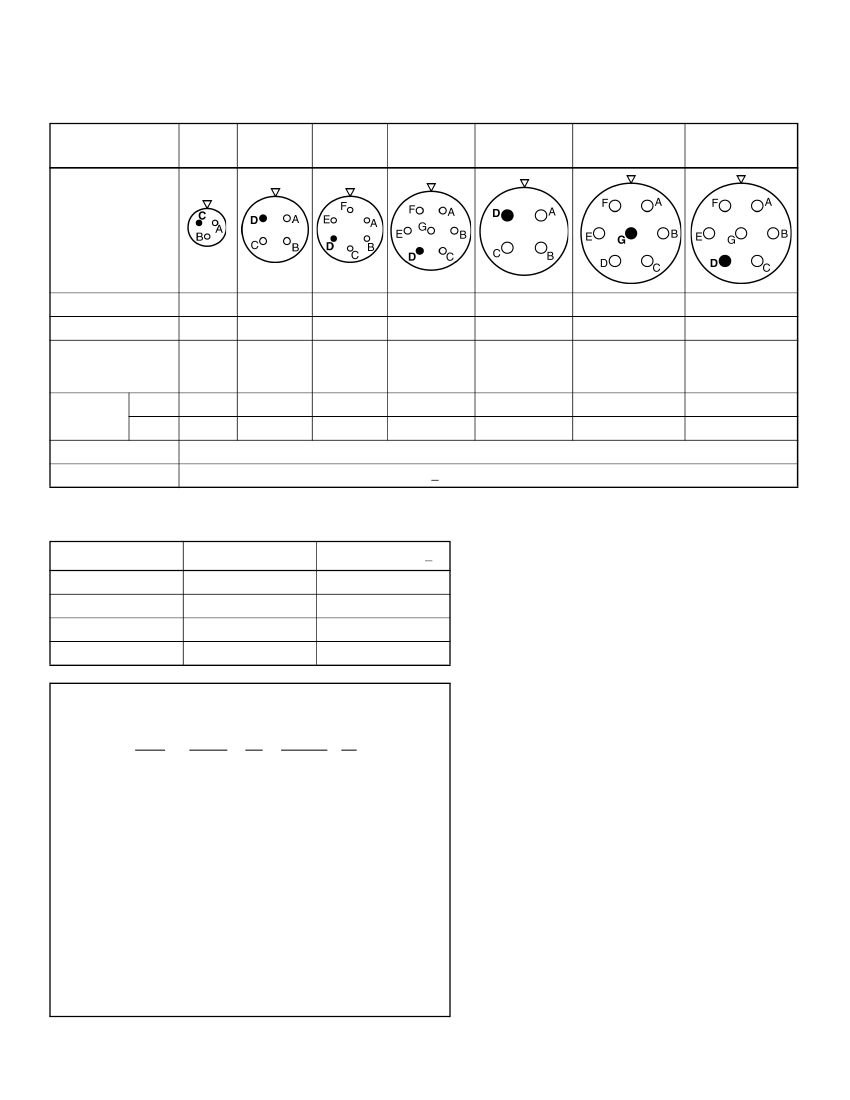

The following chart shows the currently available insert arrangements in the new Pre-Earth DL Series.
Shell and Insert
Arrangement No.
10SL-3
18-10
18-12
20-15
22-22
24-10 (G)
24-10
Arrangement
(Front View of
Pin Insert)
Contact Size
No. of Contacts
Pre-Earth
Contact Position
Voltage
Rating
DC (V)
AC (V)
#16
3
C
300
200
#12
4
D
350
250
#16
6
D
350
250
#12
7
D
350
250
2000
#8
4
D
350
250
#8
7
G
(Pre-Earth contact in
Plug only
)
#8
7
D
350
250
350
250
D.W.V. (AC Vrms)
Insulation Resistance
>5000MΩ (DC500V)
Wire Size and Current Rating
Contact Size
#16
#12
#8
#4
Wire Size
AWG #16 to #22
AWG #12 to #14
AWG #8 to #10
AWG #4 to #6
Current Rating (<)
13A
23A
46A
80A
The pre-earth connector uses standard MIL-C-5015
type accessories. For accessories such as clamps,
protection caps and adapters, consult Amphenol cata-
log for 97 series (MIL-C-5015 type) connectors (Publi-
cation No. 12-022).
HOW TO ORDER DL CONNECTORS
DL
1
1.
2.
3102
2
A
3
18 – 12
4
P
5
Connector Type
DL designates Amphenol
®
Pre-Earth/FMLB Connector
Shell Style
3102 designates box mount receptacle
3106 designates straight plug
3108 designates 90 degree plug
Service Class or special contact termination
“A” designates general duty
Shell Size and Insert Arrangement Number
See chart above for currently available arrangements
Contact Type (P designates pin, S designates socket)
For further information and assistance on ordering
Amphenol
®
Pre-Earth/FMLB Connectors,
contact your local Amphenol sales office or:
Amphenol Corporation
Amphenol Industrial Operations
40 – 60 Delaware Avenue
Sidney, New York 13838-1395
Phone: 607-563-5011
Fax: 607-563-5351
www.amphenol-aerospace.com
3.
4.
5.
