50-1518-11H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 50-1518-11H

50-1518-11H: DescriptionIC & Component Sockets DUAL ROW COLLET SOLDER TAIL 50 PINS; CategoryThe connector socket; File Size427KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

50-1518-11H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	50-1518-11H	-	-	View	Buy Now

50-1518-11H Overview

IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 50 PINS

50-1518-11H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.2 inch
subject depth	0.165 inch
body length	2.5 inch
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP52
Shell material	NYLON46
JESD-609 code	e4
Manufacturer's serial number	518
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	50
Maximum operating temperature	125 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

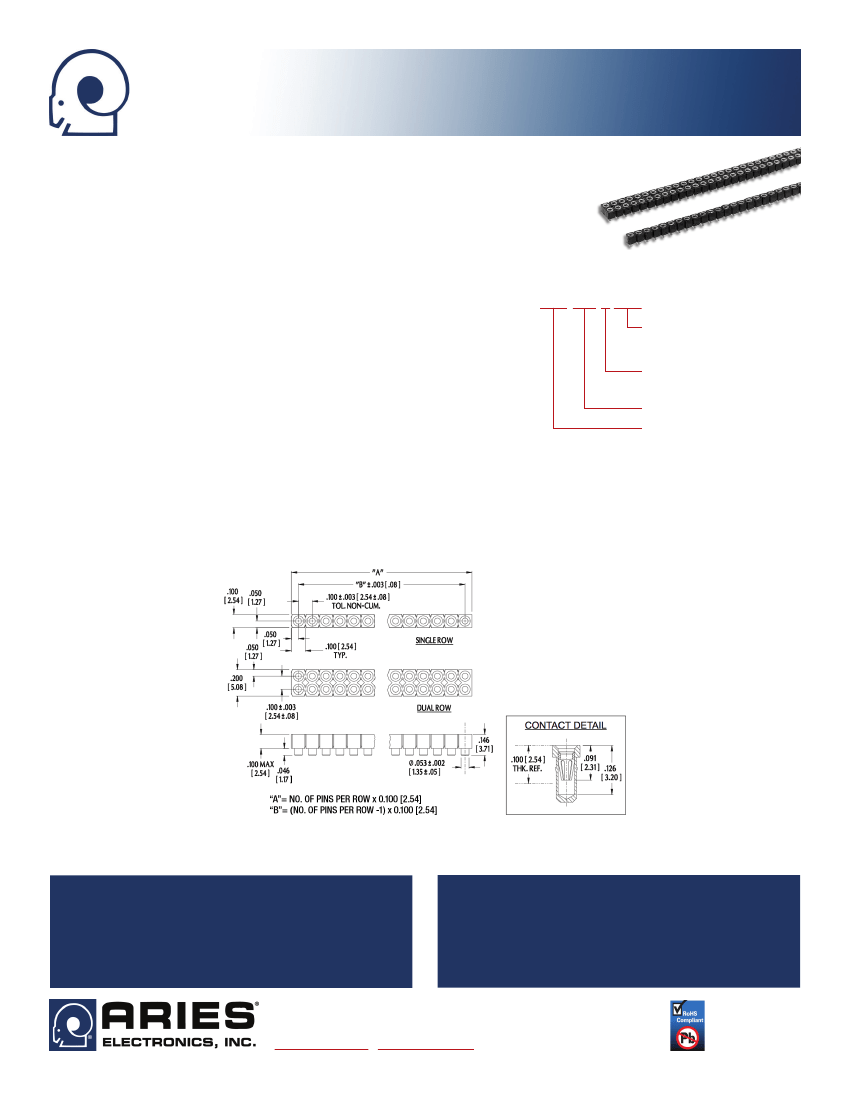

Series 518 Single & Dual Row Socket Strips

w/Collet Contacts & Surface Mount Pins

FEATURES

• Available in Single and Dual Row Strips

• Socket Strips to be cut to the number of positions desired with ‘break’ Feature

• Compatible with Automatic Insertion Equipment

• Side-to-side and End-to-end Stackable

GENERAL SPECIFICATIONS

•

BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon

•

PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05

•

PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 200µ [5.08µ] min.

93/7 Sn/Pb per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over

100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B

•

4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08

•

CONTACT PLATING: 10µ [0.25µ] Au per MIL-G-45204 over 50µ min. [1.27µ] Ni per

SAE AMS-QQ-N-290B

•

CONTACT CURRENT RATING: 3 amps

•

OPERATING TEMPERATURE:

221°F [105°C]

•

INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead

•

WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead

•

NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead

•

ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.100-0.125 [2.54-3.18] long

ORDERING INFORMATION

XXX-518-X XXX

Plating

0 = Au Collet, Sn Shell

0TL = Au Collet, Sn/Pb Shell

Termination

0 = Surface Mount

Series

No. of Rows & Pins

1 + up to 40 = Single Row

2 + up to 40 = Dual Row

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB PAD SIZE:

0.063 [1.60] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

12019

Rev. 7.1

1 of 1

50-1518-11H Related Products

	50-1518-11H	54-1518-11	48-1518-10	54-1518-10	60-1518-11	48-1518-11H	48-1518-11	50-1518-10H	44-1518-10H
Description	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 50 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 54 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 48 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 54 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 60 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 48 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 48 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 50 PINS	IC & Component Sockets DUAL ROW COLLET SOLDER TAIL 44 PINS
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	2.5 inch	2.7 inch	2.4 inch	2.7 inch	3 inch	2.4 inch	2.4 inch	2.5 inch	2.2 inch
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP52	DIP54	DIP48	DIP54	DIP60	DIP58	DIP48	DIP52	DIP56
Shell material	NYLON46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	NYLON46	POLYAMIDE46	NYLON46	NYLON46
JESD-609 code	e4	e4	e3	e3	e4	e4	e4	e3	e3
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	50	54	48	54	60	48	48	50	44
Maximum operating temperature	125 °C	125 °C	105 °C	105 °C	125 °C	125 °C	125 °C	105 °C	105 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Aries Electronics	Aries Electronics	-	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	Aries Electronics	-
Manufacturer's serial number	518	-	-	-	518	518	-	518	518
Base Number Matches	1	-	1	1	-	1	1	-	1
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	-	Lead free	-	-
