447AM427NF2416P-420 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 447AM427NF2416P-420

Preview

447AM427NF2416P-420: DescriptionCircular MIL Spec Backshells EMI/RFI BACKSHELL 45 DEGREE SIZE 24; CategoryThe connector; File Size51KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

447AM427NF2416P-420 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	447AM427NF2416P-420	-	-	View	Buy Now

447AM427NF2416P-420 Overview

Circular MIL Spec Backshells EMI/RFI BACKSHELL 45 DEGREE SIZE 24

447AM427NF2416P-420 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II, MIL-DTL-83723 I, II
Factory Pack Quantity	1

Preview

Download Datasheet

View All

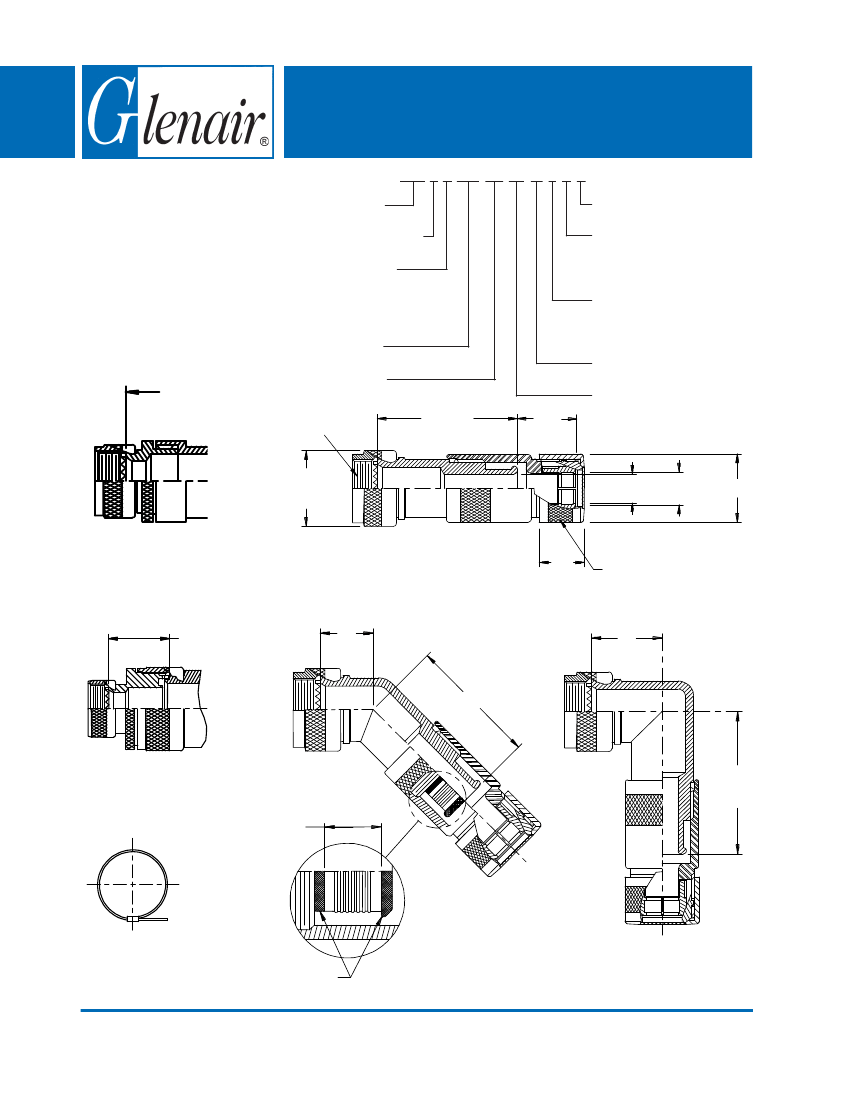

447-420

EMI/RFI Non-Environmental Band-in-a-Can Backshell

with QwikClamp Strain-Relief

Rotatable Coupling - Standard Profile

447 F S 420 NF 16 12-8 K P

Product Series

Polysulfide (Omit for none)

B = Band

K = Precoiled Band

(Omit for none)

Length: S only

(1/2 inch increments,

e.g. 8 = 4.000 inches)

Cable Entry (Table IV)

Finish (Table II)

Length ± .060 (1.52)

Min. Order

Length 2.5 inch

Shell Size (Table I)

A Thread

(Table I)

Length *

L

(Table IV)

447

CONNECTOR

DESIGNATORS

Connector Designator

Angle and Profile

H = 45°

J = 90°

S = Straight

Basic Part No.

A-F-H-L-S

ROTATABLE

COUPLING

C Typ.

(Table I)

* Length ± .060 (1.52)

Min. Order Length 2.0 inch

(See Note 3)

K **

Cable

Entry

N **

STYLE 2

(STRAIGHT

See Note 1)

** (Table IV)

M**

U.S. Patent 5211576

Internal Mechanical Strain

Relief Anti-Rotation

G

(Table III)

.88 (22.4)

Max

E

(Table III)

F (Table III)

STYLE 2

(45° & 90°

See Note 1)

Termination Area

Free of Cadmium

Knurl or Ridges

Mfr's Option

H

(Table III)

Band Option

(K Option Shown -

See Note 4)

Polysulfide Stripes

P Option

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 447 - Page 2
