D38999/27YH35ZC datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/27YH35ZC

D38999/27YH35ZC: DescriptionCircular MIL Spec Connector WELD MT HERM RECEPT SKT EYELET 23; CategoryThe connector The connector; File Size237KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

D38999/27YH35ZC Overview

Circular MIL Spec Connector WELD MT HERM RECEPT SKT EYELET 23

D38999/27YH35ZC Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks 1 day
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell material	STAINLESS STEEL
Housing size	H
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

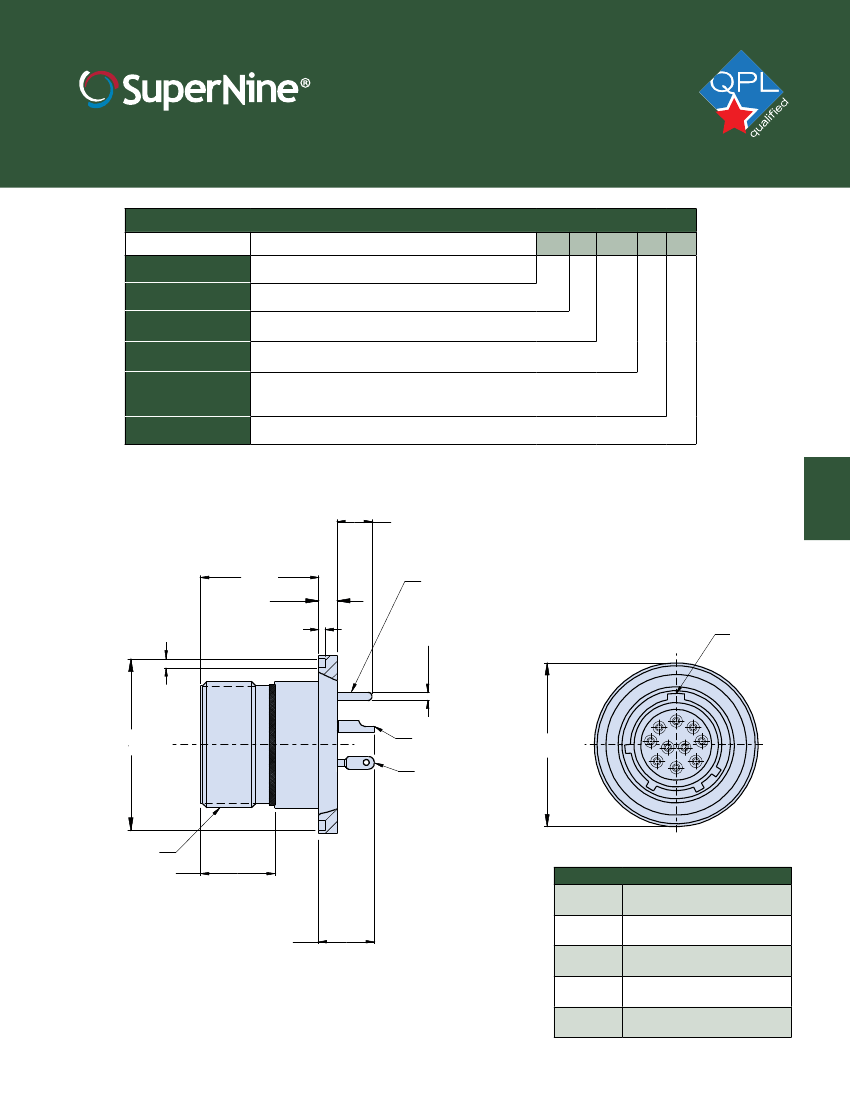

SERIES 23

MIL-DTL-38999 Series III type

Sample Part Number

Series / Basic Part No.

Connector Style

Finish*

Shell Size - Insert

Arrangement*

Contact Type

Alternate Key Position*

Hermetic connectors

233-100-H8 Weld mount hermetic receptacle

How To Order Commercial

233-100

Series 23 SuperNine® Hermetic Receptacle

= Weld Mount

= CRES, Passivated

= CRES, Nickel Finish

Per MIL-STD-1560

-H8

11-35

= Pin, Solder Cup

= Pin, Eyelet

= Pin, PCB

A, B, C, D, E, N

= Normal

= Socket, Solder Cup

= Socket, Eyelet

= Socket, PCB

*Refer to Section A for complete details

Modification codes may be added directly to the end of any valid part number

Shell

Size

Code

Shell

Size

9/09

A Thread

Dimensions

ØB

.941 (23.9)

.929 (23.6)

1.063 (27.0)

1.051 (27.0)

1.189 (30.2)

1.177 (28.9)

1.315 (33.4)

1.303 (33.1)

1.402 (35.6)

1.390 (35.3)

1.547 (39.3)

1.535 (39.0)

1.689 (42.9)

1.677 (42.6)

1.854 (47.1)

1.842 (46.8)

1.941 (49.3)

1.929 (49.0)

ØC

.984 (25.0)

.972 (24.7)

1.106 (28.1)

1.094 (27.8)

1.232 (31.3)

1.220 (31.0)

1.358 (34.5)

1.346 (34.2)

1.445 (36.7)

1.433 (36.4)

1.591 (40.4)

1.579 (40.1)

1.732 (44.0)

1.720 (43.7)

1.898 (48.2)

1.886 (47.4)

1.984 (50.4)

1.972 (50.1)

ØD

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.134 (3.4)

.118 (3.0)

.165 (4.2)

.149 (3.8)

.165 (4.2)

.149 (3.8)

Contact Size & Dia.

PRINTED CIRCUIT TAIL

CONFIGURATIONS

CONTACT STYLE C AND D

SIZE 12 AND SIZE 16

.050 ± .015

(1.27 ± 0.38)

SIZE 22D AND SIZE 20

.6250-.1P-.3L-TS-2A

.7500-.1P-.3L-TS-2A

.8750-.1P-.3L-TS-2A

1.0000-.1P-.3L-TS-2A

1.1875-.1P-.3L-TS-2A

1.2500-.1P-.3L-TS-2A

1.3750-.1P-.3L-TS-2A

1.5000-.1P-.3L-TS-2A

1.6250-.1P-.3L-TS-2A

Contact

Size

22D

øP

.011 (0.28)

.015 (0.38)

.024 (0.61)

.028 (0.71)

.0635 (1.61)

.0615 (1.56)

.095 (2.41)

.093 (2.36)

Hermetic Leak Rate Mod Codes

Designator

–585A

–585B

–585C

Required Leak Rate

1 x 10

-10

cc Helium per second

1 x 10

-9

cc Helium per second

1 x 10

-8

cc Helium per second

Wire Accommodation

Contact Size

22D

Wire Gauge

#22 - #28

#20 - #24

#16 - #20

#12 - #14

D-16
