Part Number

Search

52746-2090

Description
FFC & FPC Connectors RA SMT ZIF BOTTOM 20
CategoryThe connector    The connector
File Size415KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52746-2090 Online Shopping

Suppliers Part Number Price MOQ In stock
52746-2090 - - View Buy Now

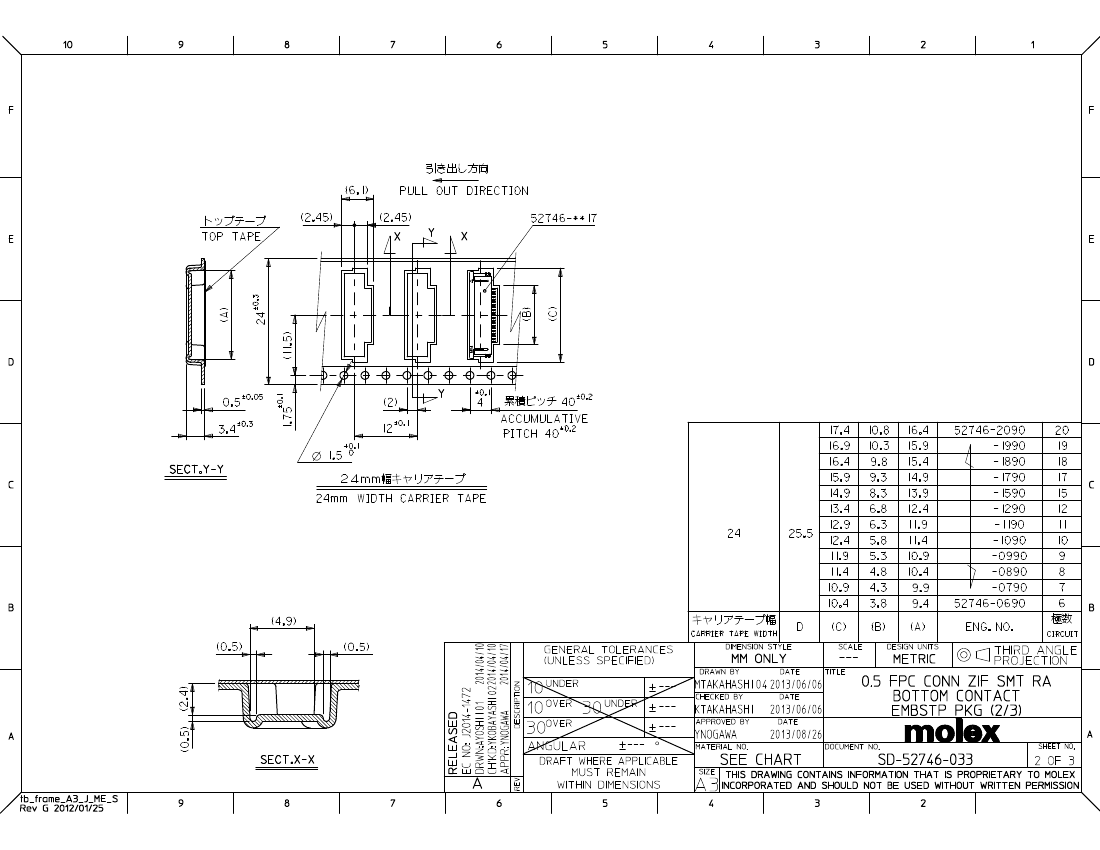

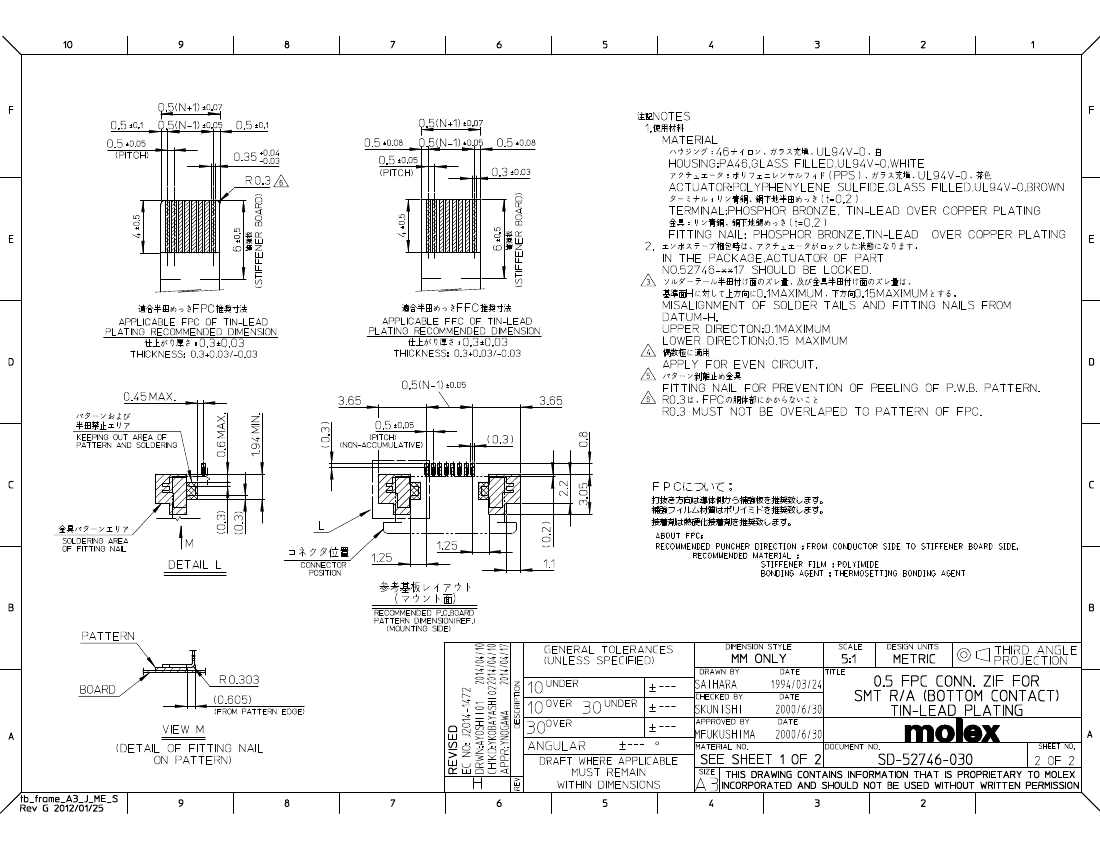

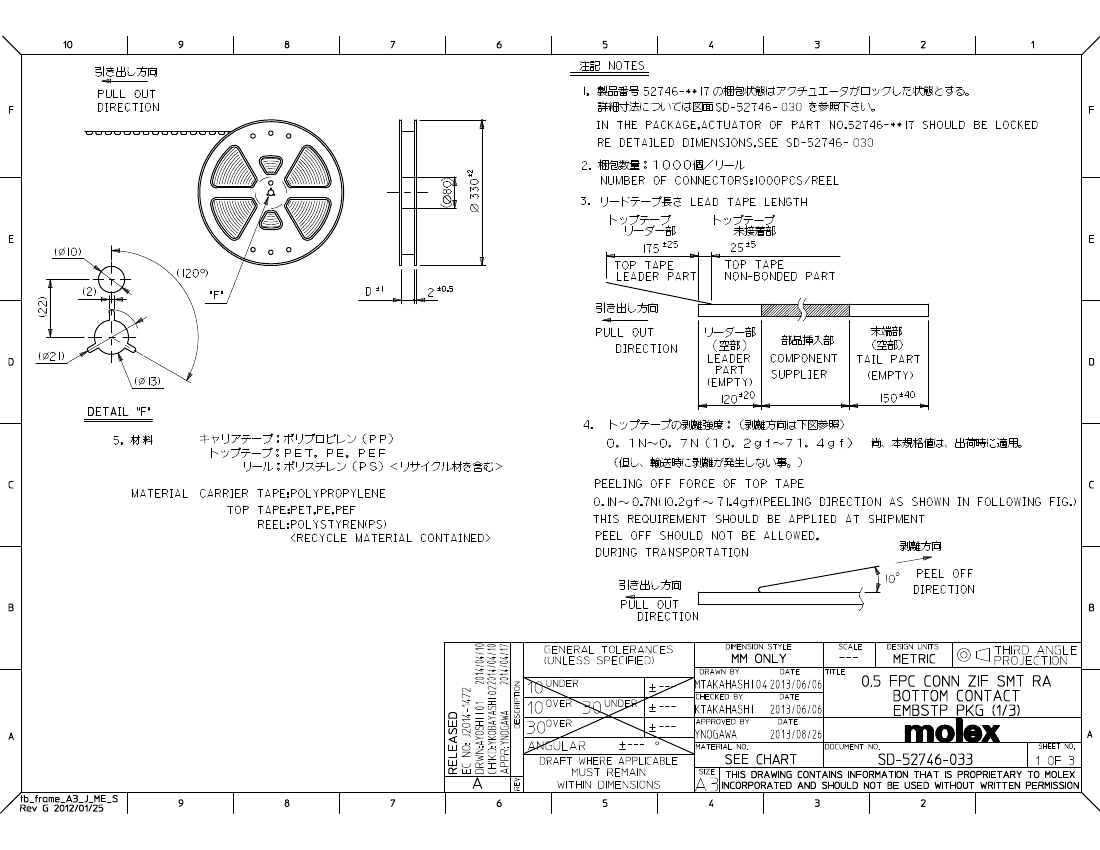

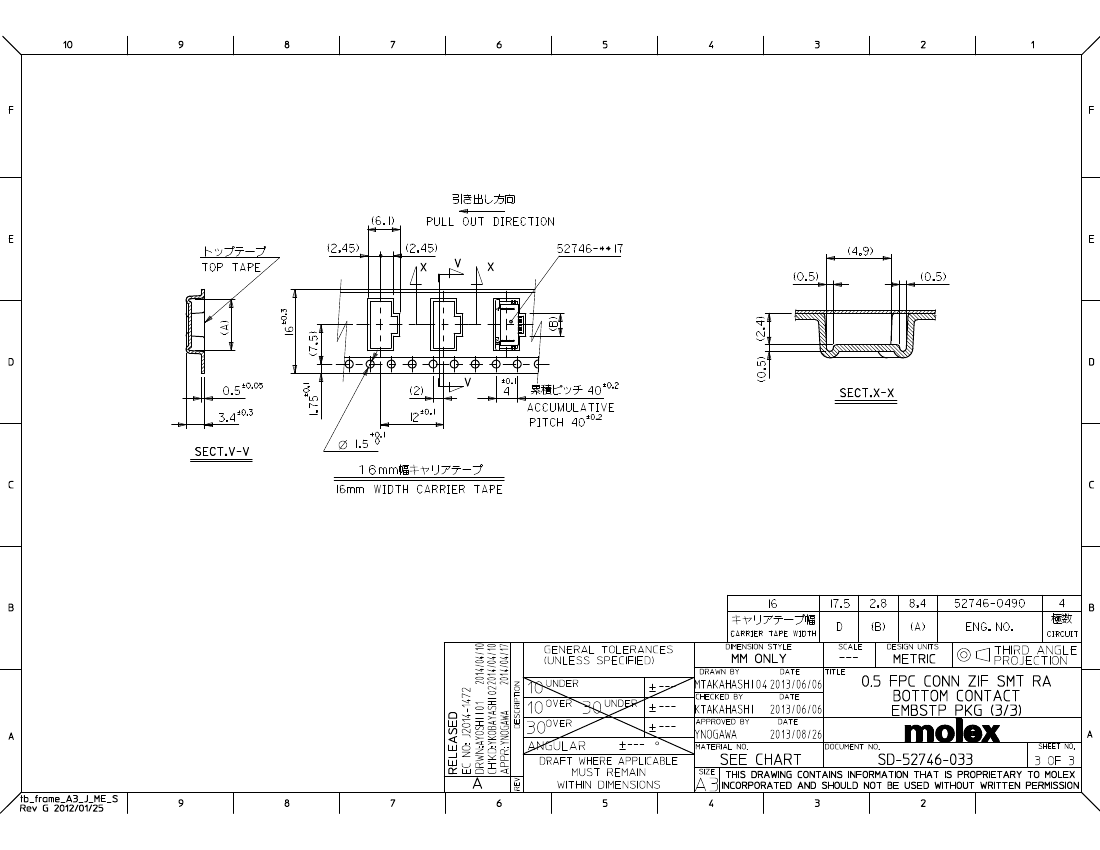

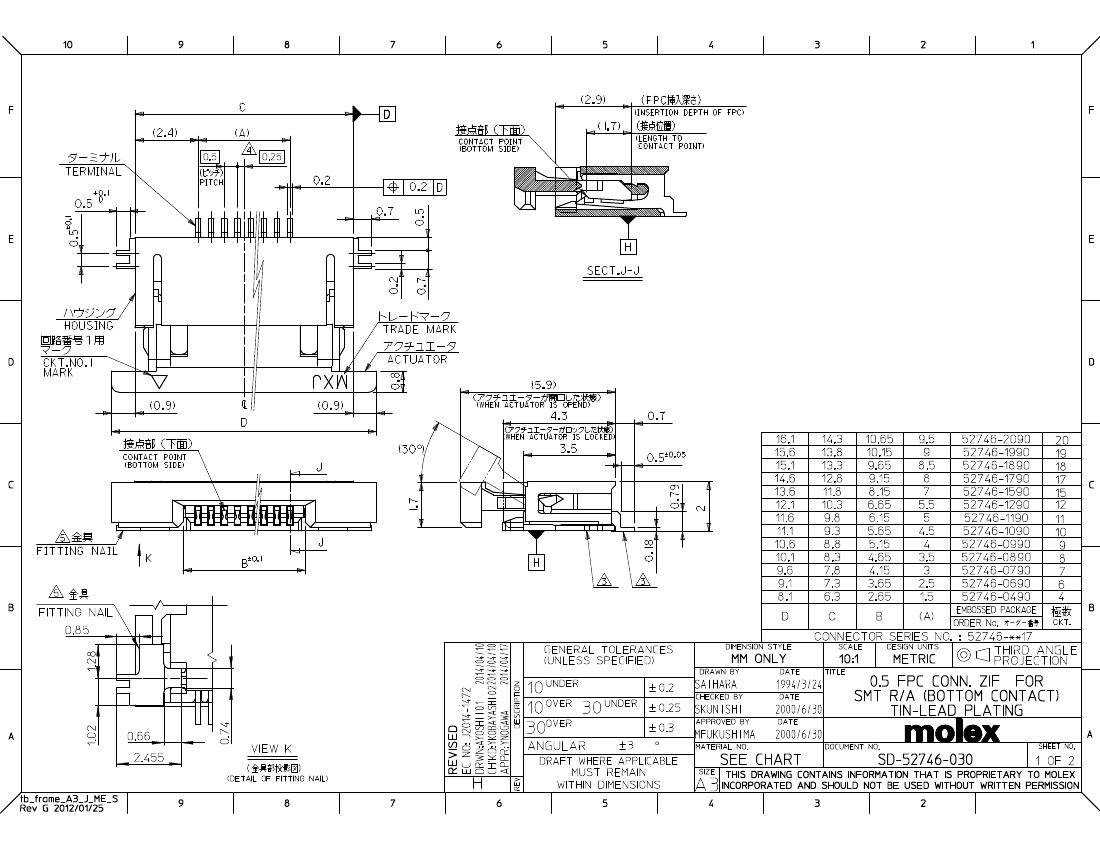

52746-2090 Overview

FFC & FPC Connectors RA SMT ZIF BOTTOM 20

52746-2090 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresMXJ, POLARIZED
Board mount optionsSOLDER HOLDING POSTS
body width0.079 inch
subject depth0.169 inch
body length0.634 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage250VAC V
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts20
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1
