505152-0900

Description
Headers & Wire Housings 2.0W/B RETAINER9ckt
CategoryThe connector
File Size31KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

505152-0900 Online Shopping

Suppliers Part Number Price MOQ In stock
505152-0900 - - View Buy Now

505152-0900 Overview

Headers & Wire Housings 2.0W/B RETAINER9ckt

505152-0900 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHeaders & Wire Housings
RoHSDetails
ProductAccessories
Type-
Number of Positions9 Position
Pitch2 mm
Number of Rows1 Row
Mounting Style-
Termination Style-
Mounting Angle-
Contact Gender-
Accessory TypeTerminal Position Assurance (TPA)
Contact Type-
Housing MaterialPolybutylene Terephthalate (PBT)
Row Spacing-
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity1000
Unit Weight0.003894 oz

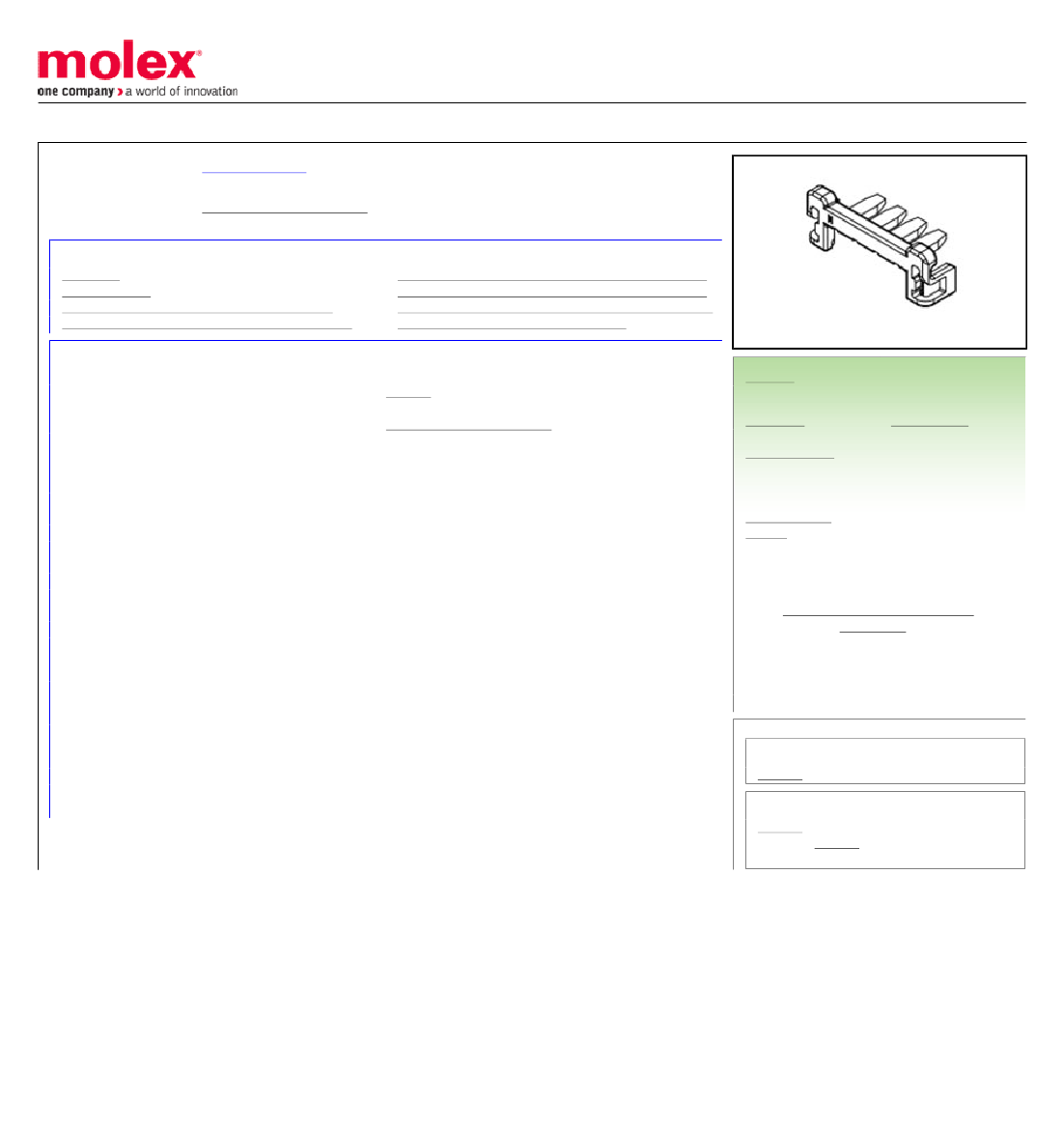

This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5051520900
Active
DuraClik Connector System
DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 9 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 5051510002-000 (PDF)
Product Specification PS-505151-001-001 (PDF)
General
Product Family
Series
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-505151-001-001 (PDF)
Application Specification AS-505151-002-001 (PDF)
Packaging Specification SPK-505152-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
Accessories
505152
Terminal Position Assurance
DuraClik Connector System
DuraClik, TPA - Term Pos Assurance
887191735214
9
9
Yes
PBT
110.400/mg
1
Bag
Yes
-40°C to +125°C
Crimp or Compression
3.0A
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
AS-505151-001-001, AS-505151-002-001
SPK-505152-001-001
5051510002-000, PS-505151-001-001
SD-505152-001
Search Parts in this Series
505152 Series
Use With
505151 DuraClik TPA Wire-to-Board
Housing, 505153 DuraClik TPA Wire-to-
Board Terminal
This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
