500-047M25EB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 500-047M25EB

500-047M25EB: DescriptionD-Sub Backshells ELIPTICAL BND BS EXT JKSCRW STANDARD BAND; CategoryThe connector Connector bracket; File Size173KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

500-047M25EB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	500-047M25EB	-	-	View	Buy Now

500-047M25EB Overview

D-Sub Backshells ELIPTICAL BND BS EXT JKSCRW STANDARD BAND

500-047M25EB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	SHIELDED
Assembly name	BACKSHELL
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	ALUMINUM ALLOY
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C

Preview

Download Datasheet

View All

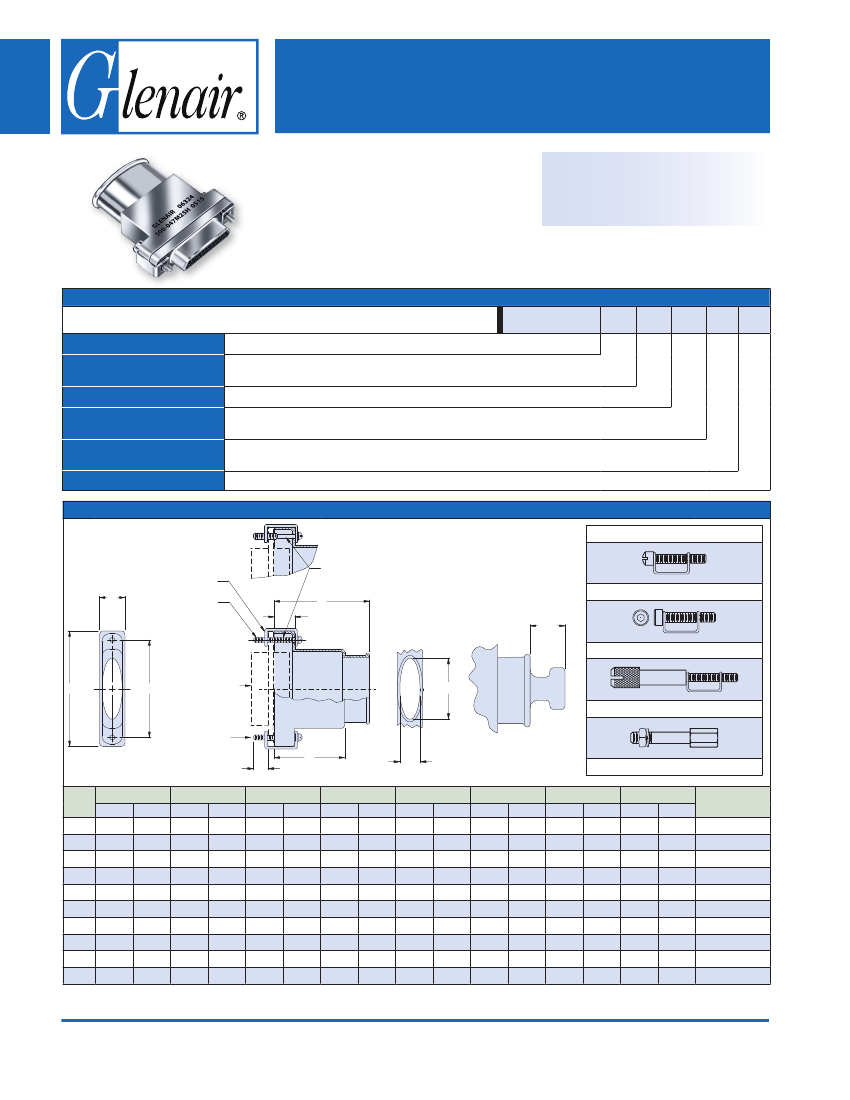

MIL-DTL-83513

Micro-D

500-047

EMI/RFI Elliptical Entry

Micro-D Banding Backshell

Elliptical Backshells

provide extra room for

large wire bundles. This one piece version

features an oversize shield termination area

for both standard and micro BandMaster™

ATS shield termination straps.

Materials

• Shell: Aluminum Alloy 6061 -T6

• Clips: 17-7PH Stainless Steel

• Hardware: 300 Series Stainless Steel

How To Order EMI/RFI Elliptical Backshells

Sample Part Number

Series

Shell Finish

Connector Size

Hardware Option

EMI Band Strap Option

Qwik-Ty Option

500-047

– Chem Film (Alodyne)

– Electroless Nickel

– Fillister Head Jackscrew

– Extended Jackscrew

– Cadmium, Yellow Chromate

– Cadmium, Olive Drab

– Hex Head Jackscrew

– Jackpost, Female

– Gold

500-047

09, 15, 21, 25, 31, 37 51, 51-2, 67, 69, 100

(See Table I)

Omit

(Leave Blank) – Band Not Included

– Standard Band .250" Wide, uncoiled

– Micro Band .125" Wide, uncoiled

– with Qwik-Ty

Omit

for none

Table I: Dimensions

Hardware Option

CONFIGURATION MFR

OPTION APPLY TO

MALE JACKSCREW

.175

.30

RETAINING CLIP

J THREAD - TYP

- Fillister Head Jackscrew

- Hex Head Jackscrew

CONNECTOR

SHOWN

FOR REFERENCE

ONLY

- Extended Jackscrew

JACKSCREW

QWIK-TY

SYM T

- Jackpost, Female

H Ref.

In.

mm.

.154

3.91

.154

.184

3.91

4.67

J Thread

2-56 UNC-2A

4-40 UNC-2A

Rev. 04.01.16

Printed in U.S.A.

Size

51-2

100

In.

.775

.925

1.075

1.175

1.325

1.475

1.425

1.835

1.730

2.160

mm.

19.69

23.50

27.31

29.85

33.66

37.47

36.20

46.61

43.94

54.86

In.

.34

.38

.34

.40

.43

mm.

8.64

9.65

8.64

10.16

10.92

In.

.75

.88

1.00

1.06

1.12

1.16

1.19

1.25

mm.

19.05

22.35

25.40

26.92

28.45

29.46

30.23

31.75

D Dia

In.

mm.

.312

7.92

.420

.590

.690

.820

.970

.920

1.030

1.190

1.290

10.67

14.99

17.53

20.83

24.64

23.37

26.16

30.23

32.77

E Dia

In.

mm.

.281

7.14

.281

.312

.281

.312

.360

7.14

7.92

7.14

7.92

9.14

In.

.32

.44

.56

.62

.68

.72

.75

.81

mm.

8.13

11.18

14.22

15.75

17.27

18.29

19.05

20.57

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

1.515

1.800

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

38.48

45.72

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

C-24
