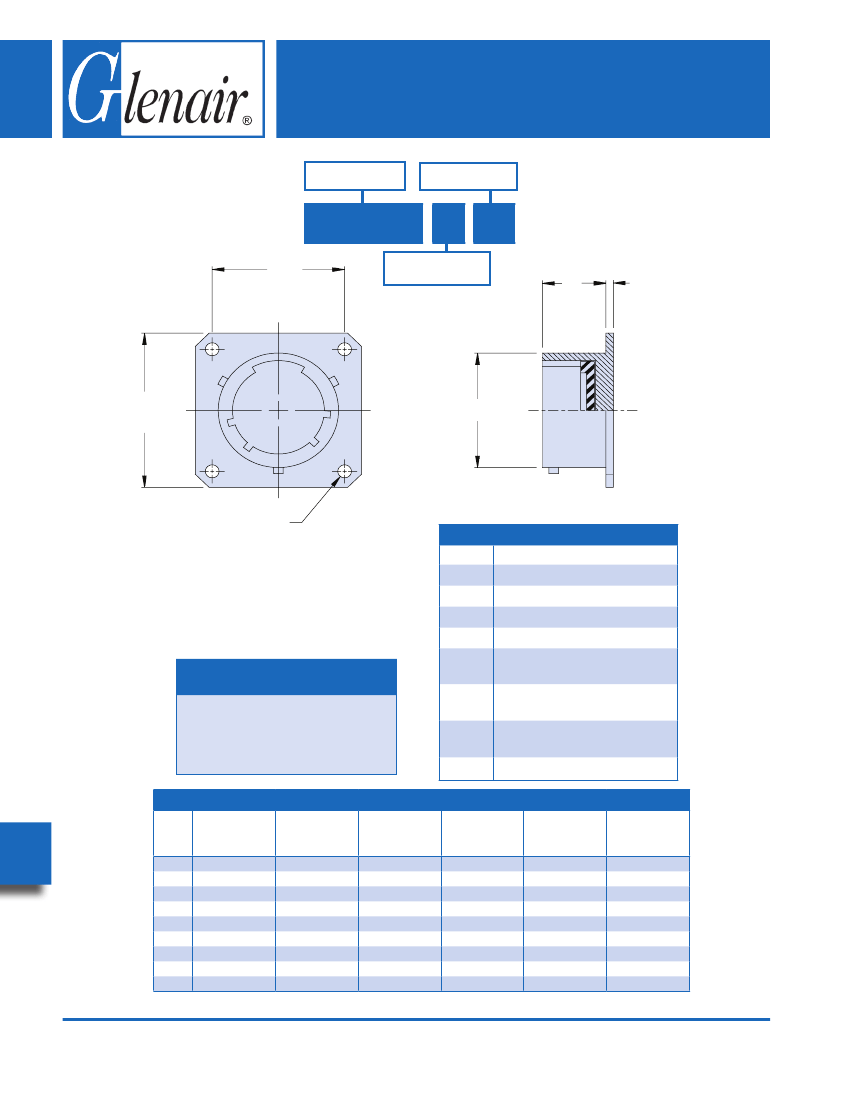

650FS001
Dummy Stowage Receptacle for
MIL-DTL-38999 Series I Connector
Connector
Accessories
F
G
H
APPLICATION NOTES
1.
2.
Metric dimensions (mm) are
indicated in parentheses.
Basic Number
Shell Size
650FS001
M
17
K
J
Finish
(Table II)
E
TABLE II: FINISHES
Symbol
B
C
GB
M
N
NF
MT
ZN
Finish
Cadmium Plate, Olive Drab
Anodize, Black
Black Anodize, Hard Coat
Electroless Nickel
Cad Plate, Olive Drab over
Electroless Nickel
Cadmium Plate, Olive Drab over
Electroless Nickel
Ni-PTFE
1000 Hour Grey
TM
Nickel Fluorocarbon Polymer
Zinc-Nickel
See applicable Military Specification
for complete dimensions.
TABLE I: DIMENSIONS
H
Shell
Size
9
11
13
15
17
19
21
23
25
© 2010 Glenair, Inc.
www.glenair.com
E
Max
572 (14.5)
.701 (17.8)
.851 (21.6)
.976 (24.8)
1.101 (28.0)
1.208 (30.7)
1.333 (33.9)
1.458 (37.0)
1.583 (40.2)
F
Dim
.719
.812
.906
.969
1.062
1.156
1.250
1.375
1.500
(18.3)
(20.6)
(23.0)
(24.6)
(27.0)
(29.4)
(31.8)
(34.9)
(38.1)
G
±.020 (0.5)
.938 (23.8)
1.031 (26.2)
1.125 (28.6)
1.219 (31.0)
1.312 (33.3)
1.438 (36.5)
1.562 (39.7)
1.688 (42.9)
1.812 (46.0)
H
Nom
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.147 (3.7)
.147 (3.7)
J
+.015 (0.4)
-.000
.085 (2.2)
.085 (2.2)
.085 (2.2)
.085 (2.2)
.085 (2.2)
.085 (2.2)
.115 (2.9)
.115 (2.9)
.115 (2.9)
Rev. 04.17.17
K
±.010
(0.3)
.727 (18.5)
.727 (18.5)
.727 (18.5)
.727 (18.5)
.727 (18.5)
.727 (18.5)
.697 (17.7)
.697 (17.7)
.697 (17.7)
Printed in U.S.A.
E-Mail: sales@glenair.com
CAGE CODE 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-38
