K99X-15S-K-BLK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K99X-15S-K-BLK

K99X-15S-K-BLK: DescriptionD-Sub Standard Connectors IDC 15P RECPT METAL BLACK W/BUSHING; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K99X-15S-K-BLK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K99X-15S-K-BLK	-	-	View	Buy Now

K99X-15S-K-BLK Overview

D-Sub Standard Connectors IDC 15P RECPT METAL BLACK W/BUSHING

K99X-15S-K-BLK Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	K99X

Preview

Download Datasheet

View All

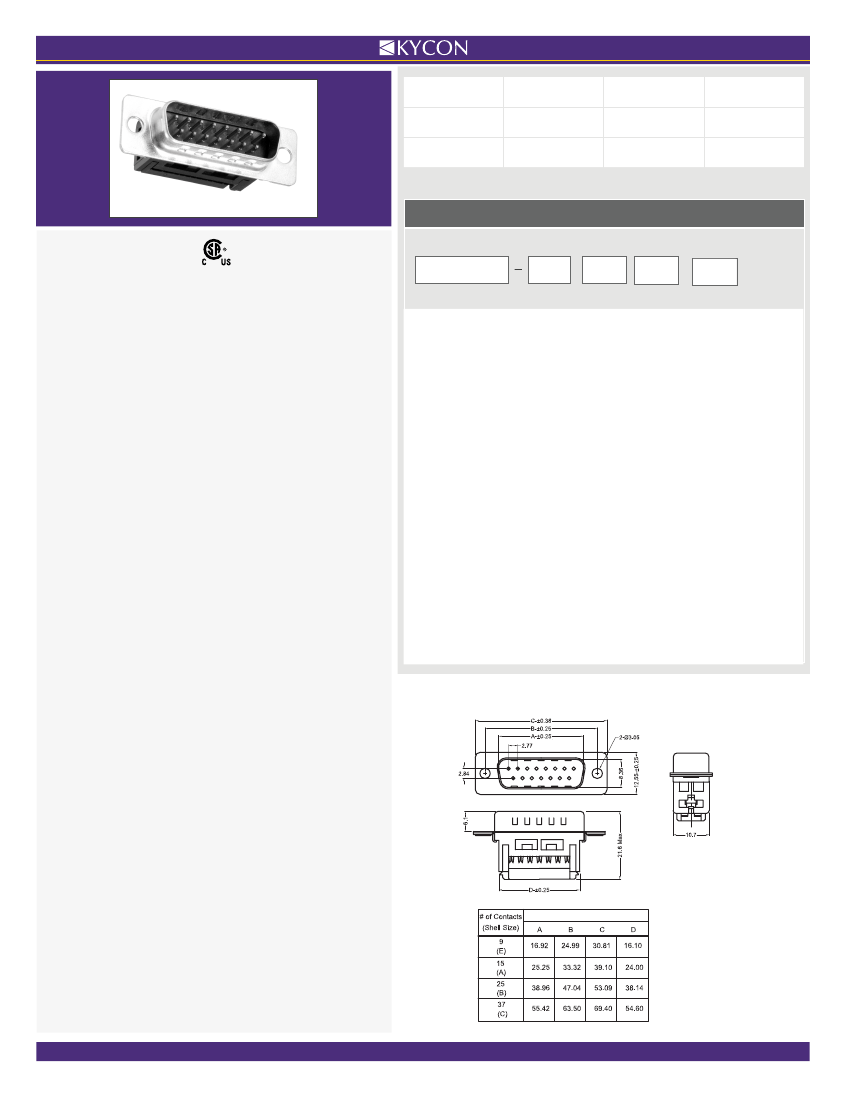

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

K99X-9P-BLK

Part Number Builder

LR78160

K99X

Series

Number of

Contact

Type

Mounting

Option

BLK

Color

Option

D-SUBMINIATURE CONNECTORS:

K99X

Series

IDC Termination D-Subminiature

Product Features

Series

K99X

IDC D-Subminiature Connector, Metal Construction

Number of Contact

- 9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

Contact Type

Pin Contact (Plug)

Socket Contact (Receptacle)

Mounting Option

Blank

- Without Mounting Hardware

- With Riveted Threaded #4-40 Bushing

Color Option

BLK

Black Color

Contact Kycon for Other Options

Applications Include Computer Peripherals, Data Processing,

Telecommunications, Industrial Controls and

Local Area Networks

Bright Tin Shells for Exceptional Conductivity,

Grounding and EMI/RFI Shielding

Indentations (Dimples) on Metal Plug Shells for Exceptional

Grounding and Mating Retention

Plastic Strain Relief Available Separately

Flat Cable can be Connected to a Single Connector or

Daisy Chained.

Automatic Assembly Machine Compatible

Design Meets the Requirements of MIL-C-24308,

EIA RS-232 and RS-449.

Performance Specifications

Materials and Finish

Shell

Steel, Nickel Plated

SR Series

PBT Thermoplastic

Contact Material

Plug

Brass

Socket

Phosphor Bronze

K99X-xxP

Dimensions in mm

Electrical Characteristics

Rated Current

Rated Voltage

30V RMS

Contact Resistance

13 milliohms Max.

Dielectric Withstanding Voltage

1000V AC for 1 Minute

Insulation Resistance

1000 Megohms Min.

Temperature Rating

-55ºC to +105ºC

Wire Accommodation

Flat Cable or Discrete Wire 26 or 28 AWG Stranded or Solid,

and 30 AWG Solid Wires on .050" (1.27mm) Centers

Dimensions (Inch/mm)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

0318

K99X-15S-K-BLK Related Products

	K99X-15S-K-BLK	K99X-9P-BLK	K99X-9S-BLK
Description	D-Sub Standard Connectors IDC 15P RECPT METAL BLACK W/BUSHING	D-Sub Standard Connectors IDC 9P PLUG METAL BLACK	D-Sub Standard Connectors 9P D-Sub IDC Fmle Black
Maker	Kycon	Kycon	Kycon
Reach Compliance Code	unknown	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Is it Rohs certified?	-	conform to	conform to
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT
ECCN code	-	EAR99	EAR99
Other features	-	SHIELDED	SHIELDED
body width	-	0.494 inch	0.494 inch
body length	-	0.666 inch	0.666 inch
Body/casing type	-	PLUG	RECEPTACLE
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	-	MALE	FEMALE
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
contact mode	-	STAGGERED	STAGGERED
Contact resistance	-	13 mΩ	13 mΩ
Contact style	-	RND PIN-SKT	RND PIN-SKT
DIN compliance	-	NO	NO
Dielectric withstand voltage	-	1000VAC V	1000VAC V
empty shell	-	NO	NO
Filter function	-	NO	NO
IEC compliance	-	NO	NO
Insulation resistance	-	1000000000 Ω	1000000000 Ω
Insulator color	-	BLACK	BLACK
MIL compliance	-	NO	NO
Plug contact pitch	-	0.109 inch	0.109 inch
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO
Installation option 1	-	LOCKING	LOCKING
Installation option 2	-	LOCKING	LOCKING
Installation type	-	CABLE AND PANEL	CABLE AND PANEL
Number of rows loaded	-	2	2
Maximum operating temperature	-	105 °C	105 °C
Minimum operating temperature	-	-55 °C	-55 °C
Options	-	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	-	FLASH inch	FLASH inch
Rated current (signal)	-	2 A	2 A
Guideline	-	UL, CSA	UL, CSA
reliability	-	COMMERCIAL	COMMERCIAL
Shell surface	-	TIN	TIN
Shell material	-	STEEL	STEEL
Housing size	-	1/E	1/E
Termination type	-	IDC	IDC
Total number of contacts	-	9	9
