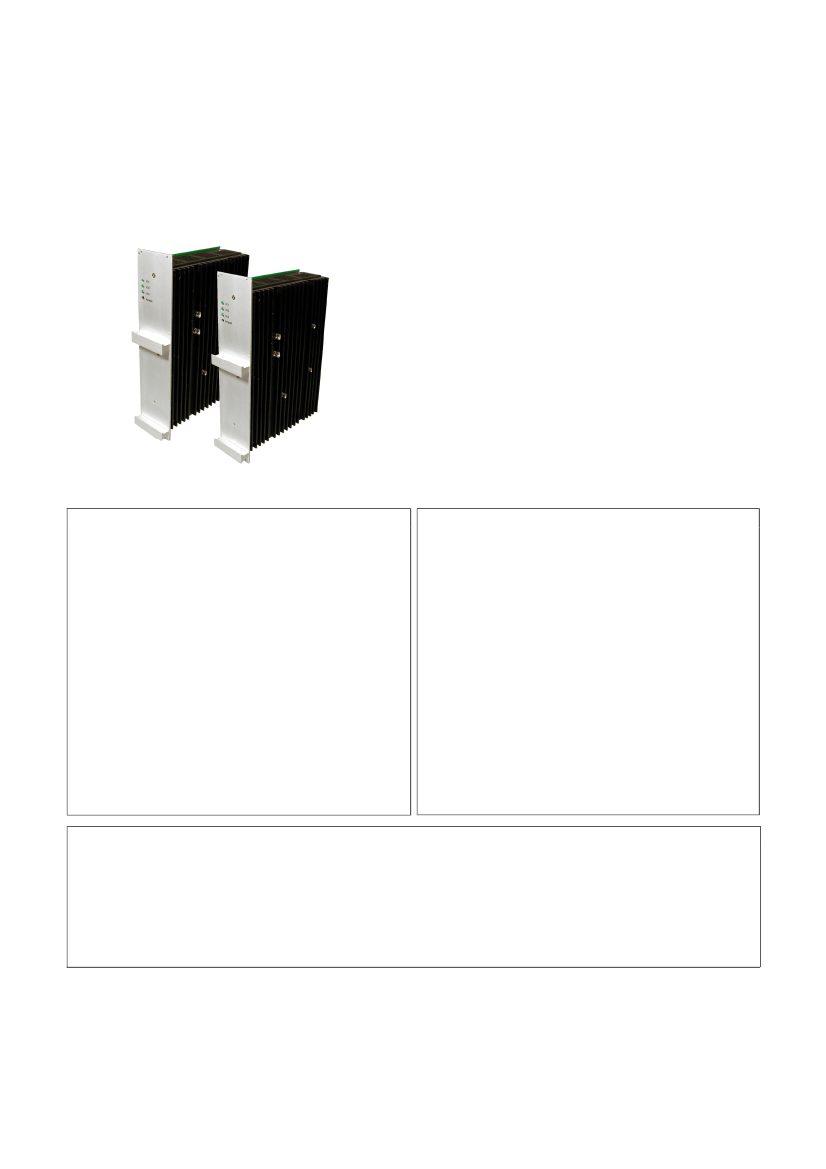

DC-DC CONVERTER 19” COMPATIBLE EUROCARD TRIPLE OUTPUT

200 WATTS SWITCHING MODE POWER SUPPLIES HDU200 SERIES

FEATURES:

12/24/48VDC 2:1 INPUT RANGE

19" COMPATIBLE EUROCARD FORMAT

EMI MEET CISPR PUB. 22 & FCC CLASS A

MEET THE SAFETY STANDARDS

CE MARKING COMPLIANCE

6U X 12HP X 160MM VMEbus STANDARD

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Three 2:1 ranges option.

A Range: 9-18Vdc nominal 12Vdc.

B Range: 18-36Vdc nominal 24Vdc.

C Range: 36-72Vdc nominal 48Vdc.

Input

Connector:

2pcs X DIN 41612 at rear.

Input Current:

@FL

@NL

HDU200-A: 23.0A

0.40A

HDU200-B: 11.3A

0.21A

HDU200-C: 5.0A

0.10A

Dielectric Withstand:

Meet IEC950.

EMI:

Meet CISPR PUB. 22 & FCC Class A.

Power-on Indicator:

LED at front panel.

Power OK Signal:

Installed.

Remote (Logic) Inhibit:

Installed.

Reflected Ripple Current:

Typ. 28mV pk-pk.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Typ. 200 Watts for HDU200.

Output Connector:

2pcs X DIN 41612 at rear.

Output Indicator:

LEDs installed at front panel

for all outputs.

Line Regulation:

Typ. 0.2%.

Load Regulation:

Main VO1 typ. ±1.0%.

Aux. VO2 typ. ±2.0%. (M.A.)

Aux. VO3 typ. ±2-3.0%. (P.R.)

Noise & Ripple:

Typ. 120mV peak to peak.

OVP:

Built-in at main VO1 and VO2 (auto-recovery).

Adjustability:

Available at main output VO1 and

Aux. output VO2 (Mag. Amp.).

Remote Sense:

Available at VO1 only.

Overload Protection (OLP):

Fully protected against

output overload & short circuit. Typ. 120-140%.

Consult the factory for OLP setting.

GENERAL SPECIFICATION

Efficiency:

Typ. 71.0-73.0%

Switching Frequency:

Typ. 48K Hz.

Circuit Topology:

Push-pull circuit.

Transient Response:

Typ. 0.5mS following a 25%

load change.

Power Density:

1.2 Watts / Cubic Inch.

Operating Temperature:

0 to +50°C at full load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. 0.04% /°C.

Cooling:

Free air convection.

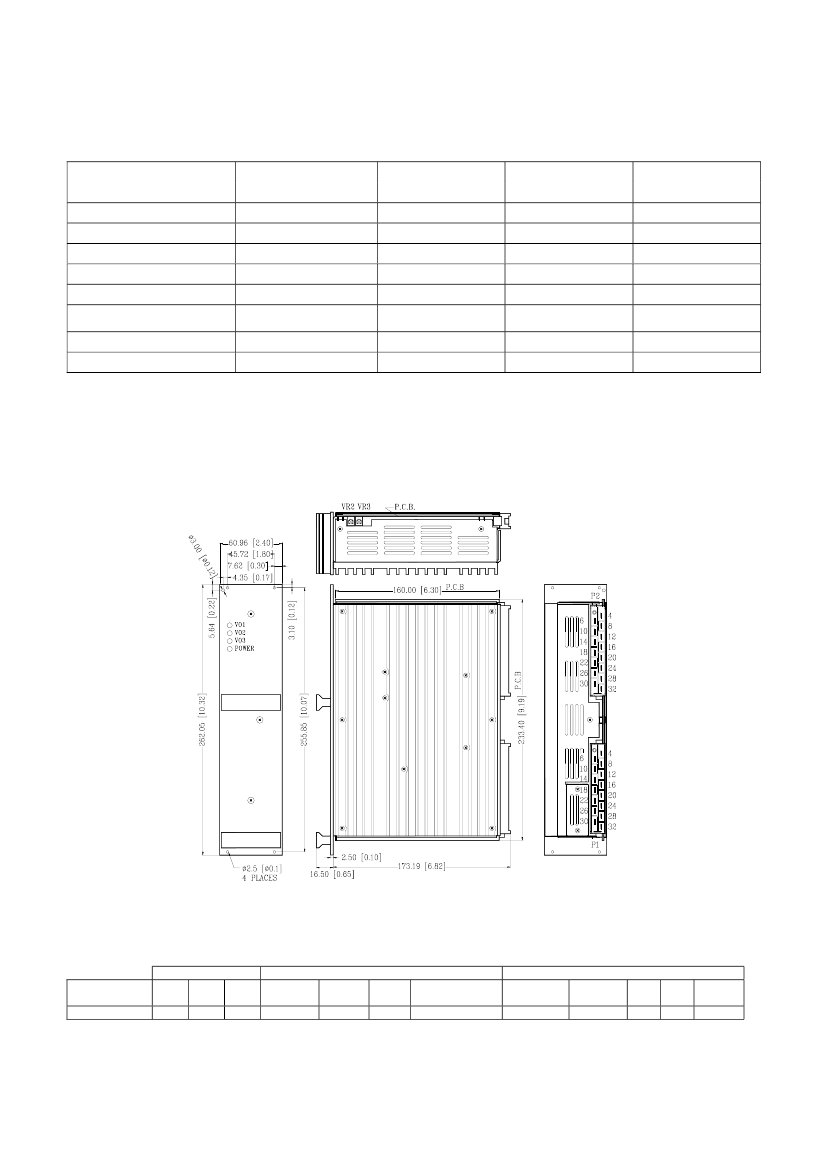

Construction:

12HP(TE)x6Ux160mm 19" compatible

Eurocard VMEbus standard.
