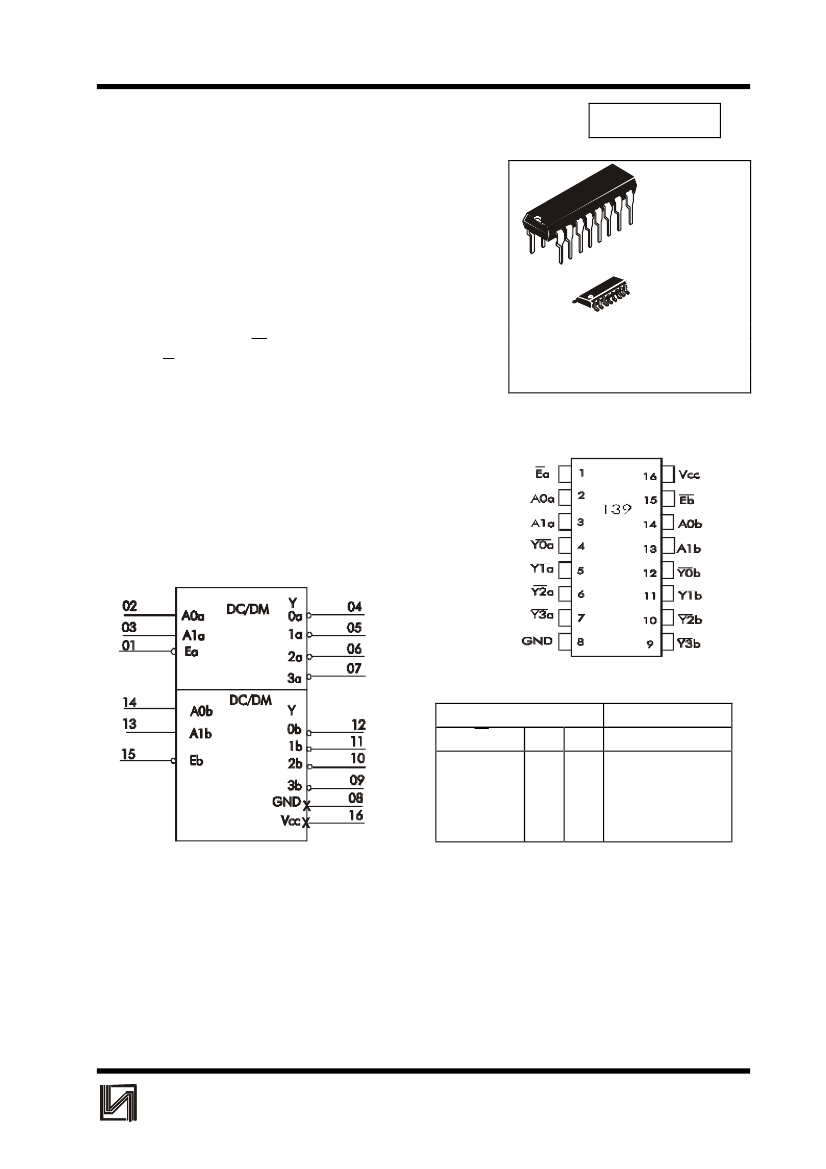

TECHNICAL DATA
IN74LV139
Dual 2-to-4 line
decoder/demultiplexer; inverting
The IN74LV139 is a low-voltage Si-gate CMOS device and is pin
and function compatible with 74HCT139.
The74LV139 is dual 2-to-4 line decoder/demultiplexer . This device
has two independent decoders, each accepting two binary weighted
inputs (A0a,A0b and A1a,A1b) and providing four mutually exclusive
active LOW outputs (nY0 to nY3). Each decoder has an active LOW
enable input (nE)
When nE is HIGH, every output is forced HIGH. The enable can be
used as the data input for a 1-to-4 demultiplexer application.
•
Optimized for Low Voltage applications:1.2 to 3.6 V
•
Demultiplexing capability
•
Two independent 2-to-4 decoders
•
Multifunction capability
•
Active LOW mutually exclusive outputs
•
Output capability: standard
16
1
16
1
D SUFFIX
SOIC
N SUFFIX
PLASTIC
ORDERING INFORMATION
IN74LV139N Plastic
IN74LV139D SOIC
T
A
= -40° to 125° C for all packages
PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Inputs
E
H
L
L
L
L
PIN 16 =V
CC
PIN 8 = GND
A1
X
L
L
H
H
A0
X
L
H
L
H
Outputs
Y0 Y1 Y2 Y3
H
L
H
H
H
H
H
L
H
H
H
H
H
L
H
H
H
H
H
L
H = high level (steady state)
L = low level (steady state)
X = don’t care
INTEGRAL
1
IN74LV139
MAXIMUM RATINGS
Symbol
V
CC
I
IK
I
OK
I
O
I
CC
Tstg
P
D
*
Value
-0.5 to +7.0
±20
±50
±25
±50
-65 to +150
750
500
260
°C
V
I
<
- 0.5 or V
I
>
Vcc+0.5V
V
O
<
- 0.5 or V
O
>
Vcc+0.5V
-0.5Â<Vo<Vcc+0.5B
Conditions
Unit
V
mA
mA
mA
mA
°C
mW
Parameter
DC supply voltage
DC input diode current
DC output diode current
DC output source or sink current
DC V
CC
or GND current for types with
standard outputs
Storage Temperature
Power Dissipation per package
Plastic DIP+
SOIC Package+
Lead temperature, 1.5 mm from Case for 4
seconds
(Plastic DIP ), 0.3 mm (SOIC Package)
T
L
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 12 mW/°C from 70° to 125°C
SOIC Package: : - 8 mW/°C from 70° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
I
V
O
T
A
t
r
, t
f
DC supply voltage
DC input voltage,
DC output voltage
Operating ambient temperature range in free air
Input rise and fall times except for
Schmitt-trigger inputs
Vcc= 1.0
?
2.0Â
Vcc= 2.0
?
2.7Â
Vcc= 2.7
?
3.6Â
Vcc= 3.6
?
5.5Â
Parameter
Min
1.2
0
0
-40
0
0
0
Max
5.5
V
CC
V
CC
+125
500
200
100
50
Unit
V
V
V
°C
ns/B
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages
to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range GND≤(V
IN
or
V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
). Unused
outputs must be left open.
INTEGRAL
2
IN74LV139
DC ELECTRICAL CHARACTERISTICS
Symbol
Parameter
Test
Conditions
V
CC
,
Â
25°C
min
V
IH
High-level input
voltage
1.2
2.0
2.7 to 3.6
4.5 to 5.5
1.2
2.0
2.7 to 3.6
4.5 to 5.5
-I
0
=100µA
V
IH
or V
IL
1.2
2.0
2.7
3.0
3.6
4.5
5.5
3.0
4.5
1.2
2.0
3.0
3.0
4.5
5.5
5.5
0.9
1.4
2.0
0.7 Vcc
-
-
-
-
-
1.85
2.55
2.85
3.45
4.35
5.35
2.48
3.70
-
-
-
-
-
max
-
-
-
-
0.3
0.6
0.8
0.3 Vcc
-
-
-
-
-
-
-
-
Guaranteed Limit
îò -40°C to
85°C
min
0.9
1.4
2.0
0.7 Vcc
-
-
-
-
-
1.8
2.5
2.8
3.4
4.3
5.3
2.40
3.60
-
-
-
-
-
max
-
-
-
-
0.3
0.6
0.8
0.3 Vcc
-
-
-
-
-
-
-
-
îò -40°C to
125°C
min
0.9
1.4
2.0
0.7 Vcc
-
-
-
-
-
1.8
2.5
2.8
3.4
4.3
5.3
2.20
3.50
-
-
-
-
-
max
-
-
-
-
0.3
0.6
0.8
0.3 Vcc
-
-
-
-
-
-
-
-
Â
Unit
V
IL
Low -level input
voltage
Â
V
OH
High-level
output voltage
Â
V
IH
or V
IL
-I
O=
6.0 mA
-I
O=
12.0 mA
V
OL
Low-level output V
IH
or V
IL
voltage
I
0
=100µA
B
0.15
0.15
0.15
0.33
0.40
±0.1
8.0
0.2
0.2
0.2
0.40
0.55
±1.0
80
0.2
0.2
0.2
0.50
0.65
±1.0
160
B
V
IH
or V
IL
I
O=
6.0 mA
I
O=
12.0 mA
I
I
I
CC
Input leakage
current
Quiescent
supply current
V
CC
or GND
V
CC
or GND
I
O
=0
B
-
-
-
-
-
-
ìêÀ
ìêÀ
INTEGRAL
3
IN74LV139
AC ELECTRICAL CHARACTERISTICS
(C
L
=50 pF, t
LH
= t
HL
= 2.5 nc, V
IL
=0B, V
IH
=V
CC
)
Symbol
Parameter
V
CC
V
25°C
min
t
PLH
, t
PHL
Propagation delay,
input A to output Y
(Figures 1)
1.2
2.0
2.7
3.0
4.5
1.2
2.0
2.7
3.0
4.5
5.0
Ò=+25
î
Ñ
-
max
140
27
20
16
13
120
22
16
13
10
7.0
Guaranteed Limit
îò -40°C to
85°C
min
-
max
140
31
23
18
15
120
27
20
16
13
îò -40°C to
125°C
min
-
max
140
39
29
23
19
120
34
25
20
16
ns
Unit
t
PLH
, t
PHL
Propagation delay , E
to output Y
(Figures 2)
-
-
-
ns
C
I
Input capacitance
pF
Power dissipation capacitance (per enabled
output)
C
PD
Used to determine the no-load dynamic power
consumption:
P
D
=C
PD
V
CC2
f+I
CC
V
CC
∗
- Power dissipation capacitance per multiplexer
Typical @25°C,V
CC
=5.5 V
84∗
pF
t
r
INPUT
A
90%
50%
10%
t
f
Vcc
GND
t
r
INPUT
E
90%
50%
10%
t
f
Vcc
GND
t
PHL
OUTPUT
Y
90%
50%
10%
t
PLH
OUTPUT
Y
t
PHL
90%
50%
10%
t
PLH
Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
INTEGRAL
4
IN74LV139
TEST POINT
DEVICE
UNDER
TEST
OUTPUT
C
*
L
* Includes all prode and jig capacitance
Figure 3. Test Circuit
EXPANDED LOGIC DIAGRAM
(1/2 of Device)
INTEGRAL
5
