8163-40-40-P1E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8163-40-40-P1E

8163-40-40-P1E: DescriptionBoard Connector, 40 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector; File Size57KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net

Download Datasheet Parametric Compare View All

8163-40-40-P1E Overview

Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

8163-40-40-P1E Parametric

Parameter Name	Attribute value
Maker	NorComp
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

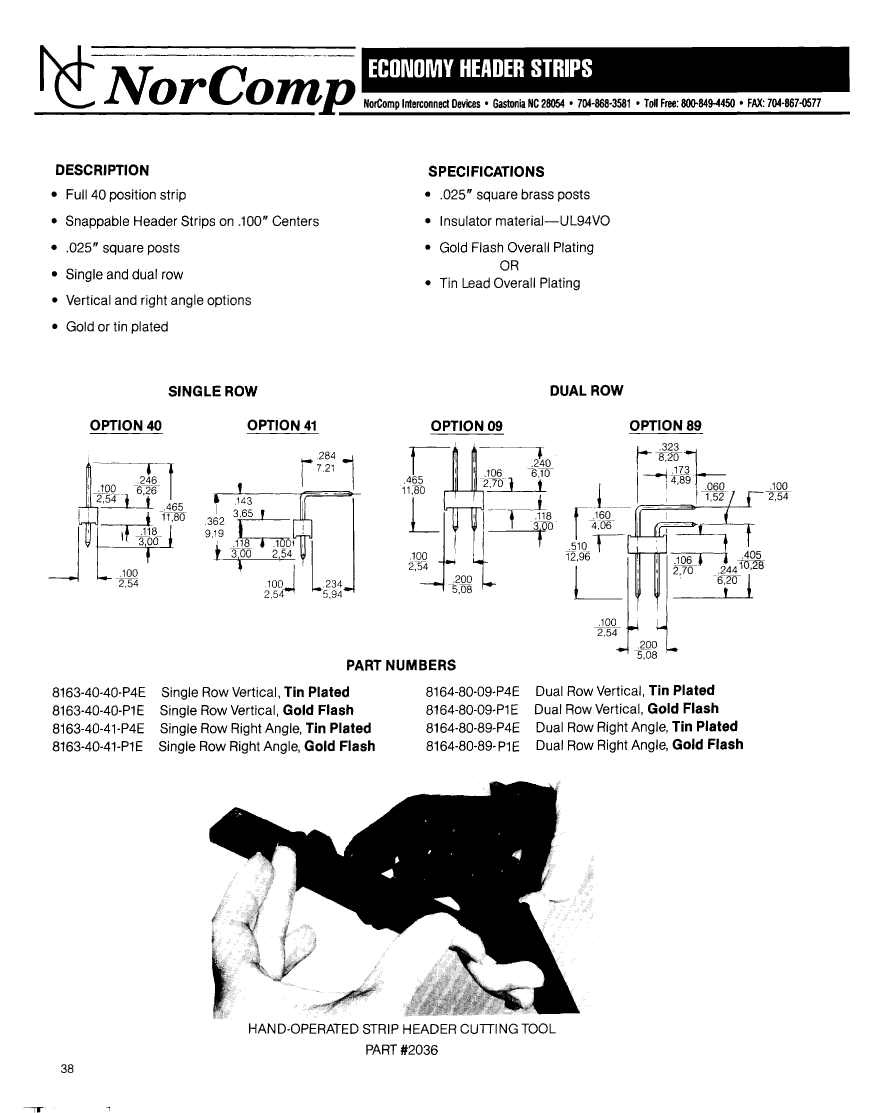

Preview

Download Datasheet

View All

8163-40-40-P1E Related Products

	8163-40-40-P1E	8163-40-40-P4E	8163-40-41-P1E	8163-40-41-P4E	8164-80-09-P1E	8164-80-09-P4E	8164-80-89-P1E	8164-80-89-P4E
Description	Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 40 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 40 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	40	40	40	40	40	40	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
