Datasheet> All Categories > Passive components> inductor> DFKH-31-0006

Preview

DFKH-31-0006: DescriptionCommon Mode Chokes / Filters DFKH, 2.5 A, 5.6 mH 110 ohms, Inductor; CategoryPassive components inductor; File Size290KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DFKH-31-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFKH-31-0006	-	-	View	Buy Now

DFKH-31-0006 Overview

Common Mode Chokes / Filters DFKH, 2.5 A, 5.6 mH 110 ohms, Inductor

DFKH-31-0006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
DC Resistance	0.11 Ω
Nominal inductance(L)	5600 µH
Inductor Applications	COMMON MODE CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	2
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Maximum rated current	2.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	DUAL IN-LINE
Terminal shape	FLAT
Tolerance	50%
Base Number Matches	1

Preview

Download Datasheet

View All

Suppression Chokes

https://www.schurter.com /PG81_82

DFKH

Magnetically Compensated Choke, 1-phase, high design

Approvals and Compliances

Description

-

Current compensated choke

1-phase choke

THT-terminals

Inductor vertically positioned in housing

Applications

-

Attenuation of common mode interferences

Designed for 230/400 VAC applications

Chopper amplifiers

DC drives and stepper motor controls

Switching power supplies

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product, SPICE Library

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 440 VAC

0.6 - 6.3 A @ Ta 40 °C

0.6 - 50 mH, Tol. -30% +50%

50 - 400 Hz

THT

3 - 30 g

UL 94V-0

Test Voltage

Isolation Voltage

Climatic Category

Allowable Operation Temp.

1.8 kV, 50 Hz, 1 min, winding to winding

2 kV eff., winding to ambient

25/100/21 acc. to IEC 60068-1

-25 °C to 100 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DFKH

Approval Logo

Certificates

UL Approvals

Certification Body

UL

Description

UL File Number:

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

EMC Products

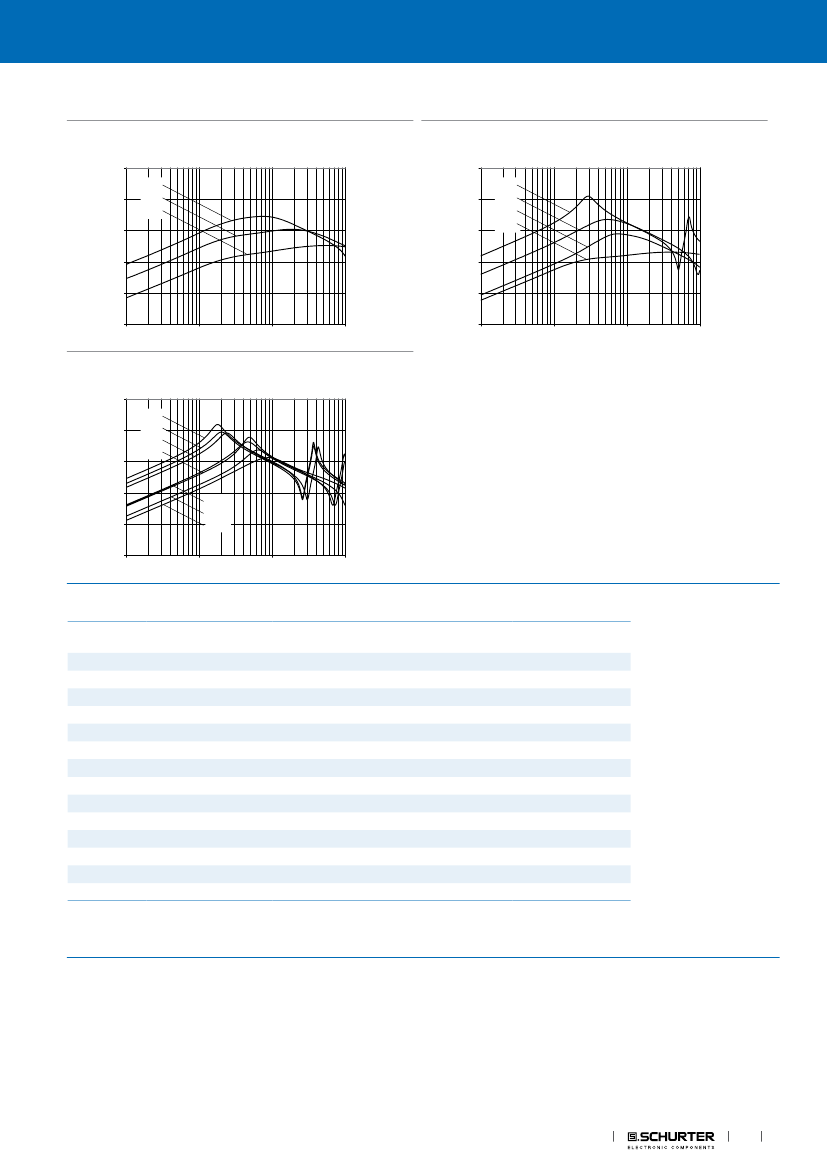

1

DFKH-31-0006 Related Products

	DFKH-31-0006	DFKH-22-0004	DFKH-31-0002	DFKH-22-0003	259P564X5320S02	DFKH-14-0003	DFKH-31-0003	DFKH-31-0005	DFKH-14-0002
Description	Common Mode Chokes / Filters DFKH, 2.5 A, 5.6 mH 110 ohms, Inductor	Common Mode Chokes / Filters DFKH, 4 A, 1.5 mH 36 m ohms, Inductor	Common Mode Chokes / Filters COMPENSATED	Common Mode Chokes / Filters DFKH Compensat choke 2A	CAPACITOR, FILM/FOIL, POLYCARBONATE, 0.56 uF, THROUGH HOLE MOUNT, AXIAL LEADED	Common Mode Chokes / Filters COMPENSATED	Common Mode Chokes / Filters COMPENSATED	Common Mode Chokes / Filters COMPENSATED	Common Mode Chokes / Filters COMPENSATED
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of terminals	4	4	4	4	2	4	4	4	4
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	85 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-55 °C	-25 °C	-25 °C	-25 °C	-25 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	MATTE TIN	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	FLAT	FLAT	FLAT	FLAT	WIRE	FLAT	FLAT	FLAT	FLAT
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to
Factory Lead Time	16 weeks	14 weeks	16 weeks	14 weeks	-	8 weeks	16 weeks	-	8 weeks
DC Resistance	0.11 Ω	0.036 Ω	0.7 Ω	0.15 Ω	-	0.065 Ω	0.47 Ω	0.15 Ω	0.25 Ω
Nominal inductance(L)	5600 µH	1500 µH	33000 µH	6000 µH	-	1000 µH	27000 µH	6800 µH	4000 µH
Inductor Applications	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE	-	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	2	2	2	2	-	2	2	2	2
Maximum rated current	2.5 A	4 A	1 A	2 A	-	2 A	1.4 A	2 A	1 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	-	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	-	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Tolerance	50%	50%	50%	50%	-	50%	50%	50%	50%
Base Number Matches	1	1	-	1	-	-	1	1	1
self resonant frequency	-	1.5 MHz	0.25 MHz	0.6 MHz	-	2.5 MHz	0.3 MHz	0.5 MHz	1.2 MHz
