PLASTIC PACKAGE PURE SILICON™ CLOCK OSCILLATOR
ASFLM
FEATURES:
• Pure Silicon
TM
Clock Oscillator
• MEMS Technologyby Discera
• Low Power Consumption <10mA
• Low Stand by Current <1uA
• Exceptional Stability Over Temp. at 40 to +85°C
• Available over Extended Temp Range
• Low Cost-Compact QFN Plastic Packaging
• Compact Package design
ASFLM
Life Siz e
5.0 x 3.2 x 0.8 5 mm
Pb
RoHS/RoHS II Compliant
APPLICATIONS:
• CCD Clock for VTR Camera
• Equipment Connected to PCs
• Low Profile Equipment
• Lower Cost Crystal Oscillator Replacement
• Computers and Peripherals
• Portable Electronics (MP3 Players, Games)
• Consumer Electronics such as TV’s, DVR’s, etc.
• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
• Demanding Military & Automotive Electronics
STANDARD SPECIFICATIONS:
Parameters
Frequency Range:
Operating Temperature:
Storage Temperature:
Overall Frequency Stability*:
Supply Voltage (Vdd):
1.0 to 39.9999MHz
Minimum
1.0
0
-55
-100
-----
-----
-----
-----
0.8*V
dd
-----
-----
-----
Typical
-----
-----
-----
-----
+1.8 ~ +3.3
3
4
5
6
-----
-----
1.3
Maximum
150
+70
+150
+100
10
10
10
10
-----
0.2*V
dd
2.0
2.0
Units
MHz
°C
°C
ppm
V
Notes
See options
See options
See options
No load
RL=∞
T=25°C
Supply Current
(no load):
40.0 to 79.9999MHz
80.0 to 124.9999MHz
125.0 to 150MHz
mA
Output Voltage:
Rise Time:
Fall Time:
Output Load:
Symmetry:
Startup Time:
Disable Time:
Disable Stand-by Current:
Tri-state Function (Stand-by) :
Cycle to cycle jitter:
Aging:
V
OH
V
OL
Tr
Tf
V
ns
pF
%
ms
ns
uA
V
ps
ppm
15pF
15pF; T=25°C
20%/80%*VDD
See options
@1/2Vdd
1.3
15pF max / 10k
Ω
min.
45
-----
55
-----
1.5
3.0
-----
20
100
-----
-----
1
"1" (VIH≥0.75*Vdd) or Open: Oscillation
"0" (VIH<0.25*Vdd) : Hi Z
-----
95
-----
-5.0
-----
+5.0
F=100MHz
First year
Absolute Maximum Ratings
Item
Supply Voltage
Input Voltage
Junction Temp.
Soldering Temp.
ESD
HBM
MM
CDM
Minimum
-0.3
-0.3
-----
-----
Maximum
+4.0
Vdd+0.3
+150
+260
2,000
200
500
Unit
V
V
°C
°C
V
Condition
40sec max
REVISED:
12.6.2017
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
ISO9001-2008
CERTIFIED
PLASTIC PACKAGE PURE SILICON™ CLOCK OSCILLATOR
ASFLM
PART NUMBER FOR PROGRAMMED ORDER S
Programmed Orders (Quantity > 1,000pcs)
Pb
RoHS/RoHS II Compliant
ASFLM
Life Siz e
5.0 x 3.2 x 0.8 5 mm
| | | | | | | | | | | | | |
|
ASFLM
-
MHz -
-
Supply Voltage
1: 3.0 ± 0.3V
2: 3.3 ± 0.3V
3: 2.5 ± 0.2V
4: 1.8 ± 0.15V
5: 2.8 ± 0.2V
Frequency in MHz
e.g. 14.3181 MHz
(Maximum 4 digits
after decimal)
Operating Temp.
Blank: 0°C ~ +70°C
E: -20°C ~ +70°C
L: -40°C ~ +85°C
Packaging
Overall Freq. Stability
Blank*: 72pcs / Tube
Blank: ±100ppm
T: 1,000pcs / reel
R: ±25ppm
T3: 3,000pcs / reel
C: ±50ppm
* For Quick turn-around programmable orders < 1000pcs:
Due to the immediate availability of stock and the qty of the
order, the parts may be delivered as BULK: Cut Tape, Loose
parts in Antistatic Bag or in Tube(s). The MOQ per the series
will still apply for Tube packaging.
Un-Programmed Orders (Quantity < 1,000pcs)
Blank un-programmed oscillators are available for quick turn engineering requirements. Please call ABRACON for more
information.
ASFLM - BLANK -
-
Operating Temp.
Freq. Stability
EC: ± 50 ppm / -20°C to +70°C
ER: ± 25 ppm / -20°C to +70°C
LC: ± 50 ppm / -40°C to +85°C
LR: ± 25 ppm / -40°C to +85°C
Packaging
Blank: 72pcs / Tube
T: 1,000pcs / reel
T3: 3,000pcs / reel
REVISED:
12.6.2017
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
ISO9001-2008
CERTIFIED
PLASTIC PACKAGE PURE SILICON™ CLOCK OSCILLATOR
TM
ASFLM
Life Siz e
5.0 x 3.2 x 0.8 5 mm
| | | | | | | | | | | | | |
|
ASFLM

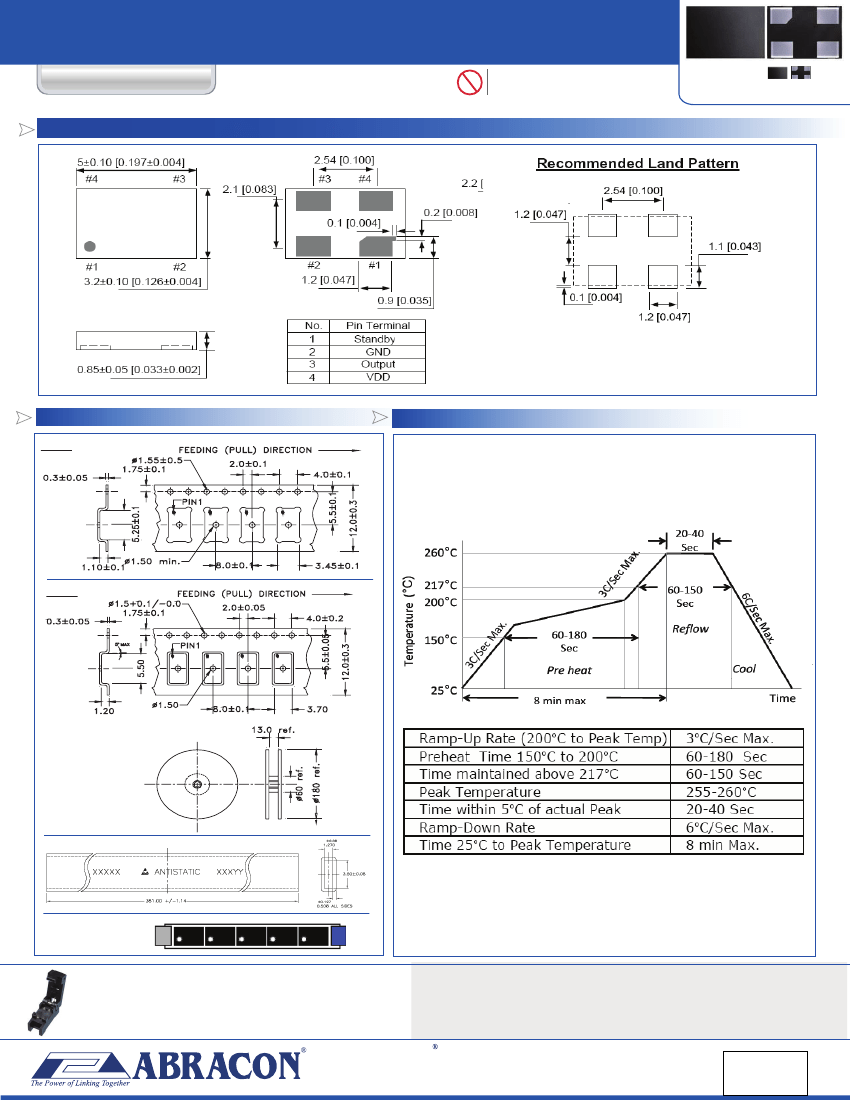

OUTLINE DRAWING:
Pb
RoHS/RoHS II Compliant
AV L
(Left blank if standard)
Note: Recommend using an approximately
0.01uF bypass capacitor between PIN 2 and 4.
Dimensions: mm (Inches)
Tape
TAPE & REEL:
and reel 1,000pcs/reel
Tape 1:
REFLOW PROFILE:
Tape 2:
Tube: 72 pcs/tube
Unit orientation in tube:
Dimensions: mm
ATTENTION:
Abracon
LLC
products are COTS – Commercial-Off-The-Shelf products; suitable for
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically
designed for Military, Aviation, Aerospace, Life dependent Medical applications or any application requiring
high reliability where component failure could result in loss of life and/or property. For applications requiring
high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon
LLC
is required. Please contact Abracon
LLC
for more information.
Need a test socket for the ASFLM Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N: AXS-5032-04-07
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED:
12.6.2017
ABRACON IS
ISO9001-2008
CERTIFIED
