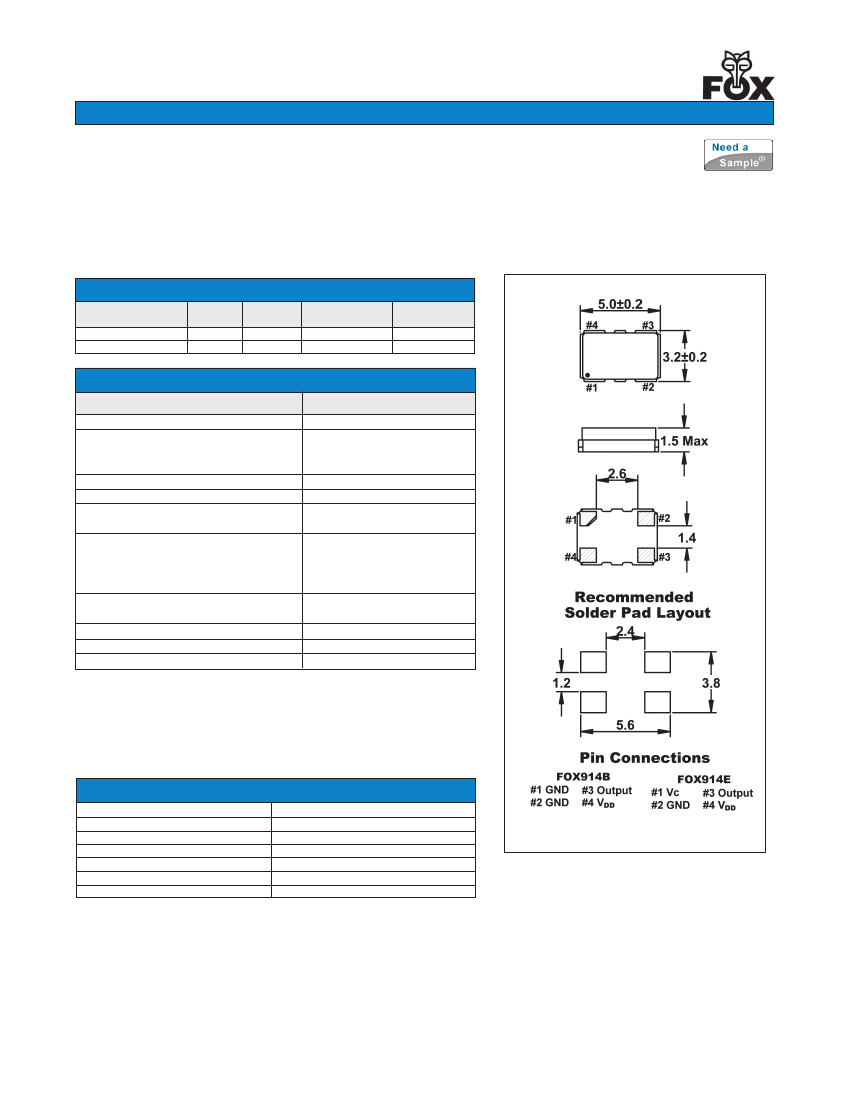

3.0V Ultra Miniature SMD TCXO/VCTCXO
Page 1 of 1
•
•
•
•
•
Model: FOX914 SERIES
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 8/8/2013
FEATURES
3.0V Operation
• Voltage Control (FOX914E)
1.5mm Height Max
• Voltages of 2.5V ~ 2.8V ~ 3.3V
Clipped Sine Output
Low Cost
Tape and Reel (2,000 pcs. STD)
OPTIONS
• PART NUMBER SELECTION
Part Number
Frequency
Model
Operating
Frequency
Stability Temperature (ºC) Range (MHz)
1
Number
490-Frequency-xxxxx FOX914B
See table
-30 ~ +85
8.000 ~ 40.000
491-Frequency-xxxxx FOX914E
See table
-30 ~ +85
8.000 ~ 40.000
• ELECTRICAL CHARACTERISTICS
Frequency Range (F
o
)
Temperature Range
Operating
(T
opr
)
3
Storage
(T
stg
)
Supply Voltage
(V
dd
)
4
Input Current
(I
dd
)
Initial Frequency Tolerance
(@ 25ºC ± 2ºC)
(Vc = 1.5V
2
)
Frequency Stability
Over Temperature Range
3
Over Supply Voltage Change
(3.0V ± 5%)
Over Load Change
(10kΩ ± 10% // 10pF ±10%)
Output Waveform
(Clipped Sine)
Peak-to-Peak Level (Vp-p)
Output Load
Aging per year
Pullability
2
(Vc = 1.5 ± 1.0V)
1
2
PARAMETERS
MAX
(unless otherwise noted)
8.000 ~ 40.000 MHz
1
-30ºC ~ +85ºC
-40ºC ~ +85ºC
3.0V ± 5%
2.0mA
±1.0PPM
±2.5PPM
±0.2PPM
±0.2PPM
0.8V Min
10kΩ // 10pF ±10%
±1.0PPM
±5.0 ~ ±15.0 PPM
Undeveloped frequencies available on an inquiry basis.
For proper operation, a control voltage (Vc) must be applied to pin 1 on VCTCXOs.
3
Other stabilities/temperature ranges available.
4
Other voltages available.
*Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
very.All specifications subject to change without notice.
• DEVELOPED FREQUENCIES
1
12.600 MHz
12.800 MHz
13.000 MHz
13.824 MHz
14.400 MHz
14.850 MHz
16.800 MHz
19.200 MHz
19.440 MHz
19.680 MHz
19.800 MHz
20.000 MHz
26.000 MHz
3
All dimensions are in millimeters.
