H11G2 datasheet, PDF - EEWORLD Datasheet

H11G2: Description1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER; CategoryLED optoelectronic/LED; File Size137KB，4 Pages; ManufacturerETC

Download Datasheet Parametric Compare View All

H11G2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H11G2	-	-	View	Buy Now

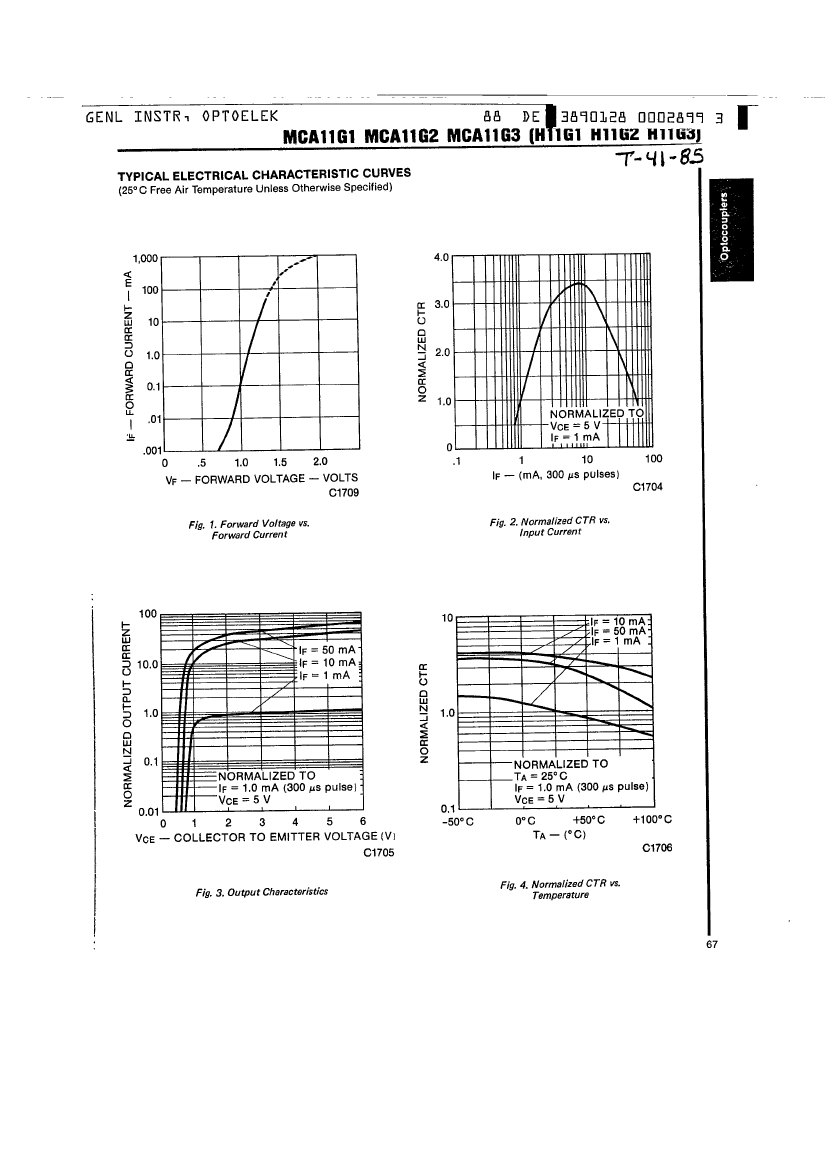

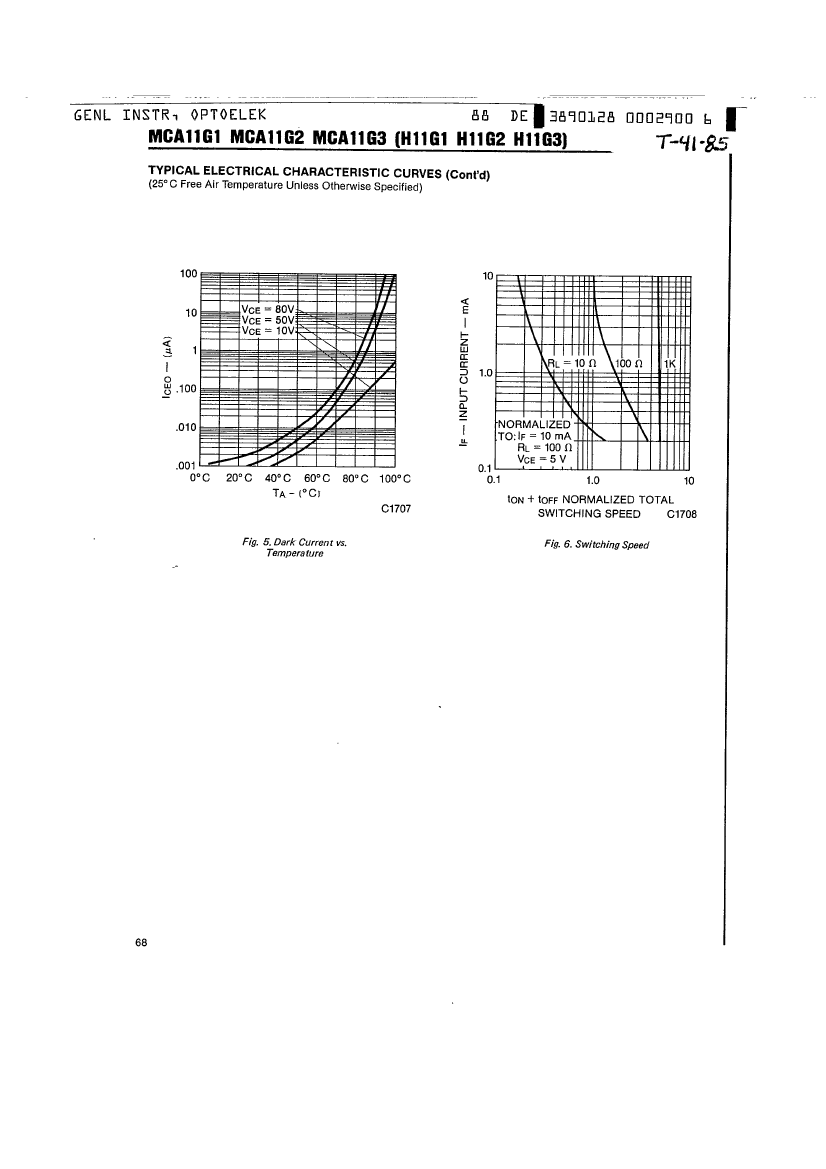

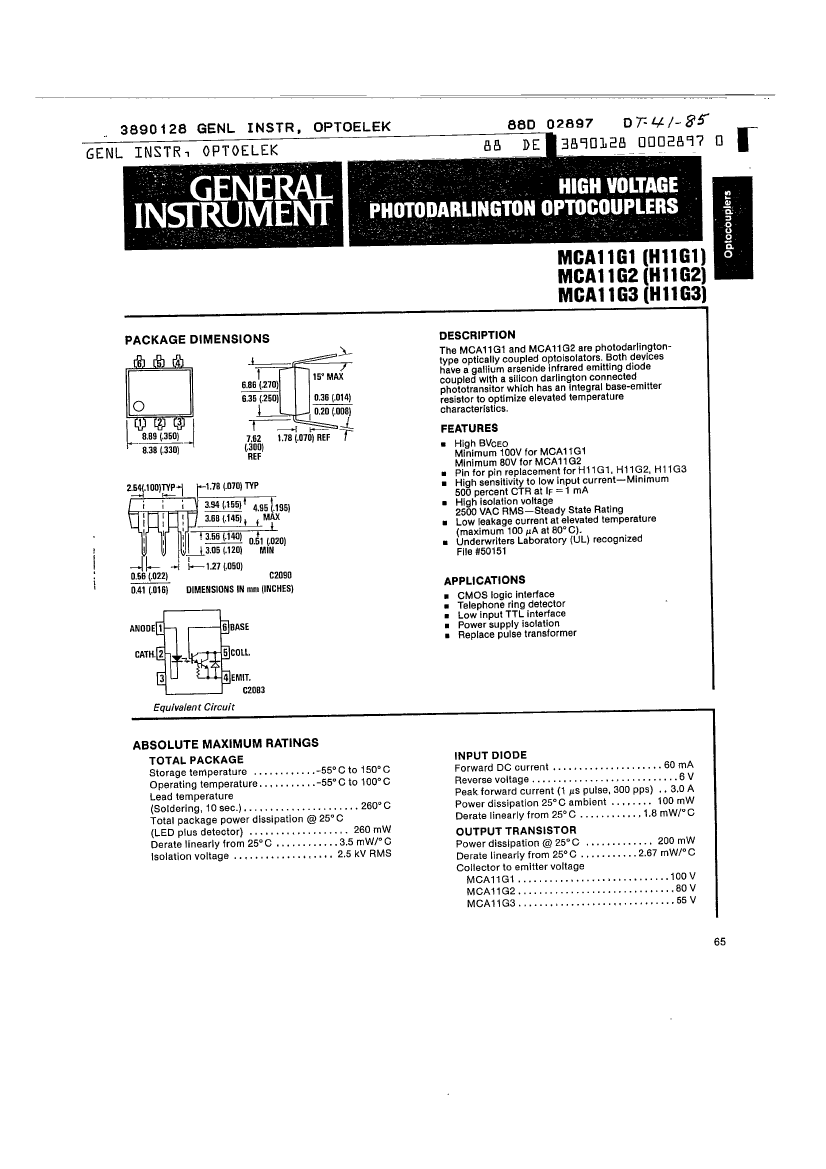

1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER

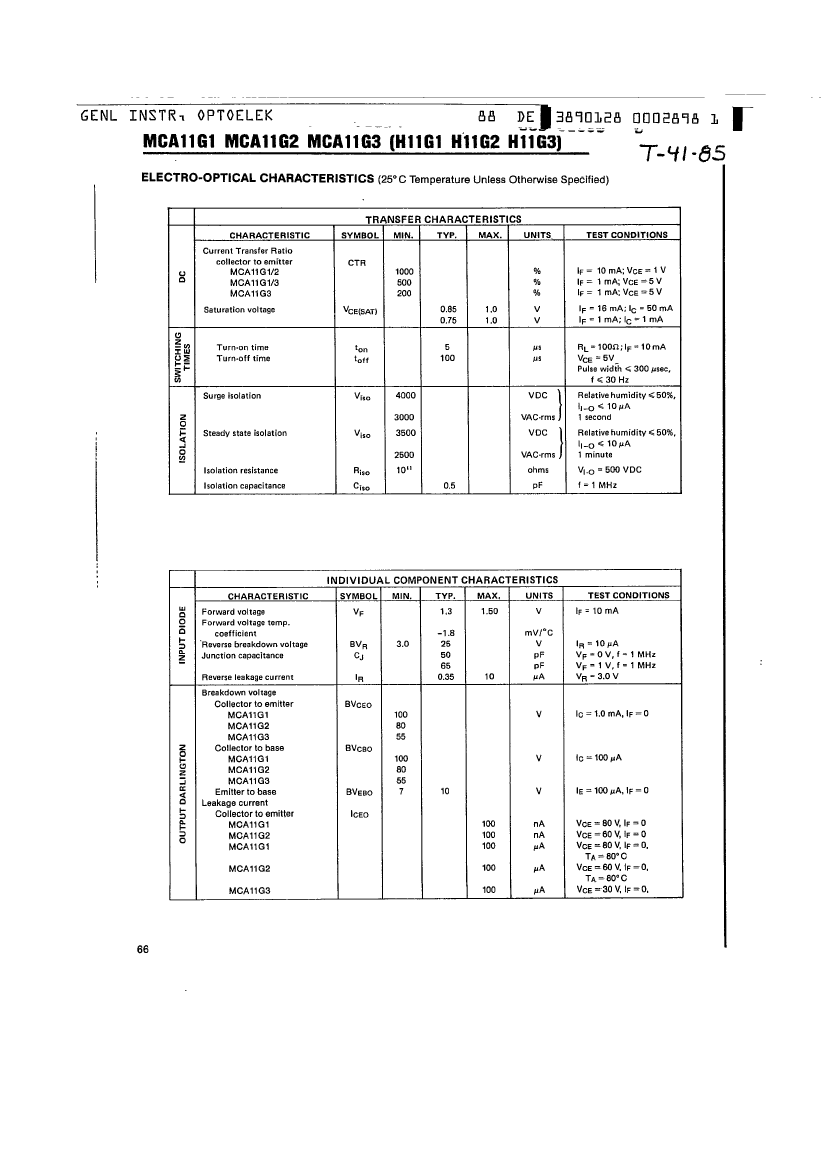

Parameter Name	Attribute value
Maximum operating temperature	100 Cel
Minimum operating temperature	-55 Cel
Number of functions	1
Processing package description	DIP-6
state	ACTIVE
structure	SINGLE WITH BUILT-IN DIODE AND RESISTOR
Optoelectronic device type	DARLINGTON OUTPUT
Minimum Coll-emtr Bkdn voltage	80 V
Maximum collector dark current	100 nA
Rated current transfer ratio	1000 %
Maximum input control current	60 mA
Maximum insulation voltage	3750 V

H11G2 Related Products

	H11G2	H11G3	H11G1	MCA11G3	MCA11G2	MCA11G1
Description	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER
Maximum operating temperature	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Number of functions	1	1	1	1	1	1
Processing package description	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
structure	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR
Optoelectronic device type	DARLINGTON OUTPUT	DARLINGTON OUTPUT	DARLINGTON OUTPUT	DARLINGTON OUTPUT	DARLINGTON OUTPUT	DARLINGTON OUTPUT
Minimum Coll-emtr Bkdn voltage	80 V	80 V	100 V	80 V	80 V	80 V
Maximum collector dark current	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Rated current transfer ratio	1000 %	1000 %	1000 %	1000 %	1000 %	1000 %
Maximum input control current	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA
Maximum insulation voltage	3750 V	3750 V	5300 V	3750 V	3750 V	3750 V
