Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
SAE/USCAR-19
Termination of coaxial cables in automotive, medical and instrumentation applications
utilizes a single motion to crimp the center conductor, shield and outer insulation.
GT5 Series
— Connectors for coaxial cables —
<
Several types and configurations: In-line, board mounted, combinations of
coaxial cable with signal/power, Multi-position and color/ keying variations.
>
Features
USCAR Standard titled "Square Outer Conductor (SAE/USCAR-19)" excludes Water Proof type (GT5W)
Cost efficient termination
Highly efficient and reliable single motion "Twin Crimp
TM
" termination allows high volume production with
semi-automatic equipment.
Space-saving Design
Lock-release latching system
Shock / vibration resistant electrical connections
Verification of the full contact insertion
Color and polarizing variations
Excellent High Frequency Performance
Refer to V.S.W.R. data on the following pages.
Applications
In-car communication, car sensors (temperature, pressure), automotive audio systems, GPS antenna systems,
RACS antenna audio/video antenna systems, CRT displays, medical and measuring instrumentation, variety of
communication equipment, office automation equipment, LAN systems.
*
"Twin Crimp "is a registered trade mark of Hirose Electric.
27
B

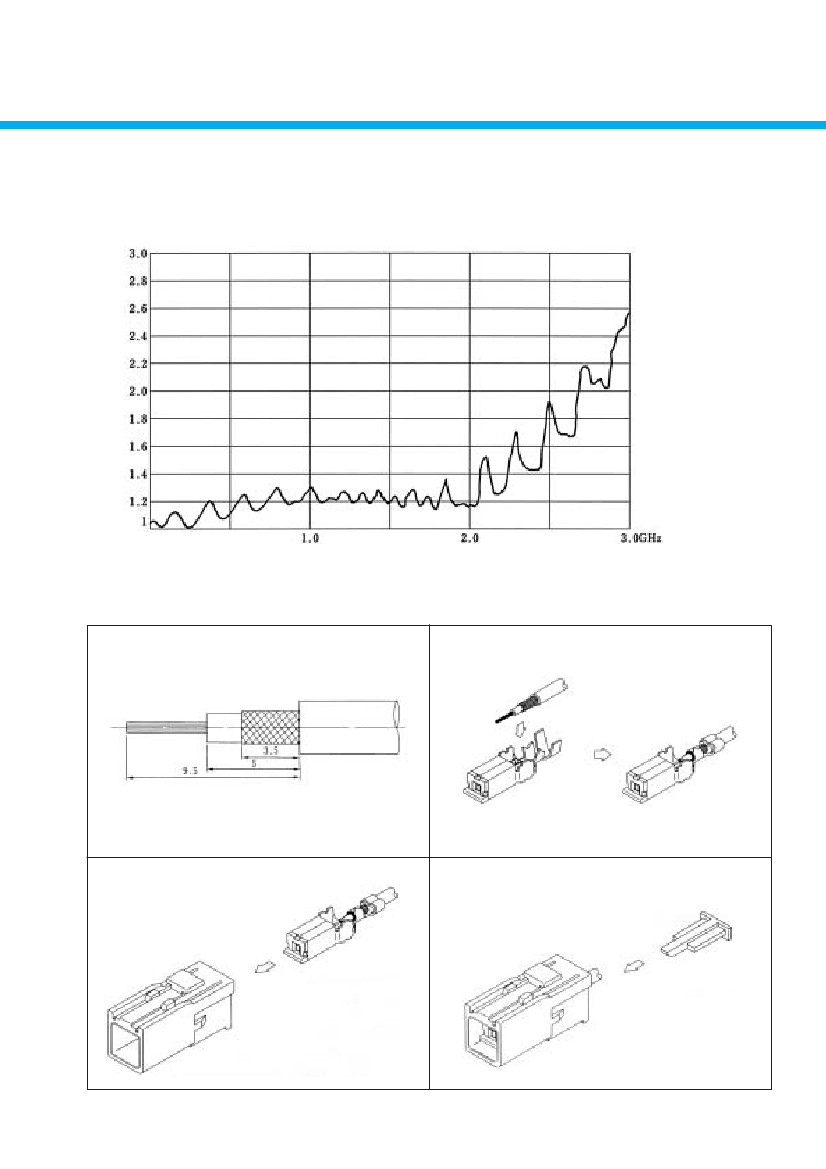

Test Data (Using 1.5D-2V Type cable)
High Frequency Characteristics (V.S.W.R.)
Note:
Typical data using fully assemblied and connected GT5-1S-HU and the GT5-1PP-HU.
B
Termination sequence
1. Strip the cable.
2. Crimp the cable to the terminal.
3. Insert the terminal in the housing until is fully locked.
4. Fully insert the retainer.
28

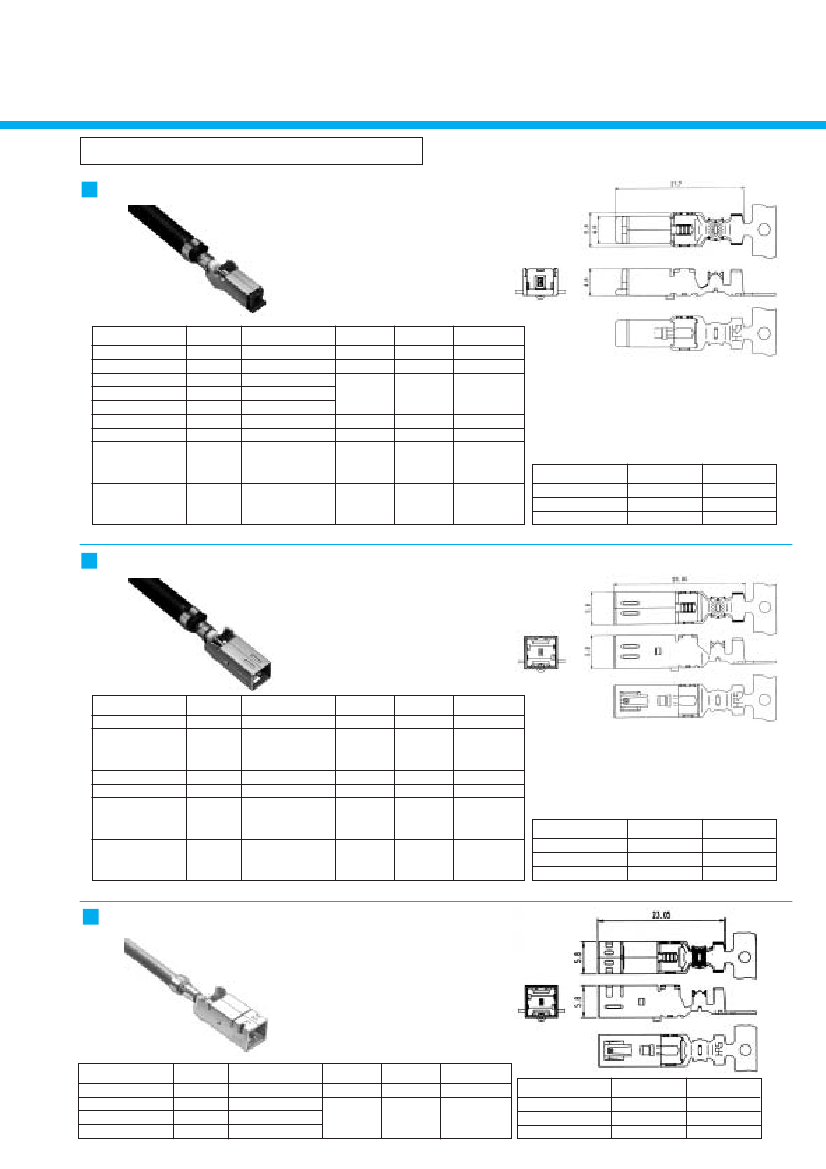

Terminals for coaxial shielded cable
F Connector Terminals
Part Number
GT5-30/0.7-1.5SCF
GT5-2428/1.6-2.5SCF
GT5-30/1.6-2.9SCF
GT5-2428/1.6-2.9SCF
GT5-2022/1.6-2.9SCF
GT5-2022/F2.7-3.5SCF
CL No.
755-0065-1
755-0078-3
755-0022-9
755-0002-1
755-0071-4
755-0077-0
755-0054-5
755-0016-6
755-0012-5
755-0034-8
755-0020-3
755-0024-4
755-0036-3
Conductor Size (AWG)
#30 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
#20 to 22 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
Inner Insulation
Diameter
0.6 to 0.9mm
1.5 to 2.0mm
Outer
Diameter
Packaging
1.4 to 1.8mm 1,300 pcs. per reel
2.3 to 2.7mm 1,300 pcs. per reel
1.5 to 2.0mm
2.6 to 3.4mm 1,300 pcs. per reel
2.4 to 2.9mm
2.5 to 2.9mm
3.3 to 3.7mm 1,100 pcs. per reel
3.6 to 4.0mm 1,100 pcs. per reel
*
*
*
*
*
*
*
GT5-2022/F3.3-3.8SCF
GT5-30/3.3-5SCF
GT5-2428/F3.3-5SCF
GT5-2022/F3.3-5SCF
GT5-30/F4-5SCF
GT5-2428/F4-5SCF
GT5-2022/F4-5SCF
2.5 to 2.9mm
4.6 to 5.0mm 1,100 pcs. per reel
Part
Insulator
Material
PBT
Phosphor bronze
Brass
Finish
Color: Dark gray
Tin plating
Tin plating
3.0 to 3.6mm
4.6 to 5.0mm 1,100 pcs. per reel
Crimp terminals
Outer terminals
Note: Products marked with an asterisk (*) indicate polyethylene foam insulation.
M Connector Terminals
Part Number
GT5-30/0.7-1.5PCF
GT5-30/1.6-2.9PCF
GT5-2428/1.6-2.9PCF
GT5-2022/1.6-2.9PCF
GT5-2022/F2.7-3.5PCF
CL No.
755-0017-9
755-0021-6
755-0001-9
755-0094-0
755-0076-8
755-0053-2
755-0015-3
755-0011-2
755-0033-5
755-0019-4
755-0023-1
755-0035-0
Conductor Size (AWG)
#30 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
#20 to 22 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#20 to 22 or equivalent
Inner Insulation
Diameter
0.6 to 0.9mm
Outer
Diameter
1.4 to 1.8mm
Packaging
900 pcs. per reel
1.5 to 2.0mm
2.6 to 3.4mm
900 pcs. per reel
2.4 to 2.9mm
2.5 to 2.9mm
3.3 to 3.7mm
3.6 to 4.0mm
900 pcs. per reel
900 pcs. per reel
*
*
*
*
*
*
*
GT5-2022/F3.3-3.8PCF
GT5-30/F3.3-5PCF
GT5-2428/F3.3-5PCF
GT5-2022/F3.3-5PCF
GT5-30/F4-5PCF
GT5-2428/F4-5PCF
GT5-2022/F4-5PCF
2.5 to 2.9mm
4.6 to 5.0mm
900 pcs. per reel
Part
Insulator
Material
PBT
Brass
Brass
Finish
Color: Dark gray
Tin plating
Tin plating
3.0 to 3.6mm
4.6 to 5.0mm
900 pcs. per reel
Crimp terminals
Outer terminals
Note:
Products marked with an asterisk (*) indicate polyethylene foam insulation.
Low-insertion M Connector Terminals
Part Number
GT5L-30/0.7-1.5PCF
GT5L-30/1.6-2.9PCF
GT5L-2428/1.6-2.9PCF
GT5L-2428/1.6-2.5PCF
HRS No.
755-0068-0
755-0067-7
755-0066-4
755-0079-6
Conductor Size (AWG)
#30 or equivalent
#30 or equivalent
Inner Insulation
Diameter
0.6 to 0.9mm
Outer
Diameter
1.4 to 1.8mm
Packaging
900 pcs. per reel
Part
Insulator
Material
PBT
Brass
Brass
Finish
Color: Dark gray
Tin plating
Tin plating
#24 to 28 or equivalent 1.5 to 2.0mm
#24 to 28 or equivalent
2.6 to 3.4mm
900 pcs. per reel
Crimp terminals
Outer terminals
29

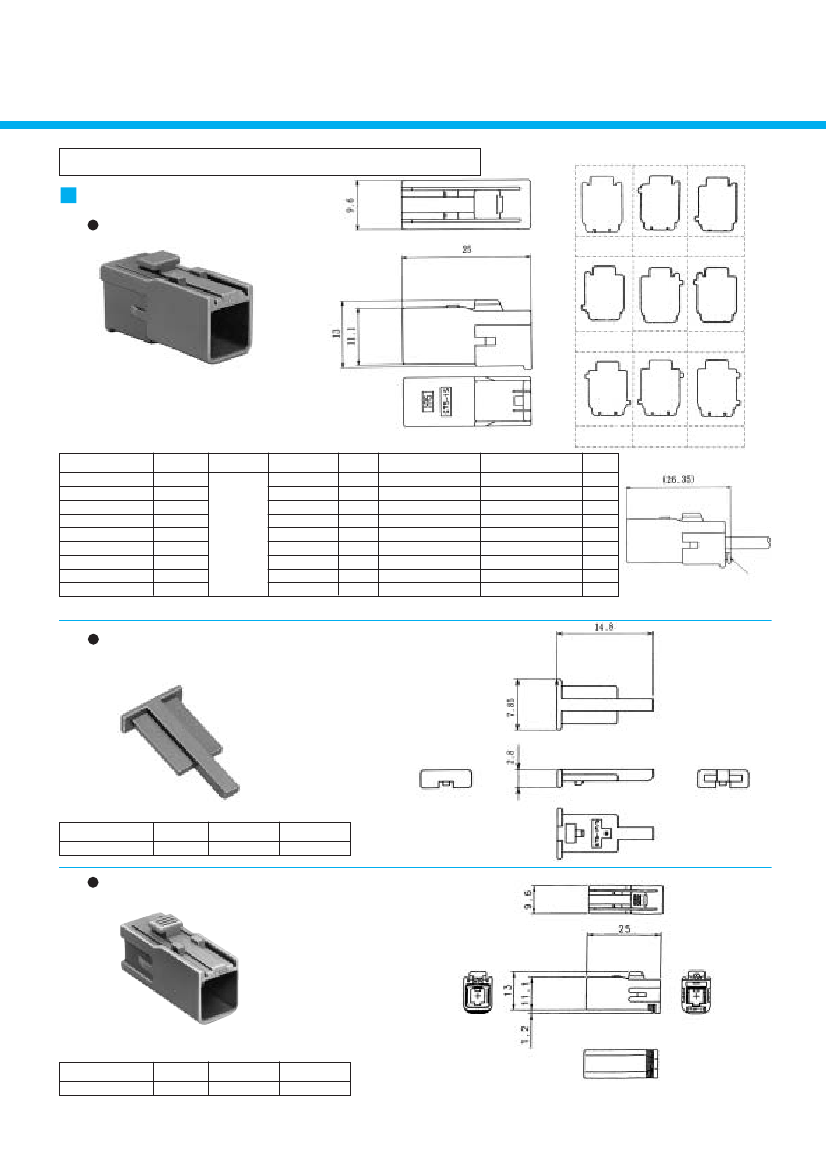

For Single-Conductor coaxial shielded cable
F Connectors
Housing

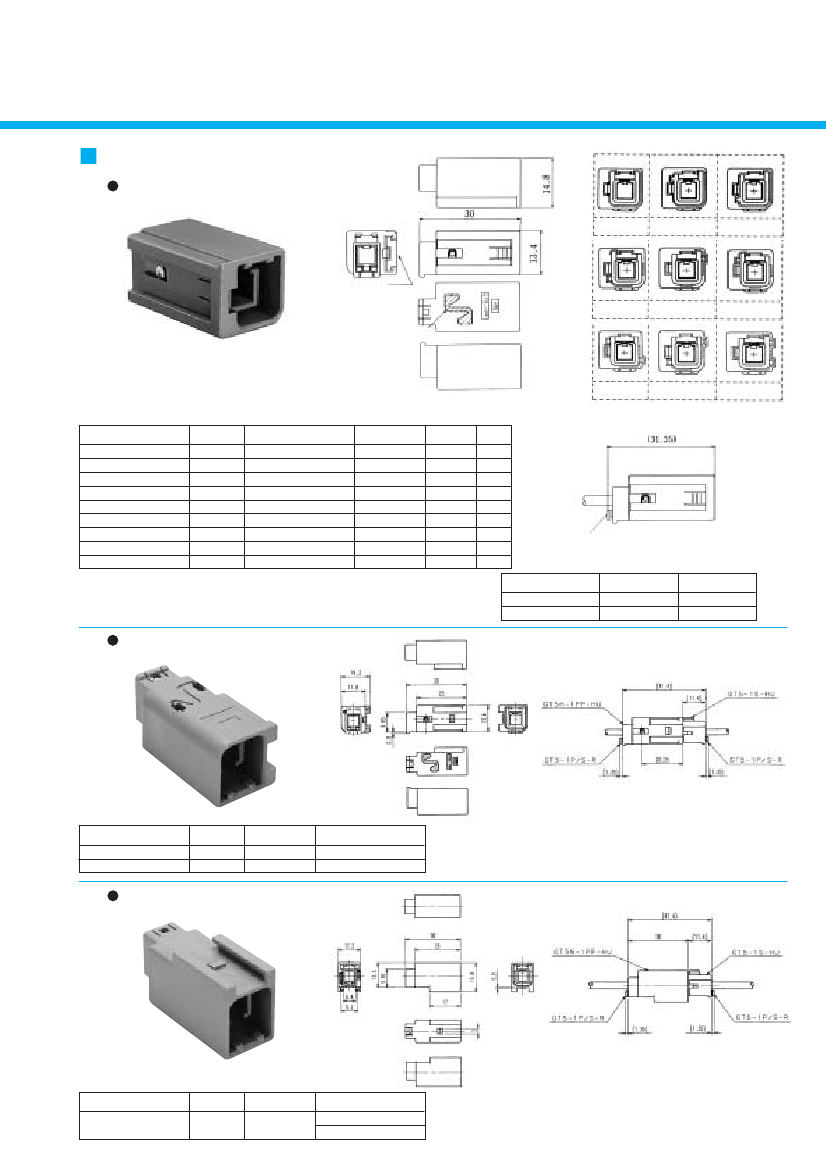

BKeying
Configurations
Figure
q
Figure
w
Figure
e
Figure
r
Figure
t
Figure
y
GT5-1S-HU
Figure
u
Part Number
GT5-1S-HU
GT5-1S-HU(A)
GT5-1S-HU(B)
GT5-1S-HU(C)
GT5-1S-HU(D)
GT5-1S-HU(E)
GT5-1S-HU( I )
GT5-1S-HU(J)
GT5-1S-HU(K)
CL No.
755-0004-7
755-0037-6
755-0038-9
755-0080-5
755-0081-8
755-0082-0
Note 1
Note 1
Note 1
PBT
Material
Color
Light gray
Brown
Green
Blue
Purple
Pink
Black
Cream white
Pastel orange
Key polarizing Corresponding M Connector
code
Housing- In-line
Figure
q
Figure
w
Figure
e
Figure
r
Figure
t
Figure
y
Figure
u
Figure
i
Figure
o
GT5-1PP-HU
GT5-1PP-HU(A)
GT5-1PP-HU(B)
GT5-1PP-HU(C)
GT5-1PP-HU(D)
GT5-1PP-HU(E)
GT5-1PP-HU( I )
GT5-1PP-HU(J)
GT5-1PP-HU(K)
Corresponding M Connector USCAR-19
Assembly- Board Mounting
Coding
GT5-1P-DS
GT5-1P-DS(A)
GT5-1P-DS(B)
GT5-1P-DS(C)
GT5-1P-DS(D)
GT5-1P-DS(E)
GT5-1P-DS( I )
GT5-1P-DS(J)
GT5-1P-DS(K)
-
A
B
C
D
E
I
J
K
Figure
i
Figure
o
BShown
with inserted retainer.
Retainer
Terminal extraction tool: GT-PO(A), Note 1: concept only
Retainer (-Optional-Used with the housings: GT5-1S-HU, GT5-1PP-
HU, GT5N-1PP-HU, GT5H-1PP-HU, and GT5-1PB-HU)
Part Number
GT5-1P/S-R
CL No.
755-0006-2
Material
PBT
Color
Dark gray
Housing (Not requiring use of the retainer)
GT5R-1S/ HU
Part Number
GT5R-1S-HU
CL No.
755-0047-0
Material
PBT
Color
Light gray
Terminal extraction tool: GT-PO(A)
30
BKeying
Configurations
M Connectors
Housing
Figure
q
Figure
w
Figure
e
Mounting bracket
attachment side
Figure
r
Outside ground connection
Figure
t
Figure
y
Figure
u
Figure
i
Figure
o
BShown
with inserted retainer.
Part Number
GT5-1PP-HU
GT5-1PP-HU(A)
GT5-1PP-HU(B)
GT5-1PP-HU(C)
GT5-1PP-HU(D)
GT5-1PP-HU(E)
GT5-1PP-HU( I )
GT5-1PP-HU(J)
GT5-1PP-HU(K)
CL No.
755-0005-0
755-0039-1
755-0040-0
755-0103-9
755-0104-1
755-0105-4
Note 1
Note 1
Note 1
Corresponding F Connector
Housing
GT5-1S-HU
GT5-1S-HU(A)
GT5-1S-HU(B)
GT5-1S-HU(C)
GT5-1S-HU(D)
GT5-1S-HU(E)
GT5-1S-HU( I )
GT5-1S-HU(J)
GT5-1S-HU(K)
Color
Light Gray
Brown
Green
Blue
Purple
Pink
Black
Cream white
Pastel orange
Key polarizing USCAR-19
code
Coding
Figure
q
Figure
w
Figure
e
Figure
r
Figure
t
Figure
y
Figure
u
Figure
i
Figure
o
-
A
B
C
D
E
I
J
K
Part
Housing
Ground terminal
Material
PBT
Phosphor bronze
Finish
Color: Dark gray
Tin plating
Retainer
* Refer to pages 32 and 34 for panel brackets used with in-line connectors.
* Terminal extraction tool: GT-PO(A)
Note 1: concept only
Housing (For use with H type mounting
bracket)
BFully
mated connector assemblies.
Part Number
GT5H-1PP-HU (10)
GT5H-1PP-HU (41)
CL No.
755-0093-7 10
755-0093-7 41
Color
Light Gray
Blue
Corresponding F Connector
Housing
GT5-1S-HU
GT5R-1S-HU
Housing (For use with N type mounting
bracket)
BFully
mated connector assemblies.
Part Number
GT5N-1PP-HU
CL No.
755-0090-9
Color
Light Gray
Corresponding F Connector
Housing
GT5-1S-HU
GT5R-1S-HU
31
