GT17VA-10DP-DSA

Description
6 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size1MB,20 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

GT17VA-10DP-DSA Overview

6 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER

GT17VA-10DP-DSA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
Other featuresTRAY PACKAGING
Board mount optionsPEG
body width0.618 inch
subject depth0.65 inch
body length0.921 inch
Body/casing typeRECEPTACLE
Connector typeUSB CONNECTOR
Contact to complete cooperationSN-PB
Contact point genderMALE
Contact materialBRASS
Contact styleUSB, SER A FLAT
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberGT17
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Maximum operating temperature105 °C
Minimum operating temperature-30 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.8006 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.199 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts10
Base Number Matches1

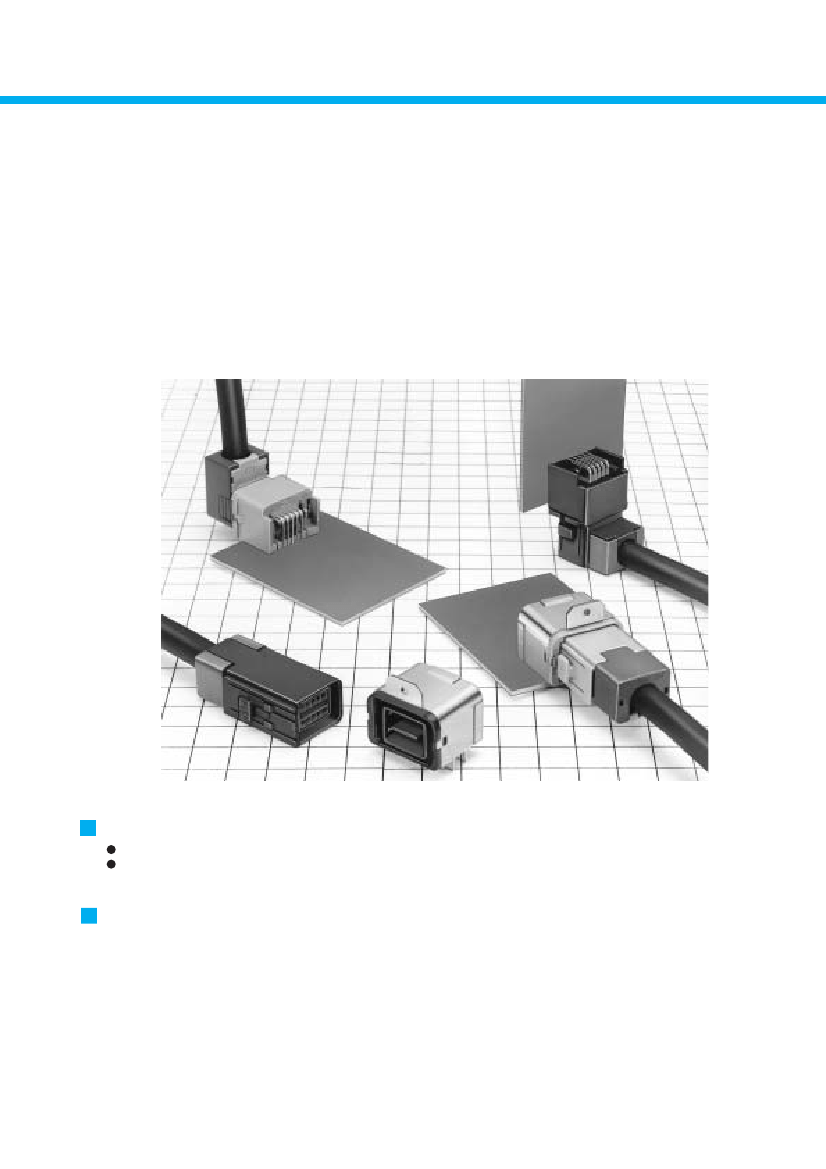

Antenna, Sensor, and Communications Trunk Line Connections

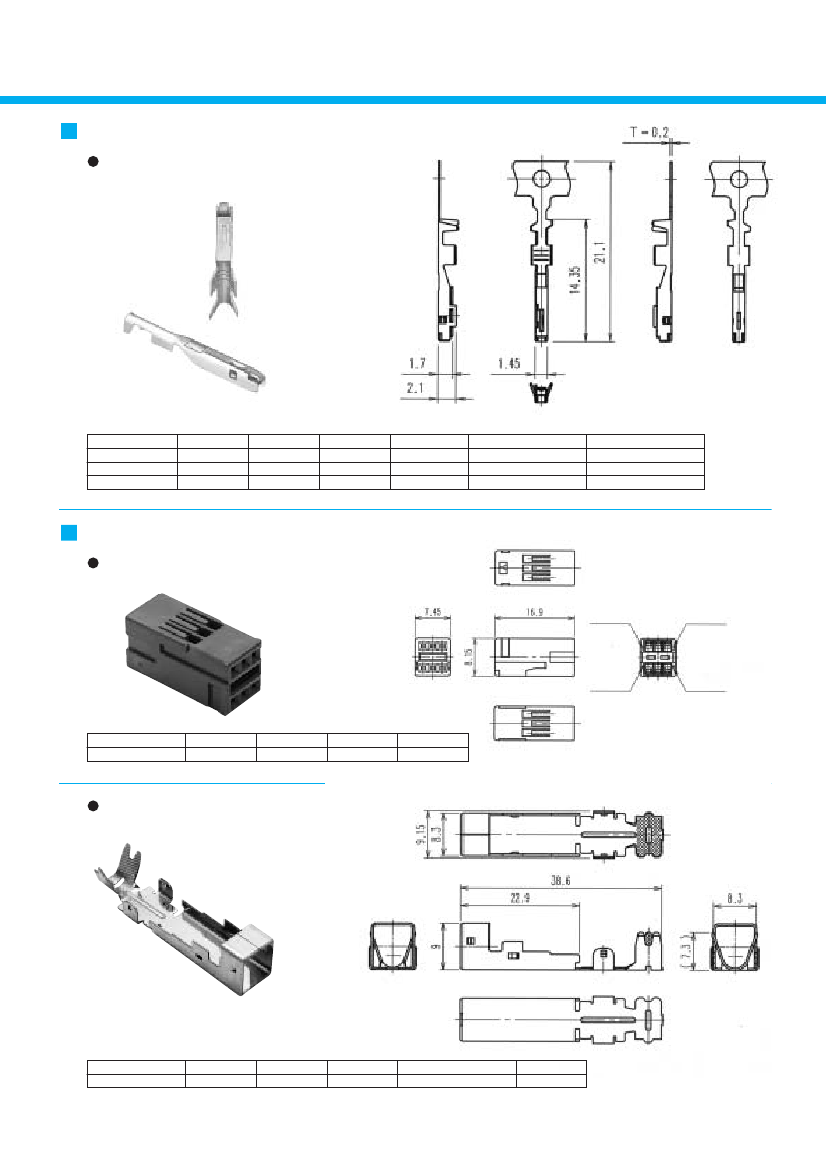

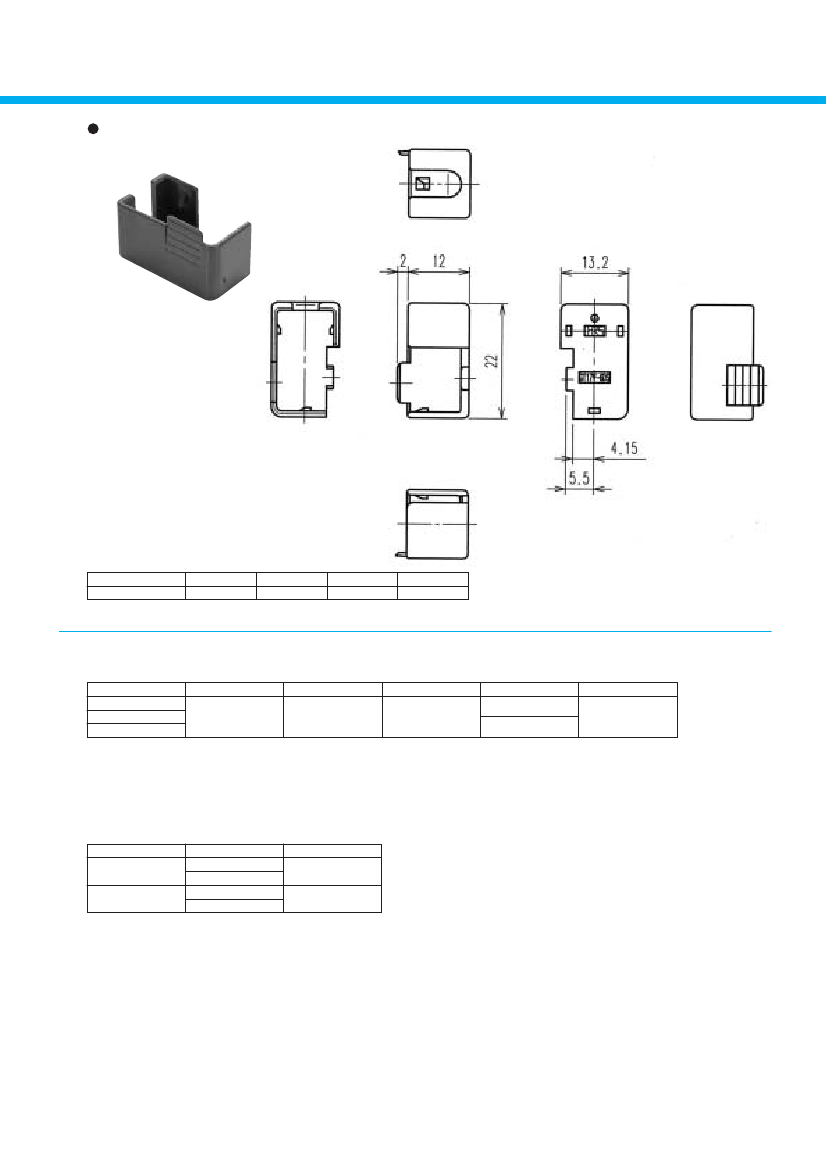

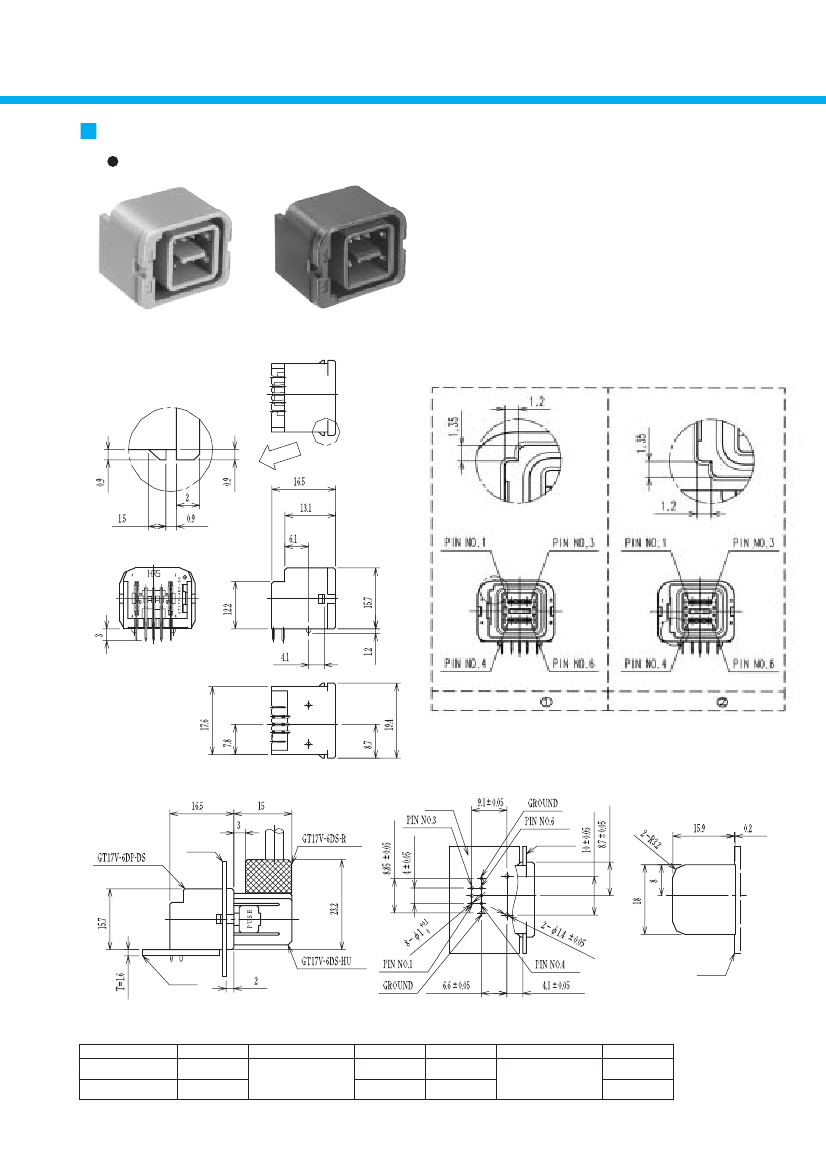

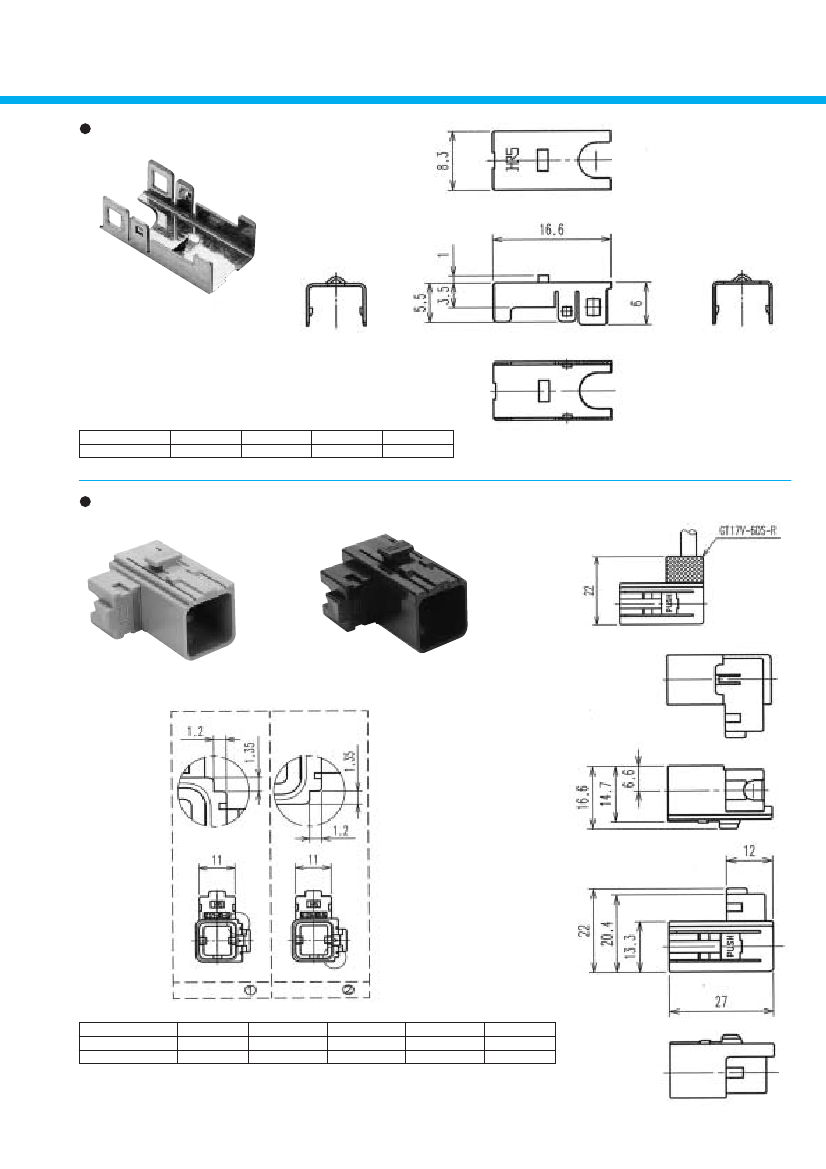

GT17 Series
— Ideal as Automotive USB Connectors —
<
2 mm pitch
>
Features
All surface shielded construction.
Ideal for use as Automotive USB connectors.
Applications
In-car data communications, etc.
99

GT17VA-10DP-DSA Related Products

GT17VA-10DP-DSA GT17VA-6DP-DS GT17VC-6DP-DS GT17A-8DP-DS
Description 6 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER 6 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER 6 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER 8 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER
Is it Rohs certified? incompatible incompatible incompatible incompatible
Reach Compliance Code unknow unknown unknow unknow
Other features TRAY PACKAGING POLARIZED, SHIELDED POLARIZED, SHIELDED POLARIZED, SHIELDED
Board mount options PEG PEG PEG PEG
body width 0.618 inch 0.618 inch 0.618 inch 0.618 inch
subject depth 0.65 inch 0.654 inch 0.65 inch 0.65 inch
body length 0.921 inch 0.764 inch 0.764 inch 0.819 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type USB CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation SN-PB NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE MALE
Contact material BRASS NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact style USB, SER A FLAT USB, SER A FLAT USB, SER A FLAT USB, SER A FLAT
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number GT17 GT17 GT17 GT17
Installation option 1 LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE
PCB row number 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C
PCB contact pattern RECTANGULAR STAGGERED STAGGERED STAGGERED
PCB contact row spacing 4.8006 mm 2.4892 mm 2.4892 mm 2.4892 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.199 inch 0.118 inch 0.118 inch 0.118 inch
Terminal pitch 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Termination type SOLDER SOLDER SOLDER SOLDER
Total number of contacts 10 6 6 8
Base Number Matches 1 1 1 1
DIN compliance - NO NO NO
empty shell - NO NO NO
Filter function - NO NO NO
IEC compliance - NO NO NO
MIL compliance - NO NO NO
Plug information - GT17VA-6DS-HU GT17VA-6DS-HU GT17A-8DS-HU
Mixed contacts - NO NO NO
Options - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell material - PBT PBT PBT
