Document 427-1

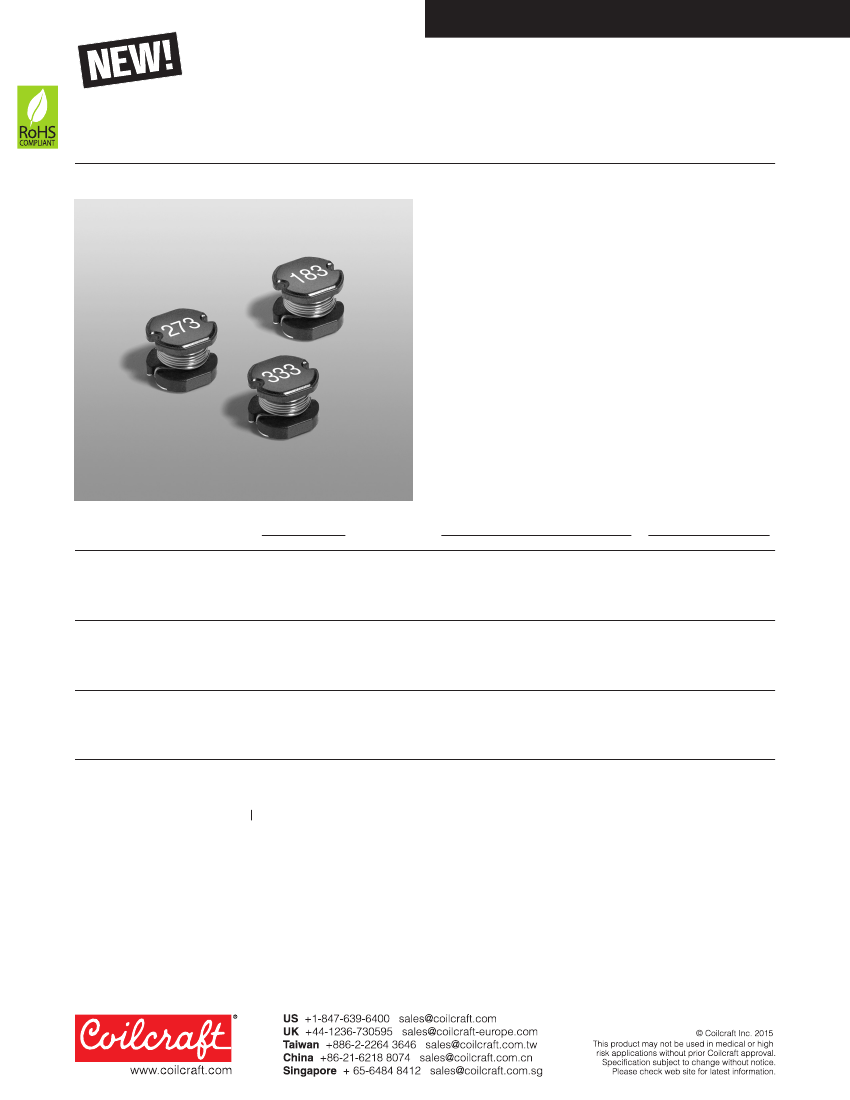

SMT Power Inductors – SD54 Series
• Rugged, cost-effective power inductors
• Excellent current handling; low DCR
• Values greater than 47 µH are 10% tolerance
Core material
Ferrite
Terminations
RoHS compliant tin-silver over tin over nickel over silver.
Weight
0.35 – 0.43 g

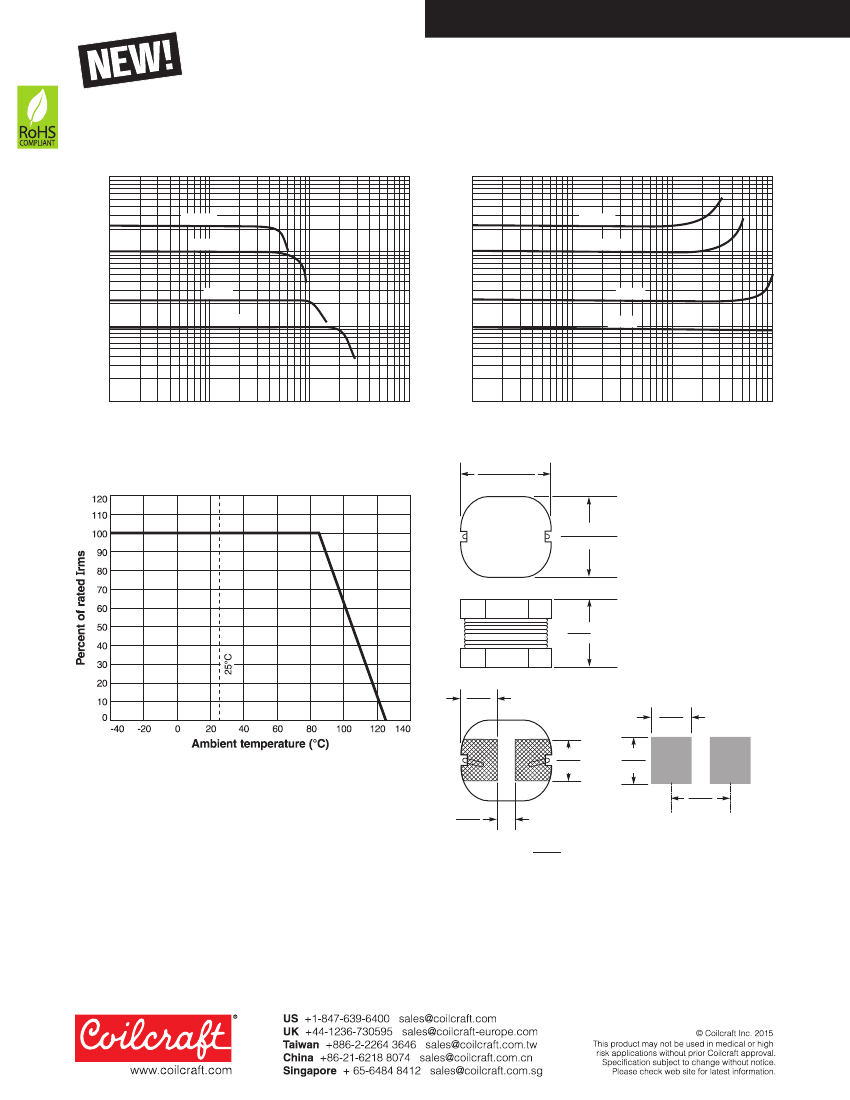

Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
400/7″ reel; 1500/13″ reel; Plastic tape: 12 mm wide,
0.4 mm thick, 8 mm pocket spacing, 4.7 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf
Part
number
1
SD54-103ML_
SD54-123ML_
SD54-153ML_
SD54-183ML_
SD54-223ML_
SD54-273ML_
SD54-333ML_
SD54-393ML_
SD54-473ML_
SD54-563KL_
SD54-683KL_
SD54-823KL_
SD54-104KL_
SD54-124KL_
SD54-154KL_
SD54-184KL_
SD54-224KL_
Inductance
2
(µH)
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
27 ±20%
33 ±20%
39 ±20%
47 ±20%
56 ±10%
68 ±10%
82 ±10%
100 ±10%
120 ±10%
150 ±10%
180 ±10%
220 ±10%
DCR (mOhm)
nom
max
71.5
80.2
94.0
103
119
134
150
195
222
251
335
379
503
579
654
874
996
78.6
88.2
103
113
130
147
165
214
244
276
368
416
553
636
719
961
1095
SRF typ
3
(MHz)
28
26
23
21
19
18
16
13
12
11
9.3
8.4
7.4
7.0
6.3
5.5
5.0
10% drop
2.0
1.8
1.5
1.4
1.3
1.2
1.1
1.0
0.92
0.83
0.76
0.69
0.62
0.56
0.51
0.46
0.43
Isat
(A)
4
20% drop
2.3
2.0
1.8
1.6
1.5
1.4
1.2
1.1
1.0
0.96
0.88
0.80
0.72
0.66
0.60
0.53
0.50
30% drop
2.4
2.2
1.9
1.8
1.6
1.4
1.3
1.2
1.1
1.0
0.95
0.85
0.77
0.71
0.64
0.57
0.54
Irms
(A)
5
20°C rise 40°C rise
1.7
1.6
1.5
1.4
1.3
1.2
1.2
1.0
0.97
0.92
0.80
0.74
0.64
0.58
0.57
0.49
0.47
2.3
2.2
2.1
2.0
1.8
1.7
1.6
1.4
1.3
1.3
1.1
1.1
0.88
0.80
0.77
0.67
0.66
1. When ordering, please specify
packaging
code:
SD54-224KLC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape.
Factory order only, not stocked (1500 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer or equivalent.
3. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture.
4. DC current at which the inductance drops the specified amount from its value without current.
5. Current that causes the specified rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Document 427-1
Revised 12/30/14
