Type 167/184
Metallized Polyester Radial Lead Capacitors
Capacitor Outline Drawing
L
Max
Max
Test Method and Performance
Insulation Resistance
Test Conditions
Temperature
Voltage Charge Time
Voltage Charge
Performance
For Vn > 100 Vdc
For Vn
≤100
Vdc
25 ºC ±5 ºC
1 minute
50 Vdc for Vn < 100 Vdc
100 Vdc for Vn
≥
100 Vdc
≥30,000
MΩ (50,000 MΩ typical)
≥10,000
MΩ for C
≤
0.1µF
≥1,000
MΩ x µF for
>
0.1µF
Damp Heat Test
+40 ºC
95%
21 days
≤
±5%
≤50
x 10
4
at 1 kHz
≥
50% of limit value
Life Test
+85 ºC
1000 hrs
1.25 x Vn
≤
±5%
≤30
x 10
–4
at 10 kHz
≥
50% of limit value
T
H
Max
.
217 ±.039
(5.5 ±1.0 mm)
S
±.015
(±0.4 mm)
Ød ±.003
(±0.076)
Lead length shown is as supplied on 167 Series
Soldering
Test Conditions
Soldering Temperature
Soldering Duration
Performance
Capacitance Change
∆C/C
DF Change
∆tgδ
Insulation Resistance
260 ºC ±5 ºC
10 sec ±1 sec
≤
±2%
≤30
x 10
–4
at 10 kHz
≥
limit value
Test Conditions
Temperature
Relative Humidity
Test Duration
Performance
Capacitance Change
∆C/C
DF Change
∆tgδ
Insulation Resistance
Test Conditions
Temperature
Test Duration
Voltage Applied
Performance
Capacitance Change
∆C/C
DF Change
∆tgδ
Insulation Resistance
Ratings
Cap
(µF)
Catalog
Part Number
Tape & Reel
Ammo Pack
L
T
RoHS Compliant
Inches
H
63 Vdc
S
Ød
L
T
Millimeters
H
S
Ød
.068
.10
.15
.22
.27
.33
.47
.68
1.00
167683*63A–F
167104*63A–F
167154*63A–F
167224*63A–F
167274*63A–F
167334*63A–F
167474*63B–F
167684*63C–F
167105*63C–F
184683*63#A>–F
184104*63#A>–F
184154*63#A>–F
184224*63#A>–F
184274*63#A>–F
184334*63#A>–F
184474*63#B>–F
184684*63#C>–F
184105*63#C>–F
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.138
0.138
0.138
0.138
0.138
0.138
0.157
0.197
0.197
0.276
0.276
0.276
0.276
0.276
0.276
0.354
0.433
0.433
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
3.5
3.5
3.5
3.5
3.5
3.5
4.0
5.0
5.0
7.0
7.0
7.0
7.0
7.0
7.0
9.0
11.0
11.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
100 Vdc
.033
.047
.068
.10
.12
.15
.22
.33
167333*100A–F
167473*100A–F
167683*100A–F
167104*100A–F
167124*100B–F
167154*100B–F
167224*100C–F
167334*100C–F
184333*100#A>–F
184473*100#A>–F
184683*100#A>–F
184104*100#A>–F
184124*100#B>–F
184154*100#B>–F
184224*100#C>–F
184334*100#C>–F
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.138
0.138
0.138
0.138
0.157
0.157
0.197
0.197
0.276
0.276
0.276
0.276
0.354
0.354
0.433
0.433
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
3.5
3.5
3.5
3.5
4.0
4.0
5.0
5.0
7.0
7.0
7.0
7.0
9.0
9.0
11.0
11.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specifications)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Cap
(µF)
.010
.015
.018
.022
.027
.033
.039
.047
.068
.100
.0047
.0056
.0068
.010
.015
.022
.033
.0010
.0015
.0022
.0033
.0047
.0068
.010
.015
Catalog
Part Number
167103*250A–F
167153*250A–F
167183*250A–F
167223*250A–F
167273*250B–F
167333*250B–F
167393*250B–F
167473*250B–F
167683*250C–F
167104*250C–F
167472*400A–F
167562*400A–F
167682*400A–F
167103*400A–F
167153*400B–F
167223*400C–F
167333*400C–F
167102*630A–F
167152*630A–F
167222*630A–F
167332*630A–F
167472*630B–F
167682*630B–F
167103*630C–F
167153*630D–F
Tape & Reel
Ammo Pack
184103*250#A>–F
184153*250#A>–F
184183*250#A>–F
184223*250#A>–F
184273*250#B>–F
184333*250#B>–F
184393*250#B>–F
184473*250#B>–F
184683*250#C>–F
184104*250#C>–F
184472*400#A>–F
184562*400#A>–F
184682*400#A>–F
184103*400#A>–F
184153*400#B>–F
184223*400#C>–F
184333*400#C>–F
184102*630#A>–F
184152*630#A>–F
184222*630#A>–F
184332*630#A>–F
184472*630#B>–F
184682*630#B>–F
184103*630#C>–F
184153*630#D>–F
Inches
L
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
0.413
T
0.138
0.138
0.138
0.138
0.157
0.157
0.157
0.157
0.197
0.197
0.138
0.138
0.138
0.138
0.157
0.197
0.197
0.138
0.138
0.138
0.138
0.157
0.157
0.197
0.236
H
250 Vdc
0.276
0.276
0.276
0.276
0.354
0.354
0.354
0.354
0.433
0.433
0.276
0.276
0.276
0.276
0.354
0.433
0.433
0.276
0.276
0.276
0.276
0.354
0.354
0.433
0.472
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
3.5
3.5
3.5
3.5
4.0
4.0
4.0
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
4.0
5.0
6.0
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
9.0
11.0
12.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
S
Ød
L
T
Millimeters
H
S
Ød
400 Vdc
630 Vdc
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specification)
Part Numbering System for Bulk Items
167
Series
167
104
Capacitance
392 = .0039 µF
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
K
Tolerance
J = ±5%
K = ±10%
M = ±20%
100
Voltage
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
A
Case
Code
A
B
C
D
-F
RoHS
Compliant
Designator
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors

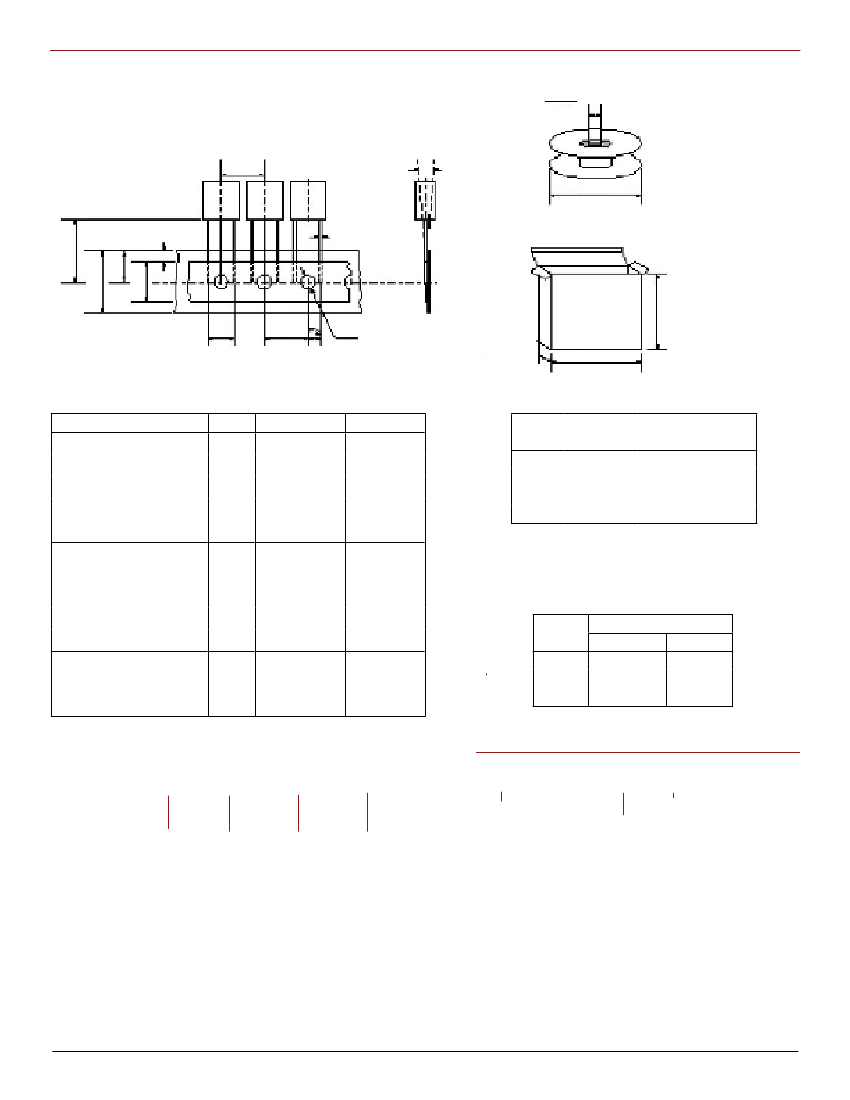

Tape Specifcation - 7.5 mm Lead Spacing
30 mm
1.18”
P1
ΔH
331 mm
13.04”
Reel
Packing
W2
Ød
W
Wo
Ammo Box
Packing
280 mm Max
11.02”
335 mm Max
13.19”
H
W1
P
Po
Do
47 mm Max
1.85”
Item
Lead-Wire Diameter
Lead-to-Lead Distance
Feed Hole Pitch
Pitch of Component
Hole Center to Lead
Component Alignment, F-R
Tape Width
Hold-down Tape Width
Hole Position
Hold-down Tape Position
Height of Component
from Tape Center
Feed Hole Diameter
Code
Ød
P
P
0
P
1
P
2
∆h
W
W
0
W
1
W
2
H
D
0
Millimeters
0.6
+0.04 –0.01
7.5
+0.6 –0.2
2.7
±0.3
12.7
±1.0
3.75
±0.7
0
±2.0
18
+1.0 –0.1
6.0 min
9.0
+0.75 –0.05
3.0 Max
>
4.0
±0.3
Inches
.024
±.001
.295
+.024 –.040
.5
±.012
.5
±.039
.148
±.028
0
±.079
.709
+.039 –.004
.236 min
.355
+.030 –.001
.118 Max
>
.157
±.012
Case
Code
A
B
C
D
Quantity
Reeled
1800
1500
1200
1000
Quantity
Ammo Pack
1500
1500
1000
1000
> The H dimension depends on the
insertion equipment used. Specify
the proper tooling code as indicated
below.
Tooling
Code
A
B
C
H Dimensions
Millimeters
16.5
±0.75
18.5
±0.75
16.0
±0.75
Inches
.679
±.030
.728
±.030
.630
±030
Part Numbering System for Auto Insertion
184
104
K
100
R
Packaging
Type
Series
Capacitance
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
Tolerance
J = ±5%
K = ±10%
M = ±20%
Voltage
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
* Tooling code is at the discretion
of the user depending on the
insertion equipment being used.
See table for specific "H" dimensions
(#)
A = Ammo
R = Tape & Reel
184 392 = .0039 µF
Case
Code
A
B
C
D
A
B
*Tooling
Code
(>)
A
B
C
-F
RoHS
Compliant
Designator
* Tooling code (>) depends on the users insertion equipment requirements. See table for available options.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Embedded System
京公网安备 11010802033920号
EEWORLD
