880W Series
™
Floor Boxes
WIREMOLD
®
Rectangular Floor Boxes for Wood Floors
880W Series
™
Wood Floor Boxes
provides
an
excellent
solution
for unique wood floor applications when
power and communication services are
required in remote locations, as in a
large, open space area. This wood floor
box series is available in a rectangular
design in one-, two, or three-gang
configurations and can be used in any
wood frame construction.
880W Series Wood Floor Boxes
have many different applications. Some
of those include upscale housing, home
offices, board rooms, and gymnasiums.
Three-Gang 880W Series Floor Box shown with a nonmetallic cover for a multiservice application.
FEATURES & BENEFITS
n
TopGuard protection.
An integral design which keeps out
water, dirt, and debris from the power or communication
compartments. Whenever you see the TopGuard protection
icon applied to any Wiremold product, you will know that
he product meets and exceeds the new UL scrub water
exclusion requirement.
n
New brushed aluminum covers for power applications.
830CK Series Aluminum Covers have been redesigned to
now accept threaded conduit when passing through
power cables.
n
New brass and brushed aluminum covers to accept
single locking power receptacles.
New 828DLR Series
provides single flip lid cover.
n
New 828COMTC Series Cover Kit in brass and brushed
aluminum.
Allows communication devices to be recessed
into 880W Series Boxes.
n
Available in one-, two-, and three-gang configurations.
Multiservice separation and even greater capacity when
divider is removed. Eliminates cost of using multiple floor
boxes for high capacity requirements.
n
Triple service capacity.
Accommodates power,
communication and/or audio/video devices. Eliminates
the need for multiple boxes
n
BAA Aluminum Covers.
Rectangular aluminum covers
are now available in a version that complies with the Buy
America Act and ARRA requirements. Covers are available in
five powder coat finishes (black, gray, bronze, brass and nickel.
n
Flush activation assembly.
Same activation assemblies
as Walker concrete floor boxes. Wide range of aesthetically
pleasing brass and nonmetallic activations that do not
obstruct the floor area or create a safety hazard.
n
Datacom connectivity options.
Accepts industry standard
and proprietary devices from a wide range of manufacturers
to provide a seamless and aesthetically pleasing interface
for voice, data, audio, and video applications at the point-of-
use. A wide selection of data and adapter options available
for use with Ortronics
®
TracJack
™
and Series II devices.
n
Boxes and covers have been listed by Underwriters
Laboratories Inc. to their standard UL514A, 514C, 514D,
and Canadian standard C22.2.
Download this product’s PEP ecopasport
®
environmental product declaration at
www.legrand.us/resources-and-downloads.
This declaration conforms with ISO 14025 and
14040 and is in alignment with EN 15804.
Protection from
water, dirt, and
debris.
ED770R14 – Updated August 2016 – For latest specs visit www.legrand.us/wiremold

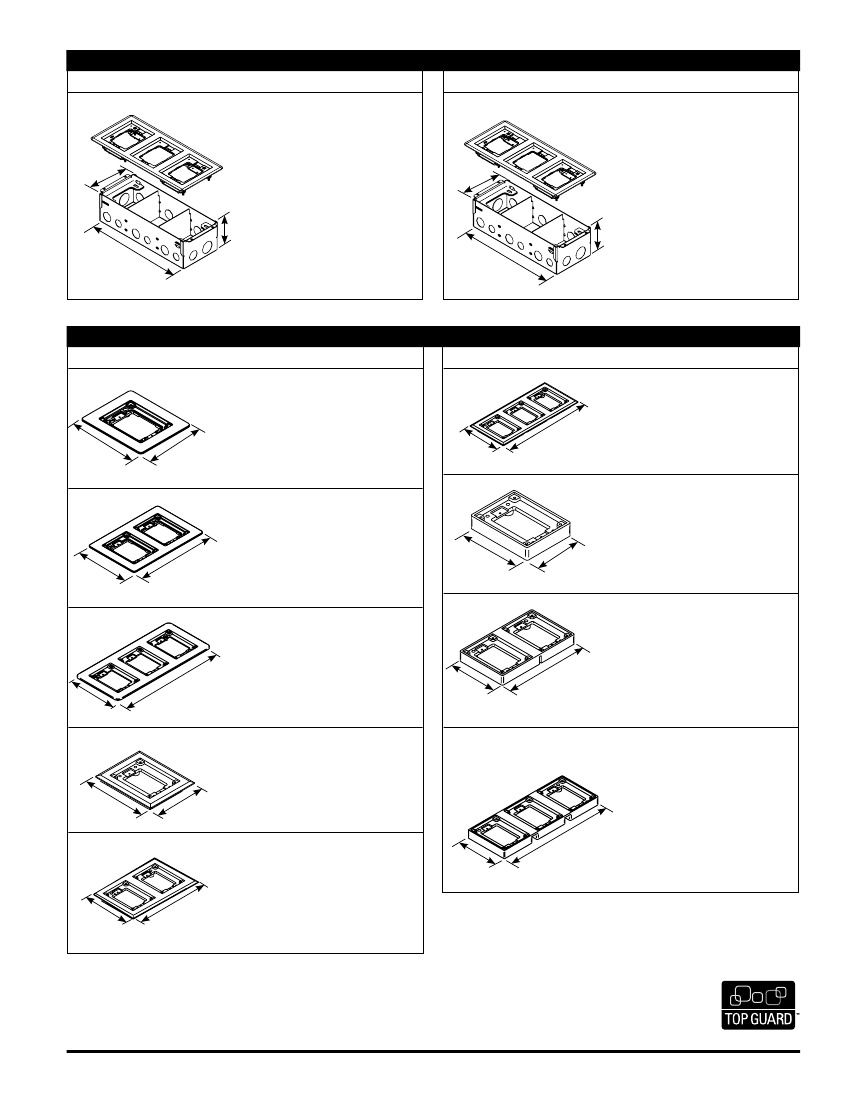

880W Series Floor Boxes Ordering Information
Catalog No./Item
880W1
4 15/16"
(125mm)
Description/Specifications
One-Gang Steel Floor Box for
Wood Floors
– Knockouts for three
1/2" (12.7mm), five 3/4" (19.1mm),
and two 1" (25mm) conduits. 53 cu.
in. (869ml) of capacity.
Country of Origin: Mexico
3 7/16"
(87mm)
Catalog No./Item
880W3
Description/Specifications
Three-Gang Steel Floor Box for
Wood Floors
– Knockouts for
nine 1/2" (12.7mm), eleven 3/4"
(19.1mm), and two 1" (25mm)
conduits. 56 cu. in. (918ml) of
capacity in each of the outside
compartments. 68 cu. in. (1115ml)
of capacity in center compartment.
Barrier is removable for greater
capacity if needed.
3 7/16"
(87mm)
4 15/16"
(125mm)
3 3/4"
(95mm)
880W2
4 15/16"
(125mm)
Two-Gang Steel Floor Box for
Wood Floors
– Knockouts for six
1/2" (12.7mm), eight 3/4" (19.1mm),
and two 1" (25mm) conduits.
58 cu. in. (951ml) of capacity in
one compartment. 59 cu. in.
(967ml) of capacity in second
compartment. Barrier is removable
for greater capacity if needed.
Country of Origin: Mexico
3 7 1/6"
(87mm)
12"
(305mm)
Country of Origin: Mexico
7 7/8"
(200mm)

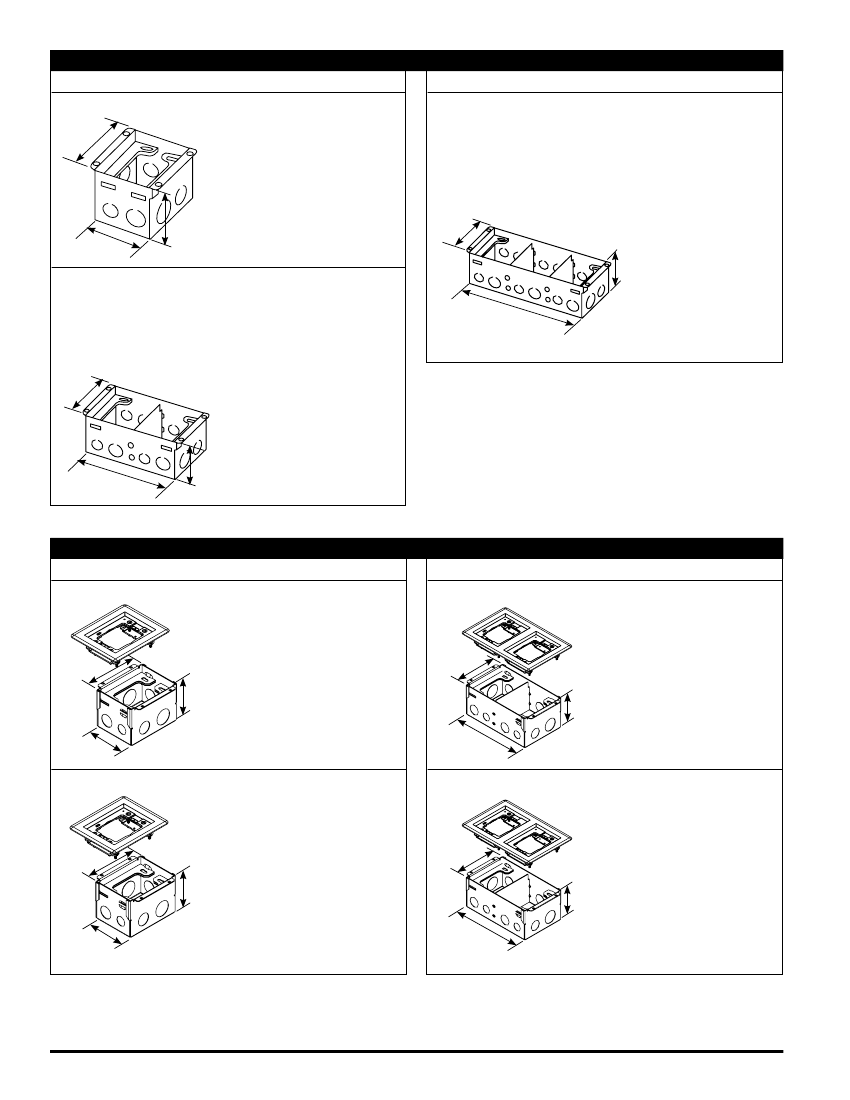

880W Series Floor Box Kits Ordering Information
Catalog No./Item
880W1817B
Description/Specifications
One-Gang Steel Floor Box
for Wood Floors
– 880W1
Floor Box with 817B brass
flange included. Flange
can be used for tile or
carpet applications.
3 7/16"
Country of Origin: Mexico
(87mm)
Catalog No./Item
880W2827B
Description/Specifications
Two-Gang Steel Floor Box
for Wood Floors
– 880W2
Floor Box with 827B
brass flange included.
Flange can be used for tile
or carpet applications.
Country of Origin: Mexico
3 7 1/6"
(87mm)
4 15/16"
(125mm)
4 15/16"
(125mm)
3 3/4"
(95mm)
NOTE: Order cover separately.
7 7/8"
(200mm)
NOTE: Order cover separately.
880W1818TCAL
4 15/16"
(125mm)
One-Gang Steel Floor Box
for Wood Floors
– 880W1
Floor Box with 818TCAL
brushed aluminum flange
included. Flange
can be used for tile or
carpet applications.
3 7/16"
(87mm)
Country of Origin: Mexico
880W2828TCAL
4 15/16"
(125mm)
Two-Gang Steel Floor Box
for Wood Floors
– 880W2
Floor Box with 828TCAL
brushed aluminum flange
included. Flange
can be used for tile or
carpet applications.
3 7 1/6"
(87mm)
Country of Origin: Mexico
NOTE: Order cover separately.
3 3/4"
(95mm)
NOTE: Order cover separately.
7 7/8"
(200mm)
2

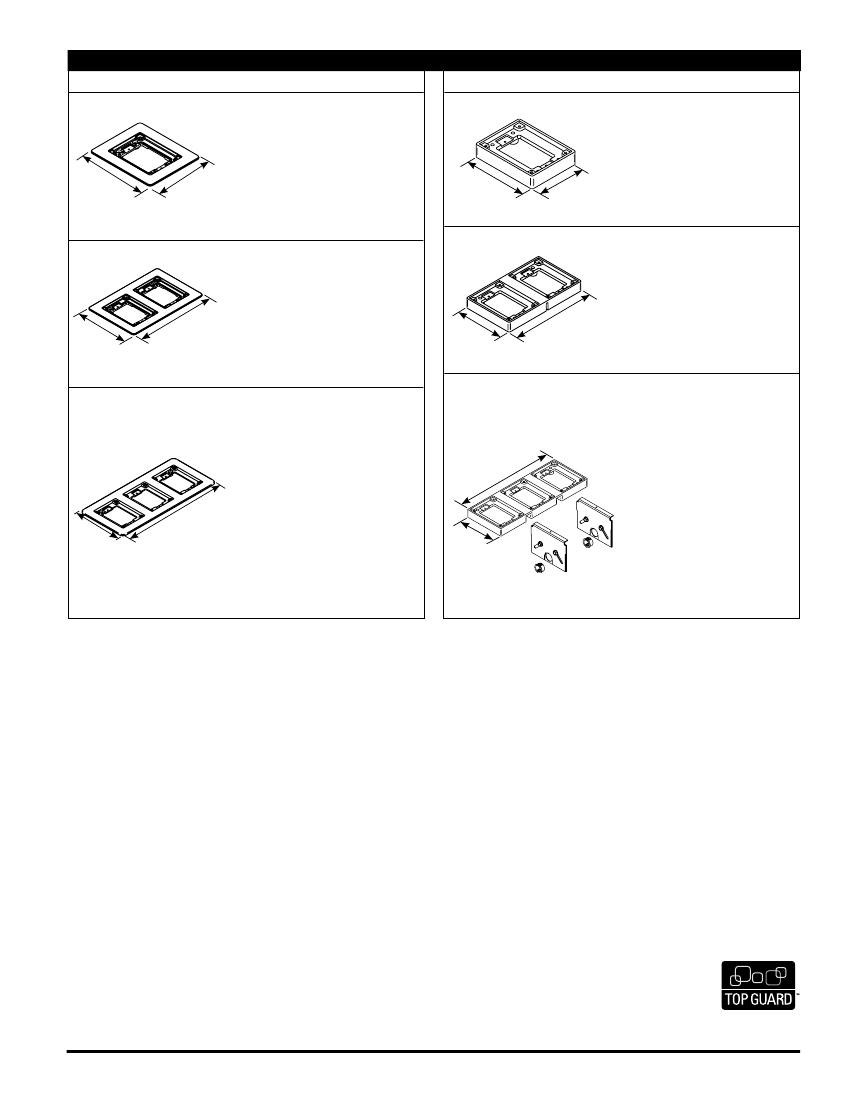

880W Series Floor Box Kits Ordering Information
(continued)
Catalog No./Item
880W3837B
Description/Specifications
Three-Gang Steel Floor Box
for Wood Floors
– 880W3
Floor Box with 837B brass
flange included. Flange
can be used for tile or
carpet applications.
Country of Origin: Mexico
3 7 1/6"
(87mm)
Catalog No./Item
880W3838TCAL
Description/Specifications
One-Gang Steel Floor Box
for Wood Floors
– 880W3
Floor Box with 838TCAL
brushed aluminum flange
included. Flange
can be used for tile or
carpet applications.
Country of Origin: Mexico
3 7 1/6"
(87mm)
4 15/16"
(125mm)
4 15/16"
(125mm)
NOTE: Order cover separately.
12"
(305mm)
12"
(305mm)
NOTE: Order cover separately.
880W Series Floor Boxes Solid Brass Cover Plate Flanges Ordering Information
Catalog No./Item
817B
Description/Specifications
One-Gang Brass Combination
Carpet & Tile Flange
– Accepts
Ortronics
®
MAB6TJ TracJack and
MAB3S2 Series II adapters and
Wiremold CM Series inserts,
sold separately.
Country of Origin: China
Catalog No./Item
837C
Description/Specifications
Three-Gang Brass Carpet
Flange
– For use on 880S3,
880M3, 880CS32-1, and
880CM3-1 Floor Boxes.
Country of Origin: China
6.080"
(154.4mm)
5.060"
(128.5mm)
5 3/4"
(146mm)
13"
(330mm)
827B
6.080"
(154.4mm)
5.060"
(128.5mm)
Two-Gang Brass Combination
Carpet and Tile Flange
– Accepts
Ortronics
®
MAB6TJ TracJack and
MAB3S2 Series II adapters and
Wiremold CM Series inserts,
sold separately.
Country of Origin: China
817T
One-Gang Brass Tile Flange
–
For use on 880S1, 880M1,
880CS1-1, and 880M1-1
Floor Boxes.
3.48"
(88.4mm)
4.524"
(107mm)
Country of Origin: China
837B
6.080"
(154.4mm)
5.060"
(128.5mm)
Three-Gang Brass Combination
Carpet and Tile Flange
– Accepts
Ortronics
®
MAB6TJ TracJack and
MAB3S2 Series II adapters and
Wiremold CM Series inserts,
sold separately.
Country of Origin: China
827T
Two-Gang Brass Tile Flange
–
For use on 880S2, 880M2,
880CS2-1, and 880CM2-1
Floor Boxes.
Country of Origin: China
7.624"
(193.7mm)
4.524"
(114.9mm)
817C
One-Gang Brass Carpet Flange
–
For use on 880S1, 880M1,
880CS1-1, and 880CM1-1
Floor Boxes.
Country of Origin: China
4 3/4"
(121mm)
837T
Three-Gang Brass or Brushed
Aluminum Tile Flange
– For use
on 880S3, 880M3, 880CS3-1, and
880CM3-1 Floor Boxes.
Country of Origin: China
5 3/4"
(146mm)
827C
Two-Gang Brass Carpet Flange
–
For use on 880S2, 880M2,
880CS2-1, and 880CM2-1
Floor Boxes.
8 7/8"
(225mm)
4 1/2"
(114mm)
11 3/4"
(298mm)
5 3/4"
(146mm)
Country of Origin: China
NOTE:
Brass covers and flanges are not interchangeable with aluminum or nonmetallic
covers and flanges. Nonmetallic covers are interchangeable with aluminum flanges.
All cover assemblies
for the 880W Series
Floor Box have
TopGuard protection.
3

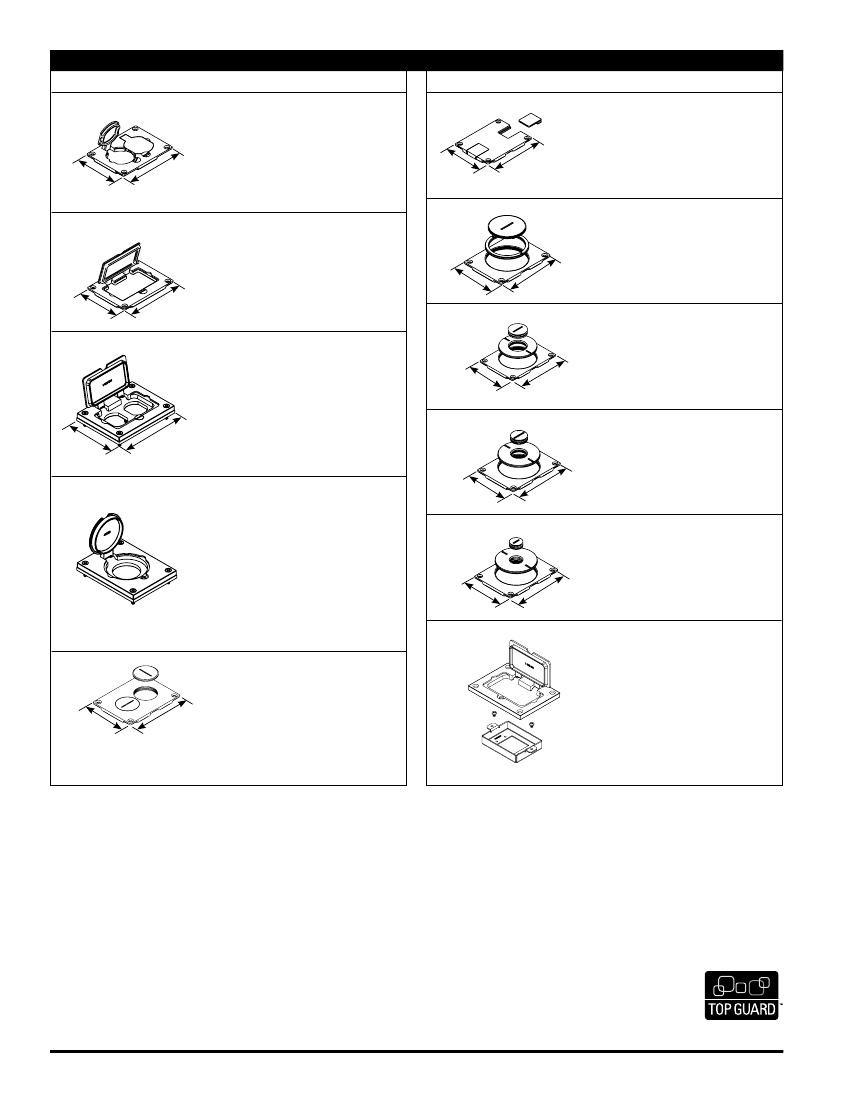

880W Series Floor Boxes Metal Cover Plates Ordering Information
Catalog No./Item
828R
Description/Specifications
Brass Duplex Cover Plate
– Flip
lids. Can also be used with a 106
type communication adapter.
4.182"
Country of Origin: China
(106.2mm)
Catalog No./Item
829STC
Description/Specifications
Brass Communication Cover
Plate
– Data slides. Feed through
only, not for use with a mounting
plate for communication jacks.
3.156"
(80.2mm)
3 1/8"
(79mm)
4 1/8"
(105mm)
Country of Origin: China
828GFITC
Brass GFI Cover Plate
– May be
used with Activate and Ortronics
®
Connectivity Systems in
conjunction with 817B, 827B,
and 837B Flanges.
4.182"
(106.2mm)
Country of Origin: China
829CK
Brass Communication Cover
Plate
– 2 5/8" and 2 1/4" (67mm
and 57mm) plugs.
Country of Origin: China
4.182"
(106.2mm)
3.156"
(80.2mm)
3.156"
(80.2mm)
829CK-1
828DPGFITC
Brass Rectangular Cover Plate
–
Allows for mounting of a duplex
style receptacle with a
rectangular style flip lid cover.
Country of Origin: China
Brass Communication Cover
Plate
– 2 5/8" and 1" (67mm and
25mm) plugs.
Country of Origin: China
4.182"
(106.2mm)
3.156"
(80.2mm)
829CK-3/4
3.156"
(80.2mm)
4.182"
(106.2mm)
Brass Communication Cover
Plate
– 2 5/8" and 3/4" (67mm
and 19.1mm) plugs.
Country of Origin: China
4.182"
(106.2mm)
828DLR
Brass Single Locking Receptacle
Cover Plate
– Single flip lid cover
for 20A or 30A single locking
receptacles. Device opening is
2 5/8" (67mm). For use with
maximum female locking device of
1.58" diameter, and maximum male
plug face of 2.25" diameter
Country of Origin: China
3.156"
(80.2mm)
829CK-1/2
Brass Communication Cover
Plate
– 2 5/8" and 1/2" (67mm
and 12.7mm) plugs.
Country of Origin: China
4.182"
(106.2mm)
3.156"
(80.2mm)
828MAAP
828SPTC
Brass Duplex Cover Plate
–
Screw plugs. Screw plugs are
1 1/2" (38mm) in diameter.
4 1/8"
Country of Origin: China
(105mm)
A/V Adapter Plate
– Sheet metal
adapter plate that accepts two (2)
Extron
®
Electronics MAAP style
device plates (sold separately). For
use with 828GFITC or 828GFITCAL
cover plates. (Sold separately)
Country of Origin: USA
3 1/8"
(79mm)
NOTE:
Brass covers and flanges are not interchangeable with aluminum or nonmetallic
covers and flanges. Nonmetallic covers are interchangeable with aluminum flanges.
All cover assemblies
for the 880W Series
Floor Box have
TopGuard protection.
4
880W Series Floor Boxes Brushed Aluminum Cover Plate Flanges Ordering Information
Catalog No./Item
818TCAL
Description/Specifications
One-Gang Brushed Aluminum
Combination Carpet and Tile
Flange
– Accepts Ortronics
®
MAB6TJ TracJack and MAB3S2
Series II adapters and Wiremold
CM Series inserts, sold separately.
Country of Origin: China
Catalog No./Item
818TAL
Description/Specifications
One-Gang Brushed Aluminum
Tile Flange
– For use on 880S1,
880M1, 880CS1-1, and 880M1-1
Floor Boxes.
3.530"
(89.7mm)
5.940"
(150.9mm)
4.920"
(125.0mm)
4.550"
(115.6mm)
Country of Origin: China
NOTE: Brushed aluminum flanges come with beveled edges.
828TCAL
5.940"
(150.9mm)
9.045"
(229.7mm)
Two-Gang Brushed Aluminum
Combination Carpet and Tile
Flange
– Accepts Ortronics
®
MAB6TJ TracJack and MAB3S2
Series II adapters and Wiremold
CM Series inserts, sold separately.
Country of Origin: China
828TAL
Two-Gang Brushed Aluminum
Tile Flange
– For use on 880S2,
880M2, 880CS2-1, and 880CM2-1
Floor Boxes.
Country of Origin: China
7.665"
(118.2mm)
4.550"
(115.6mm)
NOTE: Brushed aluminum flanges come with beveled edges.
838TCAL
Three-Gang Brushed Aluminum
Combination Carpet and Tile
Flange
– Accepts Ortronics
®
MAB6TJ TracJack and MAB3S2
Series II adapters and Wiremold
CM Series inserts, sold separately.
Country of Origin: China
13.170"
(334.5mm)
838TAL-880S3
838TAL-880M3
838TAL-880CS3
838TAL-880CM3
11 3/4"
(298mm)
Kit
– The 838TAL-880 Series
flanges provide additional load
support for 3-gang tile flanges.
Kit includes 838TAL Flange and
two support dividers.
NOTE: Order kit for specific
box type: 880S3, 880M3,
880CS3, or 880CM3.
Country of Origin: China
5.940"
(150.9mm)
4 1/2"
(114mm)
NOTE: Brushed aluminum flanges come with beveled edges.
NOTE:
Brass covers and flanges are not interchangeable with aluminum or nonmetallic
covers and flanges. Nonmetallic covers are interchangeable with aluminum flanges.
All cover assemblies
for the 880W Series
Floor Box have
TopGuard protection.
5
京公网安备 11010802033920号
EEWORLD
