AM55107BX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM55107BX

AM55107BX: DescriptionLine Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size200KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

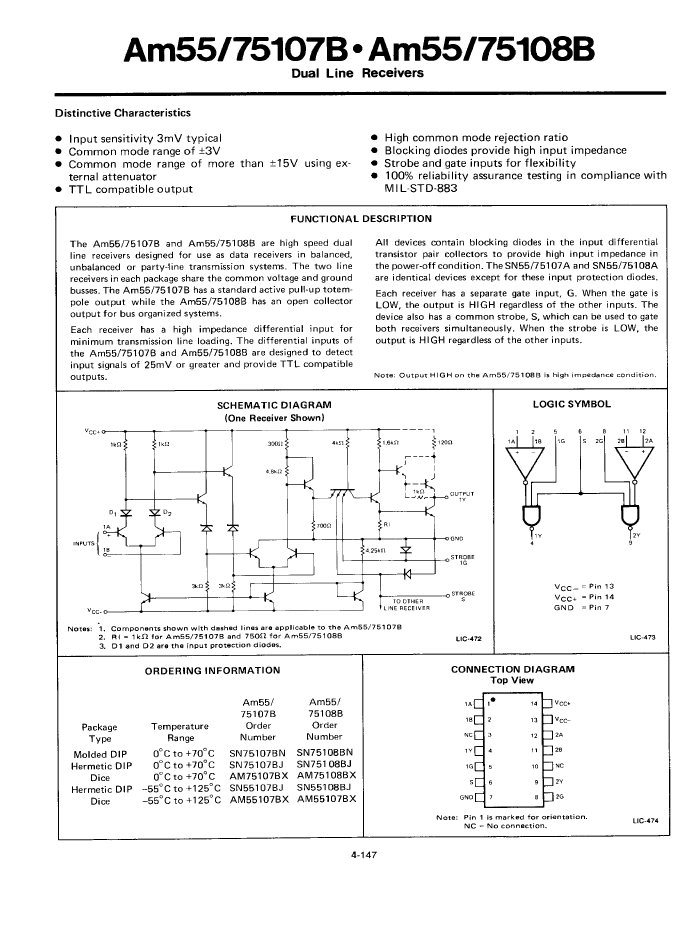

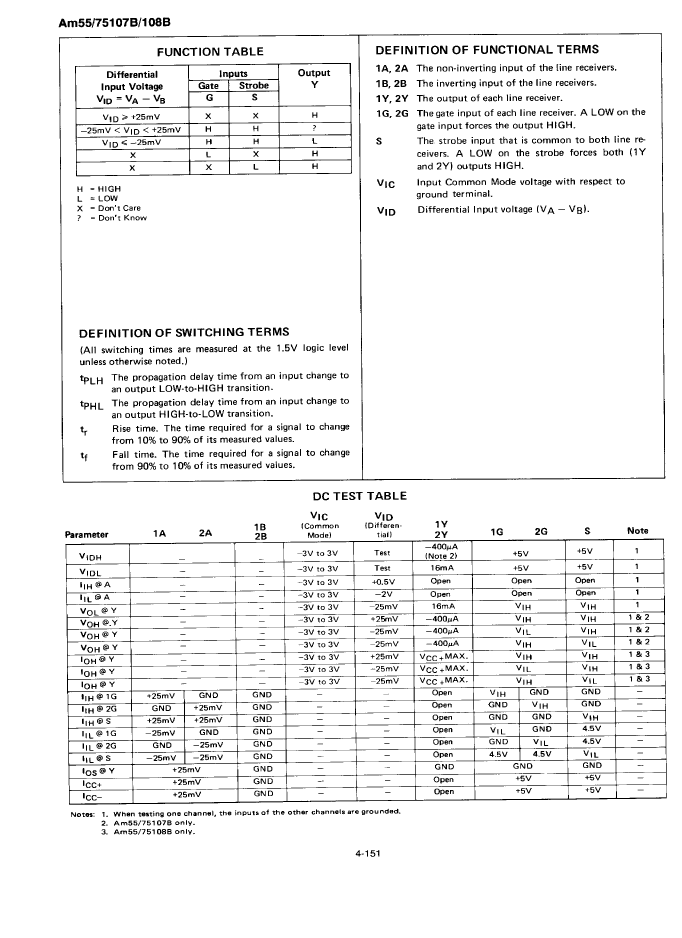

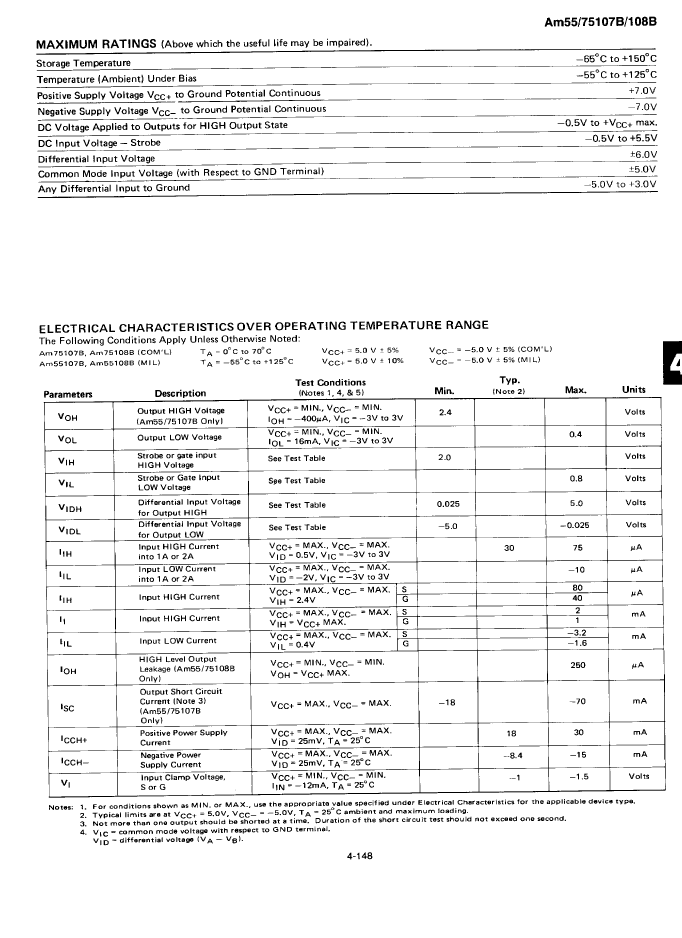

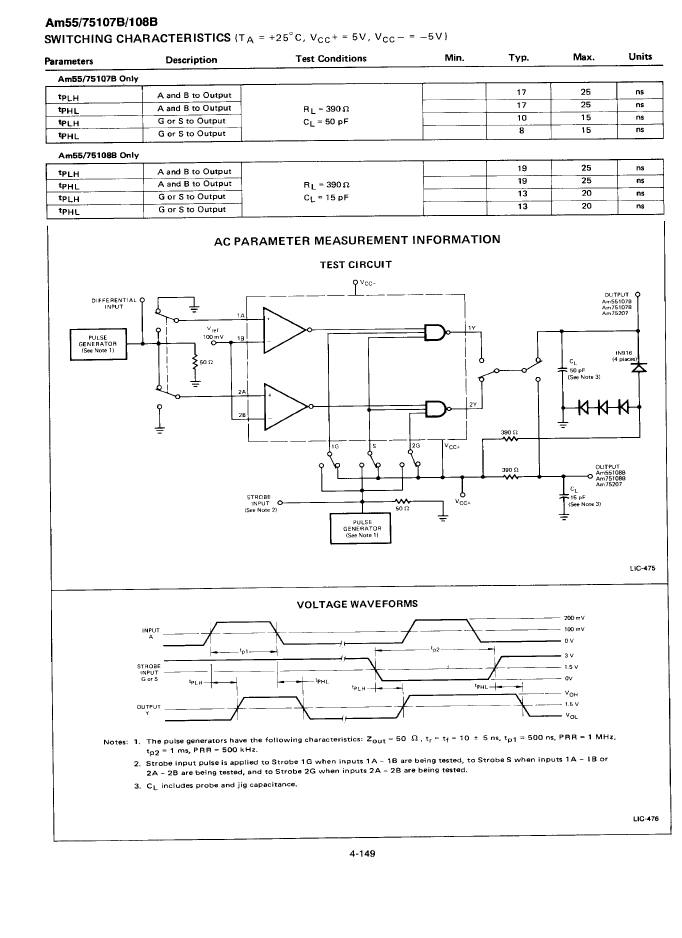

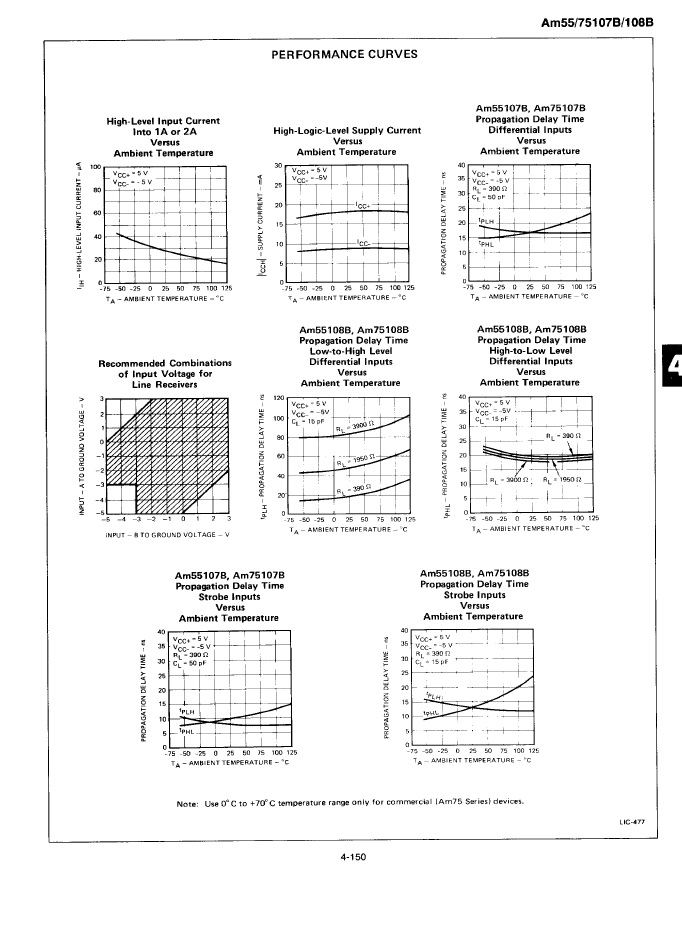

AM55107BX Overview

Line Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14

AM55107BX Parametric

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DIE
package instruction	DIE,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-XUUC-N14
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum receive delay	25 ns
Number of receiver bits	2
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	-5.25 V
Mains voltage 1-minute	-4.75 V
Supply voltage1-Nom	-5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AM55107BX Related Products

	AM55107BX	AM75108BX	AM55108BX	SN55108BJ	SN75108BN	SN75108BJ	SN75107BN	SN75107BJ	AM75107BX	SN55107BJ
Description	Line Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, PDIP14, PLASTIC, DIP-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, PDIP14, PLASTIC, DIP-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, 0.049 X 0.056 INCH, DIE-14	Line Receiver, 1 Func, 2 Rcvr, BIPolar, CDIP14, HERMETIC SEALED, DIP-14
Parts packaging code	DIE	DIE	DIE	DIP	DIP	DIP	DIP	DIP	DIE	DIP
package instruction	DIE,	DIE,	DIE,	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP,	DIE,	DIP, DIP14,.3
Contacts	14	14	14	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	AMD	-	-	AMD	AMD	AMD	AMD	AMD	AMD	AMD
Input properties	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	-	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	-	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-XUUC-N14	R-XUUC-N14	R-XUUC-N14	-	R-PDIP-T14	R-CDIP-T14	R-PDIP-T14	R-CDIP-T14	R-XUUC-N14	R-CDIP-T14
Number of functions	1	1	1	-	1	1	1	1	1	1
Number of terminals	14	14	14	-	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Output characteristics	TOTEM-POLE	OPEN-COLLECTOR	OPEN-COLLECTOR	-	OPEN-COLLECTOR	OPEN-COLLECTOR	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	TRUE	TRUE	TRUE	-	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIE	DIE	-	DIP	DIP	DIP	DIP	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	UNCASED CHIP	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	25 ns	25 ns	25 ns	-	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Number of receiver bits	2	2	2	-	2	2	2	2	2	2
Maximum slew rate	30 mA	30 mA	30 mA	-	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA
Maximum supply voltage	5.5 V	5.25 V	5.5 V	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Supply voltage 1-max	-5.25 V	-5.25 V	-5.25 V	-	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V
Mains voltage 1-minute	-4.75 V	-4.75 V	-4.75 V	-	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V
Supply voltage1-Nom	-5 V	-5 V	-5 V	-	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
surface mount	YES	YES	YES	-	NO	NO	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	NO LEAD	NO LEAD	NO LEAD	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	UPPER	UPPER	UPPER	-	DUAL	DUAL	DUAL	DUAL	UPPER	DUAL
