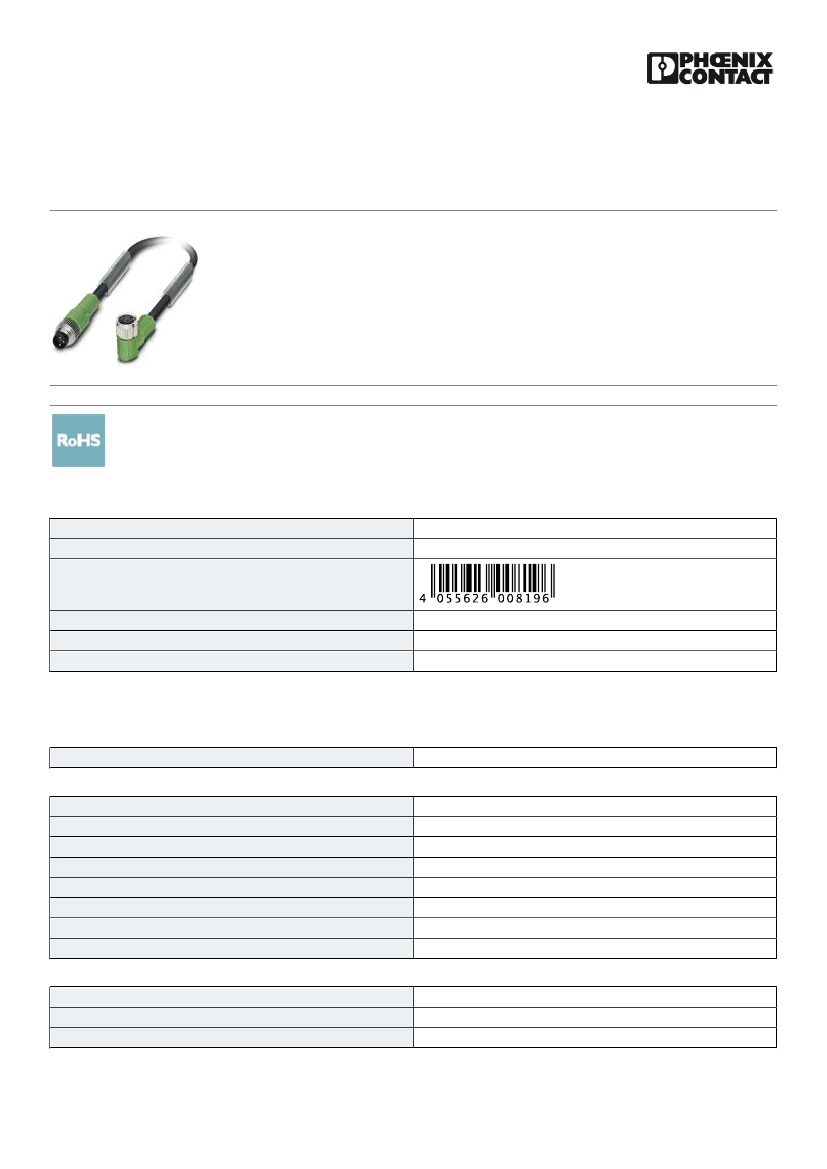

Sensor/Actuator cable - SAC-3P-M 8MS/ 2,5-PUR/4P-M 8FR - 1413761
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M8, on Socket
angled M8, Cable length: 2.5 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626008196
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
2.5 m
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
4A
30 V
3
≥ 100 GΩ
A - standard
No
II
3
Material
Flammability rating according to UL 94
Contact material
Contact surface material
HB
CuSn
Ni/Au
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1413761
Sensor/Actuator cable - SAC-3P-M 8MS/ 2,5-PUR/4P-M 8FR - 1413761
Technical data
Material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
3x 0.25 mm² (Signal line)
24
32x 0.10 mm
1.17 mm ±0.02 mm (Signal line)
≥ 0.38 mm (Core insulation)
brown, blue, black
3 wires, twisted
40 mm
black-gray RAL 7021
approx. 0.9 mm
4.4 mm ±0.15 mm
22 mm
44 mm
5xD
10 x D
4000000
44 mm
10 m
3 m/s
10 m/s²
24 kg/km
PUR
PP
Bare Cu litz wires
≥ 100 GΩ*km (at 20 °C)
≤ 78 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1413761
Sensor/Actuator cable - SAC-3P-M 8MS/ 2,5-PUR/4P-M 8FR - 1413761
Technical data
Cable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
hydrolysis and microbe resistant
Highly resistant to acids, alkaline solutions and solvents
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

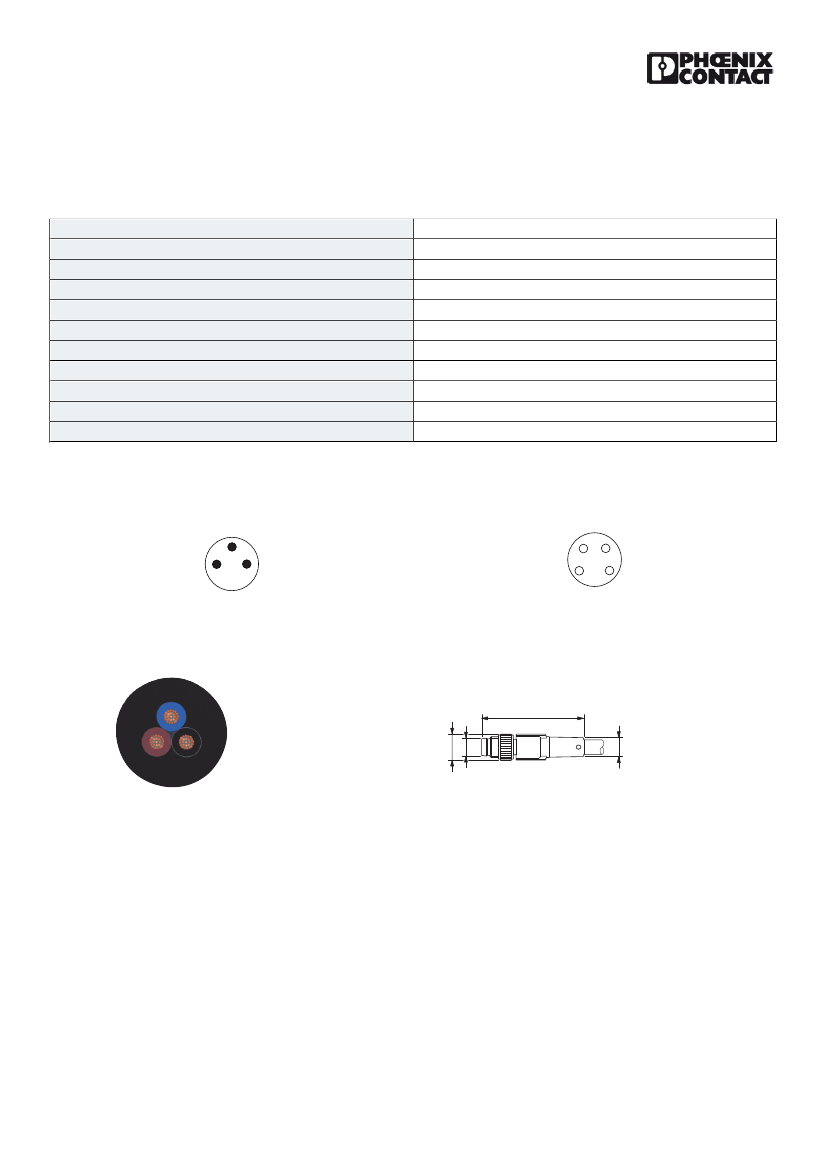

Drawings
Schematic diagram
4
4
1
3
3
1
2
Schematic diagram
Pin assignment M8 plug, 3-pos., view male side
Pin assignment M8 socket, 4-pos., view female side
Cable cross section
Dimensional drawing
38,7
PUR halogen-free black [PUR]
M8 x 1 male plug, straight version
Ø7,5
Ø10
M8
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1413761
Sensor/Actuator cable - SAC-3P-M 8MS/ 2,5-PUR/4P-M 8FR - 1413761
Dimensional drawing
Circuit diagram
Ø10
M8
1
4
1
4
3
18,9
Ø7,5
27,9
3
Socket M8 x 1, angled
Schematic diagram
Layout of connector pin assignments
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
