Round Water-resistant Connectors
XS5
CSM_XS5_DS_E_7_1
Round Water-resistive Smartclick

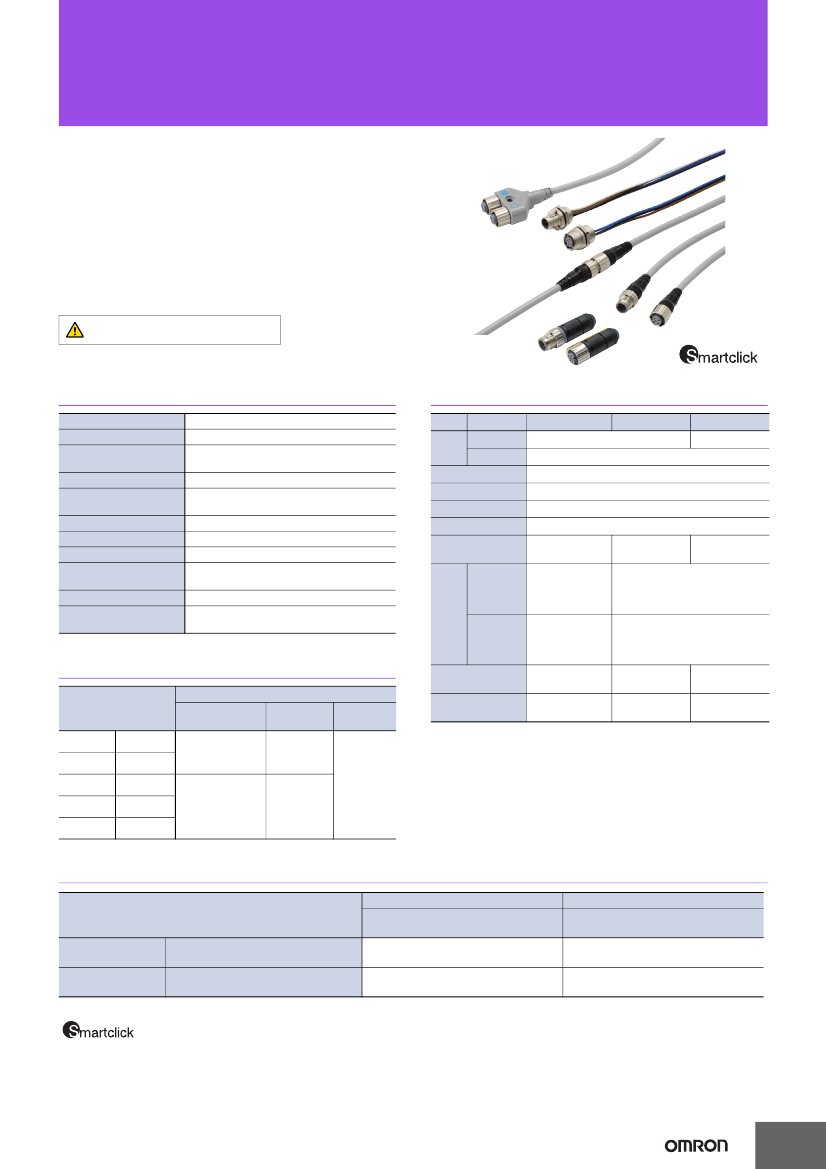

Connectors That Reduce Installation Work
• A newly developed lock mechanism that is compatible with round M12 connectors.
• Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
• A positive click indicates locking.
• Features the same degree of protection (IP67) as M12 connectors.
• A full line-up of models is planned.
• Connectors with Cables are UL approved.
Refer to
Safety Precautions
on
page 17.
Ratings and Specifications
Rated current
Rated voltage
Contact resistance
(connector)
Insulation resistance
Dielectric strength
(connector)
Degree of protection
Insertion tolerance
Lock strength
Cable holding
strength
Lock operating force
Ambient operating
temperature range
4A
250 VDC
40 mΩ max.
(20 mV max., 100 mA max.)
1,000 MΩ min. (at 500 VDC)
1,500 VAC for 1 min
(leakage current: 1 mA max.)
IP67 (IEC60529)
50 times min.
Tensile: 100 N/15 s, Torsion: 1 N·m/15 s
100 N/15 s (for cable diameter of 6 mm)
0.1 N·m to 0.25 N·m
−25
to 70°C
Materials and Finish
Item
Con-
tacts
Model
Materials
Finish
XS5F/H/W/R
Phosphor bronze
Nickel base, 0.4-µm gold plating
Nickel-plated zinc alloy
SUS
PBT resin (UL94V-0)
Rubber
Polyester elas-
tomer
UL CL3, 6-mm
dia., 4 cores
×
AWG20 (0.08/
110)
---
PBT resin
(UL94V-0)
XS5M/P
XS5C/G
Brass
Fixtures
Fixtures (Lock)
Pin block
O-ring
Overmolding/
Cover
Vibration-
proof
robot
cable
Oil-resis-
tant poly-
urethane
cable
---
Cable
6 dia.
4 cores
×
0.5 mm
2
---
(0.12/45)
---
---
Epoxy resin
(UL94V-0)
---
Recommended Cables for Assembly Connectors
Cable outer
diameter
(mm)
for 8 dia. 7 to 8 dia.
for 7 dia. 6 to 7 dia.
Core sizes
Crimping
Soldering Screw-on
models
models
models
---
---
0.18 to
0.75 mm
2
Seal resin
Power supply
wires
UL1007 AWG20 ---
for 6 dia. 5 to 6 dia. Two types of
contacts are
for 4 dia. 4 to 5 dia. available.
0.18 to 0.3 mm
2
for 3 dia. 3 to 4 dia. 0.5 to 0.75 mm
2
0.5 mm
2
max.
Connection Combinations
OMRON model No.
Smartclick Socket
Connectors
M12 Socket
Connectors
XS5F, XS5C, XS5W (socket side),
XS5R (socket side), XS5P
XS2F, XS2C, XS2W (socket side),
XS2R (socket side), XS2P
Smartclick Plug Connectors
XS5H, XS5G, XS5W (plug side),
XS5R (plug side), XS5M
M12 Plug Connectors
XS2H, XS2G, XS2W (plug side),
XS2R (plug side), XS2M
❍
❍
: Connected by twisting.
❍
: Connected by screwing.
❍
is a registered trademark of the OMRON Corporation.
Note: The XS@M and XS@P cannot mate with each other.
1
XS5
XS5W

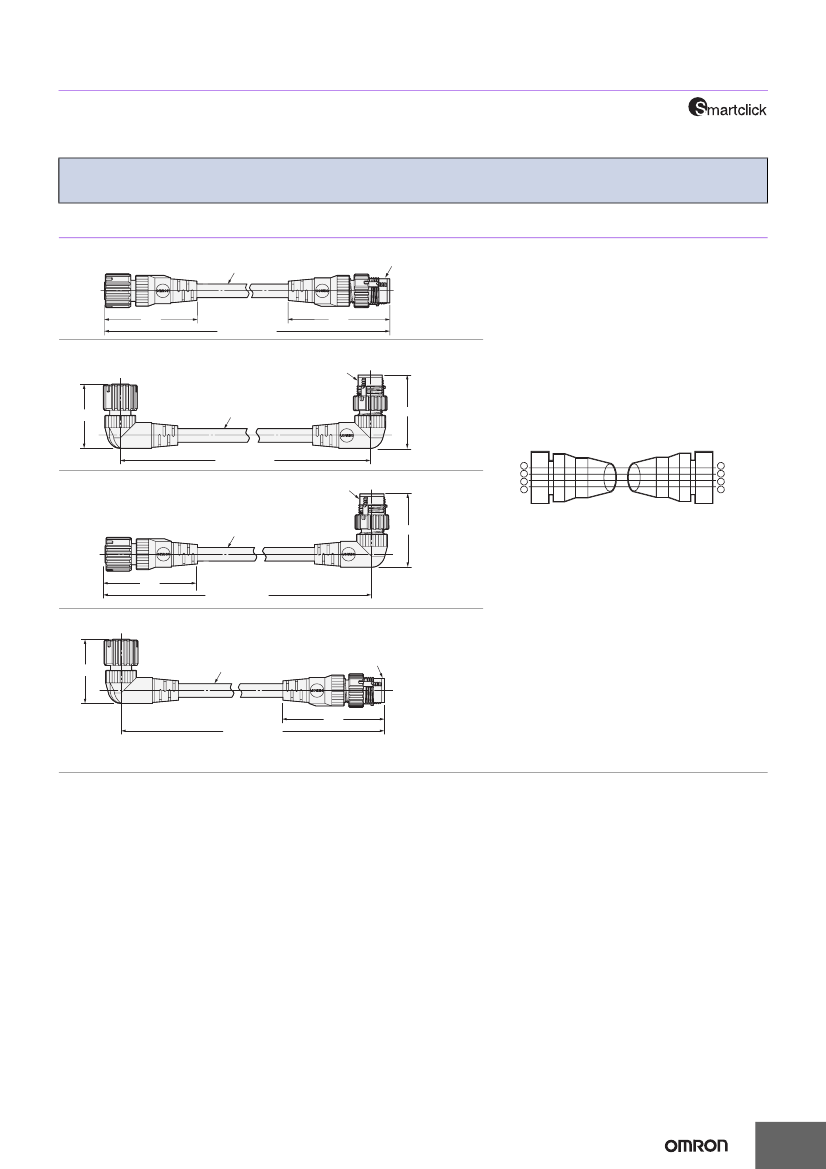

Dimensions
Straight/straight
Connectors Connected to Cable, Socket and Plug on Cable Ends
XS5W-D42@-@81-F
XS5W-D42@-@81-P
(Unit: mm)
●
Vibration-proof Robot Cable
●
Oil-resistant Polyurethane Cable
6 dia.
M12
40.7
L (Cable length)
44.7
Angled/angled
M12
28.3
6 dia.
32.3
Wiring Diagram for 4 Cores
Terminal No.
L (Cable length)
1
2
3
4
Straight/angled
M12
Cable color of
core sheath
1
Brown
2
White
3
Blue
4
Black
6 dia.
32.3
40.7
L (Cable length)
Angled/straight
28.3
6 dia.
M12
44.7
L (Cable length)
Note:
Oil-resistant Polyurethane Cables (XS5W-D42@-@81-P) have black covers. Vibration-proof Robot Cables (XS5W-D42@-@81-F) have warm
gray covers.
2
XS5
Model Number Legend
XS5W-D42@-@81-@
1
2
3 4
5
6
7 8
9
Use this model number legend to identify products
from their model number. When ordering, use a mod-
el number from the table in
Ordering Information.
1. Type
W: Connector connected to cable, plug on cable
ends
2. Mating Section Form
D: DC
3. Connector Poles
4: 4 poles
4. Contact Plating
2: 0.4-µm gold plating
5. Cable Connection Direction
1: Straight/straight
2: Angled/angled
3: Straight (XS5F)/angled (XS5H)
4: Angled (XS5F)/straight (XS5H)
6. Cable Length
C: 1 m
G: 5 m
7. Connections
8:
A
Brown,
B
White,
C
Blue,
D
Black (Numbers
inside circles are terminal numbers)
8. Connectors on One End/Both Ends
1: Both ends
9. Cable Specifications
F: Vibration-proof Robot Cable
P: Oil-resistant Polyurethane Cable
D: 2 m
J: 10m
E: 3 m
Ordering Information
Cable specifications
Cable
length L (m)
1
2
Vibration-proof Robot
Cable
3
5
10
2
Oil-resistant Polyure-
thane Cable
5
10
Cable specifications
Vibration-proof Robot
Cables
Cable
length L (m)
2
5
Straight/straight
Model
XS5W-D421-C81-F
XS5W-D421-D81-F
XS5W-D421-E81-F
XS5W-D421-G81-F
XS5W-D421-J81-F
XS5W-D421-D81-P
XS5W-D421-G81-P
XS5W-D421-J81-P
Straight/angled
Model
XS5W-D423-D81-F
XS5W-D423-G81-F
XS5W-D424-D81-F
XS5W-D424-G81-F
---
XS5W-D422-D81-F
---
XS5W-D422-G81-F
---
---
---
---
Angled/straight
1
5
1
Minimum
order
5
UL
Yes
---
5
Yes
Angled/angled
Minimum
order
10
UL
3
XS5
XS5F
Dimensions
Straight
Connector Connected to Cable, Socket on One Cable End
XS5F-D42@-@80-F
XS5F-D42@-@80-P
(Unit: mm)
L (Cable length)
40.7
6 dia.
●
Vibration-proof Robot Cable
●
Oil-resistant Polyurethane Cable
14.9 dia.
M12
Wiring Diagram for 4 Cores
Terminal No.
30
50
5
1
2
3
4
Angled
25.3
L (Cable length)
6 dia.
Cable color of
core sheath
Brown
White
Blue
Black
28.3
30
50
5
Note:
Oil-resistant Polyurethane Cables (XS5F-D42@-@80-P) have black covers. Vibration-proof Robot Cables (XS5F-D42@-@80-F) have warm
gray covers.
Model Number Legend
XS5F-D42@-@80-@
1
2
3 4
5
6
7 8
9
Use this model number legend to identify products
from their model number. When ordering, use a mod-
el number from the table in
Ordering Information.
1. Type
H: Connector connected to cable,
plug on one cable end
2. Mating Section Form
D: DC
3. Connector Poles
4: 4 poles
4. Contact Plating
2: 0.4-µm gold plating
5. Cable Connection Direction
1: Straight
2: Angled
6. Cable Length
C: 1 m
D: 2 m
G: 5 m
J: 10 m
E: 3 m
8. Connectors on One End/Both Ends
0: One end
9. Cable Specification
F: Vibration-proof Robot Cable
P: Oil-resistant Polyurethane Cable
7. Connections
8:
A
Brown,
B
White,
C
Blue,
D
Black (Numbers inside circles are
terminal numbers.)
Ordering Information
Cable specifications
Cable length L (m)
1
2
3
5
10
2
5
10
Straight Connectors
Angled Connectors
Model
XS5F-D421-C80-F
XS5F-D421-D80-F
XS5F-D421-E80-F
XS5F-D421-G80-F
XS5F-D421-J80-F
XS5F-D421-D80-P
XS5F-D421-G80-P
XS5F-D421-J80-P
XS5F-D422-C80-F
XS5F-D422-D80-F
XS5F-D422-E80-F
XS5F-D422-G80-F
XS5F-D422-J80-F
XS5F-D422-D80-P
XS5F-D422-G80-P
XS5F-D422-J80-P
Minimum
order
10
5
1
5
1
UL
Vibration-proof
Robot Cable
Yes
Oil-resistant
Polyurethane Cable
---
4
XS5
XS5H
Dimensions
Straight
Connector Connected to Cable, Plug on One Cable End
XS5H-D42@-@80-F
XS5H-D42@-@80-P
(Unit: mm)
L (Cable length)
44.7
6 dia.
●
Vibration-proof Robot Cable
●
Oil-resistant Polyurethane Cable
Wiring Diagram for 4 Cores
M12
30
50
5
Terminal No.
1
2
3
4
Angled
25.3
L (Cable length)
6 dia.
Cable color of
core sheath
Brown
White
Blue
Black
32.3
30
50
M12
5
Note:
Oil-resistant Polyurethane Cables (XS5H-D42@-@80-P) have black covers. Vibration-proof Robot Cables (XS5H-D42@-@80-F) have warm
gray covers.
Model Number Legend
XS5H-D42@-@80-@
1
2
3 4
5
6
7 8
9
Use this model number legend to identify products
from their model number. When ordering, use a mod-
el number from the table in
Ordering Information.
1. Type
H: Connector connected to cable,
plug on one cable end
2. Mating Section Form
D: DC
3. Connector Poles
4: 4 poles
4. Contact Plating
2: 0.4-µm gold plating
5. Cable Connection Direction
1: Straight
2: Angled
6. Cable Length
A: 0.3 m C: 1 m
G: 5 m
7. Connections
D: 2 m
8. Connectors on One End/Both Ends
0: One end
9. Cable Specifications
F: Vibration-proof Robot Cable
P: Oil-resistant Polyurethane
Cable
8:
A
Brown,
B
White,
C
Blue,
D
Black (Numbers inside circles
are terminal numbers)
Ordering Information
Cable specifications
Vibration-proof
Robot Cable
Cable length L (m)
0.3
1
2
5
0.3
2
5
Straight Connectors
Angled Connectors
Model
XS5H-D421-A80-F
XS5H-D421-C80-F
XS5H-D421-D80-F
XS5H-D421-G80-F
XS5H-D421-A80-P
XS5H-D421-D80-P
XS5H-D421-G80-P
XS5H-D422-A80-F
XS5H-D422-C80-F
XS5H-D422-D80-F
XS5H-D422-G80-F
XS5H-D422-A80-P
XS5H-D422-D80-P
XS5H-D422-G80-P
Minimum
order
10
UL
Yes
5
10
5
---
Oil-resistant
Polyurethane Cable
5
