L
Label, lot code + part numbers (X2)
D
D
Cable Fitting (x 2)
Plastic Version
Plug protective cover (x 2)
Plastic Version
PG9 Cable Gland (x 2)
Plastic Version
Plug Housing (x 2)
Plastic Version
Coupling Ring (x 2)
Plastic Version
Fiber optic cable: single mode
2 fiber indoor/outdoor breakout
Type OFNR; Jacket color: black
C
Cable Length
C
L
[Inches]
Meters
1m
± 0.05m
[39.37"
± 1.97"
]
2m
± 0.05m
[78.74"
± 1.97"
]
3m
± 0.05m
[118.11"
± 1.97"
]
4m
± 0.08m
[157.48"
± 3.15"
]
5m
± 0.08m
[196.85"
± 3.15"
]
6m
± 0.08m
[236.22"
± 3.15"
]
7m
± 0.08m
[275.59"
± 3.15"
]
8m
± 0.15m
[314.96"
± 5.91"
]
9m
± 0.15m
[354.33"
± 5.91"
]
10m
± 0.15m
[393.70"
± 5.91"
]
11m
± 0.15m
[433.07"
± 5.91"
]
12m
± 0.15m
[472.44"
± 5.91"
]
13m
± 0.15m
[511.81"
± 5.91"
]
14m
± 0.15m
[551.18"
± 5.91"
]
15m
± 0.15m
[590.55"
± 5.91"
]
16m
± 0.30m
[629.92"
± 11.81"
]
17m
± 0.30m
[669.29"
± 11.81"
]
18m
± 0.30m
[708.66"
± 11.81"
]
19m
± 0.30m
[748.03"
± 11.81"
]
20m
± 0.30m
[787.40"
± 11.81"
]
Part Number Max. IL
17-300320-01 0.20 dB
17-300320-02 0.20 dB
17-300320-03 0.20 dB
17-300320-04 0.20 dB
17-300320-05 0.20 dB
17-300320-06 0.20 dB
17-300320-07 0.20 dB
17-300320-08 0.20 dB
17-300320-09 0.20 dB
17-300320-10
17-300320-11
17-300320-12
17-300320-13
17-300320-14
17-300320-15
17-300320-16
17-300320-17
17-300320-18
17-300320-19
17-300320-20
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
0.21 dB
Cable Length
L
[Inches]
Meters
21m
± 0.30m
[826.77"
± 11.81"
]
22m
± 0.30m
[866.14"
± 11.81"
]
23m
± 0.30m
[905.51"
± 11.81"
]
24m
± 0.30m
[944.88"
± 11.81"
]
25m
± 0.30m
[984.25"
± 11.81"
]
26m
± 0.30m
[1023.62"
± 11.81"
]
27m
± 0.30m
[1062.99"
± 11.81"
]
28m
± 0.30m
[1102.36"
± 11.81"
]
29m
± 0.30m
[1141.73"
± 11.81"
]
30m
± 0.30m
[1181.10"
± 11.81"
]
31m
± 0.30m
[1220.47"
± 11.81"
]
32m
± 0.30m
[1259.84"
± 11.81"
]
33m
± 0.30m
[1299.21"
± 11.81"
]
34m
± 0.30m
[1338.58"
± 11.81"
]
35m
± 0.35m
[1377.95"
± 13.78"
]
36m
± 0.35m
[1417.32"
± 13.78"
]
37m
± 0.35m
[1456.69"
± 13.78"
]
38m
± 0.35m
[1496.06"
± 13.78"
]
39m
± 0.35m
[1535.43"
± 13.78"
]
40m
± 0.40m
[1574.80"
± 15.75"
]
Part Number Max. IL
17-300320-21 0.21 dB
17-300320-22 0.22 dB
17-300320-23 0.22 dB
17-300320-24 0.22 dB
17-300320-25 0.22 dB
17-300320-26 0.22 dB
17-300320-27
17-300320-28
17-300320-29
17-300320-30
17-300320-31
0.22 dB
0.22 dB
0.22 dB
0.22 dB
0.22 dB
Cable Length
L
[Inches]
Meters
41m
± 0.40m
[1614.17"
± 15.75"
]
42m
± 0.40m
[1653.54"
± 15.75"
]
43m
± 0.40m
[1692.91"
± 15.75"
]
44m
± 0.40m
[1732.28"
± 15.75"
]
45m
± 0.40m
[1771.65"
± 15.75"
]
46m
± 0.40m
[1811.02"
± 15.75"
]
47m
± 0.40m
[1850.39"
± 15.75"
]
48m
± 0.40m
[1889.76"
± 15.75"
]
49m
± 0.40m
[1929.13"
± 15.75"
]
50m
± 0.50m
[1968.50"
± 19.69"
]
51m
± 0.50m
[2007.87"
± 19.69"
]
52m
± 0.50m
[2047.24"
± 19.69"
]
53m
± 0.50m
[2208.33"
± 19.69"
]
54m
± 0.50m
[2125.98"
± 19.69"
]
55m
± 0.50m
[2165.35"
± 19.69"
]
56m
± 0.50m
[2204.72"
± 19.69"
]
57m
± 0.50m
[2244.09"
± 19.69"
]
58m
± 0.50m
[2283.46"
± 19.69"
]
59m
± 0.50m
[2322.83"
± 19.69"
]
60m
± 0.60m
Part Number Max. IL
17-300320-41
17-300320-42
17-300320-43
17-300320-44
17-300320-45
17-300320-46
17-300320-47
17-300320-48
17-300320-49
17-300320-50
17-300320-51
17-300320-52
17-300320-53
17-300320-54
17-300320-55
17-300320-56
17-300320-57
17-300320-58
17-300320-59
17-300320-60
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
Tolerance
Cable Length
L
[Inches]
Meters
61m
± 0.60m
[2401.57"
± 23.62"
]
62m
± 0.60m
[2440.95"
± 23.62"
]
63m
± 0.60m
[2480.31"
± 23.62"
]
64m
± 0.60m
[2519.68"
± 23.62"
]
65m
± 0.60m
[2559.05"
± 23.62"
]
66m
± 0.60m
[2598.42"
± 23.62"
]
67m
± 0.60m
[2637.80"
± 23.62"
]
68m
± 0.60m
[2677.16"
± 23.62"
]
69m
± 0.60m
[2716.53"
± 23.62"
]
70m
± 0.70m
[2755.91"
± 27.56"
]
71m
± 0.70m
[2795.28"
± 27.56"
]
72m
± 0.70m
[2834.65"
± 27.56"
]
73m
± 0.70m
[2874.02"
± 27.56"
]
74m
± 0.70m
[2913.39"
± 27.56"
]
75m
± 0.70m
[2952.76"
± 27.56"
]
76m
± 0.70m
[2992.13"
± 27.56"
]
77m
± 0.70m
[3031.50"
± 27.56"
]
78m
± 0.70m
[3070.87"
± 27.56"
]
79m
± 0.70m
[3110.24"
± 27.56"
]
80m
± 0.80m
[3149.61"
± 31.50"
]
Part Number Max. IL
17-300320-61 0.25 dB
17-300320-62 0.25 dB
17-300320-63 0.25 dB
17-300320-64 0.25 dB
17-300320-65 0.25 dB
17-300320-66 0.25 dB
17-300320-67 0.25 dB
17-300320-68 0.25 dB
17-300320-69 0.25 dB
17-300320-70 0.25 dB
17-300320-71 0.25 dB
17-300320-72
17-300320-73
0.25 dB
0.25 dB
17-300320-74 0.25 dB
17-300320-75 0.25 dB
17-300320-76 0.25 dB
17-300320-77 0.25 dB
17-300320-78 0.25 dB
17-300320-79 0.25 dB
0.25 dB
B
17-300320-32 0.22 dB
17-300320-33 0.22 dB
17-300320-34 0.22 dB
17-300320-35 0.22 dB
17-300320-36 0.23 dB
17-300320-37 0.23 dB
17-300320-38 0.23 dB
17-300320-39 0.23 dB
17-300320-40 0.23 dB
B
[2362.21"
Customer:
Name
± 23.62"
]
17-300320-80
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
Unless otherwise specified
Scale: NTS
Autodesk
Inventor
Dim. in m [inches]
NOTES:
A
1. MAXIMUM CONNECTOR INSERTION LOSS (IL): 0.2dB,
PLUS CABLE ATTENUATION OF 0.78dB/km AT 1310nm
2. TEST DATA PROVIDED WITH EACH ASSEMBLY
A
B
FIBER PATH DETAIL
B
A
Title
Approval Date
2011
Draw.
Appd.
Norm
D-old
Date
Jul. 29
Jul. 29
Material: See Notes
Title:
Name
Vincent Ke
J. Chaudry

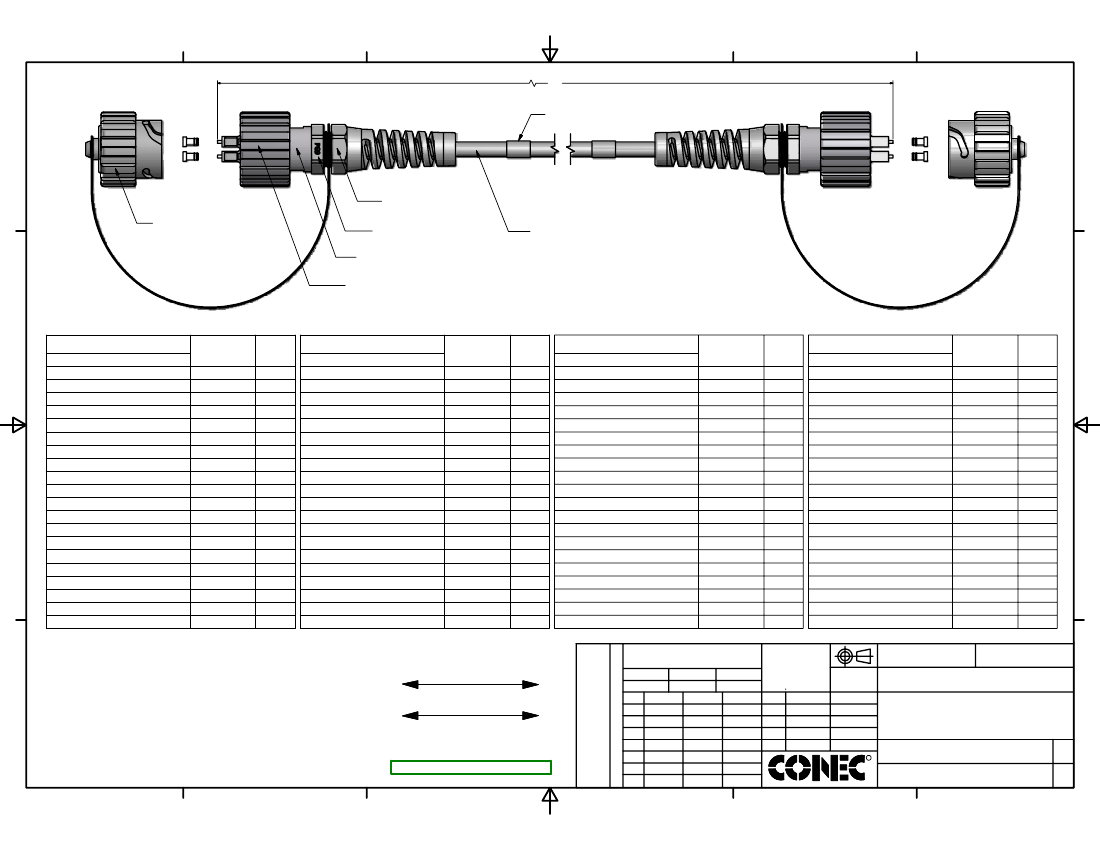

IP67 Industrial Duplex LC (ODVA)
Single Mode Fiber Optic Patch Cords
Plastic Version
A
R
Drawing No.: 17K1A238
Part No.: SEE TABLE
DIN
A3
Sheet
Directive 2002/95/EC RoHS Compliant
a
Rev.
original
Changes
Date
Name
1/1
6
5
4
3
2
1
