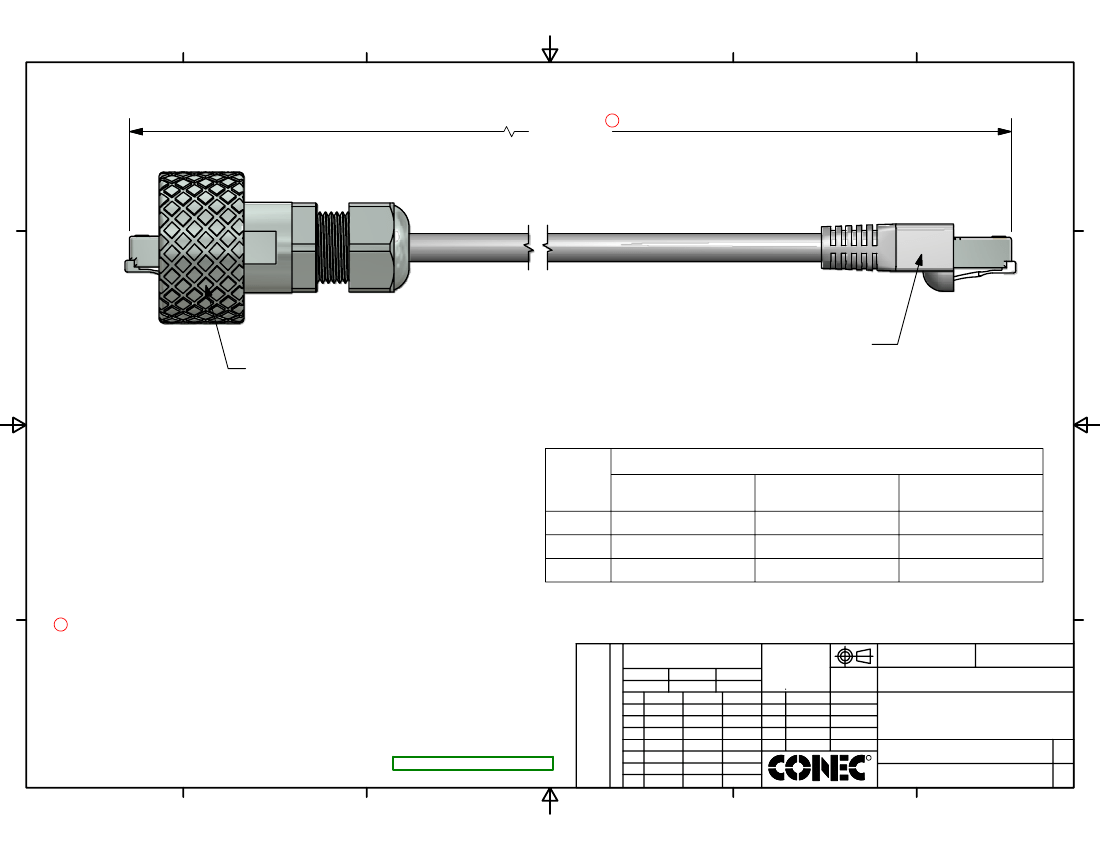

Cat. 5e RJ45 Plug
Industrial IP67
Metal version
M28 Thread Screw Type
Cat. 5e RJ45 Plug
(Standard)
C
Notes:
1. Electrical:
- Meets EIA/TIA-568-B.2 Cat.5e Specification
- Connector Operating Temperature: -40
~
C to +85
~
C
2. Materials and Finish:
- Metal Coupling Ring: Brass, Nickel Plated
- Plug Housing: Metallized ABS, UL94 V-0, Nickel Plated
- Interfacial Seal: Silicone, Color: White
- Cable Gland: Brass, Nickel Plated
- Cable Gland Seal: NBR, Color: Black
- Cat.5e RJ45 Plug Metal Shell: Copper Alloy, Nickel Plated
c
- Cat.5e RJ45 Plug Plastic Housing: Clear Polycarbonate UL94 V-2
- Cat.5e RJ45 Plug Contacts: Phosphor Bronze, Finish: 50 u" Gold min. over Nickel
- RJ45 Modular Boot: PVC, Color: Black
- Cable: See Part Number Table
3. RoHS compliant
Cable
Length
Part Number
Cat. 5e STP 4 Pair,
AWG24 Solid Black Cable
Cat. 5e Outdoor UTP 4 Pair,
AWG24 Solid Black Cable
Cat. 5e Outdoor STP 4 Pair,
AWG24 Solid Black Cable
L
2m
4m
5m
B
17-100964
17-100974
17-100984
17-101024
17-101034
17-101044
17-101054
17-101064
17-101074
B
Notes: - Special cable length are available please contact factory
- UPT: Unshielded Twisted Pair
- STP: Shielded Twisted Pair
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
Name
Title
Approval Date
Unless otherwise specified
Dimensional:
Angles
Tolerance
Scale: 1.8:1
Autodesk
Inventor
Dim. in Meter
Material: See Notes
Title:
2008
Draw.
Appd.
Norm
Date
Dec. 12
Dec. 12
Name
Vincent Ke
J. Chaudry
A
RJ45 Cat. 5e Ethernet Patch Cord
A
Industrial to Standard
Full Metal Version (RoHS Compliant)
DIN
c
b
a
Rev.
Directive 2002/95/EC RoHS Compliant
Aug/08/2011 Vincent Ke
D-old
Jan/29/2009 Vincent Ke
original
Changes
Date
Name
R
Drawing No.: 17K1A112
Part No.: SEE P/N ABOVE
A3
Sheet
1/1
6
5
4
3
2
