NOTES:
1. ELECTRICAL:
A. IMPEDANCE: 50 ^ (NOMINAL)
B. FREQUENCY RANGE: 0-6 GHz
C. CONTACT RESISTANCE: CENTER: 20m ^ MAX.: MEASURED AT 10mA MAX. 25 m ^ MAX AFTER CYCLING
OUTSIDE: 10m ^ MAX. 15 m ^ MAX AFTER CYCLING
D. INSULATION RESISTANCE: 500M ^ MIN.: MEASURED AT 100 VDC.
E. WITHSTANDIN VOLTAGE: NO LINE OR INSULATION BREAKDOWN: 200 VAC FOR 1 MIN.
F. V.S.W.R. : 1.3 MAX. AT DC TO 3GHz, 1.4 MAX. AT 3 TO 6GHz
G. TYPICAL INSERTION LOSS : .0018*L* Frequency in GHz]+.087* Frequency in
GHz]
2. PHYSICAL:
A. FEMALE CONTACT HOLDING FORCE: 0.15N MIN. : MEASURED WITH A n 0.475MM PIN
B. DURABILITY: 30 CYCLES
C. TEMPERATURE RANGE: -40 $ C TO +90 $ C.
D. AMC CONNECTOR MATING FORCE: 15N TYPICAL
E. AMC CONNECTOR DEMATING FORCE: 10N TYPICAL - 20N MAX
F. AMC INTERFACE IS FULLY COMPATIBLE WITH "U.FL" SERIES PRODUCT.
GAUGE.
THIRD ANGLE PROJ.
REV
REVISIONS
-
E
F
RELEASE TO MFG.
DESCRIPTION
REDRAWN, ADDED NOTE 1G,4 &5 AND COD,
ADD ORIENTAION AND COLORS
ADDED COLORS: ORANGE, YELLOW, BROWN
------
10/2/14
08-Jun-16
DATE
------
50005
01067
ECO
------
EW
JTS
APPR
EXAMPLE SHOW :
A-1PAC137-XXXYZ
3. MATERIALS AND FINISHES: (IN MICROMETERS)
CONNECTOR BODY: PHOSPHOR BRONZE, SILVER PLATED (0.76 MIN.) OVER COPPER (1
MIN)
CONNECTOR CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATED (0.076 MIN.) OVER
NICKEL (2 MIN)
CONNECTOR INSULATOR: HIGH TEMP PLASTIC UL 94V-0, BLACK
CABLE JACKET: FEP
CABLE DIELECTRIC: FEP
CABLE CENTER CONDUCTOR: ANNEALED COPPER WIRE STRANDED, SILVER PLATED
CABLE OUTER CONDUCTOR: ANNEALED COPPER WIRE BRAID, TIN PLATED
4. PACKAGING:
A. PACKAGED IN BAGS OF 100 PIECES
SCALE
90 $
3.000
- "C"
OVERALL LENGTH
STANDARD
L (mm)
TOLERANCE (mm)
180 - "F"
200 < L 500
1000 < L
100<L<200
35<L<100
CABLE ASSEMBLY TOLERANCE
ORIENTATION
TOLERANCE
90.0 $
(SEE TABLE FOR TOLERANCE)
500 < L 1000
# 1.5 %
CABLE ASSEMBLY LENGTH "L"
(SEE TABLE FOR TOLERANCE)
180 $
(SEE TABLE FOR
TOLERANCE)
5,28
REF.
[.208 ]
3,1 0,2
[.122 .008 ]
A-1PAX137-XXXYZ
SERIES NAME (A=AMC)
AMC RIGHT ANGLE PLUG
C = 90 $
F = 180 $
- =
0 $
ORIENATION:
(CLOCKWISE)
1,95 0,15
[.077 .006 ]
NO. OF TERMINATED ENDS (1 OR 2)
CABLE COLOR:
G=GRAY
A=ORANGE
B=BLACK
Y=YELLOW
W=WHITE
N=BROWN
U=BLUE
E=GREEN
R=RED
CABLE ASSEMBLY LENGTH IN mm
(SHORTEST LENGTH IS 35mm)
MATERIAL
-
-
REFERENCE
EAR # 1434
1,9 0,1
[.075 .004 ]
2,41 0,2
[.095 .008 ]
REF.
CABLE DIAMETER IN mm (137 = 1.37 mm)
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
DRAWN
E WANKOFF
ENGINEER
E WANKOFF
AND

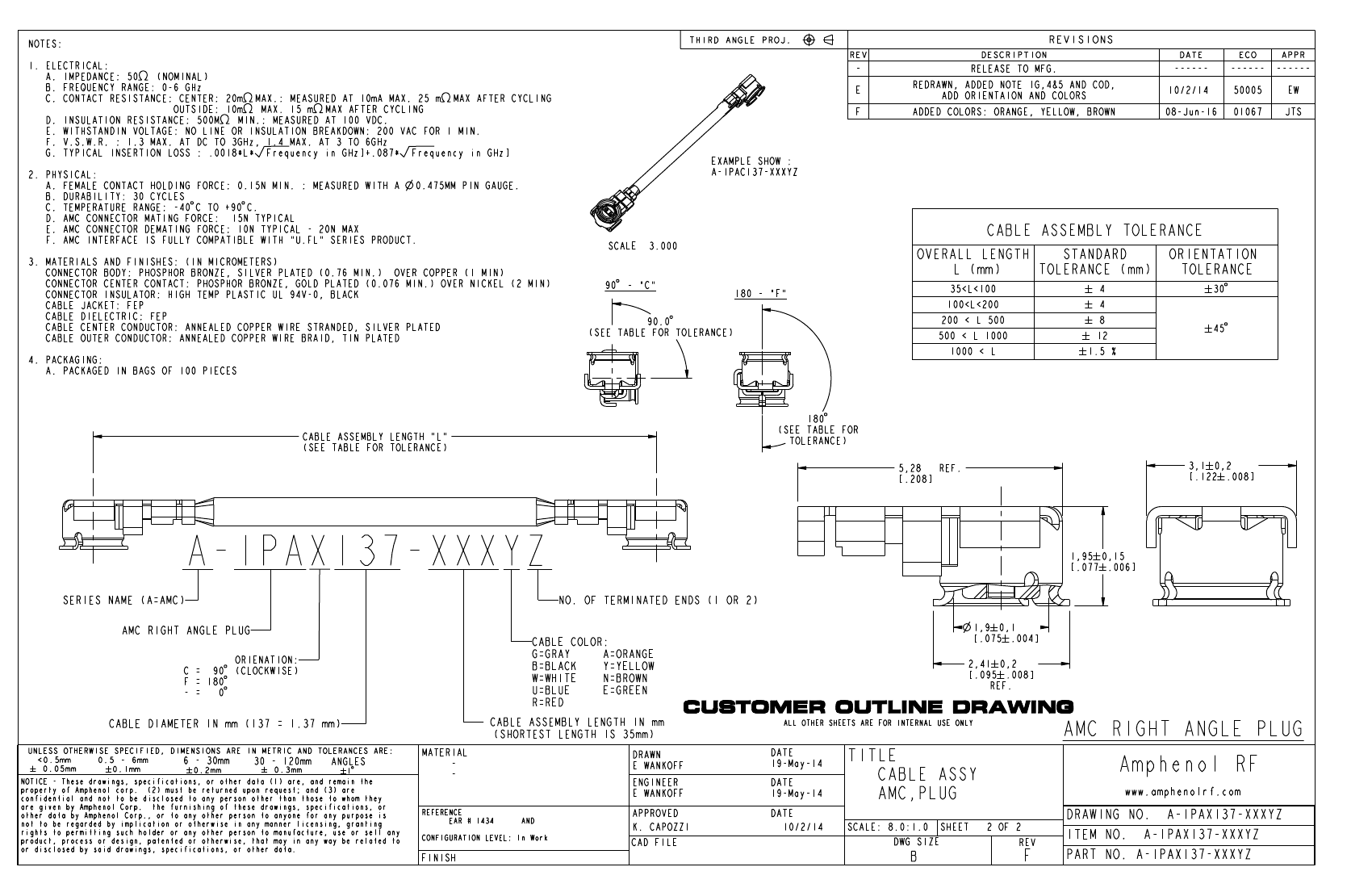

CUSTOMER OUTLINE DRAWING
AMC RIGHT ANGLE PLUG
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DATE
19-May-14
DATE
19-May-14
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
APPROVED
K. CAPOZZI
DATE
10/2/14
TITLE
CABLE ASSY
AMC,PLUG
SCALE: 8.0:1.0
DWG SIZE
SHEET
Amphenol RF
www.amphenolrf.com
2 OF 2
DRAWING NO.
B
REV
F
ITEM NO.
PART NO. A-1PAX137-XXXYZ
A-1PAX137-XXXYZ
A-1PAX137-XXXYZ
