Sleeve housing - VC-K-T3-Z - 1852956
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

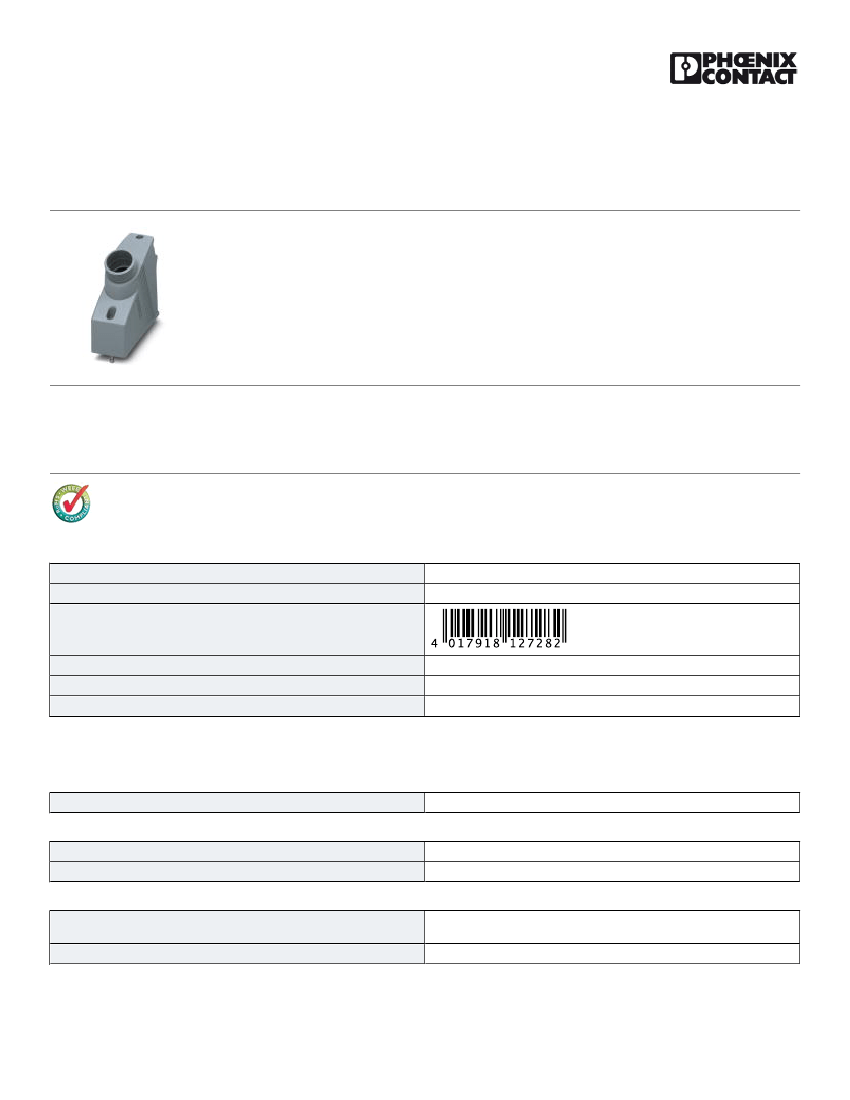

Plastic sleeve housing, locking screws with cylindrical head, type 3, cable screw connection Pg21
Product Features
■
■
Seals with two cable entries are available
Angled cable outlet so the cable can be routed as desired, from the side and straight
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
68.13 g
85472000
Poland
1 pc
5 pc
Technical data
Dimensions
Height
75 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP67
-40 °C ... 80 °C
General
Note
Type
When using fiber optics, the bending radii of the cable manufacturers must
be observed.
VC3
04/20/2016 Page 1 / 7
https://www.phoenixcontact.com/us/products/1852956
Sleeve housing - VC-K-T3-Z - 1852956
Technical data
General
Degree of protection
Flammability rating according to UL 94
Locking type
Fixing screws
Tightening torque, mounting screw
Type of the screw connection
Pg screw connection
Cable exit
Housing material
Seal material
Ambient temperature (operation)
IP67
V0
Screw locking, cylinder head
M4
1.5 Nm ±0.3 Nm
Pg21
none
Angled
Polyamide
EPDM
-40 °C ... 80 °C
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27140816
27140816
27371205
27371205
27371205
27371205
27440202
27440202
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000437
EC000437
EC000437
EC000437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31261501
31261501
31261501
31261501
04/20/2016 Page 2 / 7
https://www.phoenixcontact.com/us/products/1852956
Sleeve housing - VC-K-T3-Z - 1852956
Classifications
UNSPSC
UNSPSC 13.2
31261501
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
Accessories
Accessories
Half screw connection
Cable gland - VC-K-KV-PG21( 7-10,5) - 1853890
Half screw connection Pg21, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 2 -
4 housings, cable [mm] 7.5 - 10.5
Cable gland - VC-K-KV-PG21( 9-13) - 1853900
Half screw connection Pg21, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 2 -
4 housings, cable [mm] 9 - 13
04/20/2016 Page 3 / 7
https://www.phoenixcontact.com/us/products/1852956

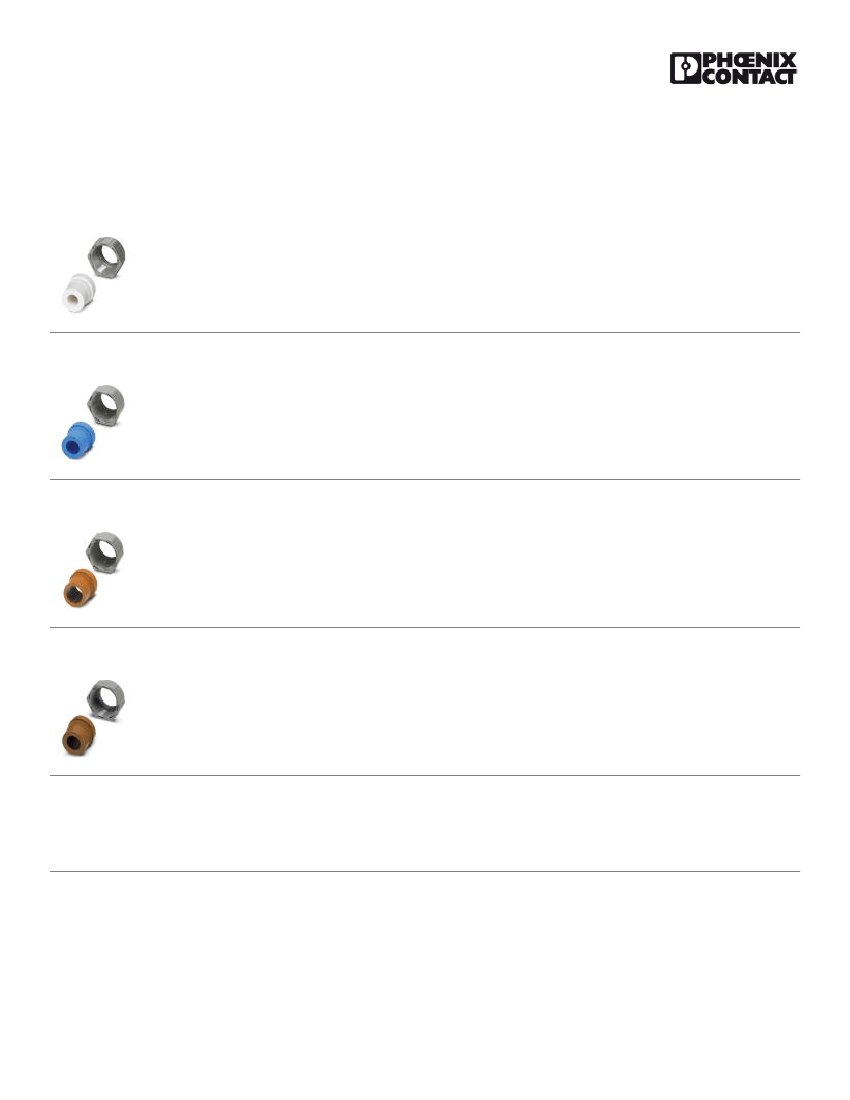

Sleeve housing - VC-K-T3-Z - 1852956
Accessories
Cable gland - VC-K-KV-PG21(11,5-15,5) - 1853913
Half screw connection Pg21, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 2 -
4 housings, cable [mm] 11.5 - 15.5
Cable gland - VC-K-KV-PG21(14-18) - 1853926
Half screw connection Pg21, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 2 -
4 housings, cable [mm] 14 - 18
Cable gland - VC-K-KV-PG21(17-20,5) - 1853939
Half screw connection Pg21, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 2 -
4 housings, cable [mm] 17 - 20.5
Cable gland - VC-K-KV-PG21(20X7) - 1885198
Half screw connection Pg21, made of plastic, consisting of rubber seal with one elongated hole and one pressure screw,
for type 2 - 4 housings, cable diameter: 20 x 7 mm
Cable gland - VC-K-KV-PG21-O - 1885363
Half screw connection made of plastic with rubber seal without hole or for individual holes
04/20/2016 Page 4 / 7
https://www.phoenixcontact.com/us/products/1852956

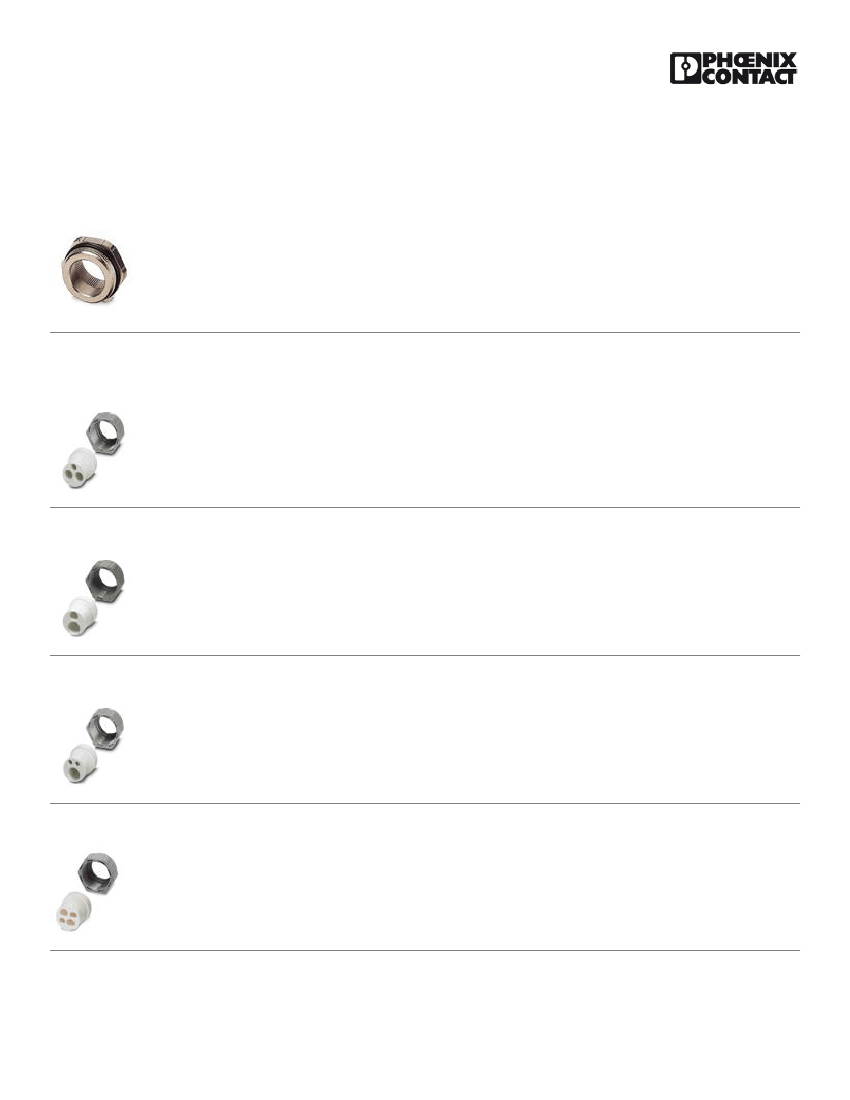

Sleeve housing - VC-K-T3-Z - 1852956
Accessories
Cable gland - VC-M-KV-PG21/M32 ST - 1644397
Cable gland for Pg21 half screw connection to M32 housing entry, metal
Multiple screw connection
Cable gland - VC-K-KV-PG21 1X6/2X9 - 1885538
Half screw connection Pg21, made of plastic, consisting of rubber seal with several holes (1 x 6 mm/2 x 9 mm) and a
pressure screw, for cable screw connection support VC-M-KV-PG21.......
Cable gland - VC-K-KV-PG21-1X8,5/1X12 - 1885279
Half screw connection Pg21, made of plastic, consisting of rubber seal with several holes (1 x 8.5 mm/1 x 12 mm) and a
pressure screw, for cable screw connection thread VC-M-KV-PG21.......
Cable gland - VC-K-KV-PG21-2X4,5/1X13 - 1885282
Half screw connection Pg21, made of plastic, consisting of rubber seal with several holes (2 x 4.5 mm/1 x 13 mm) and a
pressure screw, for cable screw connection thread VC-M-KV-PG21.......
Cable gland - VC-K-KV-PG21 2X6/2X8 - 1885554
Half screw connection Pg21, made of plastic, consisting of rubber seal with several holes (2 x 6 mm/2 x 8 mm) and a
pressure screw, for cable screw connection support VC-M-KV-PG21.......
