WIREMOLD
®
Steel Raceway
Single-Channel, One-Piece Steel Surface Raceway
500
®
and 700
®
Series Raceway is ideal for surface mounting
small amounts of electrical wiring or communication cables.
These rugged raceways offer a low profile appearance which
blend with any decor. 500
®
and 700
®
Series Raceway all come
with our exclusive ScuffCoat
™
finish for increased durability
and scratch-resistance.
500 and 700 Series
Raceway profiles.
500 Series Raceway and components
used in a ceiling fan installation.
FEATURES & BENEFITS
n
Low-profile, unobtrusive appearance.
Blends with any
decor or setting. Excellent for low-voltage wiring.
n
ScuffCoat finish.
Tough, durable, scratch-resistant
finish which can be overpainted with latex paint.
n
Surface mounting.
Eliminates disturbing the building
structure or wall finish to make renovations easy.
n
V5748-3 Device Box accommodates wireless.
Designed for use with Ortronics
®
Wi-Jack
™
Wireless
Access Points.
n
Full line of fittings.
Provides unlimited wiring solutions
and interconnection between raceway systems.
n
More choice of colors.
700 Series Raceway and
Fittings are available in ivory and white.
n
Fittings have removable covers.
Allows easy access
to wiring for changes and additions.
n
Raceway cutters with replaceable blades.
Cuts
raceway cleanly, reduces labor, and installation time.
n
Datacom connectivity options.
Accepts industry
standard and proprietary devices from a wide range
of manufacturers to provide a seamless and aesthetically
pleasing interface for voice, data, audio, and video
applications at the point of use.
n
UL5 and ADA compliant.
Raceway and fittings meet
UL5 specifications and can be installed in conformance
with ADA requirements.
n
UL and cUL Listed component raceways.
File E4376
Guide RJBT, Fittings: File E41751 Guide RJPR. Meets Article
386 of NEC and meets Section 12-600 of CEC.
Typical applications for 500 & 700 Series Raceway.
ED532R18 – Updated September 2016 – For latest specs visit www.legrand.us/wiremold

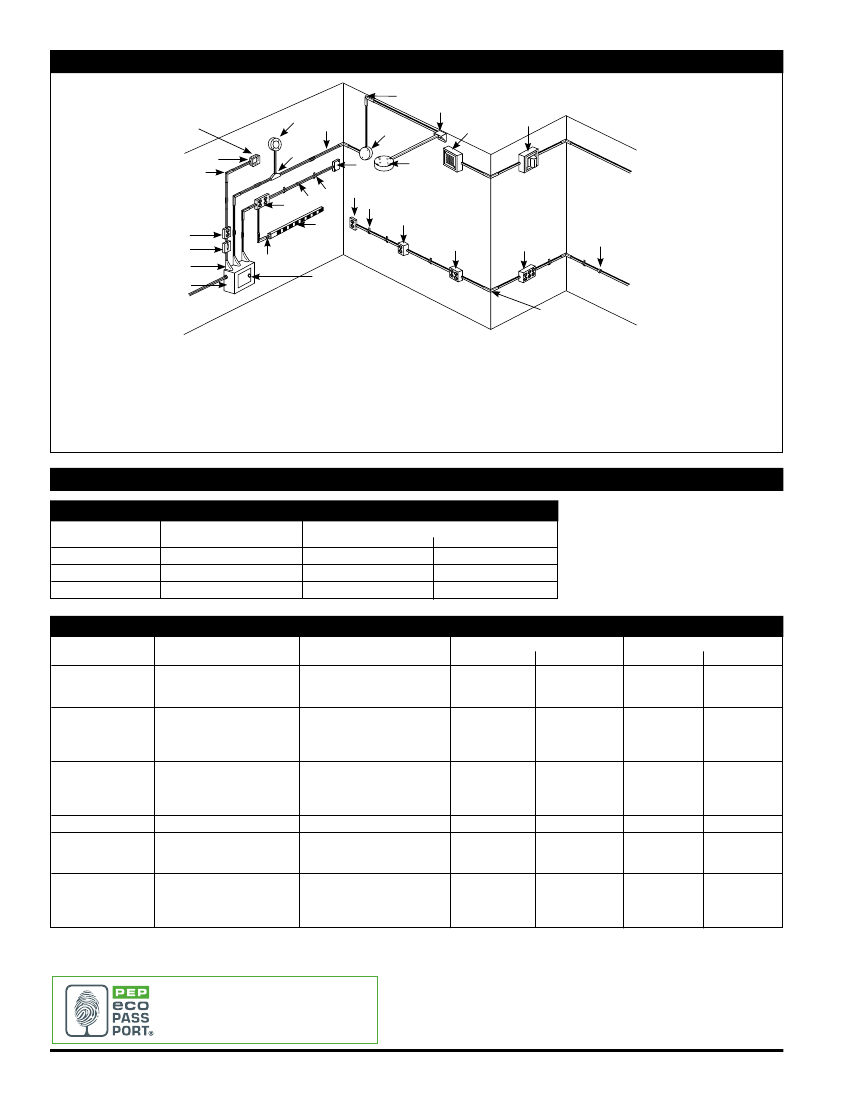

500 & 700 Series System Product Applications
E
4 11/16"
(119mm)
Utility Box
F
E
K
L
AA
Z
Panel
Box
S
U
G
I
I
O
M
L
V
W
X
Y
Q
Firehorn
Box
T
H
J
D
C
B
A
A—
B—
C—
D—
E—
F—
G—
H—
I—
5781A
V5786
V57240
V57243G
V711
V5785
V5738
V5715
V5703
3/4" (19.1mm) Box Connector
Adjustable Offset Connector
Single Pole Switch and Box
Duplex Receptacle and Box
Flat Elbow
Combination Connector
Fixture Box Solid Base
Tee Fitting
Supporting Clip
J—
K—
L—
M—
N—
O—
P—
Q—
R—
5747-2
V706
V704
V57242
V717
V5734A
V5739
V5719
R5752
Shallow Device Box
Cover Clip
Mounting Strap
Utility Box
Internal Elbow
Utility Box
Fixture Box Solid Base
Corner Box
Alarm Device Box
S—
T—
U—
V—
W—
X—
Y—
Z—
AA—
V718
R5753
V5747S
V5744
V5748-2
V5748-3
5782
V2089E
External Elbow
Extra Deep Alarm Device Box
Shallow Device Box
Extra Deep Device Box
Device Box
Device Box
1/2" (12.7mm) Conduit Connector
Reducing Fitting
Plugmold Multioutlet System
V500 & V700 Series Wire Fill Capacity Charts
V500/V700 Series Raceway Wire Fill Capacities for Power
WIRE SIZE
THHN/THWN
inches
O.D.
(mm)
NUMBER OF CONDUCTORS 40% FILL
V500 SERIES
V700 SERIES
14 AWG
12 AWG
10 AWG
0.111
0.130
0.164
(2.8)
(3.3)
(4.2)
7
5
3
10
7
4
V500/ V700 Series Raceway Wire Fill Capacities for Communications
CABLE/WIRE SIZE
inches
O.D.
(mm)
V500 SERIES
20% FILL*
40% FILL**
V700 SERIES
20% FILL*
40% FILL**
UNSHIELDED
TWISTED PAIR
TELEPHONE
COAXIAL
4-pair,
4-pair,
4-pair,
2-pair,
3-pair,
4-pair,
25-pair,
RG58/U
RG59/U
RG62/U
RG6/U
24 AWG, Cat 3
24 AWG, Cat 5e
24 AWG, Cat 6
24 AWG
24 AWG
24 AWG
24 AWG
0.190
0.210
0.250
0.140
0.150
0.190
0.410
0.195
0.242
0.242
0.270
0.330
0.390
0.465
0.245
0.079 x 0.157
0.118 x 0.236
0.187
0.256
(4.8)
(5.3)
(6.3)
(3.6)
(3.8)
(4.8)
(10.4)
(5.0)
(6.1)
(6.1)
(6.9)
(8.4)
(9.9)
(11.8)
(6.2)
(2 x 4)
(3 x 6)
(4.8)
(6.5)
1
1
0
2
2
1
0
1
0
0
0
0
0
0
0
3
1
1
0
2
2
1
4
4
2
0
2
1
1
1
0
0
0
1
6
2
2
1
1
1
1
3
2
1
0
1
1
1
0
0
0
0
0
4
1
1
1
3
3
2
6
5
3
0
3
2
2
1
1
0
0
1
8
3
3
2
TWINAXIAL
SHIELDED
TWISTED PAIR
FIBER
100 Ohm
TYPE 1
TYPE 2
TYPE 3
Mini ZipCord
ZipCord
Round 4 Strand Fiber
Round 6 Strand Fiber
* 20% cable fill is calculated to approximate reduction in cable capacity due to connectors mounted within raceway
and fittings that may restrict cross sectional area.
** 40% cable fill is the maximum designed cable fill based on a proposed revision to TIA/EIA 569-A.
Download this product’s PEP ecopasport
®
environmental product declaration at
www.legrand.us/resources-and-downloads.
This declaration conforms with ISO 14025 and
14040 and is in alignment with EN 15804.
2

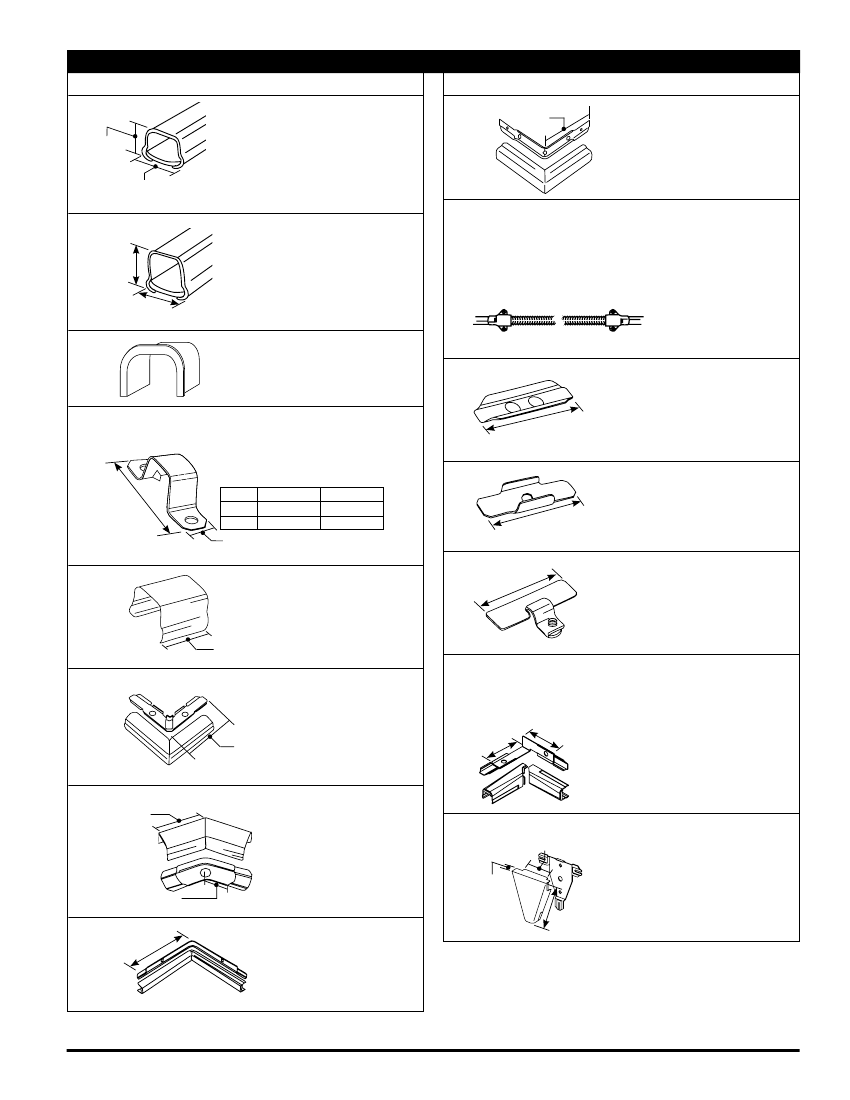

500 & & 700 Series Raceway & Fittings Ordering Information
Catalog No./Item
V500
17/32"
(13.5mm)
3/4"
(19.1mm)
Description/Specifications
Raceway
– .040" (1.0mm) steel.
Comes in 10 ft. (3.05mm) lengths,
one 5701 Coupling furnished
with each length. Five ft. (1.525m)
lengths available, order V500-5.
Catalog No./Item
V518
V718
718WH
2 1/2"
(64mm)
Description/Specifications
External Elbow
– For outside
surfaces at right angles.
V700
700 WH
21/32"
(16.7mm)
Raceway
– .040" (1.0mm) steel.
Comes in 10 ft. (3.05mm) lengths,
one 5701 Coupling furnished with
each length. Five ft. (1.525m)
lengths available, order V700-5.
V5700F
Flexible Section
– For getting
around difficult angles. End
fittings and bulk conduit lengths
available. Maximum painted
length 3' (915mm) longer
lengths furnished unpainted,
consult factory for availability.
3/4"
(19.1mm)
502
702
Bushing
– Protects wires from
abrasion. Bushing slips into open
end of raceway where it enters
a fitting.
Mounting Strap (1- or 2-Hole)
–
Convert to one-hole by breaking off
at score. Lanced tab holds strap in
place while fastening to surface.
A
18" (457mm) Overall
5701
V504
V704
704WH
2"
(51mm)
Coupling
– For joining and
supporting lengths of V500 or
700 Series raceway. One
coupling supplied with
each length.
V5703
CAT. #
V504
V704
B
A
B
2 1/2"
(64mm)
1 7/8" (47mm) 1/2" (12.7mm)
1 7/8" (47mm) 5/8" (15.4mm)
Supporting Clip
– For supporting
lengths of V500 or 700 Series
raceway at any point desired.
V506
V706
706 WH
Connection Cover
– To cover
openings where lengths of V500
or 700 Series, not squarely cut,
come together.
3/4"
(19.1mm)
5709
2"
(51mm)
Ground Clamp
– Provides
additional grounding or to ground
remotely located devices. Attach
ground wire to screw as required by
NEC. Insert into V500 or 700
Series raceway before installing.
Internal Twisted Elbows
– For 90°
twist with 90° turn including a flat
run on sidewall to a flat run on
ceiling or on door edge or window
trim. Break out crescent twistout in
cover to use with 700 Series.
V511
V711
711WH
90° Flat Elbow
– For right angle
turns on same surface.
V5711LH A
V5711RHA
5711LHAWH
5711RHAWH
2 1/2"
(64mm)
2 1/2"
(64mm)
2"
(51mm)
V512
V712
1 1/4"
(32mm)
45° Flat Elbow
– For diagonal 45°
turns on same surface.
V5715
5715 WH
7/8"
(22.2mm)
2 1/2"
(64mm)
Tee
– For branches at right angles.
Break out crescent twistout in cover
to use with V700.
3/4"
(19.1mm)
V517
V717
717WH
2 3/4"
(70mm)
Internal Elbow
– For inside
surfaces at right angles.
2 1/2"
(64mm)
NOTE: Use #6 flat head screws with all fittings requiring screws except V504/V704, and V57200 Series; with V504/V704 use #8 pan head
screws; with V57200 Series use #8 flat head screws.
3

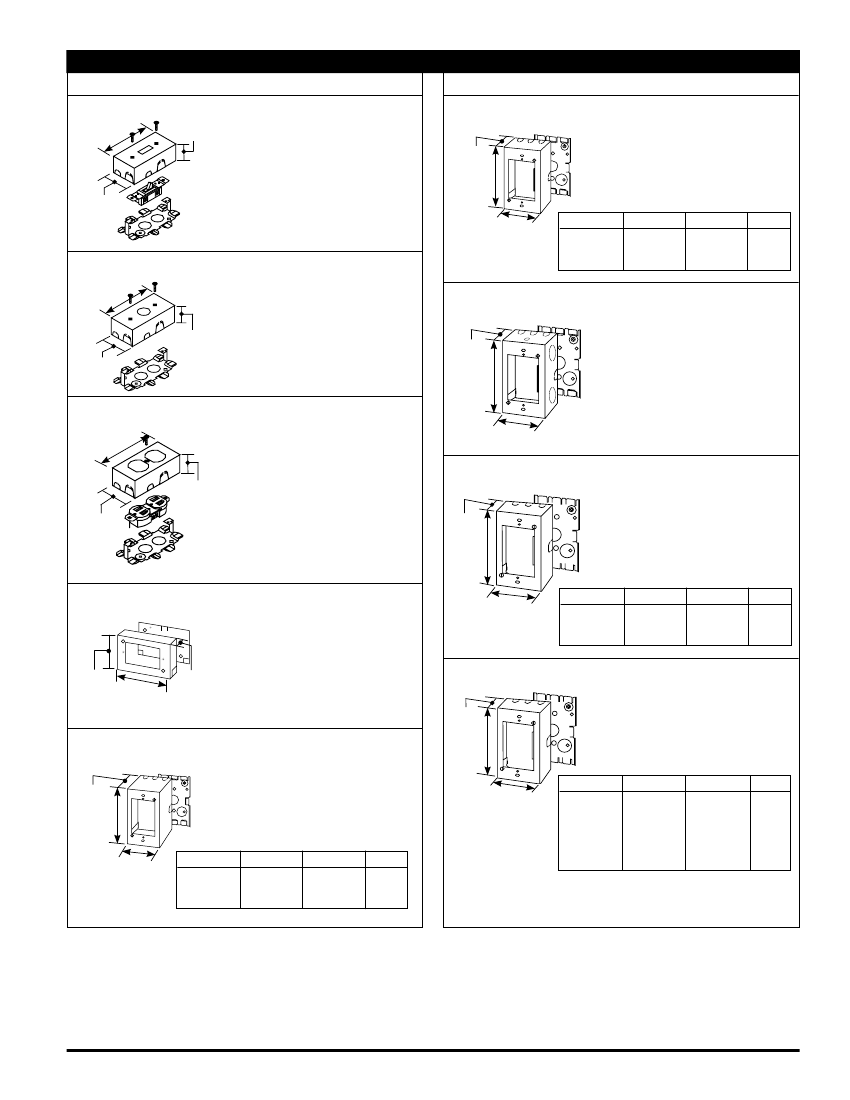

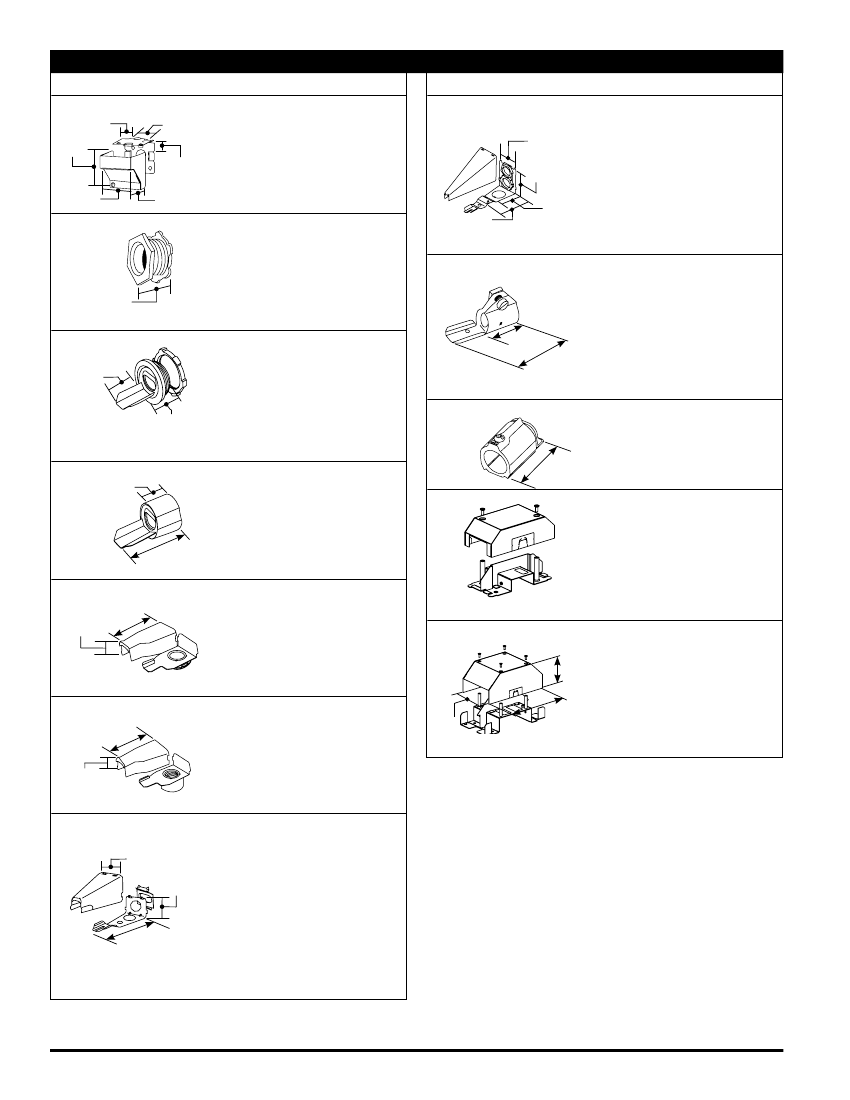

500 & 700 Series Raceway Fittings Ordering Information
Catalog No./Item
V5719
1 3/16"
(30mm)
2 1/2"
(64mm)
1 5/16"
(33mm)
2 1/8"
(54mm)
2 1/2"
(64mm)
1 3/16"
(30mm)
Description/Specifications
Corner Box
– Allows ample splice
room. Each leg of base has 1/2"
trade size KO.
Catalog No./Item
V5786
V5786WH
1 3/8"
(35mm)
2 3/8"
(61mm)
7/8"
(22.2mm)
Description/Specifications
Adjustable Offset Connector
–
Eliminates offsetting raceway when
connecting to surface type panel
boxes. The adjustment from
surface to center of bushings is
5/8" (15.9mm) minimum to 1 3/8"
(35mm) maximum. Break out
crescent twistout in cover to use
with 700 Series. 1/2" (12.7mm)
chase nipple and locknut furnished.
Armored Cable Connector
(Galvanized)
– For connecting
14/2, 14/3, 12/2, and 12/3 armored
cable to Wiremold fittings. Use a
short piece of V500/V700 raceway
(1 5/8" (41mm) min.) between this
connector and fitting. Not for
connection to 1/2" (12.7mm)
Flex Conduit.
5700 Series Box EMT Connector
–
Joins 1/2" (12.7mm) EMT
directly into any V5700 Series
Wiremold box.
1 3/4"
(45mm)
5780
With 1/2"
(12.7mm)
Locknut
1/2"
(12.7mm)
Special Nipple (Galvanized)
– Has
female 3/8" (9.5mm) pipe thread
inside and male 1/2" (12.7mm) pipe
thread outside. For hanging 3/8"
(9.5mm) or 1/2" (12.7mm) fixtures
to Wiremold fittings with 1/2"
trade size KOs.
Box Connector (Galvanized)
–
For connecting raceway to conduit
boxes, panel boxes, etc., having a
KO for conduit. May also be used
with conduit type fittings. Break out
crescent twistout to use with V700.
1/2" (12.7mm) Male (5781)
3/4" (19.1mm) Male (5781A)
2 1/4"
(57mm)
5790B
5781
5781A
1"
(25mm)
2"
(51mm)
5791
5782A
3/4"
(19.1mm)
Conduit Connector (Galvanized)
–
For connecting raceway to conduit.
Break out crescent twistout to use
with V700.
1 3/4"
(44mm)
V2475D
1/2" (12.7mm) Male (5782)
3/4" (19.1mm) Male (5782A)
2400 Series Raceway Bridge
Fitting
– For allowing 2400
Series Raceway to bridge over
existing installations of
V500/V700 Series Raceway
V5783
2 1/8"
1 1/4" (54mm)
(32mm)
•
V5784
2 1/8"
(54mm)
Elbow Box Connector
– For
connecting raceway at right angles
to conduit boxes, panel boxes, etc.,
having a KO for 1/2" (12.7mm)
conduit. Break out crescent
twistout in cover to use with V700.
1/2" (12.7mm) Male
V4075DA
3 9/16"
(90mm)
4000 Series Raceway Bridge
Fitting
– For allowing 4000
Series Raceway to bridge over
existing installations of
V500/V700 Series Raceway.
1 1/4"
(32mm)
•
Elbow Conduit Connector
– For
connecting raceway at right angles
to 1/2" (12.7mm) conduit or
armored cable connectors. Break
out crescent twistout in cover to
use with V700.
1/2" (12.7mm) Female
4 3/4"
(121mm)
8 1/8"
(206mm)
V5785
5785WH
1 3/8"
(33mm)
1 5/16"
(33mm)
3"
(76mm)
Combination Connector
– For
connecting raceway, without
offsetting, to any 3 1/4" (83mm) or
4" (102mm) outlet box mounted
on the surface with a KO for 1/2"
(12.7mm) conduit. The base end
and bottom has two 1/2" trade size
KOs. Break off cover extension to
use with 700 Series. Spring steel
bushing included for end connection
to box, eliminating conduit nipple
and locknut.
NOTE: Use #6 flat head screws with all fittings requiring screws except V504/V704, and V57200 Series; with V504/V704
use #8 pan head screws; with V57200 Series use #8 flat head screws.
4
500 & 700 Series Raceway Device Boxes Ordering Information
Catalog No./Item
V57240
m
4 1/8
(105mm)
1 3/8"
(35mm)
Description/Specifications
15A, 125V Single Pole Switch
and Box
– Accommodates other
standard single-gang switches in
place of furnished standard single
pole switch. Cover has twistouts
for V500 or V700 on each end.
Twistout on ends permits running
raceway close to interior trim.
Base has 1/2" trade size KOs.
Catalog No./Item
V5744S
m
†
5744SWH
m
†
2 1/4"
(57mm)
L
Description/Specifications
Deep Switch and Receptacle
Box
– For installing signal system
alarm wiring and communication
devices. Base has 1/2" trade size
and rectangular single-gang KOs.
2"
(51mm)
W
CAT NO.
L
W
GANG #
1
2*
3
V57242
4 1/8"
(105mm)
1 3/8"
(35mm)
2"
(51mm)
Utility Box
– For use as tee, cross,
pull box, junction box, blank box,
etc. Cover has 1/2" trade size
KO and twistouts for V500 and
V700 on each end and side. End
twistouts permit running raceway
close to interior trim. Base has
1/2" trade size KOs.
V5744S,WH
m
4 5/8" (118mm) 2 7/8" (73mm)
V5744S-2, WH
m
4 3/4" (121mm) 4 3/4" (121mm)
V5744S-3
m
4 5/8" (118mm) 6 1/2" (165mm)
V5745
m
†
5745WH
m
†
1 3/4"
(44mm)
4 5/8"
(118mm)
Combination Device Box
–
For connecting surface runs of 1/2"
(12.7mm) conduit, etc. Cover has
two raceway twistouts on one end
and three on opposite end; also two
1/2" trade size KOs and a raceway
twistout on each side. Base has two
1/2" trade size KOs.
V57243G
m
4 1/8"
(105mm)
1 3/8"
(35mm)
2"
(51mm)
15A, 125V Duplex Grounding
Receptacle (Nema 5-15R) and
Box
– Accommodates other
standard 15A (NEMA 5-15R) or
20A (NEMA 5-20R) duplex devices
in place of furnished duplex
grounding receptacle. Cover has
twistouts for V500 and V700 on
each end and side. End twistouts
permit running raceway close
to interior trim. Base has
1/2" trade size KOs.
Device Box
– For shallow type
switches (three-way, single, and
double pole) and receptacles,
(three-wire locking receptacles and
single-gang combination devices).
Base has 1/2" trade size KO.
End twistout permits running
raceway close to interior trim.
2 7/8"
(73mm)
V5747
m
†
5747WH
m
†
1 3/8"
(35mm)
L
Shallow Device Box
– For standard
shallow switches, receptacles,
communication devices, and single-
gang combination devices. Base has
two 1/2" trade size KOs.
V5741
m
5741 WH
m
W
CAT NO.
L
W
GANG #
1
2*
3
V5747,WH
m
4 5/8" (118mm) 2 7/8" (73mm)
V5747-2, WH
m
4 3/4" (121mm) 4 3/4" (121mm)
V5747-3
m
4 5/8" (118mm) 6 1/2" (165mm)
2 13/16"
(72mm)
4 5/8"
(118mm)
1 3/8"
(35mm)
V5748
m
†
5748WH
m
†
1 3/4"
(44mm)
Device Box
– For deep
switches, receptacles and
communication devices.
Base has two 1/2"
trade size KOs.
V5744
m
†
5744WH
m
†
2 3/4"
(70mm)
L
Extra Deep Device Box
–
Designed for deep devices –
momentary contact, and remote
control switches, hospital signaling
system devices, and deep
communication devices. Base has
1/2" trade size KOs.
CAT NO.
L
W
GANG #
1
2*
3
L
W
CAT NO.
V5748,WH
m
V5748-2, WH
m
V5748-3
m
V5748-4
m
V5748-5
m
V5748-6
m
L
4 5/8" (118mm)
4 3/4" (121mm)
4 5/8" (118mm)
4 5/8" (118mm)
4 3/4" (121mm)
4 5/8" (118mm)
W
2 7/8" (73mm)
4 3/4" (121mm)
6 1/2" (165mm)
8 11/32" (212mm)
10 5/32" (212mm)
11 31/32" (165mm)
GANG #
1
2*
3
1
2*
3
W
V5744,WH
m
4 5/8" (118mm) 2 7/8" (73mm)
V5744-2, WH
m
4 3/4" (121mm) 4 3/4" (121mm)
V5744-3
m
4 5/8" (118mm) 6 1/2" (165mm)
NOTES: Covers on this page have double twistouts. Break out lower twistout for use with V500, and both twistouts for use with V700.
* V5744-2 and V5744S-2 Base and V5747-2 and V5748-2 Base have 1/2" and 1" concentric trade size KOs and a 1 13/16" x 2
7/8" (47mm x 73mm) rectangular KO to permit mounting on a one-gang in-wall outlet box.
m
Replace V with VC or WH with WHC to denote Canadian version — Agency approved for sale in Canada.
c
† Larger gangs available, consult factory.
5
Embedded System
京公网安备 11010802033920号
EEWORLD
