NB3N853501EDTG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> NB3N853501EDTG

NB3N853501EDTG: DescriptionClock Drivers & Distribution 2:1:4 LVPECL FAN-OUT BUFF; Categorylogic logic; File Size209KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

NB3N853501EDTG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NB3N853501EDTG	-	-	View	Buy Now

NB3N853501EDTG Overview

Clock Drivers & Distribution 2:1:4 LVPECL FAN-OUT BUFF

NB3N853501EDTG Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP20,.25
Contacts	20
Manufacturer packaging code	9.48
Reach Compliance Code	compliant
Factory Lead Time	5 weeks
series	3N
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	R-PDSO-G20
JESD-609 code	e4
length	6.5 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	20
Actual output times	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	2 ns
propagation delay (tpd)	2 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.03 ns
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

Preview

Download Datasheet

View All

NB3N853501E

3.3 V LVTTL/LVCMOS 2:1

MUX to 4 LVPECL

Differential Clock Fanout

Buffer Outputs with Clock

Enable and Clock Select

Description

http://onsemi.com

MARKING

DIAGRAM

The NB3N853501E is a pure 3.3 V supply 2:1:4 clock distribution

fanout buffer. Input MUX selects one of two LVCMOS/LVTTL CLK

lines by the CLK_SEL pin (HIGH for CLK1, LOW for CLK0) using

LVCMOS/LVTTL levels. Outputs are LVPECL levels and are

synchronously enabled by CLK_EN using LVCMOS/LVTTL levels

(HIGH to enable outputs, LOW to disable output).

Features

•

TSSOP−20

DT SUFFIX

CASE 948E

NB3N

501E

ALYWG

Four differential LVPECL Outputs

Two Selectable LVCMOS/LVTTL CLOCK Inputs

Up to 266 MHz Clock Operation

Output to Output Skew: 30 ps (Max.)

Device to Device Skew 250 ps (Max.)

Propagation Delay 2.0 ns (Max.)

Operating range: V

= 3.3

±5%

V( 3.135 to 3.465 V)

Additive Phase Jitter, RMS: 62 fs (Typ)

Synchronous Clock Enable Control

Industrial Temp. Range (−40

C to 85

Pb−Free TSSOP20 Package

These are Pb−Free Devices

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

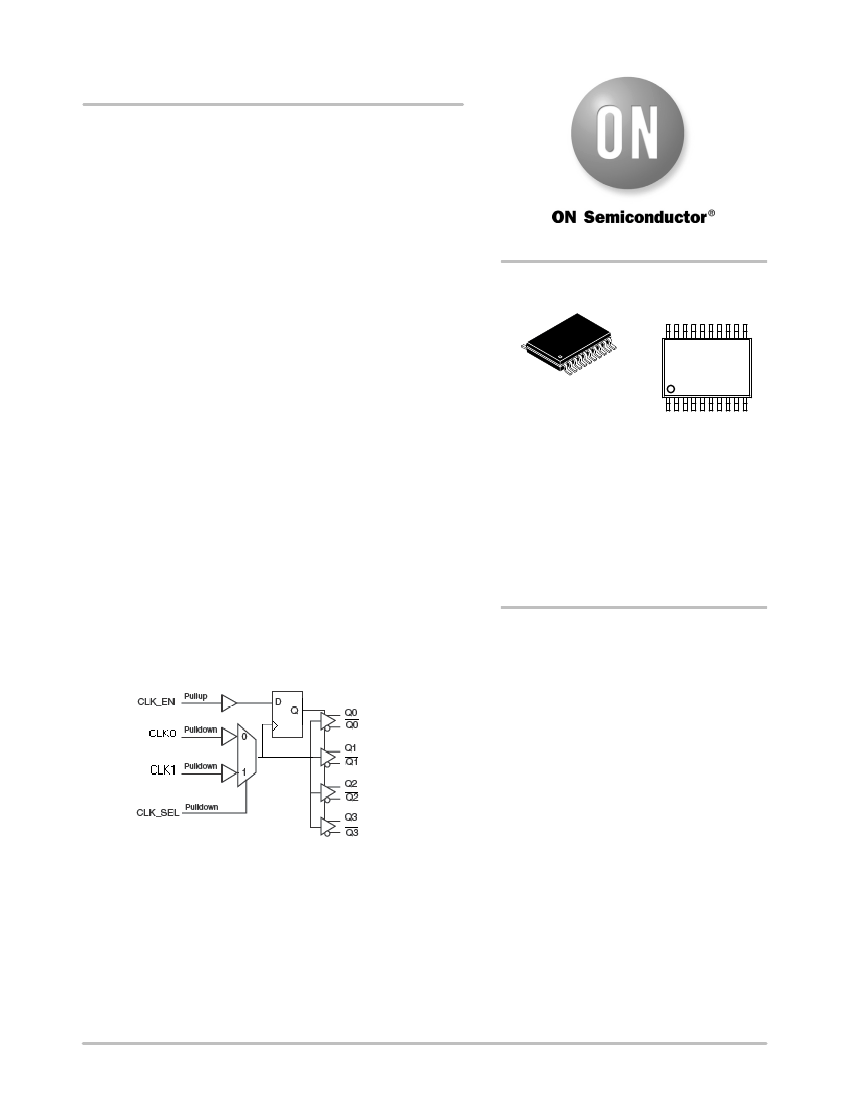

Figure 1. Simplified Logic Diagram

Semiconductor Components Industries, LLC, 2011

November, 2011

−

Rev. 2

Publication Order Number:

NB3N853501E/D

NB3N853501EDTG Related Products

	NB3N853501EDTG	NB3N853501EDTR2G
Description	Clock Drivers & Distribution 2:1:4 LVPECL FAN-OUT BUFF	Clock Drivers & Distribution 2:1:4 LVPECL FAN-OUT BUFF
Brand Name	ON Semiconductor	ON Semiconductor
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	ON Semiconductor	ON Semiconductor
Parts packaging code	TSSOP	TSSOP
package instruction	TSSOP, TSSOP20,.25	TSSOP, TSSOP20,.25
Contacts	20	20
Manufacturer packaging code	9.48	9.48
Reach Compliance Code	compliant	compliant
Factory Lead Time	5 weeks	1 week
series	3N	3N
Input adjustment	DIFFERENTIAL MUX	DIFFERENTIAL MUX
JESD-30 code	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e4	e4
length	6.5 mm	6.5 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	20	20
Actual output times	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP20,.25	TSSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	2 ns	2 ns
propagation delay (tpd)	2 ns	2 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.03 ns	0.03 ns
Maximum seat height	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.465 V	3.465 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	4.4 mm
