75 Ω CATV Output Stage Amplifier
Applications
•
CATV Line Amplifiers
•
HFC Nodes
•
Head End Equipment
16-pin SOIC Wide Body Package
with Exposed Backside Ground Pad
TAT2801
Product Features
•
•
•
•
•
•
•
•
Wide Bandwidth (40– 1000 MHz)
100% production tested for DOCSIS Edge QAM.
In-package ESD protection
Flat Gain
High Power Compression
Excellent Input/Output Match
Low DC Power Consumption
Bias optimization through external voltage
Functional Block Diagram
Pin 1 Reference Mark
GND
V
G2
ADJ
RFIN 1
GND
GND
RFIN 2
I
DD
ADJ
GND
1
2
3
4
5
6
7
8
Backside Pad - RF/DC GND
16
15
14
13
12
11
10
9
GND
V
DD
RFOUT 1
GND
GND
RFOUT 2
V
DD
GND
General Description
The TAT2801 is a high power, high linearity GaAs MMIC
amplifier intended for output stage amplification in CATV
infrastructure applications. Featuring a single die design
and providing flat gain with low distortion, this amplifier
is ideal for use in CATV distribution systems requiring
high output powers and low distortion.
The TAT2801 draws 575 mA from a 12 V supply Bias
current and voltage may be adjusted externally to
optimize output performance for specific applications.
The TAT2801 integrates two TQP200002 ESD
protection devices that provide bi-directional protection
with very low leakage currents and extremely low
capacitance.
The TAT2801 is packaged in an industry standard 16 pin
SOIC WB package.
Pin Configuration
Pin No.
1, 4-5, 8-9, 12-13, 16
2
3/6
7
10
11 / 14
15
Backside Pad
Label
GND
V
G2
ADJ
RFIN1 / RFIN2
I
DD
ADJ
V
DD
RFOUT2 / RFOUT1
V
DD
RF/DC Gnd
Ordering Information
Part No.
TAT2801
TAT2801-PCB
CATV Output Stage Amplifier
40-1000 MHz Evaluation Board
Disclaimer: Subject to change without notice
Description
Standard T/R size = 1000 pieces on a 7” reel
Preliminary Datasheet: Rev. E 10-13-13
© 2013 TriQuint
-
1 of 10
-
www.triquint.com
75 Ω CATV Output Stage Amplifier
Absolute Maximum Ratings
Parameter
Storage Temperature
Device Voltage (V
DD
)
Device Current (I
DD
)
RF Input Power (single tone)
-40 to 150°C
+16 V
700 mA
75 dBmV
TAT2801
Max Units
12.3
+85
200
V
°C
°C
Recommended Operating Conditions
Parameter
Device Voltage (V
DD
)
Case Temperature
Tj (for >10
6
hours MTTF)
Rating
Min
11.7
-40
Typ
12
Operation of this device outside the parameter ranges
given above may cause permanent damage.
Electrical specifications are measured at specified test
conditions. Specifications are not guaranteed over all
recommended operating conditions.
Electrical Specifications
Test conditions unless otherwise noted: V
DD
=+12 V, I
CC
=575 mA (typ.), T
AMBIENT
=+25°C,
75 Ω system
Operational Frequency Range
Current
Gain
Gain Flatness
Gain Slope
Input Return Loss
Output Return Loss
CSO
CTB
XMOD
CIN
EQAM Vout
4−Ch. ACPR
(1)
1-Ch. Harmonics
Output P1dB
Output IP3
Thermal Resistance,
θjc
Parameter
Conditions
Min
40
10.6
Typ
575
11.2
±0.25
20
20
-65
-76
-70
58
61
61
61
Max
12.0
±0.3
0
1000
Units
MHz
mA
dB
dB
dB
dB
dB
dBc
dBc
dBc
dB
Peak deviation from least squared fit curve.
-1
80 ch. NTSC, + 56 dBmV/ch at 1002 MHz,
15.6 dB tilt, QAM from 553 MHz to 1002 MHz
at 6 dB offset.
ACPR2 (750 kHz – 6 MHz)
ACPR3 (6 MHz – 12 MHz)
ACPR4 (12 MHz – 18 MHz)
Pout = 68 dBmV
f
1
=950 MHz, f
2
=1000 MHz,
Pout=+17 dBm/tone
Junction to case
60
60
60
dBmV/ch
-63
dBc
dBm
dBm
°C/W
31
54
12
Notes:
1. Measured against DOCSIS 3.0 specified limits for out of band spurious emissions in adjacent channels
Preliminary Datasheet: Rev. E 10-13-13
© 2013 TriQuint
-
2 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
75 Ω CATV Output Stage Amplifier
Application Circuit Schematic – TAT2801-PCB
L3
+12 V
C13
C14
C15
V
DD
TAT2801
C3
V
DD
C7
1
16
15
14
13
12
11
10
9
V
DD
L2
C8
C11
C12
C10
RF
Output
V
DD
L1
C9
T2
C5
C1
T1
2
3
4
RF
Input
C2
C6
5
6
7
8
C4
R2
V
DD
V
DD
Bill of Material − TAT2801-PCB
Reference
U1
C1, C2, C3, C4
C5, C6, C11, C12
C7, C8, C13, C14
C9, C10
C15
R2
L1, L2
L3
TX1, TX2
--
0.01 uF
0.7 pF
0.01 uF
330 pF
DNP
7.5 kΩ
500 nH
0.9 uH
1:1
Value
Description
40 MHz – 1 GHz, CATV Gain Block
Cap, Chip, 0402, 16V, 10%
Cap, Chip, 0402, 25V, +/-0.075, NPO/COG
Cap, Chip, 0603, 25V, 5%, X7R
Cap, Chip, 0402, 50V, 10%, X7R
Res, Chip, 0402, 1%, 1/16W
Ind, Chip, Ferrite, 1206, 10%, 260mA
Ind, Chip, 1008, 5%, 1.4A
SMT, 75 OHM, BALUN 1:1, SM-118A
TriQuint
Various
Various
Various
Various
Various
Various
Various
Coilcraft
M/A-COM
Manuf.
Part Number
TAT2801
1008AF-901XJL
MABA-008483-CT1760
Preliminary Datasheet: Rev. E 10-13-13
© 2013 TriQuint
-
3 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com

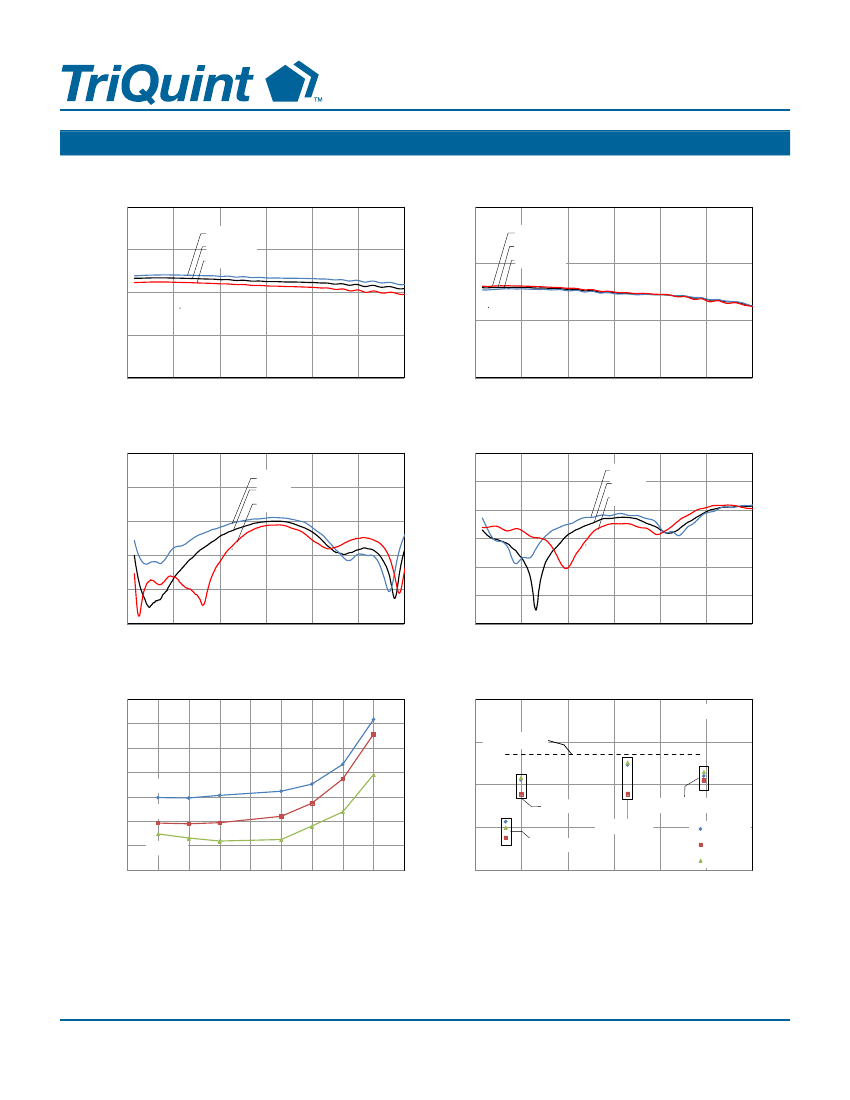

75 Ω CATV Output Stage Amplifier
Performance Plots −
TAT2801-PCB
Test conditions unless otherwise noted: V
DD
=+12 V, I
CC
= 575 mA (typ.)
20
−40°C
+25°C
+85°C
TAT2801
Gain
-10
+85°C
+25°C
Reverse Isolation
15
-15
−40°C
S21 (dB)
10
S12 (dB)
0
200
800
1000
1200
-20
5
0
400
600
-25
0
200
400
600
800
1000
1200
Frequency (MHz)
Frequency (MHz)
0
-10
Input Return Loss
−40°C
+25°C
+85°C
0
-10
-20
Output Return Loss
−40°C
+25°C
+85°C
S11 (dB)
S22 (dB)
0
200
400
600
800
1000
1200
-20
-30
-40
-50
-30
-40
-50
-60
0
200
400
600
800
1000
1200
Frequency (MHz)
Frequency (MHz)
-56
-58
4-ch ACPR vs Pout, Freq = 990 MHz
-50
1-Ch. Harmonics vs Frequency
Pout = 69 dBmV
Limit: - 63 dBc
-62
-64
-66
-68
-70
56
57
58
59
60
61
62
63
64
65
ACPR2
ACPR3
Harmonics (dBc)
-60
-60
ACPR (dBc)
-70
3 x 66 MHz
3 x 330 MHz
2 x 330 MHz
2 x 66 MHz
+ 25 deg C
- 40 deg C
+ 85 deg C
-80
ACPR4
-90
0
200
400
600
800
1000
1200
Pout (dBmV/ch)
Frequency (MHz)
Preliminary Datasheet: Rev. E 10-13-13
© 2013 TriQuint
-
4 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com

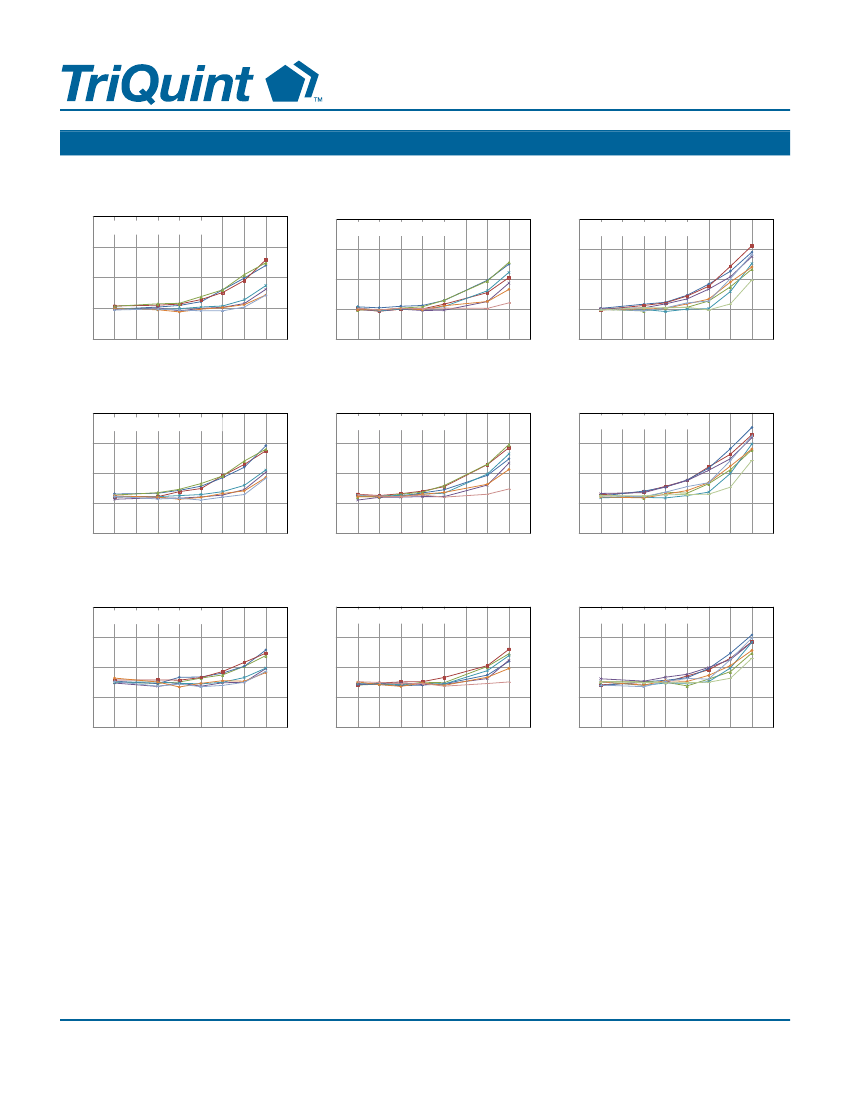

75 Ω CATV Output Stage Amplifier
Distortion Performance: Lot to Lot Variation Over Temperature
Test conditions unless otherwise noted: V
DD
=+12 V, I
CC
= 575 mA (typ.)
-52
TAT2801
ACPR2 vs Pout, Freq = 990 MHz, Temp = -40°C
7 units in total, 3 non-sequential lots
-52
ACPR2 vs Pout, Freq = 990 MHz, Temp = +25°C
7 units in total, 3 non-sequential lots
-52
ACPR2 vs Pout, Freq = 990 MHz, Temp = +85°C
8 units in total, 3 non-sequential lots
-56
-56
-56
ACPR2 (dBc)
ACPR2 (dBc)
-60
-60
ACPR2 (dBc)
56
57
58
59
60
61
62
63
64
65
-60
-64
-64
-64
-68
56
57
58
59
60
61
62
63
64
65
-68
-68
56
57
58
59
60
61
62
63
64
65
Pout (dBmV/ch)
Pout (dBmV/ch)
Pout (dBmV/ch)
-55
ACPR3 vs Pout, Freq = 990 MHz, Temp = -40°C
7 units in total, 3 non-sequential lots
-55
ACPR3 vs Pout, Freq = 990 MHz, Temp = +25°C
7 units in total, 3 non-sequential lots
-55
ACPR3 vs Pout, Freq = 990 MHz, Temp = +85°C
8 units in total, 3 non-sequential lots
-59
-59
-59
ACPR3 (dBc)
ACPR3 (dBc)
-63
-63
ACPR3 (dBc)
56
57
58
59
60
61
62
63
64
65
-63
-67
-67
-67
-71
56
57
58
59
60
61
62
63
64
65
-71
-71
56
57
58
59
60
61
62
63
64
65
Pout (dBmV/ch)
Pout (dBmV/ch)
Pout (dBmV/ch)
-57
ACPR4 vs Pout, Freq = 990 MHz, Temp = -40°C
7 units in total, 3 non-sequential lots
-57
ACPR4 vs Pout, Freq = 990 MHz, Temp = +25°C
7 units in total, 3 non-sequential lots
-57
ACPR4 vs Pout, Freq = 990 MHz, Temp = +85°C
8 units in total, 3 non-sequential lots
-61
-61
-61
ACPR4 (dBc)
ACPR4 (dBc)
-65
-65
ACPR4 (dBc)
56
57
58
59
60
61
62
63
64
65
-65
-69
-69
-69
-73
56
57
58
59
60
61
62
63
64
65
-73
-73
56
57
58
59
60
61
62
63
64
65
Pout (dBmV/ch)
Pout (dBmV/ch)
Pout (dBmV/ch)
Note: ACPR performance measured using application circuit on pg. 3. ACPR performance at low output power levels is reflective
of the limitations of the source. A better test source is likely to result in significantly better ACPR performance at these power
levels.
Preliminary Datasheet: Rev. E 10-13-13
© 2013 TriQuint
-
5 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
