222203751471: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size457KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance; Related ProductsFound2parts with similar functions to 222203751471

Download Datasheet Parametric View All

222203751471 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

222203751471 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.24 mA
Manufacturer's serial number	037RSM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	740 mA
surface mount	NO
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

037 RSM

Vishay BCcomponents

Aluminum Capacitors

Radial Standard Miniature

FEATURES

•

Polarized aluminum electrolytic capacitors,

non-solid electrolyte.

•

Radial leads, cylindrical aluminum case,

insulated with a blue vinyl sleeve.

•

Pressure relief for case

∅D ≥

6.3 mm.

•

Charge and discharge proof.

•

Miniaturized, high CV-product per unit volume.

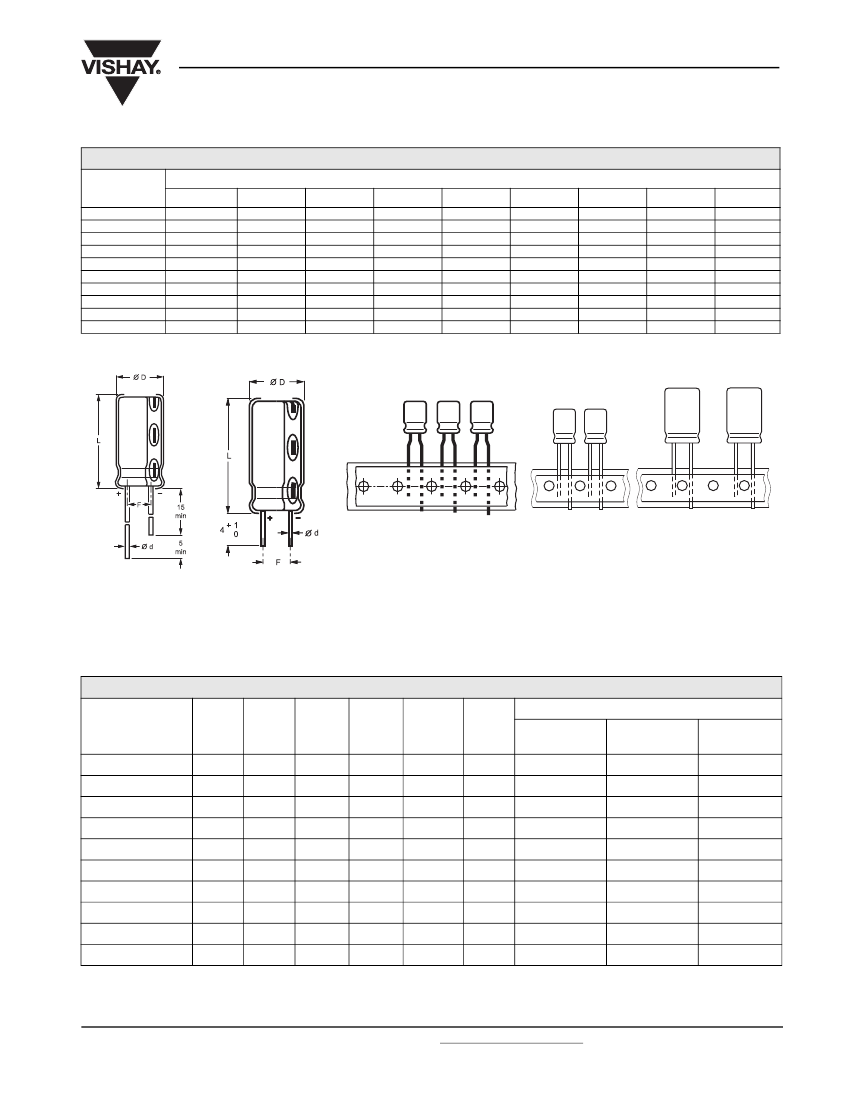

Fig.1 Component outline.

013 RLC

lower

leakage

current

miniaturized

037 RSM

longer

life

high

voltage

036 RSP

047 RMS

Pb-free

Available

RoHS*

COMPLIANT

•

Lead (Pb)-Free versions are RoHS compliant.

APPLICATIONS

lower

height

•

General purpose, industrial, automotive and audio-video.

•

Coupling, decoupling, timing, smoothing, filtering,

buffering in SMPS.

044 RSH

038 RSU

097 RLP 7

134 RLP 5

•

Portable and mobile equipment (small size, low mass).

QUICK REFERENCE DATA

DESCRIPTION

Nominal case sizes (∅D

L in mm)

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 85

°C

Useful life at 85

°C

Useful life at 40

°C,

1.4

applied

Shelf life at 0 V, 85

°C

Based on sectional specification

Climatic category IEC 60068

VALUE

11 to 16

0.47 to 10000 µF

20 %;

10 % on request

6.3 to 100 V

−

40 to + 85

°C

2000 hours

2500 hours

70000 hours

500 hours

IEC 60384-4/EN130300

40/085/56

MARKING

The capacitors are marked (where possible)

with the following information:

•

Rated capacitance (in µF).

•

Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (M for ± 20 %).

•

Rated voltage (in V).

•

Date code in accordance with IEC 60062.

•

Code indicating factory of origin.

•

Name of manufacturer.

•

Negative terminal identification.

•

Series number (037).

SELECTION CHART FOR C

, U

AND RELEVANT NOMINAL CASE SIZES

(ØD x L in mm)

(µF)

0.47

1.0

2.2

3.3

4.7

100

150

220

(V)

6.3

−

6.3

−

6.3

−

6.3

−

6.3

−

6.3

100

6.3

−

12.5

* Pb containing terminations are not RoHS compliant, exemptions may apply

www.vishay.com

102

For technical questions contact: aluminumcaps1@vishay.com

Document Number: 28310

Revision: 16-Nov-05
