MAX505BEAG+T datasheet, PDF - EEWORLD Datasheet

MAX505BEAG+T: DescriptionDigital to Analog Converters - DAC 8-Bit 4Ch Precision DAC; CategoryAnalog mixed-signal IC converter; File Size554KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

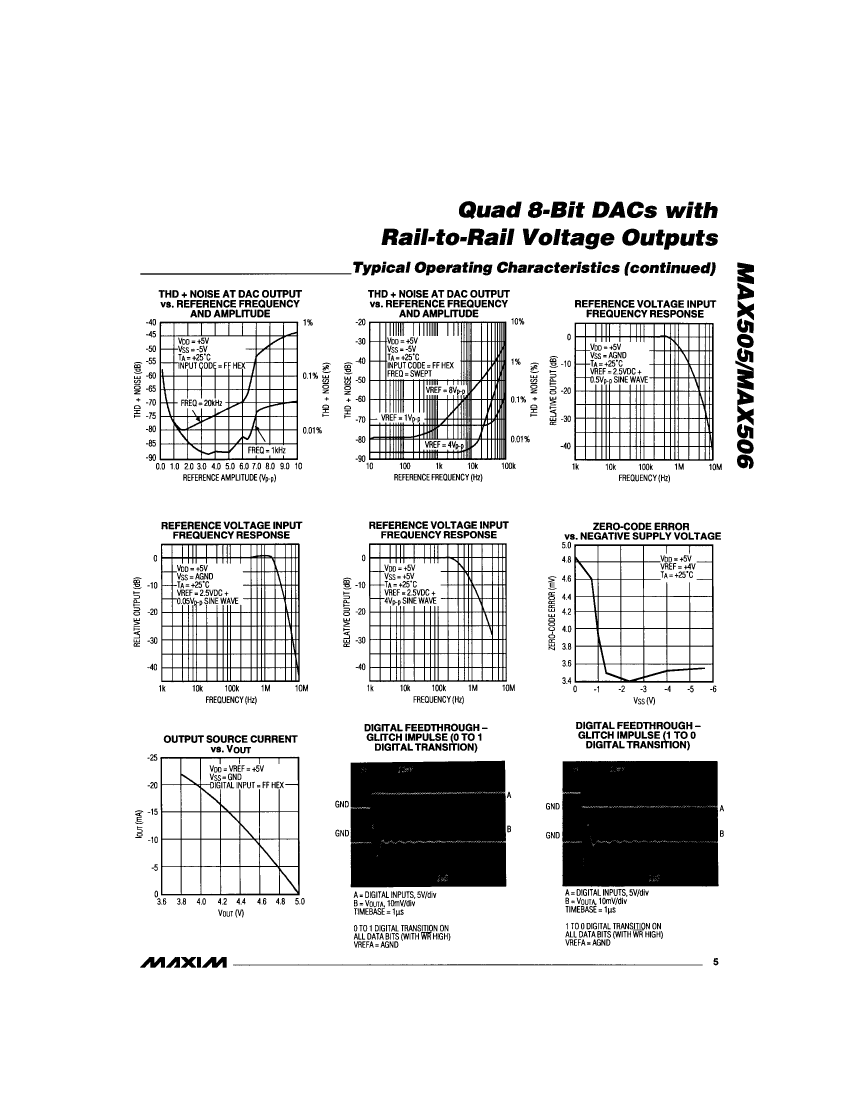

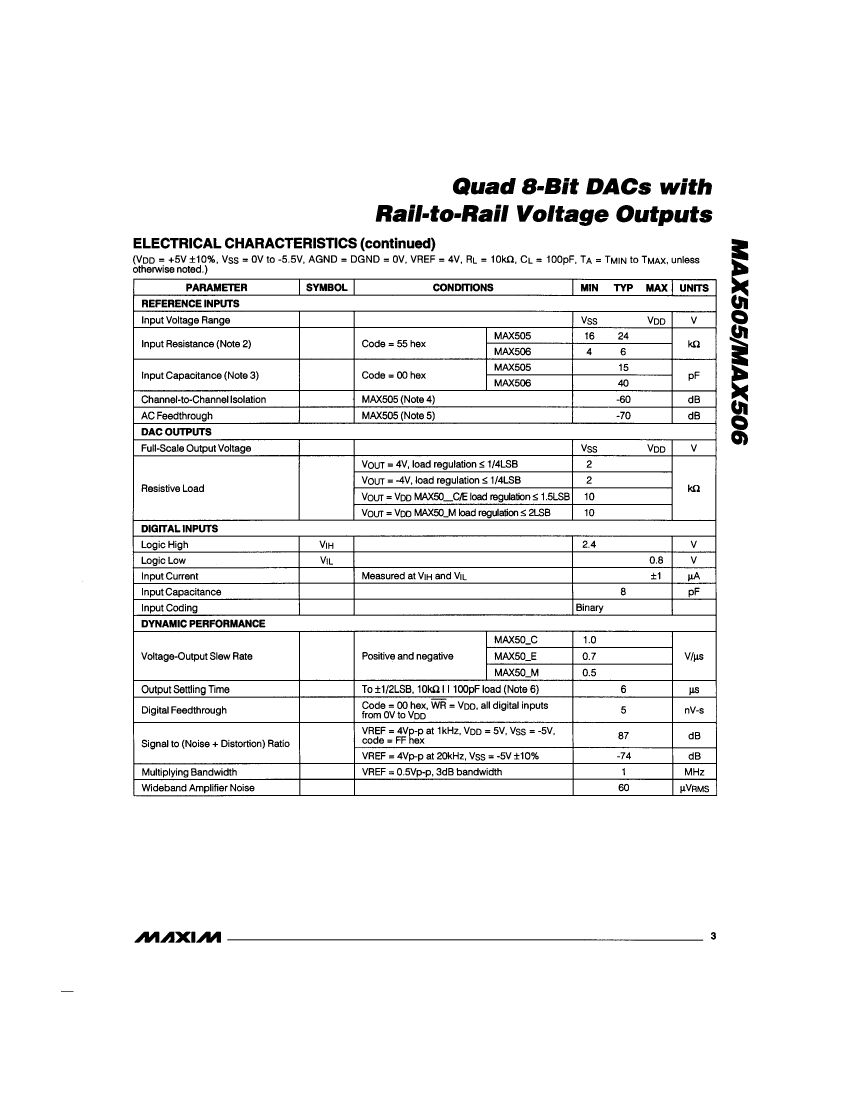

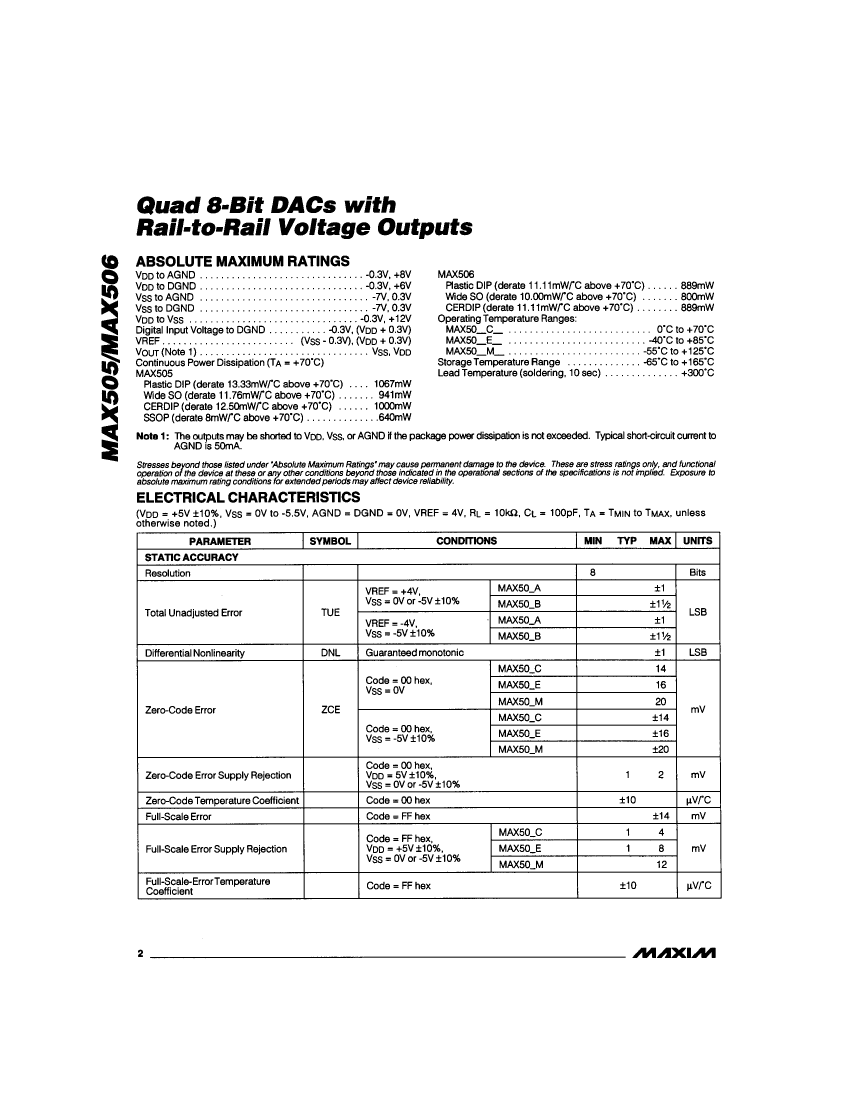

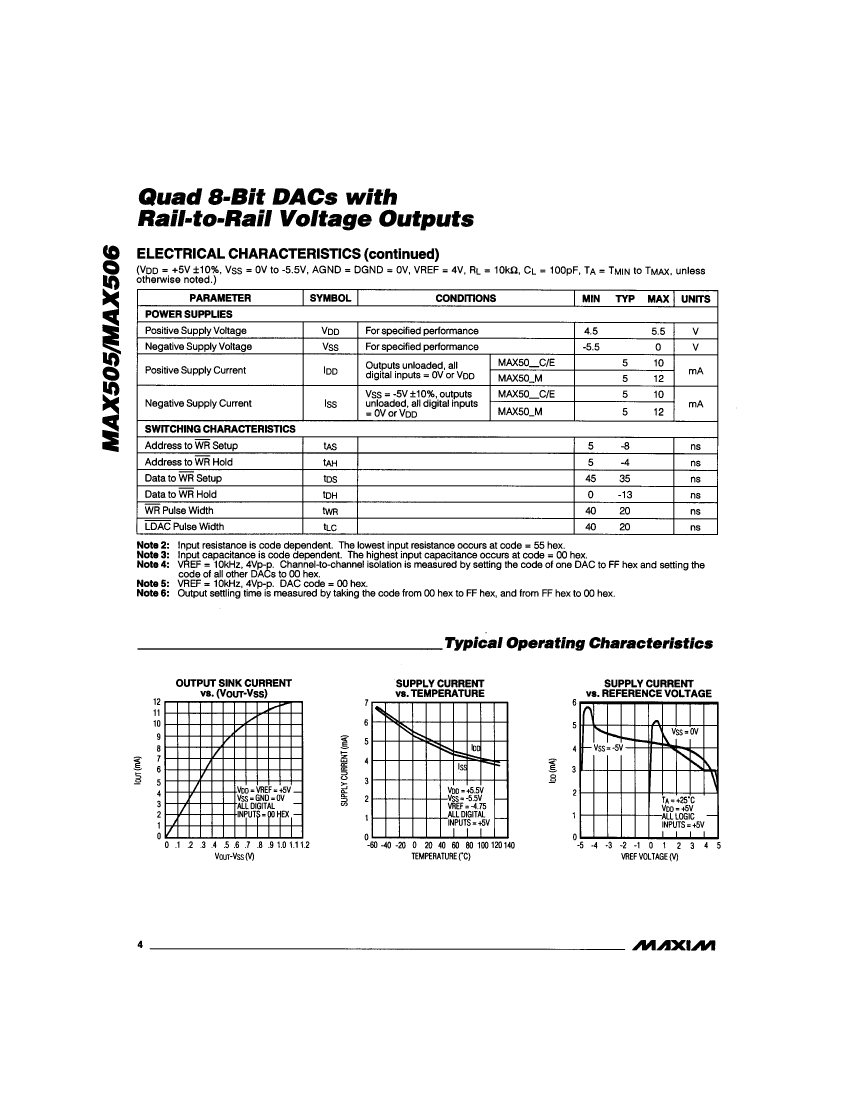

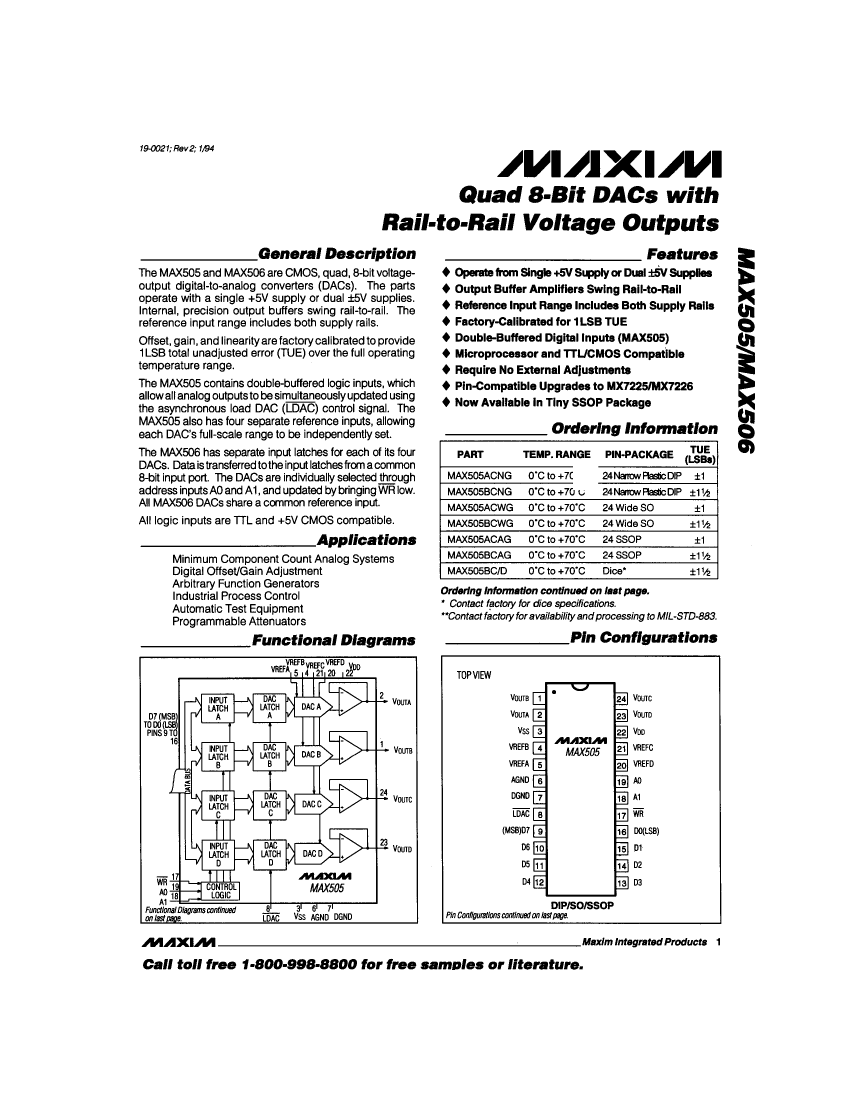

MAX505BEAG+T Overview

Digital to Analog Converters - DAC 8-Bit 4Ch Precision DAC

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SSOP
package instruction	SSOP, SSOP24,.3
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Maximum analog output voltage	5 V
Minimum analog output voltage	-5.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	8.2 mm
Humidity sensitivity level	1
Nominal negative supply voltage	-5.5 V
Number of digits	8
Number of functions	4
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,GND/-5 V
Certification status	Not Qualified
Maximum seat height	1.99 mm
Nominal settling time (tstl)	6 µs
Maximum slew rate	10 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.29 mm
