VS-40CTQ045PbF, VS-40CTQ045-N3
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 2 x 20 A
Base 2
common
cathode

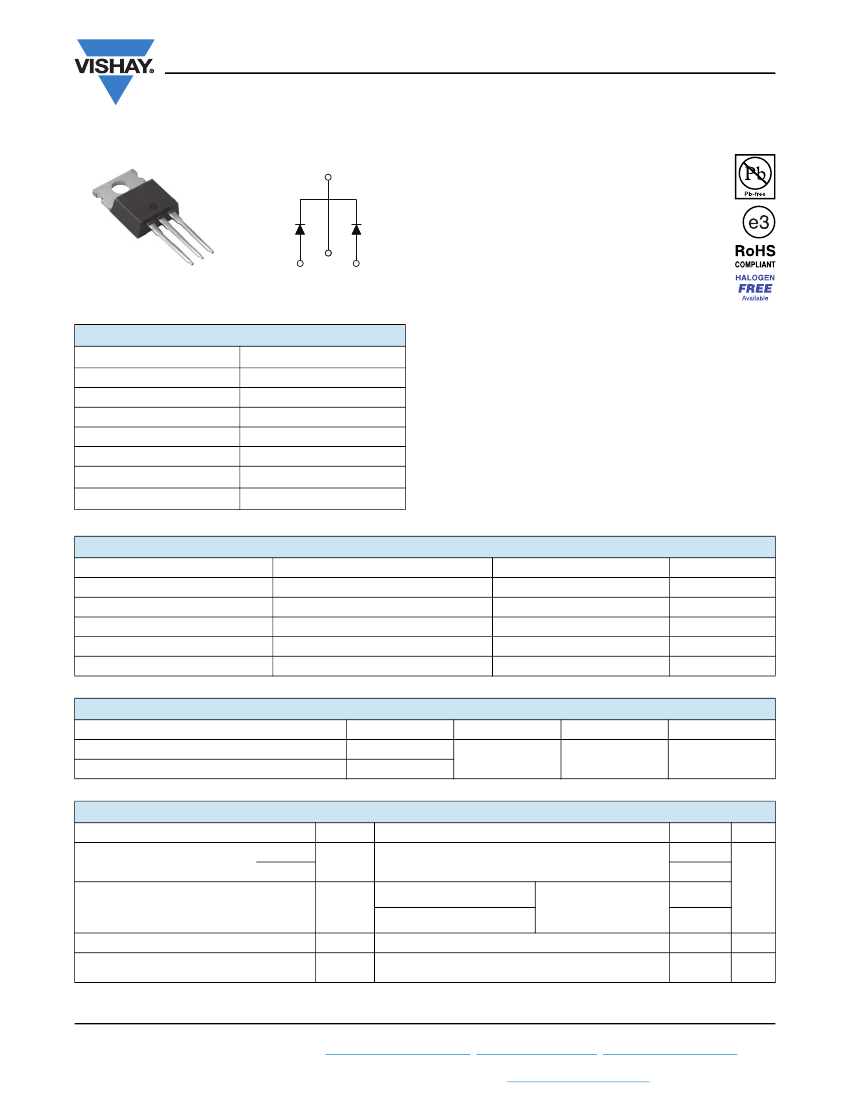

FEATURES
• 150 °C T
J
operation
• Very low forward voltage drop
• High frequency operation
• High
purity,
high
temperature
epoxy
encapsulation for enhanced mechanical strength
and moisture resistance
• Guard ring for enhanced ruggedness and long
term reliability
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified according to JEDEC-JESD47
Anode
TO-220AB
Anode
2
1 Common 3
cathode
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
I
RM
max.
T
J
max.
Diode variation
E
AS
TO-220AB
2 x 20 A
45 V
0.48 V
115 mA at 125 °C
150 °C
Common cathode
20 mJ
• Halogen-free according to IEC 61249-2-21 definition
(-N3 only)
DESCRIPTION
This center tap Schottky rectifier has been optimized for
very low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation
up to 150 °C junction temperature. Typical applications are
in switching power supplies, converters, freewheeling
diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 μs sine
20 A
pk
, T
J
= 125 °C (per leg)
Range
CHARACTERISTICS
Rectangular waveform
VALUES
40
45
1240
0.48
- 55 to 150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
VS-40CTQ045PbF
45
VS-40CTQ045-N3
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
per leg
Maximum average forward current
See fig. 5
per device
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 116 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
20
40
1240
350
20
3
mJ
A
A
UNITS
T
J
= 25 °C, I
AS
= 3 A, L = 4.4 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Revision: 26-Aug-11
Document Number: 94212
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-40CTQ045PbF, VS-40CTQ045-N3
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
20 A
Maximum forward voltage drop per leg
See fig. 1
V
FM (1)
40 A
20 A
40 A
Maximum reverse leakage current per leg
See fig. 2
Threshold voltage
Forward slope resistance
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
V
F(TO)
r
t
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
maximum
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= Rated V
R
VALUES
0.53
0.68
0.48
0.67
3
115
0.27
8.72
2800
8.0
10 000
mA
V
m
pF
nH
V/μs
V
UNITS
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style TO-220AB
SYMBOL
T
J
, T
Stg
TEST CONDITIONS
VALUES
- 55 to 150
2.0
R
thJC
DC operation
1.0
R
thCS
Mounting surface, smooth and greased
0.50
2
0.07
6 (5)
12 (10)
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
Mounting torque
Marking device
40CTQ045
Revision: 26-Aug-11
Document Number: 94212
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-40CTQ045PbF, VS-40CTQ045-N3
www.vishay.com
Vishay Semiconductors
1000
I
F
- Instantaneous Forward Current (A)
1000
I
R
- Reverse Current (mA)
100
10
1
0.1
0.01
0.001
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
T
J
= 75 °C
T
J
= 50 °C
T
J
= 25 °C
100
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
5
10
15
20
25
30
35
40
45
V
FM
- Forward Voltage Drop (V)

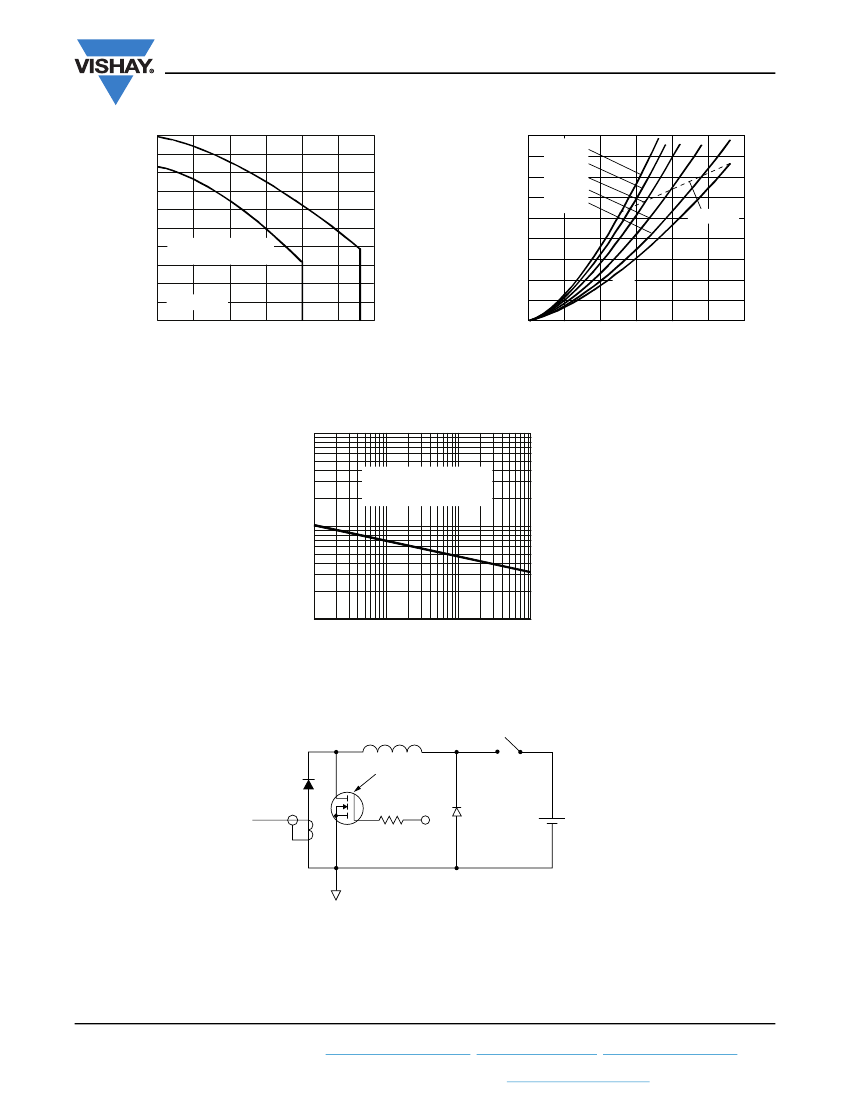

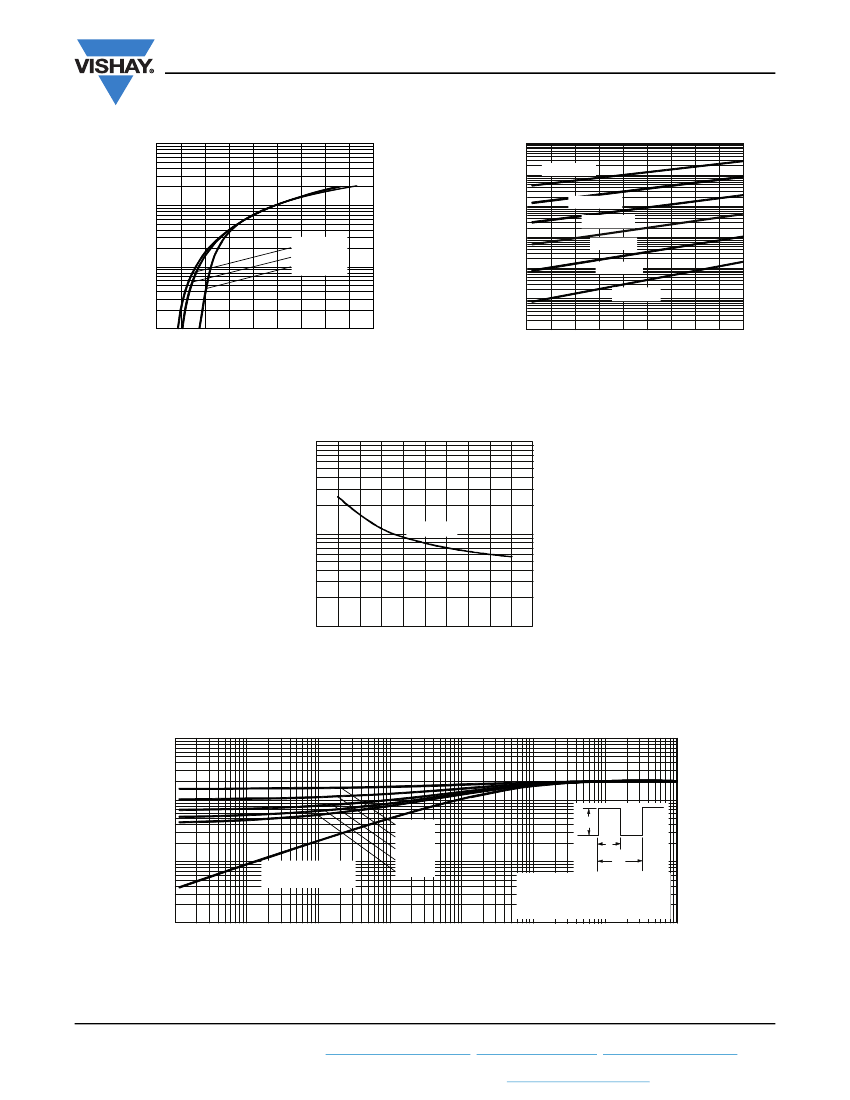

Fig. 1 - Maximum Forward Voltage Drop Characteristics
(Per Leg)
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
10 000
C
T
- Junction Capacitance (pF)
1000
T
J
= 25 °C
100
0
10
20
30
40
50
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs.
Reverse Voltage (Per Leg)
Z
thJC
- Thermal Impedance (°C/W)
10
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
P
DM
t
1
t
2
0.1
Single pulse
(thermal resistance)
Notes:
1. Duty factor D = t
1
/t
2
.
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.1
1
10
100
0.01
0.00001
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics (Per Leg)
Revision: 26-Aug-11
Document Number: 94212
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-40CTQ045PbF, VS-40CTQ045-N3
www.vishay.com
Vishay Semiconductors
18
16
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS limit
150
Allowable Case Temperature (°C)
145
140
DC
135
130
125
120
115
110
105
100
0
5
10
15
20
25
30
See note (1)
Square
wave
(D = 0.50)
80
% rated
V
R
applied
Average Power Loss (W)
14
12
10
8
6
4
2
0
0
DC
5
10
15
20
25
30
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current (Per Leg)
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics (Per Leg)
I
FSM
- Non-Repetitive Surge Current (A)
10 000
At any rated load condition
and
with
rated
V
RRM
applied
following surge
1000
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
High-speed
switch
Freewheel
diode
40HFL40S02
+
V
d
= 25
V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
Note
(1)
Formula used: T = T - (Pd + Pd
C
J
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 10 V
Revision: 26-Aug-11
Document Number: 94212
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-40CTQ045PbF, VS-40CTQ045-N3
www.vishay.com
ORDERING INFORMATION TABLE
Device code
Vishay Semiconductors
VS-
1
1
2
3
4
5
6
7
-
-
-
-
40
2
C
3
T
4
Q
5
045 PbF
6
7
Vishay Semiconductors product
Current rating (40 = 40 A)
Circuit configuration:
C = Common cathode
Package:
T = TO-220
-
-
-
Schottky “Q” series
Voltage rating (045 = 45 V)
Environmental digit
PbF = Lead (Pb)-free and RoHS compliant
-N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-40CTQ045PbF
VS-40CTQ045-N3
QUANTITY PER T/R
50
50
MINIMUM ORDER QUANTITY
1000
1000
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
TO-220AB PbF
TO-220AB -N3
www.vishay.com/doc?95222
www.vishay.com/doc?95225
www.vishay.com/doc?95028
Revision: 26-Aug-11
Document Number: 94212
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
