NJM072B/082B/072/082
DUAL J-FET INPUT OPERATIONAL AMPLIFIER
■
GENERAL DESCRIPTION
The NJM072B/082B & NJM072/082 are dual JFET input
operational amplifiers. They feature low input bias and offset
currents, high input impedance and fast slew rate. The low
harmonic distortion and low noise make them ideally suit for
amplifiers with high fidelity and audio amplifier applications.
The NJM072/082 may cause oscillation in some
application like voltage follower.
■
FEATURES
●
Operating Voltage
●
J-FET Input
●
High Input Resistance
●
Low Input Resistance
●
High Slew Rate
●
Wide Unity Gain Bandwidth
●
Package Outline
■
PACKAGE OUTLINE
NJM072BD/082BD
NJM072D/082D
NJM072BM/082BM
NJM072M/082M
( ±4V~±18V )
( 10
12
Ω
typ. )
( 30pA typ. )
( 13V/µs,20V/µs typ. )
( 3MHz,5MHz typ. )
DIP8, DMP8, SIP8
EMP8 (NJM072B only)
SSOP8 (NJM072B/082B only)
NJM072BE
NJM072BV/082BV
NJM072BL/082BL
NJM072L/082L
●
Bipolar Technology
■
PIN CONFIGURATION
PIN FUNCTION
1.A OUTPUT
2.A -INPUT
3.A +INPUT
4.V
-
5.B +INPUT
6.B -INPUT
7.B OUTPUT
8.V
+
NJM072BD/082BD, NJM072D/082D
NJM072BM/082BM, NJM072M/082M
NJM072BE
NJM072BV/082BV
NJM072L/082L
NJM072BL/082BL
■

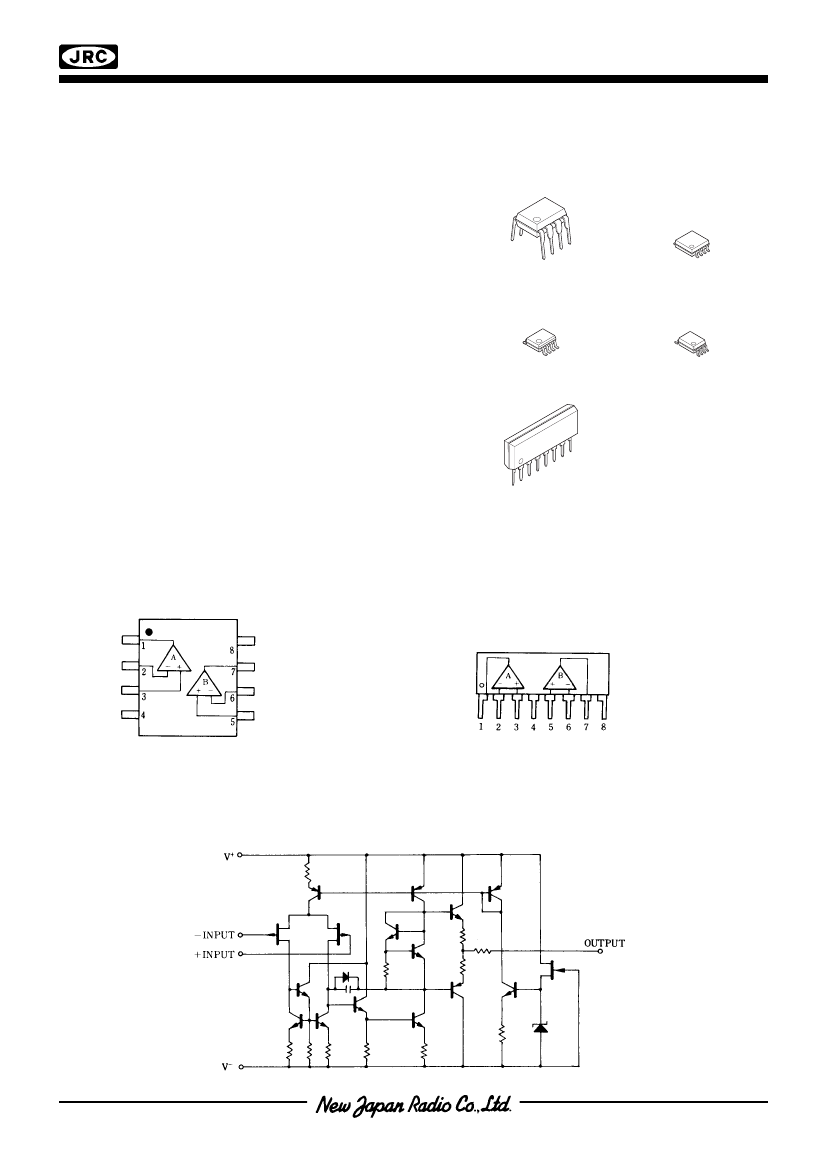

EQUIVALENT CIRCUIT
Ver.2012-08-09
-1-
NJM072B/082B/072/082
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Input Voltage
Differential Input Voltage
Power Dissipation
SYMBOL
V
+
/V
-
V
IC
V
ID
P
D
T
opr
T
stg
RATINGS
± 18
± 15(note)
± 30
( DIP8 ) 500
( DMP8 ) 300
(EMP8) 300
( SSOP8 ) 250
( SIP8 ) 800
-40~+85
-40~+125
UNIT
V
V
V
mW
Operating Temperature Range
Storage Temperature Range
˚C
˚C
(note)
For supply voltage less than±15V, the absolute maximum input voltage is equal to the supply voltage.
■
ELECTRICAL CHARACTERISTICS
( Ta=+25˚C,V
+
/V
-
=±15V )
( ) Applies to NJM082B,NJM082
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Common Mode Voltage Range
Maximum Peak-to-peak Output Voltage Swing
Large-Signal Voltage Gain
Unity Gain Bandwidth
Input Resistance
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Operating Current
Slew Rate
Equivalent Input Noise Voltage
SYMBOL
V
IO
I
IO
I
B
V
ICM
V
OPP
A
V
f
T
R
IN
CMR
SVR
I
CC
SR
V
NI
TEST CONDITION
R
S
=50Ω
MIN.
-
-
-
± 10
24
88
-
-
-
70
70
-
-
-
-
TYP.
3 (5)
5
30
-
27
106
3
5
10
12
76
76
3
13
20
4
MAX.
10 (15)
50 (200)
200 (400)
-
-
-
-
-
-
-
5 (5.6)
-
-
-
UNIT
mV
pA
pA
V
V
P-P
dB
MHz
MHz
Ω
dB
dB
mA
V/µs
V/µs
µV
rms
R
L
=10kΩ
R
L
≥2kΩ,V
O
=±10V
072B/082B
072/082
R
S
≤
10kΩ
R
S
≤
10kΩ
072B/082B
072/082
R
S
=100Ω,B.W.=10~10kHz
■
NOTICE WHEN APPLICATION
Recommendable product
072/082 are the products in which the AC feature have been made much higher comparing to the products of 072B/082B which
are compatible with 072/082 type of other company’s products. Therefore, 072/082 are unstable in oscillation when the voltage
follower application, and it is recommendable to use the standard type 072B/082B when newly designed. Beside these
products, we have NJM2082 which is higher up in AC feature, yet stability in oscillation, and then the driving capacity to the load
at the output stage is made much higher in operation.
-2-
Ver.2012-08-09

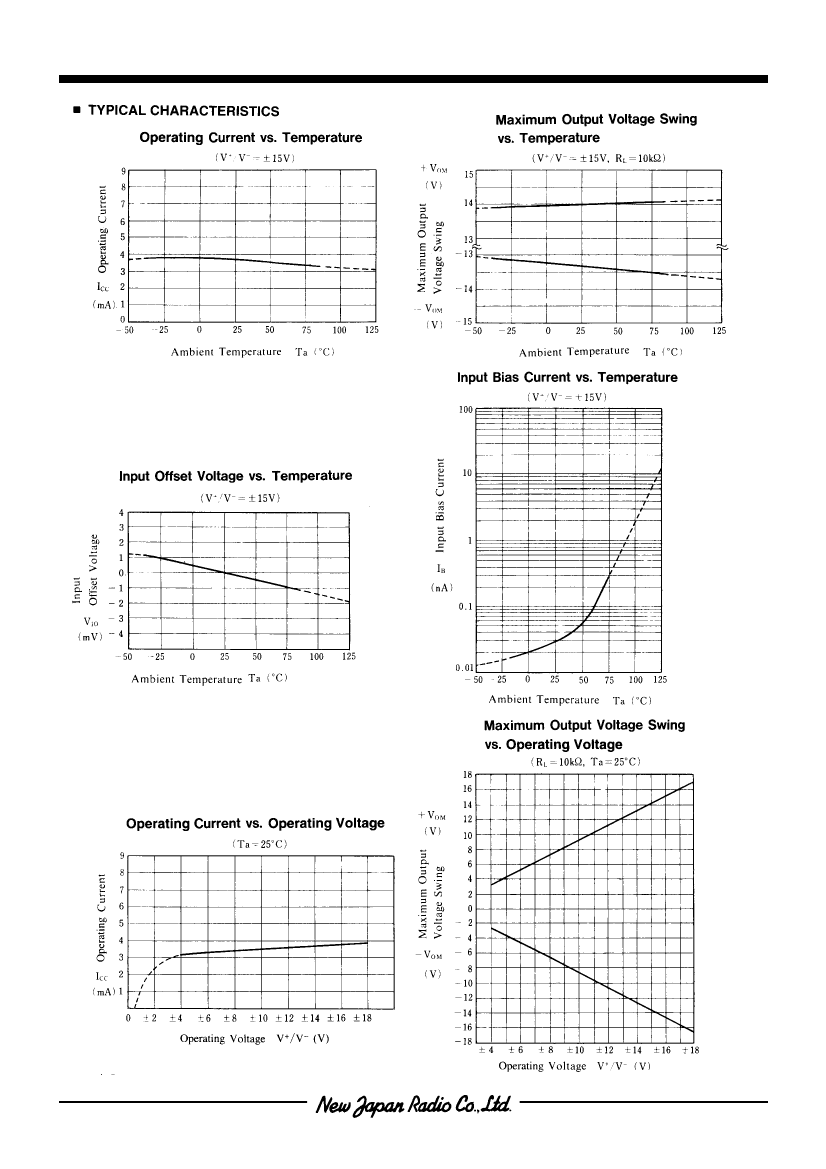

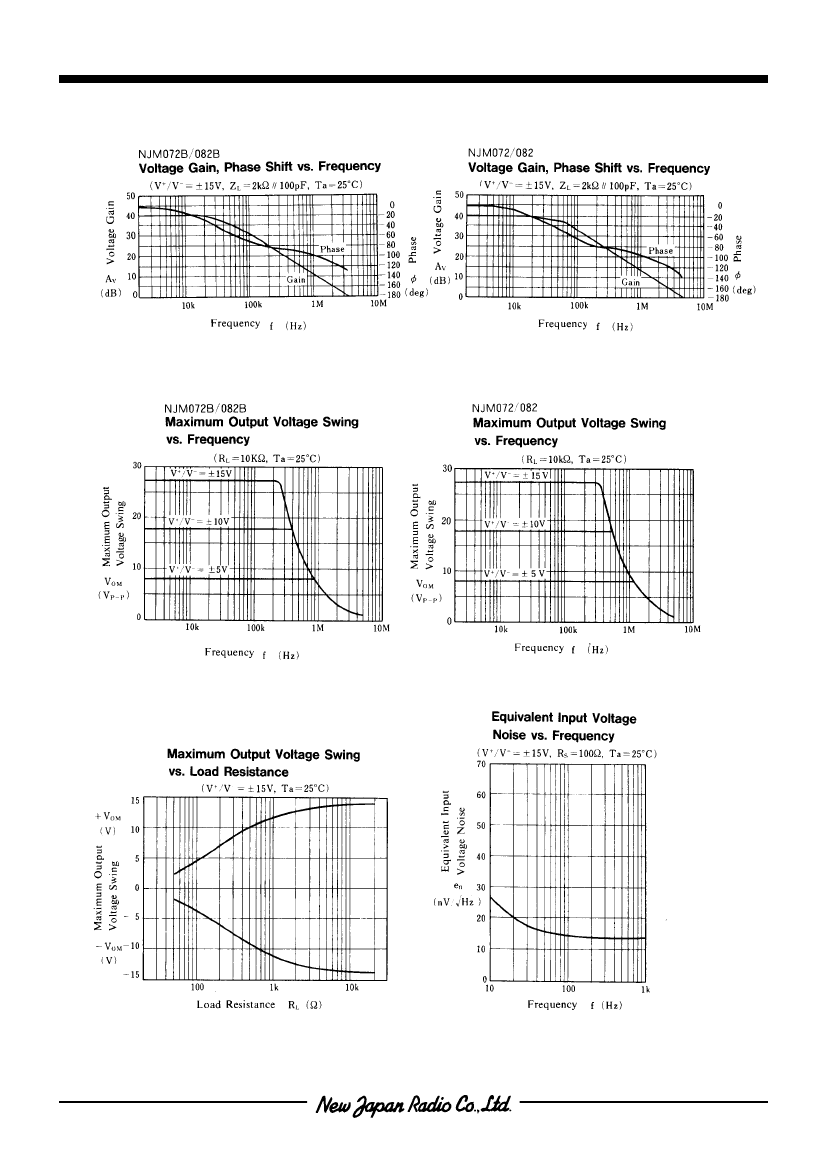

NJM072B/082B/072/082
■
MEMO
[CAUTION]
The specifications on this databook are only
given for information, without any guarantee
as regards either mistakes or omissions. The
application circuits in this data book are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
Ver.2012-08-09
-5-
