ILCX04-GH5318-39.900 datasheet, PDF

Datasheet> All Categories > Crystal/resonator> ILCX04-GH5318-39.900

ILCX04-GH5318-39.900: DescriptionParallel - 3Rd Overtone Quartz Crystal, 39.9MHz Nom, SMD, 4 PIN; CategoryCrystal/resonator; File Size59KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ILCX04-GH5318-39.900 Overview

Parallel - 3Rd Overtone Quartz Crystal, 39.9MHz Nom, SMD, 4 PIN

ILCX04-GH5318-39.900 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AT-CUT; TR, 7/10 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	25 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	39.9 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

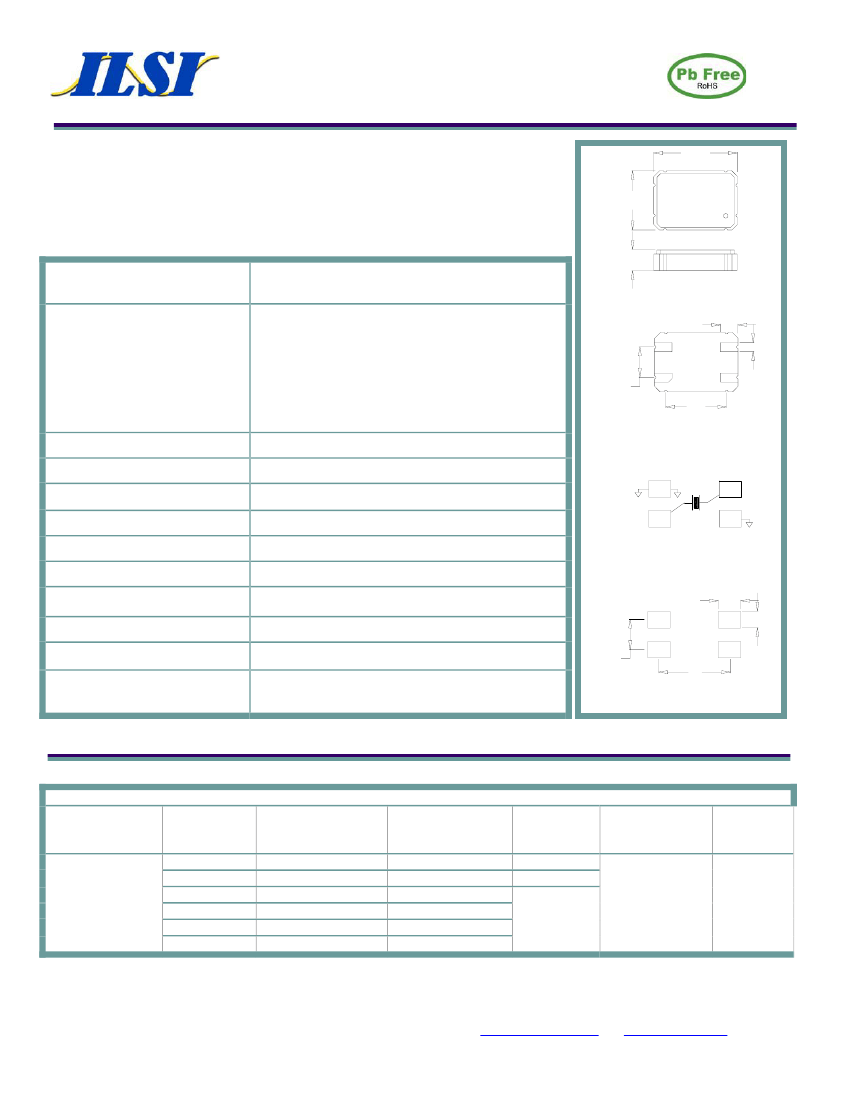

4 Pad Ceramic Package, 5 mm x 7 mm

Product Features:

Small SMD Package

AT Cut Perfomance

Compatible with Leadfree Processing

Supplied in Tape and Reel

ILCX04 Series

Applications:

Fibre Channel

Server & Storage

USB

802.11 / Wifi

PC’s

5.0

7.0

Frequency

6 MHz to 100 MHz

1.30 Max.

1.2

ESR (Equivalent Series Resistance)

6.0 MHz – 13.9 MHz

14 MHz – 40 MHz

33 MHz – 39.9 MHz (3 O.T.)

40.0 MHz – 100.0 MHz (3 O.T.)

60 Max.

40 Max.

100 Max.

80 Max.

2.54

5.08

1.0

Shunt Capacitance (C0)

Frequency Tolerance @ 25

Frequency Stability over

Temperature

Crystal Cut

Load Capacitance

Drive Level

Aging

Temperature

Operating

Storage

7 pF Max.

30 ppm Standard (see Part Number Guide for more options)

Connection Diagram

50 ppm Standard (see Part Number Guide for more options)

AT Cut

18 pF Standard (see Part Number Guide for more options)

100 uW Max.

5 ppm Max. / Year Standard

Recommended pad layout

2.2

1.4

0 C to +70 C Standard (see Part Number Guide for more

options)

-40 C to +85 C Standard

2.54

6.4

Dimension Units: mm

Part Number Guide

Package

Tolerance

(ppm) at Room

Temperature

B = ±50 ppm

F = ±30 ppm

ILCX04 -

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm

J = ±10 ppm*

Sample Part Number:

Stability

(ppm) over Operating

Temperature

B = ±50 ppm

F = ±30 ppm

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm**

J = ±10 ppm**

ILCX04 - FB1F18 - 20.000

Operating

Temperature Range

0 = 0°C to +50°C

1 = 0°C to +70°C

2 = -10°C to +60°C

3 = -20°C to +70°C

5 = -40°C to +85°C

9 = -10°C to +50°C

Mode

(overtone)

F = Fundamental

3 = 3

overtone

Load Capacitance

(pF)

Frequency

18 pF Standard

Or Specify

- 20.000 MHz

* Not available at all frequencies. ** Not available for all temperature ranges.

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

06/09_A

Specifications subject to change without notice

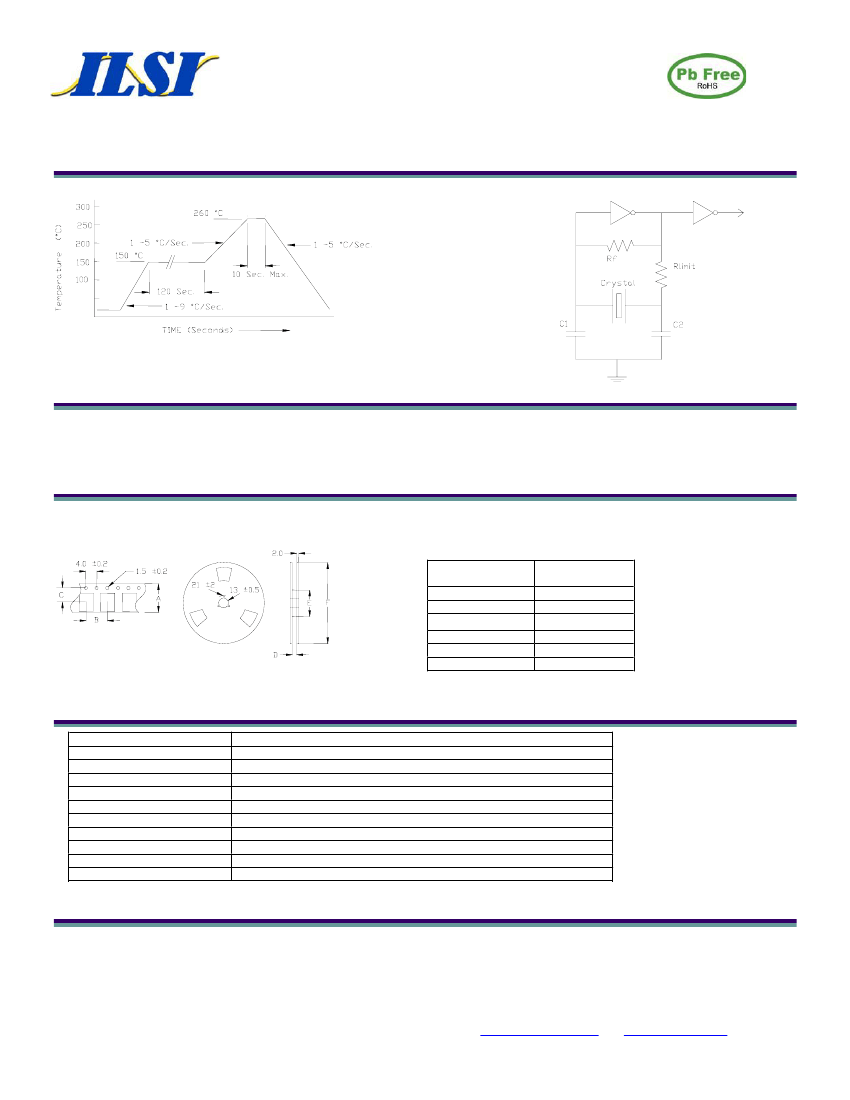

Page 1
