82V3155PVG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 82V3155PVG

82V3155PVG: DescriptionClock Generators & Support Products T1/E1/155MHZ WAN PLL; Categorylogic logic; File Size411KB，34 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

82V3155PVG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82V3155PVG	-	-	View	Buy Now

82V3155PVG Overview

Clock Generators & Support Products T1/E1/155MHZ WAN PLL

82V3155PVG Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	56
Manufacturer packaging code	PVG56
Reach Compliance Code	compliant
ECCN code	EAR99
series	82V
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G56
JESD-609 code	e3
length	18.415 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs	5
Number of terminals	56
Actual output times	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

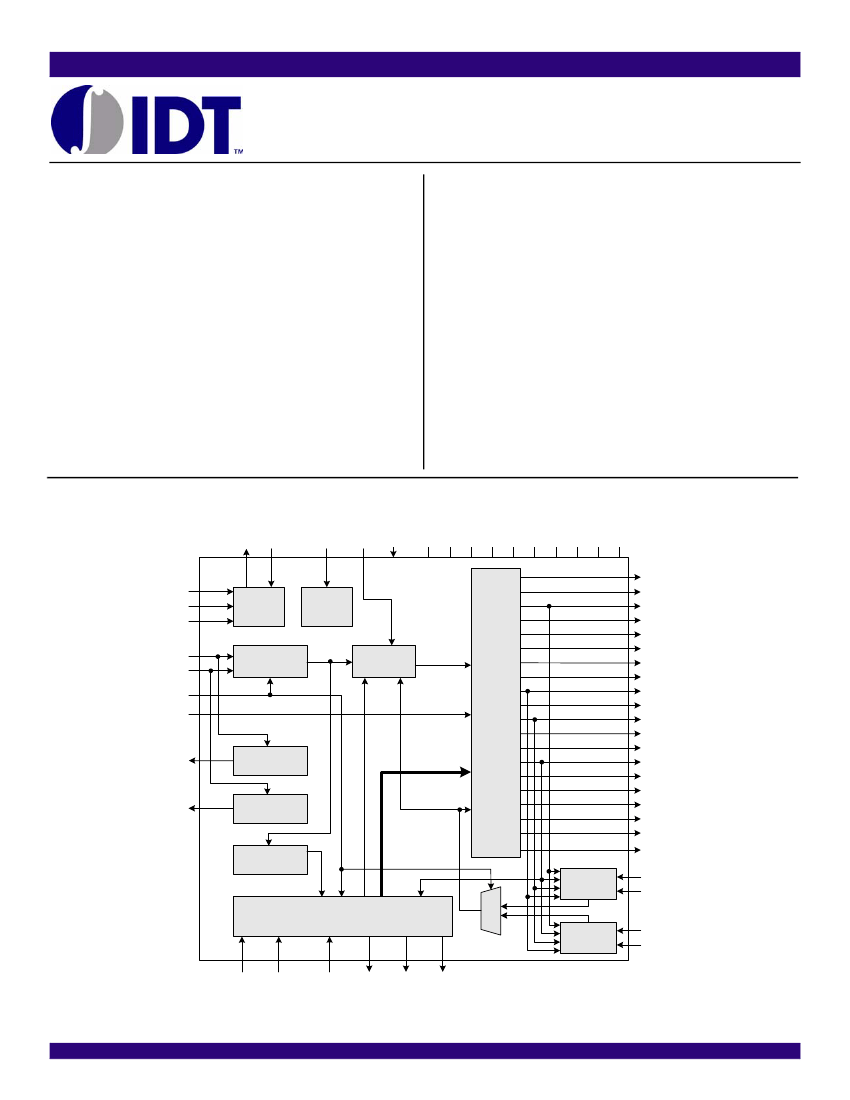

ENHANCED T1/E1/OC3 WAN PLL

WITH DUAL REFERENCE INPUTS

FEATURES

• Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum

3, Stratum 4 Enhanced and Stratum 4 clock, OC-3 port and

155.52 Mbit/s application

• Supports ITU-T G.813 Option 1 clocks

• Supports ITU-T G.812 Type IV clocks

• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing

for E1 interface

• Selectable reference inputs: 8 kHz, 1.544 MHz, 2.048 MHz or

19.44 MHz

• Accepts two independent reference inputs which may have

same or different nominal frequencies applied to them

• Provides C1.5o,

C3o,

C2o,

C4o,

C6o, C8o,

C16o,

C19o,

C32o

and

C155 output clock signals

• Provides 7 types of 8 kHz framing pulses:

F0o,

F8o,

F16o,

F19o,F32o, RSP and TSP

82V3155

• Provides a C2/C1.5 output clock signal with the frequency

controlled by the selected reference input Fref0 or Fref1

• Holdover frequency accuracy of 0.025 ppm

• Phase slope of 5 ns per 125 µs

• Attenuates wander from 2.1 Hz

• Fast lock mode

• Provides Time Interval Error (TIE) correction

• MTIE of 600 ns

• JTAG boundary scan

• Holdover status indication

• Freerun status indication

• Normal status indication

• Lock status indication

• Input reference quality indication

• 3.3 V operation with 5 V tolerant I/O

• Package available: 56-pin SSOP (Green option available)

For functional replacement use 82P33714ANLG

FUNCTIONAL BLOCK DIAGRAM

TDO

TDI

OSCi

TCLR

RST

DDD

DDA

C2/C1.5

TCK

TMS

TRST

Fref0

Fref1

IN_sel

FLOCK

DPLL

JTAG

OSC

C32o

C19o

C155POS

C155NEG

TIE Control

Block

Virtual

Reference

Reference Input

Switch

C16o

C8o

C4o

C2o

C3o

C1.5o

C6o

F0o

F8o

F16o

F19o

F32o

RSP

TSP

LOCK

Frequency

Select Circuit 0

MON_out0

Reference Input

Monitor 0

Reference Input

Monitor 1

Feedback Signal

MON_out1

Invalid Input

Signal Detection

F0_sel0

F0_sel1

State Control Circuit

Frequency

Select Circuit 1

F1_sel0

F1_sel1

TIE_en MODE_sel1 MODE_sel0 Normal Holdover Freerun

IDT and the IDT logo are trademarks of Integrated Device Technology, Inc.



2017 Integrated Device Technology, Inc.

January 11, 2017

DSC-6244/3

Table of Contents

Pin Description...................................................................................................................................................................................................7

Functional Description ....................................................................................................................................................................................10

2.1 State Control Circuit ................................................................................................................................................................................10

2.1.1 Normal Mode..............................................................................................................................................................................11

2.1.2 Fast Lock Mode..........................................................................................................................................................................11

2.1.3 Holdover Mode ...........................................................................................................................................................................11

2.1.4 Freerun Mode.............................................................................................................................................................................11

2.2 Frequency Select Circuit .........................................................................................................................................................................11

2.3 Reference Input Switch ...........................................................................................................................................................................12

2.4 Reference Input Monitor ..........................................................................................................................................................................12

2.5 Invalid Input Signal Detection ..................................................................................................................................................................12

2.6 TIE Control Block.....................................................................................................................................................................................12

2.7 DPLL Block..............................................................................................................................................................................................14

2.7.1 Phase Detector (PHD)................................................................................................................................................................14

2.7.2 Limiter.........................................................................................................................................................................................14

2.7.3 Loop Filter ..................................................................................................................................................................................15

2.7.4 Fraction Block.............................................................................................................................................................................15

2.7.5 Digital Control Oscillator (DCO)..................................................................................................................................................15

2.7.6 Lock Indicator .............................................................................................................................................................................15

2.7.7 Output Interface..........................................................................................................................................................................15

2.8 OSC.........................................................................................................................................................................................................16

2.8.1 Clock Oscillator ..........................................................................................................................................................................16

2.9 JTAG .......................................................................................................................................................................................................16

2.10 Reset Circuit ............................................................................................................................................................................................16

2.11 Power Supply Filtering Techniques .........................................................................................................................................................17

Measures of Performance ...............................................................................................................................................................................18

3.1 Intrinsic Jitter ...........................................................................................................................................................................................18

3.2 Jitter Tolerance........................................................................................................................................................................................18

3.3 Jitter Transfer ..........................................................................................................................................................................................18

3.4 Frequency Accuracy................................................................................................................................................................................18

3.5 Holdover Accuracy ..................................................................................................................................................................................18

3.6 Capture Range ........................................................................................................................................................................................18

3.7 Lock Range .............................................................................................................................................................................................18

3.8 Phase Slope ............................................................................................................................................................................................18

3.9 Time Interval Error (TIE)..........................................................................................................................................................................18

3.10 Maximum Time Interval Error (MTIE) ......................................................................................................................................................19

3.11 Phase Continuity .....................................................................................................................................................................................19

3.12 Phase Lock Time.....................................................................................................................................................................................19

Absolute Maximum Ratings ............................................................................................................................................................................20

Recommended DC Operating Conditions .....................................................................................................................................................20

DC Electrical Characteristics ..........................................................................................................................................................................20

6.1 Single End Input/Output Port...................................................................................................................................................................20

6.2 Differential Output Port (LVDS) ...............................................................................................................................................................21

AC Electrical Characteristics .........................................................................................................................................................................22

January 11, 2017

Table of Contents

7.1

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

7.10

7.11

7.12

7.13

7.14

Performance ............................................................................................................................................................................................22

Intrinsic Jitter Unfiltered ...........................................................................................................................................................................22

C1.5o (1.544 MHz) Intrinsic Jitter Filtered ...............................................................................................................................................23

C2o (2.048 MHz) Intrinsic Jitter Filtered ..................................................................................................................................................23

C19o (19.44 MHz) Intrinsic Jitter Filtered ................................................................................................................................................23

C155 (155.52 MHz) Intrinsic Jitter Filtered ..............................................................................................................................................23

8 kHz Input to 8 kHz Output Jitter Transfer .............................................................................................................................................24

1.544 MHz Input to 1.544 MHz Output Jitter Transfer.............................................................................................................................24

2.048 MHz Input to 2.048 MHz Output Jitter Transfer.............................................................................................................................25

19.44 MHz Input to 19.44 MHz Output Jitter Transfer.............................................................................................................................25

8 kHz Input Jitter Tolerance.....................................................................................................................................................................25

1.544 MHz Input Jitter Tolerance ............................................................................................................................................................27

2.048 MHz Input Jitter Tolerance ............................................................................................................................................................27

19.44 MHz Input Jitter Tolerance ............................................................................................................................................................28

Timing Characteristics ....................................................................................................................................................................................29

8.1 Timing Parameter Measurement Voltage Levels ....................................................................................................................................29

8.2 Input/Output Timing .................................................................................................................................................................................29

Ordering Information .......................................................................................................................................................................................34

Table of Contents

January 11, 2017

82V3155PVG Related Products

	82V3155PVG	82V3155PVG8
Description	Clock Generators & Support Products T1/E1/155MHZ WAN PLL	Clock Generators & Support Products T1/E1/155MHZ WAN PLL
Brand Name	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SSOP	SSOP
package instruction	SSOP,	SSOP-56
Contacts	56	56
Manufacturer packaging code	PVG56	PVG56
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
series	82V	SSTU
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e3	e3
length	18.415 mm	18.415 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER
Humidity sensitivity level	1	1
Number of functions	1	1
Number of inverted outputs	5	5
Number of terminals	56	56
Actual output times	7	7
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	7.5 mm	7.5 mm
Base Number Matches	1	1
