BD9866GUL-E2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> BD9866GUL-E2

BD9866GUL-E2: DescriptionSwitching Voltage Regulators 4CH Internal Pwr MOSFET Reg; Categorysemiconductor Power management; File Size1MB，39 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD9866GUL-E2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD9866GUL-E2	-	-	View	Buy Now

BD9866GUL-E2 Overview

Switching Voltage Regulators 4CH Internal Pwr MOSFET Reg

BD9866GUL-E2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ROHM Semiconductor
Product Category	Switching Voltage Regulators
RoHS	Details
Mounting Style	SMD/SMT
Package / Case	VCSP50L3-48
Output Voltage	800 mV
Output Current	3 A
Number of Outputs	4 Output
Input Voltage MAX	14 V
Input Voltage MIN	4 V
Switching Frequency	1 MHz
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Input Voltage	4 V to 14 V
Operating Temperature Range	- 25 C to + 85 C
Type	System Switching Regulator IC
Shutdown	Shutdown
Factory Pack Quantity	2500
Supply Voltage - Min	4 V

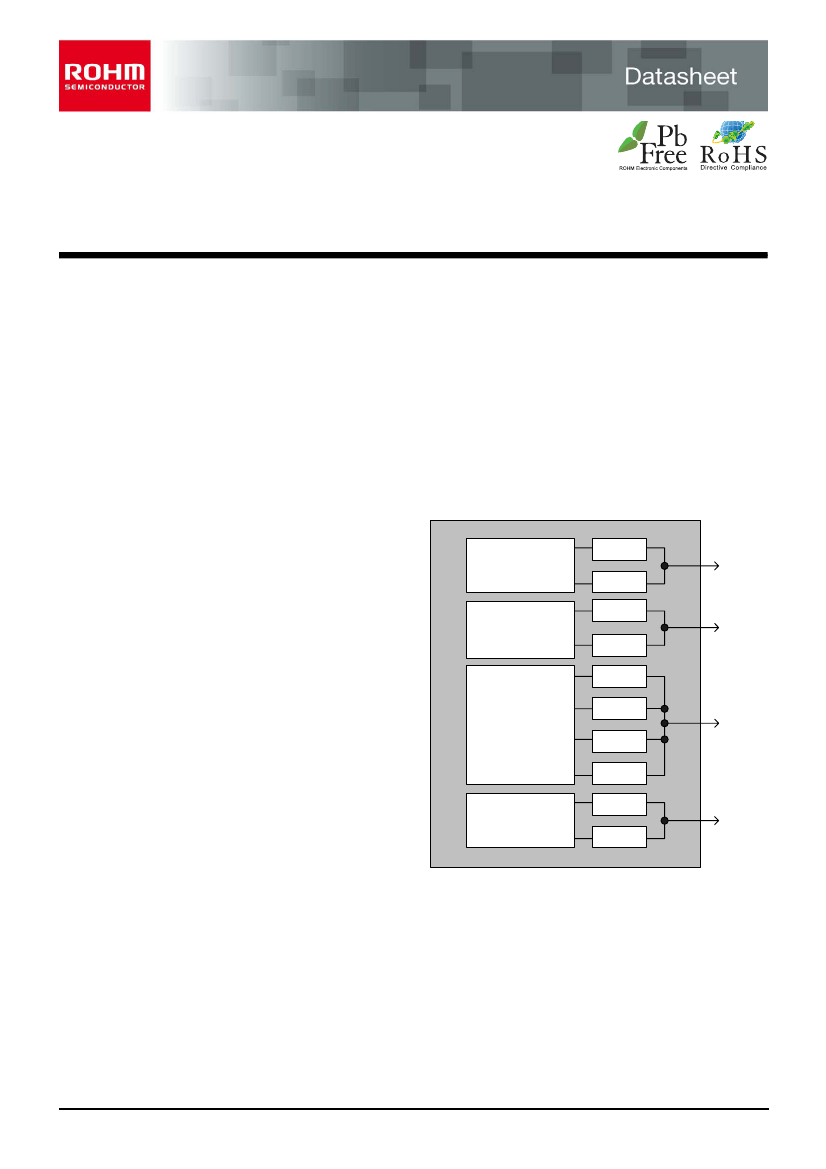

Preview

Download Datasheet

View All

Power LSI series for Digital Camera and Digital Video Camera

4CH Internal Power MOSFET

System Switching Regulator

BD9866GUL

●Outline

BD9866GUL is a 4ch DC/DC converter IC composed of

Buck converter 3-channels and Buck-Boost converter

1-channel.Including power MOSFET of all channels

reduces the number of peripheral devices. Each

channel is controlled individually, that enables to reduce

power consumption of not working channel.

●Features

1) Includes Buck converter (CH1, 2 and 4), and

Buck-Boost converter (CH3), total 4 channels

included.

2) Includes Power MOSFET for all channels.

3) Includes Over Current Protection (OCP) for all

channels.

4) Includes Short Circuit Protection (SCP.)

5) Includes Undervoltage Lock Out (UVLO.)

6) Includes Thermal Shut Down (TSD.)

7) Includes Power Good(PG)

8) External synchronous oscillation

9) Each channel can be turn on/off individually.

10) Contains internal compensation for all channels.

11) Operation frequency of 1MHz.

●Package

WLCSP(3.75mm×3.75mm)

●Use

For digital single-lens reflex camera, digital video

camera.

●Key

specifications

・Input

voltage range :

・Output

voltage

CH1 reference voltage:

CH2 reference voltage:

CH3 reference voltage:

CH4 reference voltage:

・Load

current

CH1 load current:

CH2 load current:

CH3 load current:

CH4 load current:

・Frequency:

●Function

block diagram

4.0V to 14.0V

0.6V±1.67% (typ.)

0.8V±1.25% (typ.)

3.0A(max)

2.0A(max)

1.5A(max)

3.0A(max)

1MHz(typ.)

Step Down

DC/DC 1

Step Down

DC/DC 2

FET

1.5V

FET

1.1V

Buck Boost

DC/DC 3

FET

5.0V

Step Down

DC/DC 4

FET

3.3V

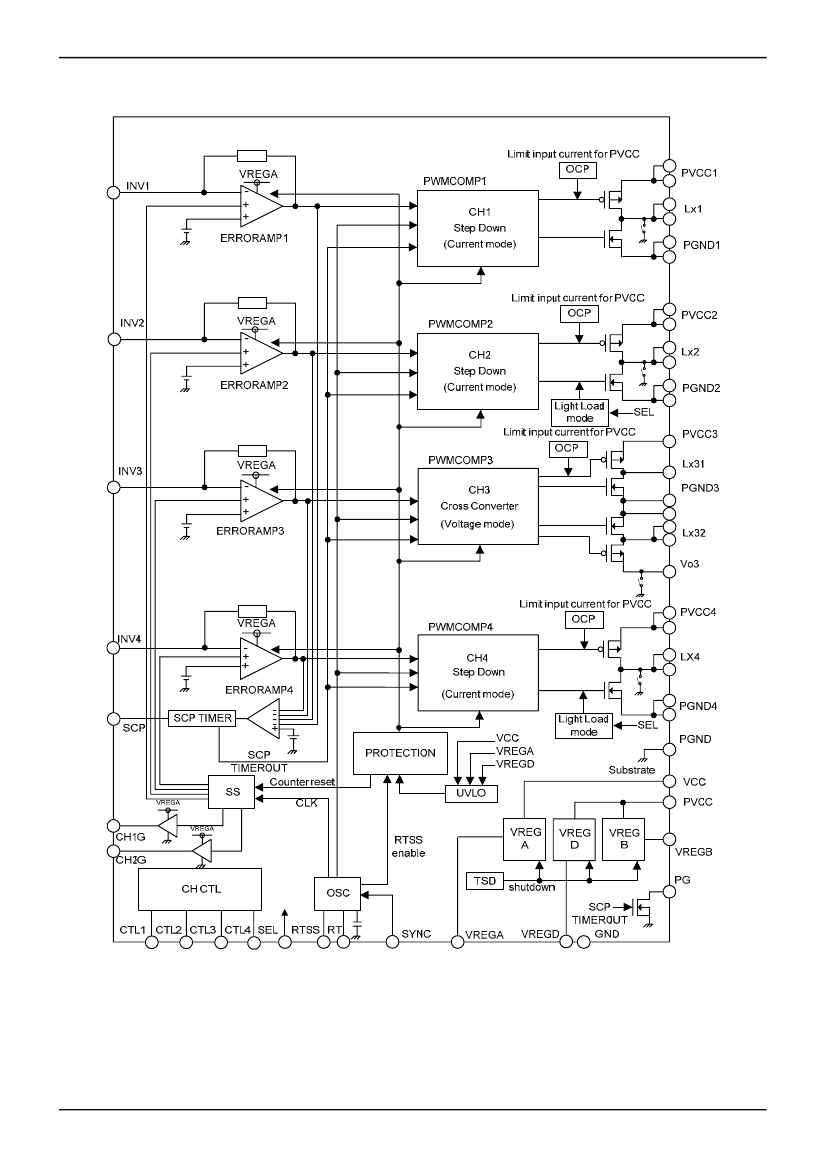

Figure. 1 Function block diagram

○Product

structure:Sillicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product is not designed protection against radio active rays

1/35

TSZ02201-0B2B0A400010-1-2

17.APR.2013 Rev.001
