82V3910AUG Overview

Clock Generators & Support Products SyncE SETS for 10 GbE and 40GbE

82V3910AUG Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	CABGA
package instruction	BGA,
Contacts	196
Manufacturer packaging code	AUG196
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	CHIP ARRAY BGA 15.0 X 15.0 X 1.0 MM PIT
JESD-30 code	S-PBGA-B196
JESD-609 code	e1
Humidity sensitivity level	3
Number of functions	1
Number of terminals	196
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	260
Nominal supply voltage	3.3 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	INDUSTRIAL
Terminal surface	TIN SILVER COPPER
Terminal form	BALL
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Synchronous Ethernet SETS

for 10GbE and 40GbE

FEATURES

HIGHLIGHTS

•

Jitter generation <0.3 ps RMS (10 kHz to 20 MHz), meets jitter gen-

eration requirements of leading PHYs supporting 10GBASE-R,

10GBASE-W, 40GBASE-R, OC-192 and STM-64

Features 0.5 mHz to 35 Hz bandwidth

Provides node clock for ITU-T G.8261/G.8262 Synchronous Ether-

net (SyncE)

Provides node clocks for Cellular and WLL base-station (GSM and

3G networks)

Provides clocks for DSL access concentrators (DSLAM), especially

for Japan TCM-ISDN network timing based ADSL equipments

Provides clocks for 1 Gigabit, 10 Gigabit, and 40 Gigabit Ethernet

Supports clock generation for IEEE-1588 applications

Provides an integrated solution for Synchronous Equipment Timing

Source, including Stratum 3, SMC, EEC-Option 1 and EEC-

Option 2 Clocks

Integrates T4 DPLL and T0 DPLL; T4 DPLL locks independently or

locks to T0 DPLL

Supports programmable DPLL bandwidth (0.5 mHz to 35 Hz) and

damping factor (1.2 to 20 in 5 steps)

Supports 1.1X10

-5

ppm absolute holdover accuracy and

4.4X10

-8

ppm instantaneous holdover accuracy

Supports hitless reference switching to minimize phase transients

on T0 DPLL output to be no more than 0.61 ns

Integrates 2 jitter attenuating APLLs to generate ultra-low jitter

clocks

•

Supports 3 clock modes: SONET, Ethernet, and Ethernet LAN-

PHY

•

Supports up to two crystal connections, allowing each APLL to

support up to two modes of operation

Supports input and output clocks whose frequencies range from

1PPS to 644.53125 MHz

•

Includes 1PPS clock input and output

•

Provides

IN1

and

IN2

for

64 kHz + 8 kHz

64 kHz + 8 kHz + 0.4 kHz composite clocks

•

Provides IN3, IN4, IN7~IN14 input CMOS clocks whose frequen-

cies range from 1PPS to 156.25 MHz

•

Provides IN5 and IN6 input differential clocks whose frequencies

range from 1PPS to 625 MHz

IDT82V3910

Short Form Datasheet

•

MAIN FEATURES

•

Provides OUT1 to OUT5 output CMOS clocks whose frequency

cover from 1PPS to 125 MHz

•

Provides OUT6,OUT7,OUT10 and OUT11 output differential

clocks whose frequency cover from 25 MHz to 644.53125 MHz

•

Provides OUT8 for composite clocks and OUT9 for 1.544 MHz/

2.048 MHz (BITS/SSU)

Provides output clocks for BITS, GPS, 3G, GSM, etc.

Provides a 1PPS, 2 kHz, 4 kHz, or 8 kHz frame sync input signal,

and a 1PPS, 2 kHz or 8 kHz frame sync output signal

Internal DCO can be controlled by an external processor to be used

for IEEE-1588 clock generation

Supports programmable input-to-output phase offset adjustment

Limits the phase and frequency offset of the outputs

Supports Forced or Automatic operating mode switch controlled by

an internal state machine. Automatic mode switch supports Free-

Run, Locked and Holdover modes

Supports manual and automatic selected input clock switch

Supports automatic hitless selected input clock switch on clock fail-

ure

Supports three types of input clock sources: recovered clock from

STM-N or OC-n, PDH network synchronization timing and external

synchronization reference timing

Supports AMI, LVPECL/LVDS and CMOS input/output technologies

Supports Master/Slave application (two chips used together) to

enable system protection against single chip failure

Supports Telcordia GR-1244-CORE, Telcordia GR-253-CORE,

ITU-T G.812, ITU-T G.8262, ITU-T G.813 and ITU-T G.783 Recom-

mendations

I2C Microprocessor interface

IEEE 1149.1 JTAG Boundary Scan

Single 3.3 V operation with 5 V tolerant CMOS I/Os

1mm ball pitch CABGA green package

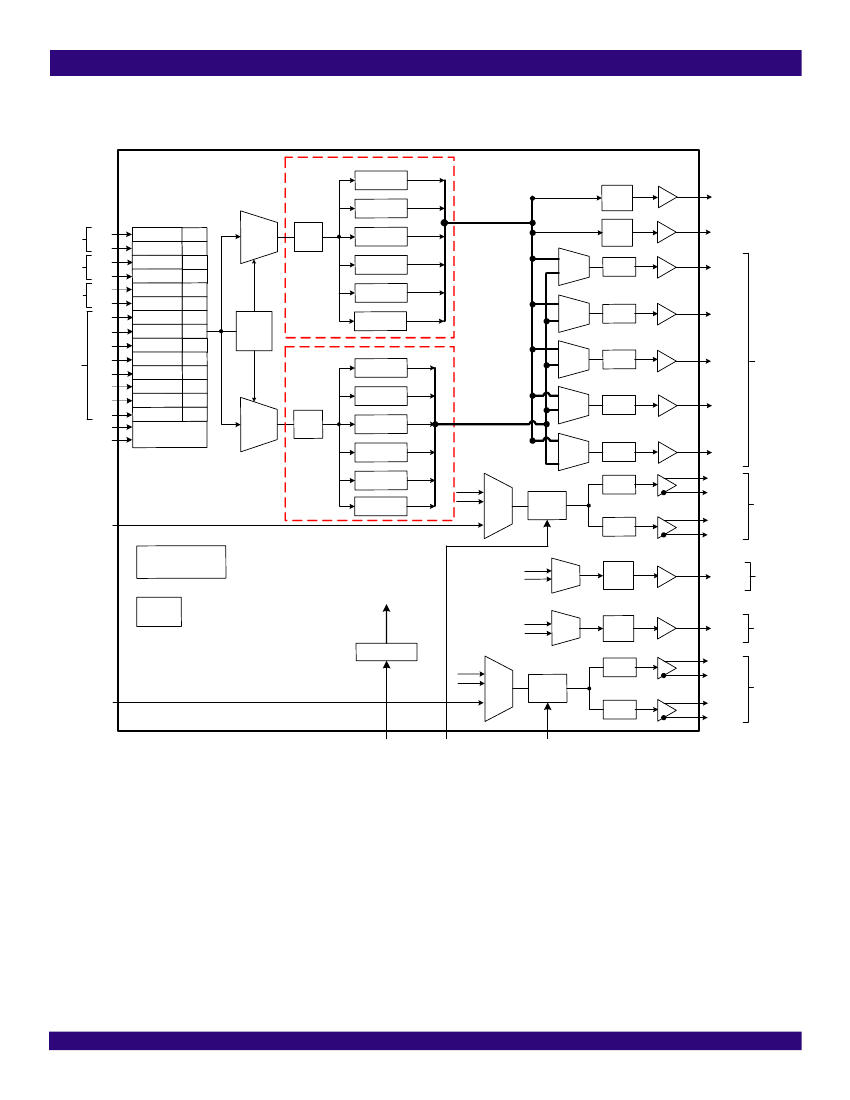

SMC / SEC (SONET / SDH equipment)

EEC (Synchronous Ethernet equipment)

Core and access IP switches / routers

Gigabit and Terabit IP switches / routers

Cellular and WLL base-station node clocks

Broadband and multi-service access equipment

OTHER FEATURES

•

APPLICATIONS

IDT and the IDT logo are trademarks of Integrated Device Technology, Inc.



2013 Integrated Device Technology, Inc.

July 1, 2013

DSC-7238/-
