BU25TA2WHFV-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BU25TA2WHFV-TR

BU25TA2WHFV-TR: DescriptionLDO Voltage Regulators CMOS LDO REGULATOR; CategoryPower/power management The power supply circuit; File Size2MB，33 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BU25TA2WHFV-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BU25TA2WHFV-TR	-	-	View	Buy Now

BU25TA2WHFV-TR Overview

LDO Voltage Regulators CMOS LDO REGULATOR

BU25TA2WHFV-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOF
package instruction	HVSSOF, FL6,.047,20
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Adjustability	FIXED
Nominal dropback voltage 1	1 V
Maximum absolute input voltage	6.5 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-F5
length	1.6 mm
Maximum grid adjustment rate	0.02%
Maximum load regulation	0.08%
Number of functions	1
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.2 A
Maximum output voltage 1	2.525 V
Minimum output voltage 1	2.475 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	HVSSOF
Encapsulate equivalent code	FL6,.047,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm
surface mount	YES
technology	CMOS
Terminal form	FLAT
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1%
width	1.2 mm

Preview

Download Datasheet

View All

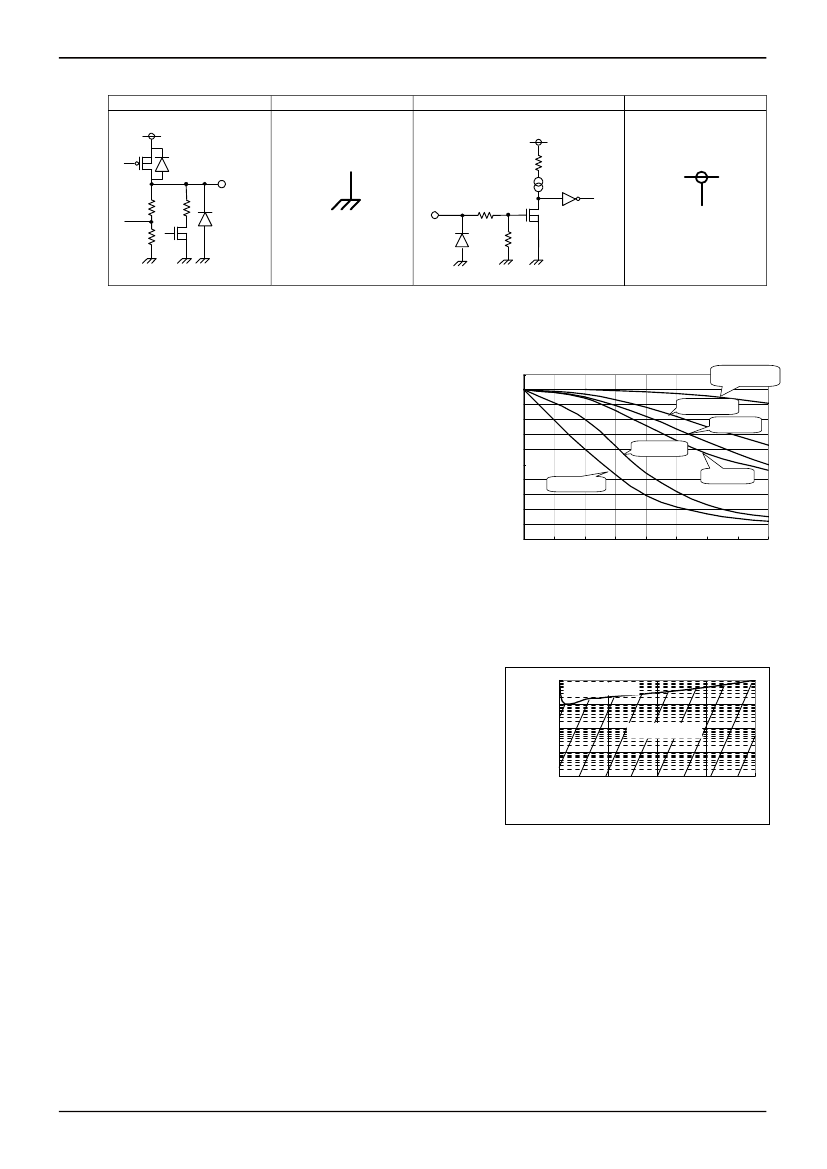

CMOS LDO Regulators for Portable Equipments

1ch 200mA

CMOS LDO Regulators

BUTA2WNVX series, BUTA2WHFV series

No.11020ECT01

●Description

BU□□TA2WNVX /HFV series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on

microminiature package SSON004X1216 (1.2 mm



1.6 mm



0.6 mm) &HVSOF5(1.6mm



1.6mm



0.6mm). It has

excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 40 µA.

It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.

Microminiature package SSON004X1216 & HVSOF5 with built-in heatsink is adopted for the package, which contributes to

the space-saving design of the set.

●Features

1) High-accuracy output voltage of

1%

(25 mV on 1.5-V & 1.8-V products）

2) High ripple rejection: 70 dB (Typ., 1 kHz, VOUT1.8 V))

3) Compatible with small ceramic capacitor (C

=Co=1.0 µF)

4) Low current consumption: 40 µA

5) ON/OFF control of output voltage

6) With built-in overcurrent protection circuit and overheat protection circuit

7) With built-in output discharge circuit

8) Adopting microminiature power package SSON004X1216

●Applications

Battery-powered portable equipment, etc.

●Line

■

200 mA BU□□TA2WNVX / HFV series

Product Name

BU□□TA2WNVX

BU□□TA2WHFV

1.5

○

1.8

○

2.5

○

2.6

○

2.7

○

2.8 2.85 2.9

○

3.0

○

3.1

○

3.2

○

3.3

○

3.4

○

Package

SSON004X1216

HVSOF5

Model name: BH□□TA2W□□□

Symbol

Contents

Specification of output voltage

□□

Package

Output voltage (V)

1.5V(Typ.)

1.8V(Typ.)

2.5V(Typ.)

2.6V(Typ.)

2.7V(Typ.)

□□

NVX :SSON004X1216

HFV :HVSOF5

Output voltage (V)

2.8V(Typ.)

2.85V(Typ.)

2.9V(Typ.)

3.0V(Typ.)

3.1V(Typ.)

□□

Output voltage (V)

3.2V(Typ.)

3.3V(Typ.)

3.4V(Typ.)

www.rohm.com

1/29

2011.01 - Rev.C
